Draw adapter interface used for drawing eVision objects and results. More...

#include <eVision/Easy/EDrawAdapter.h>

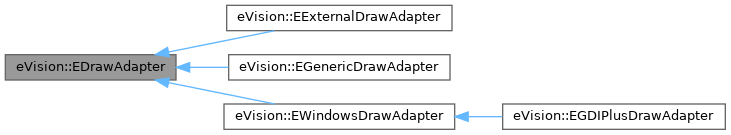

Inheritance diagram for eVision::EDrawAdapter:

Collaboration diagram for eVision::EDrawAdapter:

Public Member Functions
virtual	~EDrawAdapter () throw ()
virtual void	DrawPoint (int32_t x1, int32_t y1, eVision::EPen pen)=0
	Draws a point at the given coordinate.
virtual void	DrawPoint (int32_t x1, int32_t y1)=0
	Draws a point at the given coordinate.
virtual void	Line (int32_t x1, int32_t y1, int32_t x2, int32_t y2, eVision::EPen pen)=0
	Draws a line between two points.
virtual void	Line (int32_t x1, int32_t y1, int32_t x2, int32_t y2)=0
	Draws a line between two points.
virtual void	Arc (int32_t orgX, int32_t orgY, int32_t width, int32_t height, float startAngle, float amplitude, eVision::EPen pen)=0
	Draws an arc defined by a rectangle, angle, and amplitude.
virtual void	Arc (int32_t orgX, int32_t orgY, int32_t width, int32_t height, float startAngle, float amplitude)=0
	Draws an arc defined by a rectangle, angle, and amplitude.
virtual void	Rectangle (int32_t orgX, int32_t orgY, int32_t width, int32_t height, eVision::EPen pen)=0
	Draws a rectangle.
virtual void	Rectangle (int32_t orgX, int32_t orgY, int32_t width, int32_t height)=0
	Draws a rectangle.
virtual void	Polygon (const std::vector< eVision::EPoint > &points, eVision::EPen pen)=0
	Draws a polygon.
virtual void	Polygon (const std::vector< eVision::EPoint > &points)=0
	Draws a polygon.
virtual void	Polygon (const eVision::EPolygon &polygon, eVision::EPen pen)
	Draws a polygon.
virtual void	Polygon (const eVision::EPolygon &polygon)
	Draws a polygon.
virtual void	Ellipse (int32_t orgX, int32_t orgY, int32_t width, int32_t height, eVision::EPen pen)=0
	Draws an ellipse.
virtual void	Ellipse (int32_t orgX, int32_t orgY, int32_t width, int32_t height)=0
	Draws an ellipse.
void	Ellipse (const eVision::EEllipse &ellipse, eVision::EPen pen)
	Draws an ellipse.
void	Ellipse (const eVision::EEllipse &ellipse)
	Draws an ellipse.
virtual void	RotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, bool drawDiagonals, eVision::EPen pen)
	Draws a rotated ellipse.
virtual void	RotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, bool drawDiagonals)
	Draws a rotated ellipse.
void	RotatedEllipse (const eVision::EEllipse &ellipse, bool drawDiagonals, eVision::EPen pen)
	Draws a rotated ellipse.
void	RotatedEllipse (const eVision::EEllipse &ellipse, bool drawDiagonals)
	Draws a rotated ellipse.
virtual void	FilledRectangle (int32_t orgX, int32_t orgY, int32_t width, int32_t height, eVision::EPen pen, eVision::EBrush brush)=0
	Fills a rectangle.
virtual void	FilledRectangle (int32_t orgX, int32_t orgY, int32_t width, int32_t height, eVision::EPen pen)=0
	Fills a rectangle.
virtual void	FilledRectangle (int32_t orgX, int32_t orgY, int32_t width, int32_t height)=0
	Fills a rectangle.
virtual void	FilledEllipse (int32_t orgX, int32_t orgY, int32_t width, int32_t height, eVision::EPen pen, eVision::EBrush brush)=0
	Fills an ellipse.
virtual void	FilledEllipse (int32_t orgX, int32_t orgY, int32_t width, int32_t height, eVision::EPen pen)=0
	Fills an ellipse.
virtual void	FilledEllipse (int32_t orgX, int32_t orgY, int32_t width, int32_t height)=0
	Fills an ellipse.
void	FilledEllipse (const eVision::EEllipse &ellipse, eVision::EPen pen, eVision::EBrush brush)
	Fills an ellipse.
void	FilledEllipse (const eVision::EEllipse &ellipse, eVision::EPen pen)
	Fills an ellipse.
void	FilledEllipse (const eVision::EEllipse &ellipse)
	Fills an ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, eVision::EPen pen, eVision::EBrush brush)
	Fills a rotated ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, eVision::EPen pen)
	Fills a rotated ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (const eVision::EEllipse &ellipse, eVision::EPen pen, eVision::EBrush brush)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (const eVision::EEllipse &ellipse, eVision::EPen pen)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (const eVision::EEllipse &ellipse)
	Fills a rotated ellipse.
virtual void	FilledPolygon (const std::vector< eVision::EPoint > &points, eVision::EPen pen, eVision::EBrush brush)=0
	Fills a polygon.
virtual void	FilledPolygon (const std::vector< eVision::EPoint > &points, eVision::EPen pen)=0
	Fills a polygon.
virtual void	FilledPolygon (const std::vector< eVision::EPoint > &points)=0
	Fills a polygon.
virtual void	FilledPolygon (const eVision::EPolygon &polygon, eVision::EPen pen, eVision::EBrush brush)
	Fills a polygon.
virtual void	FilledPolygon (const eVision::EPolygon &polygon, eVision::EPen pen)
	Fills a polygon.
virtual void	FilledPolygon (const eVision::EPolygon &polygon)
	Fills a polygon.
virtual void	Text (const std::string &text, int32_t x, int32_t y, eVision::EBrush textBrush, eVision::ETextSizeConstraint constraint)
	Draws a text.
virtual void	Text (const std::string &text, int32_t x, int32_t y, eVision::EBrush textBrush)
	Draws a text.
virtual void	Text (const std::string &text, int32_t x, int32_t y)
	Draws a text.
virtual void	Text (const std::string &text, int32_t x, int32_t y, float orientation, eVision::EBrush textBrush, eVision::ETextSizeConstraint constraint)=0
	Draws a text.
virtual void	Text (const std::string &text, int32_t x, int32_t y, float orientation, eVision::EBrush textBrush)=0
	Draws a text.
virtual void	Text (const std::string &text, int32_t x, int32_t y, float orientation)=0
	Draws a text.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, eVision::EBrush textBrush, eVision::EBrush backgroundBrush, eVision::ETextSizeConstraint constraint)
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, eVision::EBrush textBrush, eVision::EBrush backgroundBrush)
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, eVision::EBrush textBrush)
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y)
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, float orientation, eVision::EBrush textBrush, eVision::EBrush backgroundBrush, eVision::ETextSizeConstraint constraint)=0
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, float orientation, eVision::EBrush textBrush, eVision::EBrush backgroundBrush)=0
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, float orientation, eVision::EBrush textBrush)=0
	Draws a text with a background.
virtual void	BackedText (const std::string &text, int32_t x, int32_t y, float orientation)=0
	Draws a text with a background.
virtual void	Image (const eVision::EBaseROI &image)
	Draws an image.
virtual void	Image (const eVision::EROIBW8 &image, eVision::EBW8Vector *pColorScale)
	Draws an image.
virtual void	Image (const eVision::EROIBW8 &image, eVision::EC24Vector *pColorScale)
	Draws an image.
virtual void	Image (const eVision::EBaseROI &image, float orgX, float orgY, float width, float height)=0
	Draws an image.
virtual void	Image (const eVision::EROIBW8 &image, eVision::EC24Vector *pColorScale, float orgX, float orgY, float width, float height)=0
	Draws an image.
virtual void	Image (const eVision::EROIBW8 &image, eVision::EBW8Vector *pColorScale, float orgX, float orgY, float width, float height)=0
	Draws an image.
virtual void	DrawMask (const eVision::EBaseROI &mask, const eVision::EBrush &brush)
	Draws a mask with a brush.
virtual void	DrawMask (const eVision::EBaseROI &mask)
	Draws a mask with a brush.
virtual void	DrawMask (const eVision::EBaseROI &mask, float orgX, float orgY, float width, float height, const eVision::EBrush &brush)
	Draws a mask with a brush.
virtual void	DrawMask (const eVision::EBaseROI &mask, float orgX, float orgY, float width, float height)
	Draws a mask with a brush.
virtual eVision::EPoint	GetTextSize (const std::string &text)=0
	Size of the given text using the default font (EDrawAdapter::SetFont).
virtual void	UseCurrentPen ()=0
	Use the current pen set in the drawing framework.
virtual void	UseCurrentBrush ()=0
	Use the current pen set in the drawing framework.
virtual void	SetPen (const eVision::EPen &pen)
	Default pen.
virtual eVision::EPen	GetPen () const
	Default pen.
virtual void	SetBrush (const eVision::EBrush &brush)
	Default brush.
virtual eVision::EBrush	GetBrush () const
	Default brush.
virtual void	SetFont (const eVision::EFont &font)
	Default font.
virtual eVision::EFont	GetFont () const
	Default font.
virtual int32_t	ComputeTextSize (const std::string &text, int32_t desiredWidth)
	Computes text size for given constraint. Constraint is the desired total width of the text to draw.
	EDrawAdapter (CppWrapperInternal::InternalConstructor)

Public Attributes
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Draw adapter interface used for drawing eVision objects and results.

The interface contains various primitives to draw images and various shapes (line, rectangle, ellipse, polygon). It draws the contours of shapes using a EPen and fills the inside of a shape with a EBrush. It has a default pen (EDrawAdapter::SetPen) and default brush (EDrawAdapter::SetBrush) but they can be overridden using the optional pen and brush arguments of shape primitives. If no default pen and brush are set and no optional pen and brush are specified when calling a shape primitives, the shape will not be drawn. For the "Fill" primitives, no pen will result in no contours being drawn around the shape and no brush is equivalent to the corresponding "Draw" primitive.

License(s): None

Constructor & Destructor Documentation

◆ ~EDrawAdapter()

eVision::EDrawAdapter::~EDrawAdapter	(		)
throw	(	)

virtual

◆ EDrawAdapter()

eVision::EDrawAdapter::EDrawAdapter ( CppWrapperInternal::InternalConstructor )

Member Function Documentation

◆ Arc() [1/2]

virtual void eVision::EDrawAdapter::Arc	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		float	startAngle,
		float	amplitude )

pure virtual

Draws an arc defined by a rectangle, angle, and amplitude.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
startAngle	Starting angle of the arc in radians
amplitude	Amplitude of the arc in radians

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Arc() [2/2]

virtual void eVision::EDrawAdapter::Arc	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		float	startAngle,
		float	amplitude,
		eVision::EPen	pen )

pure virtual

Draws an arc defined by a rectangle, angle, and amplitude.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
startAngle	Starting angle of the arc in radians
amplitude	Amplitude of the arc in radians
pen	Optional pen to use

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ BackedText() [1/8]

void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ BackedText() [2/8]

void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		eVision::EBrush	textBrush )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ BackedText() [3/8]

void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		eVision::EBrush	textBrush,
		eVision::EBrush	backgroundBrush )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ BackedText() [4/8]

void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		eVision::EBrush	textBrush,
		eVision::EBrush	backgroundBrush,
		eVision::ETextSizeConstraint	constraint )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ BackedText() [5/8]

virtual void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation )

pure virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ BackedText() [6/8]

virtual void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation,
		eVision::EBrush	textBrush )

pure virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ BackedText() [7/8]

virtual void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation,
		eVision::EBrush	textBrush,
		eVision::EBrush	backgroundBrush )

pure virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ BackedText() [8/8]

virtual void eVision::EDrawAdapter::BackedText	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation,
		eVision::EBrush	textBrush,
		eVision::EBrush	backgroundBrush,
		eVision::ETextSizeConstraint	constraint )

pure virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ ComputeTextSize()

int32_t eVision::EDrawAdapter::ComputeTextSize	(	const std::string &	text,
		int32_t	desiredWidth )

virtual

Computes text size for given constraint. Constraint is the desired total width of the text to draw.

Parameters

text	Text to measure before drawing.
desiredWidth	Width constraint.

Reimplemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ DrawMask() [1/4]

void eVision::EDrawAdapter::DrawMask ( const eVision::EBaseROI & mask )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawMask() [2/4]

void eVision::EDrawAdapter::DrawMask	(	const eVision::EBaseROI &	mask,
		const eVision::EBrush &	brush )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw
brush	Brush to draw the mask with.

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawMask() [3/4]

void eVision::EDrawAdapter::DrawMask	(	const eVision::EBaseROI &	mask,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawMask() [4/4]

void eVision::EDrawAdapter::DrawMask	(	const eVision::EBaseROI &	mask,
		float	orgX,
		float	orgY,
		float	width,
		float	height,
		const eVision::EBrush &	brush )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.
brush	Brush to draw the mask with.

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawPoint() [1/2]

virtual void eVision::EDrawAdapter::DrawPoint	(	int32_t	x1,
		int32_t	y1 )

pure virtual

Draws a point at the given coordinate.

Parameters

x1	X coordinate
y1	Y coordinate

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ DrawPoint() [2/2]

virtual void eVision::EDrawAdapter::DrawPoint	(	int32_t	x1,
		int32_t	y1,
		eVision::EPen	pen )

pure virtual

Draws a point at the given coordinate.

Parameters

x1	X coordinate
y1	Y coordinate
pen	Optional pen to use

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Ellipse() [1/4]

void eVision::EDrawAdapter::Ellipse ( const eVision::EEllipse & ellipse )

Draws an ellipse.

Parameters

ellipse the ellipse to be drawn (angle is ignored).

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter::RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ Ellipse() [2/4]

void eVision::EDrawAdapter::Ellipse	(	const eVision::EEllipse &	ellipse,
		eVision::EPen	pen )

Draws an ellipse.

Parameters

ellipse	the ellipse to be drawn (angle is ignored).
pen	Optional pen to use

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter::RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ Ellipse() [3/4]

virtual void eVision::EDrawAdapter::Ellipse	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height )

pure virtual

Draws an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter::RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Ellipse() [4/4]

virtual void eVision::EDrawAdapter::Ellipse	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		eVision::EPen	pen )

pure virtual

Draws an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse
pen	Optional pen to use

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter::RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledEllipse() [1/6]

void eVision::EDrawAdapter::FilledEllipse ( const eVision::EEllipse & ellipse )

Fills an ellipse.

Parameters

ellipse the ellipse to be drawn.

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter::FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [2/6]

void eVision::EDrawAdapter::FilledEllipse	(	const eVision::EEllipse &	ellipse,
		eVision::EPen	pen )

Fills an ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Optional pen to use for drawing the contour of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter::FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [3/6]

void eVision::EDrawAdapter::FilledEllipse	(	const eVision::EEllipse &	ellipse,
		eVision::EPen	pen,
		eVision::EBrush	brush )

Fills an ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Optional pen to use for drawing the contour of the ellipse
brush	Optional pen to use for drawing the inside of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter::FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [4/6]

virtual void eVision::EDrawAdapter::FilledEllipse	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height )

pure virtual

Fills an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter::FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledEllipse() [5/6]

virtual void eVision::EDrawAdapter::FilledEllipse	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		eVision::EPen	pen )

pure virtual

Fills an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse
pen	Optional pen to use for drawing the contour of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter::FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledEllipse() [6/6]

virtual void eVision::EDrawAdapter::FilledEllipse	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		eVision::EPen	pen,
		eVision::EBrush	brush )

pure virtual

Fills an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse
pen	Optional pen to use for drawing the contour of the ellipse
brush	Optional pen to use for drawing the inside of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter::FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledPolygon() [1/6]

void eVision::EDrawAdapter::FilledPolygon ( const eVision::EPolygon & polygon )

virtual

Fills a polygon.

Parameters

polygon Polygon

◆ FilledPolygon() [2/6]

void eVision::EDrawAdapter::FilledPolygon	(	const eVision::EPolygon &	polygon,
		eVision::EPen	pen )

virtual

Fills a polygon.

Parameters

polygon	Polygon
pen	Optional pen to use for drawing the contour of the polygon

◆ FilledPolygon() [3/6]

void eVision::EDrawAdapter::FilledPolygon	(	const eVision::EPolygon &	polygon,
		eVision::EPen	pen,
		eVision::EBrush	brush )

virtual

Fills a polygon.

Parameters

polygon	Polygon
pen	Optional pen to use for drawing the contour of the polygon
brush	Optional pen to use for drawing the inside of the polygon

◆ FilledPolygon() [4/6]

virtual void eVision::EDrawAdapter::FilledPolygon ( const std::vector< eVision::EPoint > & points )

pure virtual

Fills a polygon.

Parameters

points Points of the polygon

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledPolygon() [5/6]

virtual void eVision::EDrawAdapter::FilledPolygon	(	const std::vector< eVision::EPoint > &	points,
		eVision::EPen	pen )

pure virtual

Fills a polygon.

Parameters

points	Points of the polygon
pen	Optional pen to use for drawing the contour of the polygon

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledPolygon() [6/6]

virtual void eVision::EDrawAdapter::FilledPolygon	(	const std::vector< eVision::EPoint > &	points,
		eVision::EPen	pen,
		eVision::EBrush	brush )

pure virtual

Fills a polygon.

Parameters

points	Points of the polygon
pen	Optional pen to use for drawing the contour of the polygon
brush	Optional pen to use for drawing the inside of the polygon

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledRectangle() [1/3]

virtual void eVision::EDrawAdapter::FilledRectangle	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height )

pure virtual

Fills a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledRectangle() [2/3]

virtual void eVision::EDrawAdapter::FilledRectangle	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		eVision::EPen	pen )

pure virtual

Fills a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
pen	Optional pen to use for drawing the contour of the rectangle

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledRectangle() [3/3]

virtual void eVision::EDrawAdapter::FilledRectangle	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		eVision::EPen	pen,
		eVision::EBrush	brush )

pure virtual

Fills a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
pen	Optional pen to use for drawing the contour of the rectangle
brush	Optional brush to use for filling the inside of the rectangle

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ FilledRotatedEllipse() [1/6]

void eVision::EDrawAdapter::FilledRotatedEllipse ( const eVision::EEllipse & ellipse )

Fills a rotated ellipse.

Parameters

ellipse the ellipse to be drawn.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [2/6]

void eVision::EDrawAdapter::FilledRotatedEllipse	(	const eVision::EEllipse &	ellipse,
		eVision::EPen	pen )

Fills a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [3/6]

void eVision::EDrawAdapter::FilledRotatedEllipse	(	const eVision::EEllipse &	ellipse,
		eVision::EPen	pen,
		eVision::EBrush	brush )

Fills a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Pen to draw the ellipse with.
brush	Brush to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [4/6]

void eVision::EDrawAdapter::FilledRotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis )

virtual

Fills a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [5/6]

void eVision::EDrawAdapter::FilledRotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		eVision::EPen	pen )

virtual

Fills a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [6/6]

void eVision::EDrawAdapter::FilledRotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		eVision::EPen	pen,
		eVision::EBrush	brush )

virtual

Fills a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
pen	Pen to draw the ellipse with.
brush	Brush to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ GetBrush()

eVision::EBrush eVision::EDrawAdapter::GetBrush ( ) const

virtual

Default brush.

◆ GetFont()

eVision::EFont eVision::EDrawAdapter::GetFont ( ) const

virtual

Default font.

Reimplemented in eVision::EGenericDrawAdapter.

◆ GetPen()

eVision::EPen eVision::EDrawAdapter::GetPen ( ) const

virtual

Default pen.

◆ GetTextSize()

virtual eVision::EPoint eVision::EDrawAdapter::GetTextSize ( const std::string & text )

pure virtual

Size of the given text using the default font (EDrawAdapter::SetFont).

Parameters

text Text

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Image() [1/6]

void eVision::EDrawAdapter::Image ( const eVision::EBaseROI & image )

virtual

Draws an image.

Parameters

image Image.

Reimplemented in eVision::EGenericDrawAdapter.

◆ Image() [2/6]

virtual void eVision::EDrawAdapter::Image	(	const eVision::EBaseROI &	image,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

pure virtual

Draws an image.

Parameters

image	Image.
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Image() [3/6]

void eVision::EDrawAdapter::Image	(	const eVision::EROIBW8 &	image,
		eVision::EBW8Vector *	pColorScale )

virtual

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.

Reimplemented in eVision::EGenericDrawAdapter.

◆ Image() [4/6]

virtual void eVision::EDrawAdapter::Image	(	const eVision::EROIBW8 &	image,
		eVision::EBW8Vector *	pColorScale,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

pure virtual

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Image() [5/6]

void eVision::EDrawAdapter::Image	(	const eVision::EROIBW8 &	image,
		eVision::EC24Vector *	pColorScale )

virtual

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.

Reimplemented in eVision::EGenericDrawAdapter.

◆ Image() [6/6]

virtual void eVision::EDrawAdapter::Image	(	const eVision::EROIBW8 &	image,
		eVision::EC24Vector *	pColorScale,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

pure virtual

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Line() [1/2]

virtual void eVision::EDrawAdapter::Line	(	int32_t	x1,
		int32_t	y1,
		int32_t	x2,
		int32_t	y2 )

pure virtual

Draws a line between two points.

Parameters

x1	X coordinate of line origin point
y1	Y coordinate of line origin point
x2	X coordinate of line end point
y2	Y coordinate of line end point

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Line() [2/2]

virtual void eVision::EDrawAdapter::Line	(	int32_t	x1,
		int32_t	y1,
		int32_t	x2,
		int32_t	y2,
		eVision::EPen	pen )

pure virtual

Draws a line between two points.

Parameters

x1	X coordinate of line origin point
y1	Y coordinate of line origin point
x2	X coordinate of line end point
y2	Y coordinate of line end point
pen	Optional pen to use

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Polygon() [1/4]

void eVision::EDrawAdapter::Polygon ( const eVision::EPolygon & polygon )

virtual

Draws a polygon.

Parameters

polygon Polygon

◆ Polygon() [2/4]

void eVision::EDrawAdapter::Polygon	(	const eVision::EPolygon &	polygon,
		eVision::EPen	pen )

virtual

Draws a polygon.

Parameters

polygon	Polygon
pen	Optional pen to use

◆ Polygon() [3/4]

virtual void eVision::EDrawAdapter::Polygon ( const std::vector< eVision::EPoint > & points )

pure virtual

Draws a polygon.

Parameters

points Points of the polygon

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Polygon() [4/4]

virtual void eVision::EDrawAdapter::Polygon	(	const std::vector< eVision::EPoint > &	points,
		eVision::EPen	pen )

pure virtual

Draws a polygon.

Parameters

points	Points of the polygon
pen	Optional pen to use

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Rectangle() [1/2]

virtual void eVision::EDrawAdapter::Rectangle	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height )

pure virtual

Draws a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Rectangle() [2/2]

virtual void eVision::EDrawAdapter::Rectangle	(	int32_t	orgX,
		int32_t	orgY,
		int32_t	width,
		int32_t	height,
		eVision::EPen	pen )

pure virtual

Draws a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
pen	Optional pen to use

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ RotatedEllipse() [1/4]

void eVision::EDrawAdapter::RotatedEllipse	(	const eVision::EEllipse &	ellipse,
		bool	drawDiagonals )

Draws a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
drawDiagonals	Whether to draw the diagonal

An ellipse with full angular amplitude is always drawn.

◆ RotatedEllipse() [2/4]

void eVision::EDrawAdapter::RotatedEllipse	(	const eVision::EEllipse &	ellipse,
		bool	drawDiagonals,
		eVision::EPen	pen )

Draws a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
drawDiagonals	Whether to draw the diagonal
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ RotatedEllipse() [3/4]

void eVision::EDrawAdapter::RotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		bool	drawDiagonals )

virtual

Draws a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
drawDiagonals	Whether to draw the diagonal

An ellipse with full angular amplitude is always drawn.

◆ RotatedEllipse() [4/4]

void eVision::EDrawAdapter::RotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		bool	drawDiagonals,
		eVision::EPen	pen )

virtual

Draws a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
drawDiagonals	Whether to draw the diagonal
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ SetBrush()

void eVision::EDrawAdapter::SetBrush ( const eVision::EBrush & brush )

virtual

Default brush.

Parameters

brush Brush.

Reimplemented in eVision::EExternalDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ SetFont()

void eVision::EDrawAdapter::SetFont ( const eVision::EFont & font )

virtual

Default font.

Parameters

font Font.

Reimplemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ SetPen()

void eVision::EDrawAdapter::SetPen ( const eVision::EPen & pen )

virtual

Default pen.

Parameters

pen Pen.

Reimplemented in eVision::EExternalDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Text() [1/6]

void eVision::EDrawAdapter::Text	(	const std::string &	text,
		int32_t	x,
		int32_t	y )

virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ Text() [2/6]

void eVision::EDrawAdapter::Text	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		eVision::EBrush	textBrush )

virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ Text() [3/6]

void eVision::EDrawAdapter::Text	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		eVision::EBrush	textBrush,
		eVision::ETextSizeConstraint	constraint )

virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision::EGenericDrawAdapter.

◆ Text() [4/6]

virtual void eVision::EDrawAdapter::Text	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation )

pure virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Text() [5/6]

virtual void eVision::EDrawAdapter::Text	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation,
		eVision::EBrush	textBrush )

pure virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ Text() [6/6]

virtual void eVision::EDrawAdapter::Text	(	const std::string &	text,
		int32_t	x,
		int32_t	y,
		float	orientation,
		eVision::EBrush	textBrush,
		eVision::ETextSizeConstraint	constraint )

pure virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ UseCurrentBrush()

virtual void eVision::EDrawAdapter::UseCurrentBrush ( )

pure virtual

Use the current pen set in the drawing framework.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

◆ UseCurrentPen()

virtual void eVision::EDrawAdapter::UseCurrentPen ( )

pure virtual

Use the current pen set in the drawing framework.

Implemented in eVision::EExternalDrawAdapter, eVision::EGenericDrawAdapter, and eVision::EWindowsDrawAdapter.

Member Data Documentation

◆ wrappedClass_

CppWrapperInternal::WrappedClass eVision::EDrawAdapter::wrappedClass_

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~EDrawAdapter()

◆ EDrawAdapter()

Member Function Documentation

◆ Arc() [1/2]

◆ Arc() [2/2]

◆ BackedText() [1/8]

◆ BackedText() [2/8]

◆ BackedText() [3/8]

◆ BackedText() [4/8]

◆ BackedText() [5/8]

◆ BackedText() [6/8]

◆ BackedText() [7/8]

◆ BackedText() [8/8]

◆ ComputeTextSize()

◆ DrawMask() [1/4]

◆ DrawMask() [2/4]

◆ DrawMask() [3/4]

◆ DrawMask() [4/4]

◆ DrawPoint() [1/2]

◆ DrawPoint() [2/2]

◆ Ellipse() [1/4]

◆ Ellipse() [2/4]

◆ Ellipse() [3/4]

◆ Ellipse() [4/4]

◆ FilledEllipse() [1/6]

◆ FilledEllipse() [2/6]

◆ FilledEllipse() [3/6]

◆ FilledEllipse() [4/6]

◆ FilledEllipse() [5/6]

◆ FilledEllipse() [6/6]

◆ FilledPolygon() [1/6]

◆ FilledPolygon() [2/6]

◆ FilledPolygon() [3/6]

◆ FilledPolygon() [4/6]

◆ FilledPolygon() [5/6]

◆ FilledPolygon() [6/6]

◆ FilledRectangle() [1/3]

◆ FilledRectangle() [2/3]

◆ FilledRectangle() [3/3]

◆ FilledRotatedEllipse() [1/6]

◆ FilledRotatedEllipse() [2/6]

◆ FilledRotatedEllipse() [3/6]

◆ FilledRotatedEllipse() [4/6]

◆ FilledRotatedEllipse() [5/6]

◆ FilledRotatedEllipse() [6/6]

◆ GetBrush()

◆ GetFont()

◆ GetPen()

◆ GetTextSize()

◆ Image() [1/6]

◆ Image() [2/6]

◆ Image() [3/6]

◆ Image() [4/6]

◆ Image() [5/6]

◆ Image() [6/6]

◆ Line() [1/2]

◆ Line() [2/2]

◆ Polygon() [1/4]

◆ Polygon() [2/4]

◆ Polygon() [3/4]

◆ Polygon() [4/4]

◆ Rectangle() [1/2]

◆ Rectangle() [2/2]

◆ RotatedEllipse() [1/4]

◆ RotatedEllipse() [2/4]

◆ RotatedEllipse() [3/4]

◆ RotatedEllipse() [4/4]

◆ SetBrush()

◆ SetFont()

◆ SetPen()

◆ Text() [1/6]

◆ Text() [2/6]

◆ Text() [3/6]

◆ Text() [4/6]

◆ Text() [5/6]

◆ Text() [6/6]
