eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation Class Reference

Parameters for the user retraining of the text location model of EasyDeepOCR. More...

#include <eVision/EasyDeepLearning/EasyDeepOCR/EDeepOCRModelParametersTextLocation.h>

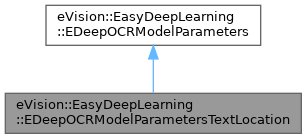

Inheritance diagram for eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation:

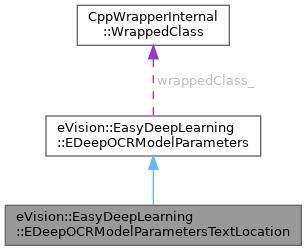

Collaboration diagram for eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation:

Public Member Functions
	EDeepOCRModelParametersTextLocation ()
	Constructs a EDeepOCRModelParametersTextLocation.
	EDeepOCRModelParametersTextLocation (const eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation &other)
	Constructs a EDeepOCRModelParametersTextLocation.
virtual	~EDeepOCRModelParametersTextLocation () throw ()
eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation &	operator= (const eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation &other)
	Assignment operator.
virtual std::unique_ptr< eVision::EasyDeepLearning::EDeepOCRModelParameters >	Clone () const
	Clones the parameters.
float	GetScale () const
	The scaling to apply to images for the location network. Default value: 1.0.
void	SetScale (float scale)
	The scaling to apply to images for the location network. Default value: 1.0.
float	GetThreshold () const
	Threshold for excluding text box from the location network. Default value: 0.5.
void	SetThreshold (float threshold)
	Threshold for excluding text box from the location network. Default value: 0.5.
virtual eVision::EasyDeepLearning::EDeepOCRModel	GetModel () const
	Model for which the parameters are.
	EDeepOCRModelParametersTextLocation (CppWrapperInternal::InternalConstructor)
Public Member Functions inherited from eVision::EasyDeepLearning::EDeepOCRModelParameters
virtual	~EDeepOCRModelParameters () throw ()
void	Load (const std::string &path)
	Load the EDeepOCRModelParameters configuration. The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Load the EDeepOCRModelParameters configuration. The given ESerializer must have been created for reading.
void	Save (const std::string &path)
	Save the EDeepOCRModelParameters configuration. The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Save the EDeepOCRModelParameters configuration. The given ESerializer must have been created for writing.
	EDeepOCRModelParameters (CppWrapperInternal::InternalConstructor)

Additional Inherited Members
Static Public Member Functions inherited from eVision::EasyDeepLearning::EDeepOCRModelParameters
static std::unique_ptr< eVision::EasyDeepLearning::EDeepOCRModelParameters >	Create (const std::string &path)
	Creates and loads the correct parameter instance.
static std::unique_ptr< eVision::EasyDeepLearning::EDeepOCRModelParameters >	Create (eVision::EasyDeepLearning::EDeepOCRModel model)
	Creates and loads the correct parameter instance.
Public Attributes inherited from eVision::EasyDeepLearning::EDeepOCRModelParameters
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Parameters for the user retraining of the text location model of EasyDeepOCR.

License(s): EasyDeepOCR

Constructor & Destructor Documentation

EDeepOCRModelParametersTextLocation() [1/3]

eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::EDeepOCRModelParametersTextLocation

(

)

Constructs a EDeepOCRModelParametersTextLocation.

EDeepOCRModelParametersTextLocation() [2/3]

eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::EDeepOCRModelParametersTextLocation

(

const eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation &

other

)

Constructs a EDeepOCRModelParametersTextLocation.

Parameters

other

Other object to copy

~EDeepOCRModelParametersTextLocation()

eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::~EDeepOCRModelParametersTextLocation ( ) throw (  )

virtual

EDeepOCRModelParametersTextLocation() [3/3]

eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::EDeepOCRModelParametersTextLocation

(

CppWrapperInternal::InternalConstructor

)

Member Function Documentation

Clone()

std::unique_ptr< eVision::EasyDeepLearning::EDeepOCRModelParameters > eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::Clone ( ) const

virtual

Clones the parameters.

Implements eVision::EasyDeepLearning::EDeepOCRModelParameters.

GetModel()

eVision::EasyDeepLearning::EDeepOCRModel eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::GetModel ( ) const

virtual

Model for which the parameters are.

Implements eVision::EasyDeepLearning::EDeepOCRModelParameters.

GetScale()

float eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::GetScale

(

)

const

The scaling to apply to images for the location network. Default value: 1.0.

GetThreshold()

float eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::GetThreshold

(

)

const

Threshold for excluding text box from the location network. Default value: 0.5.

Text boxes with a score below this threshold are rejected.

operator=()

eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation & eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::operator=

(

const eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation &

other

)

Assignment operator.

Parameters

other

Other EDeepOCRModelParametersTextLocation object to assign to this object.

SetScale()

void eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::SetScale

(

float

scale

)

The scaling to apply to images for the location network. Default value: 1.0.

Parameters

scale

Scale to apply to images for the location network (values must be in ]0,1]).

SetThreshold()

void eVision::EasyDeepLearning::EDeepOCRModelParametersTextLocation::SetThreshold

(

float

threshold

)

Threshold for excluding text box from the location network. Default value: 0.5.

Text boxes with a score below this threshold are rejected.

Parameters

threshold

Threshold (value between 0 and 1)
