eVision.Easy3D.E3DAxisSystem Class Reference

Represent a 3D base axis system. More...

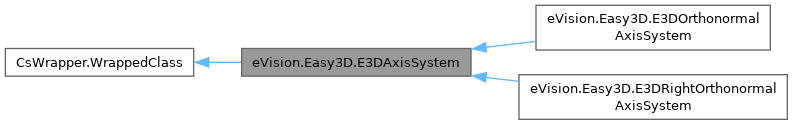

Inheritance diagram for eVision.Easy3D.E3DAxisSystem:

Collaboration diagram for eVision.Easy3D.E3DAxisSystem:

Public Member Functions
	E3DAxisSystem ()
	Constructs an E3DAxisSystem.
	E3DAxisSystem (eVision.Easy3D.E3DPoint Origin, eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	Constructs an E3DAxisSystem.
	E3DAxisSystem (eVision.Easy3D.E3DAxisSystem other)
	Constructs an E3DAxisSystem.
bool	IsRightHanded ()
	return true if this base axis system is Right Handed
bool	IsOrthogonal ()
	return true if this base axis system is Orthogonal
bool	IsNormal ()
	return true if this base axis system is Normed
void	Load (string path)
	Load the E3DAxisSystem configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the E3DAxisSystem configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the E3DAxisSystem configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the E3DAxisSystem configuration. The given ESerializer must have been created for writing.

Static Public Member Functions
static bool	CheckIsOrthogonal (eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	check if the given axis system is Orthogonal
static bool	CheckIsNormal (eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	check if the given axis system is Normed
static bool	CheckIsRightHanded (eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	check if the given axis system is Right

Properties
eVision.Easy3D.E3DPoint	Origin [get]
	Gets the origin.
eVision.Easy3D.E3DPoint	AxisX [get]
	Gets the X axis.
eVision.Easy3D.E3DPoint	AxisY [get]
	Gets the Y axis.
eVision.Easy3D.E3DPoint	AxisZ [get]
	Gets the Z axis.
float	NormX [get]
	Gets the norm of the X axis.
float	NormY [get]
	Gets the norm of the Y axis.
float	NormZ [get]
	Gets the norm of the Z axis.

Detailed Description

Represent a 3D base axis system.

License(s): Easy3D

Constructor & Destructor Documentation

E3DAxisSystem() [1/3]

eVision.Easy3D.E3DAxisSystem.E3DAxisSystem

(

)

Constructs an E3DAxisSystem.

E3DAxisSystem() [2/3]

eVision.Easy3D.E3DAxisSystem.E3DAxisSystem	(	eVision.Easy3D.E3DPoint	Origin,
		eVision.Easy3D.E3DPoint	axisX,
		eVision.Easy3D.E3DPoint	axisY,
		eVision.Easy3D.E3DPoint	axisZ )

Constructs an E3DAxisSystem.

Parameters

Origin	The origin of the axis system
axisX	The X axis
axisY	The Y axis
axisZ	The Z axis

E3DAxisSystem() [3/3]

eVision.Easy3D.E3DAxisSystem.E3DAxisSystem

(

eVision.Easy3D.E3DAxisSystem

other

)

Constructs an E3DAxisSystem.

Parameters

other

Reference to another E3DAxisSystem used for the initialization.

Member Function Documentation

CheckIsNormal()

bool eVision.Easy3D.E3DAxisSystem.CheckIsNormal ( eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ )

static

check if the given axis system is Normed

Parameters

axisX	E3DPoint representing the X-axis of the system.
axisY	E3DPoint representing the Y-axis of the system.
axisZ	E3DPoint representing the Z-axis of the system.

CheckIsOrthogonal()

bool eVision.Easy3D.E3DAxisSystem.CheckIsOrthogonal ( eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ )

static

check if the given axis system is Orthogonal

Parameters

axisX	E3DPoint representing the X-axis of the system.
axisY	E3DPoint representing the Y-axis of the system.
axisZ	E3DPoint representing the Z-axis of the system.

CheckIsRightHanded()

bool eVision.Easy3D.E3DAxisSystem.CheckIsRightHanded ( eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ )

static

check if the given axis system is Right

Parameters

axisX	E3DPoint representing the X-axis of the system.
axisY	E3DPoint representing the Y-axis of the system.
axisZ	E3DPoint representing the Z-axis of the system.

IsNormal()

bool eVision.Easy3D.E3DAxisSystem.IsNormal

(

)

return true if this base axis system is Normed

IsOrthogonal()

bool eVision.Easy3D.E3DAxisSystem.IsOrthogonal

(

)

return true if this base axis system is Orthogonal

IsRightHanded()

bool eVision.Easy3D.E3DAxisSystem.IsRightHanded

(

)

return true if this base axis system is Right Handed

Load() [1/2]

void eVision.Easy3D.E3DAxisSystem.Load

(

eVision.ESerializer

serializer

)

Load the E3DAxisSystem configuration. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Load() [2/2]

void eVision.Easy3D.E3DAxisSystem.Load

(

string

path

)

Load the E3DAxisSystem configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Save() [1/2]

void eVision.Easy3D.E3DAxisSystem.Save

(

eVision.ESerializer

serializer

)

Save the E3DAxisSystem configuration. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Save() [2/2]

void eVision.Easy3D.E3DAxisSystem.Save

(

string

path

)

Save the E3DAxisSystem configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

Property Documentation

AxisX

eVision.Easy3D.E3DPoint eVision.Easy3D.E3DAxisSystem.AxisX

get

Gets the X axis.

AxisY

eVision.Easy3D.E3DPoint eVision.Easy3D.E3DAxisSystem.AxisY

get

Gets the Y axis.

AxisZ

eVision.Easy3D.E3DPoint eVision.Easy3D.E3DAxisSystem.AxisZ

get

Gets the Z axis.

NormX

float eVision.Easy3D.E3DAxisSystem.NormX

get

Gets the norm of the X axis.

NormY

float eVision.Easy3D.E3DAxisSystem.NormY

get

Gets the norm of the Y axis.

NormZ

float eVision.Easy3D.E3DAxisSystem.NormZ

get

Gets the norm of the Z axis.

Origin

eVision.Easy3D.E3DPoint eVision.Easy3D.E3DAxisSystem.Origin

get

Gets the origin.
