eVision.Easy3D.ECalibrationModel Class Reference

Represents a 3D calibration model. More...

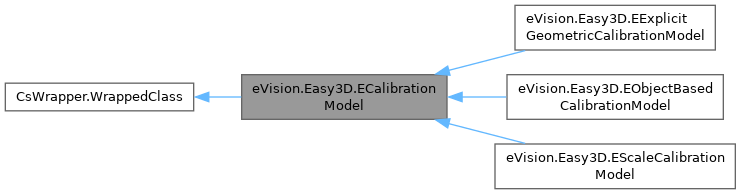

Inheritance diagram for eVision.Easy3D.ECalibrationModel:

Collaboration diagram for eVision.Easy3D.ECalibrationModel:

Public Member Functions
virtual eVision.Easy3D.E3DPoint	Apply (eVision.Easy3D.E3DPoint uvwPoint)
	Applies this model to convert an uncalibrated point to a world position.
void	Load (string path)
	Loads the calibration model. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Loads the calibration model. The given ESerializer must have been created for reading.
void	Save (string path)
	Saves the calibration model. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Saves the calibration model. The given ESerializer must have been created for writing.

Static Public Member Functions
static eVision.Easy3D.ECalibrationModel	Create (string path)
	Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.
static eVision.Easy3D.ECalibrationModel	Create (eVision.ESerializer file)
	Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.

Properties
virtual eVision.Easy3D.ECalibrationType	Type [get]
	Returns the type of calibration model, see ECalibrationType.

Detailed Description

Represents a 3D calibration model.

License(s): Easy3D

Member Function Documentation

Apply()

virtual eVision.Easy3D.E3DPoint eVision.Easy3D.ECalibrationModel.Apply ( eVision.Easy3D.E3DPoint uvwPoint )

virtual

Applies this model to convert an uncalibrated point to a world position.

This method returns a world position.

Parameters

uvwPoint

The position of a depth map pixel.

Create() [1/2]

eVision.Easy3D.ECalibrationModel eVision.Easy3D.ECalibrationModel.Create ( eVision.ESerializer file )

static

Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.

Returns the corresponding calibration model, must be released by caller.

Parameters

file	A serializer created for reading.

Create() [2/2]

eVision.Easy3D.ECalibrationModel eVision.Easy3D.ECalibrationModel.Create ( string path )

static

Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.

Returns the corresponding calibration model, must be released by caller.

Parameters

path	The file path.

Load() [1/2]

void eVision.Easy3D.ECalibrationModel.Load

(

eVision.ESerializer

serializer

)

Loads the calibration model. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Load() [2/2]

void eVision.Easy3D.ECalibrationModel.Load

(

string

path

)

Loads the calibration model. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Save() [1/2]

void eVision.Easy3D.ECalibrationModel.Save

(

eVision.ESerializer

serializer

)

Saves the calibration model. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Save() [2/2]

void eVision.Easy3D.ECalibrationModel.Save

(

string

path

)

Saves the calibration model. The given ESerializer must have been created for writing.

Parameters

path	The file path.

Property Documentation

Type

virtual eVision.Easy3D.ECalibrationType eVision.Easy3D.ECalibrationModel.Type

get

Returns the type of calibration model, see ECalibrationType.
