eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation Class Reference

Parameters for the user retraining of the text location model of EasyDeepOCR. More...

Inheritance diagram for eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation:

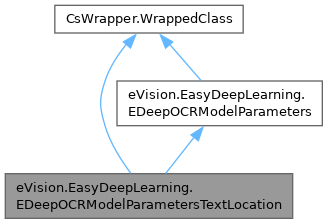

Collaboration diagram for eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation:

Public Member Functions
	EDeepOCRModelParametersTextLocation ()
	Constructs a EDeepOCRModelParametersTextLocation.
	EDeepOCRModelParametersTextLocation (eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation other)
	Constructs a EDeepOCRModelParametersTextLocation.
override eVision.EasyDeepLearning.EDeepOCRModelParameters	Clone ()
	Clones the parameters.
Public Member Functions inherited from eVision.EasyDeepLearning.EDeepOCRModelParameters
eVision.EasyDeepLearning.EDeepOCRModelParameters	Clone ()
	Clones the parameters.
void	Load (string path)
	Load the EDeepOCRModelParameters configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the EDeepOCRModelParameters configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the EDeepOCRModelParameters configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the EDeepOCRModelParameters configuration. The given ESerializer must have been created for writing.

Properties
float	Scale [get, set]
	The scaling to apply to images for the location network. Default value: 1.0.
float	Threshold [get, set]
	Threshold for excluding text box from the location network. Default value: 0.5.
override eVision.EasyDeepLearning.EDeepOCRModel	Model [get]
	Model for which the parameters are.
Properties inherited from eVision.EasyDeepLearning.EDeepOCRModelParameters
eVision.EasyDeepLearning.EDeepOCRModel	Model [get]
	Model for which the parameters are.

Additional Inherited Members
Static Public Member Functions inherited from eVision.EasyDeepLearning.EDeepOCRModelParameters
static eVision.EasyDeepLearning.EDeepOCRModelParameters	Create (string path)
	Creates and loads the correct parameter instance.
static eVision.EasyDeepLearning.EDeepOCRModelParameters	Create (eVision.EasyDeepLearning.EDeepOCRModel model)
	Creates and loads the correct parameter instance.

Detailed Description

Parameters for the user retraining of the text location model of EasyDeepOCR.

License(s): EasyDeepOCR

Constructor & Destructor Documentation

EDeepOCRModelParametersTextLocation() [1/2]

eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation.EDeepOCRModelParametersTextLocation

(

)

Constructs a EDeepOCRModelParametersTextLocation.

EDeepOCRModelParametersTextLocation() [2/2]

eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation.EDeepOCRModelParametersTextLocation

(

eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation

other

)

Constructs a EDeepOCRModelParametersTextLocation.

Parameters

other

Other object to copy

Member Function Documentation

Clone()

override eVision.EasyDeepLearning.EDeepOCRModelParameters eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation.Clone

(

)

Clones the parameters.

Property Documentation

Model

override eVision.EasyDeepLearning.EDeepOCRModel eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation.Model

get

Model for which the parameters are.

Scale

float eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation.Scale

getset

The scaling to apply to images for the location network. Default value: 1.0.

Threshold

float eVision.EasyDeepLearning.EDeepOCRModelParametersTextLocation.Threshold

getset

Threshold for excluding text box from the location network. Default value: 0.5.

Text boxes with a score below this threshold are rejected.
