eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter Class Reference

Segments an image using a double threshold on a grayscale image. More...

Inheritance diagram for eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter:

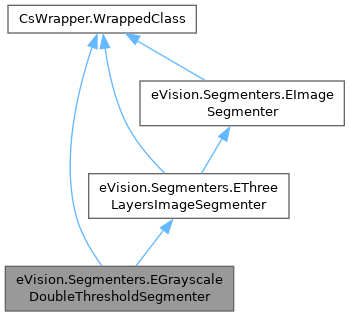

Collaboration diagram for eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter:

Public Member Functions
new void	Load (string path)
	Load the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for reading.
new void	Load (eVision.ESerializer serializer)
	Load the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for reading.
new void	Save (string path)
	Save the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for writing.
new void	Save (eVision.ESerializer serializer)
	Save the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for writing.
Public Member Functions inherited from eVision.Segmenters.EThreeLayersImageSegmenter
void	Load (string path)
	Load the EThreeLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the EThreeLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the EThreeLayersImageSegmenter configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the EThreeLayersImageSegmenter configuration. The given ESerializer must have been created for writing.

Properties
uint	LowThreshold [get, set]
	Value of the low threshold.
uint	HighThreshold [get, set]
	Value of the high threshold.
Properties inherited from eVision.Segmenters.EThreeLayersImageSegmenter
virtual uint	BlackLayerIndex [get, set]
	Index of the black layer in the destination coded image.
virtual bool	BlackLayerEncoded [get, set]
	Black layer encoding status.
virtual uint	NeutralLayerIndex [get, set]
	Index of the neutral layer in the destination coded image.
virtual bool	NeutralLayerEncoded [get, set]
	Neutral layer encoding status.
virtual uint	WhiteLayerIndex [get, set]
	Index of the white layer in the destination coded image.
virtual bool	WhiteLayerEncoded [get, set]
	White layer encoding status.

Detailed Description

Segments an image using a double threshold on a grayscale image.

This segmenter is applicable to EROIBW8 and EROIBW16 grayscale images. It produces coded images with three layers: The Black layer (usually, with index 0) contains the unmasked pixels having a gray value strictly below the low threshold value; the White layer (usually, with index 2) contains the unmasked pixels having a gray value above or equal to the high threshold value; and the Neutral layer (usually, with index 1) contains the remaining unmasked pixels.

License(s): EasyObject

Member Function Documentation

Load() [1/2]

new void eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter.Load

(

eVision.ESerializer

serializer

)

Load the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Load() [2/2]

new void eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter.Load

(

string

path

)

Load the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Save() [1/2]

new void eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter.Save

(

eVision.ESerializer

serializer

)

Save the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Save() [2/2]

new void eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter.Save

(

string

path

)

Save the EGrayscaleDoubleThresholdSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

Property Documentation

HighThreshold

uint eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter.HighThreshold

getset

Value of the high threshold.

LowThreshold

uint eVision.Segmenters.EGrayscaleDoubleThresholdSegmenter.LowThreshold

getset

Value of the low threshold.
