eVision.Segmenters.ETwoLayersImageSegmenter Class Reference

The base class from which all the segmenters that produce two layers derive. More...

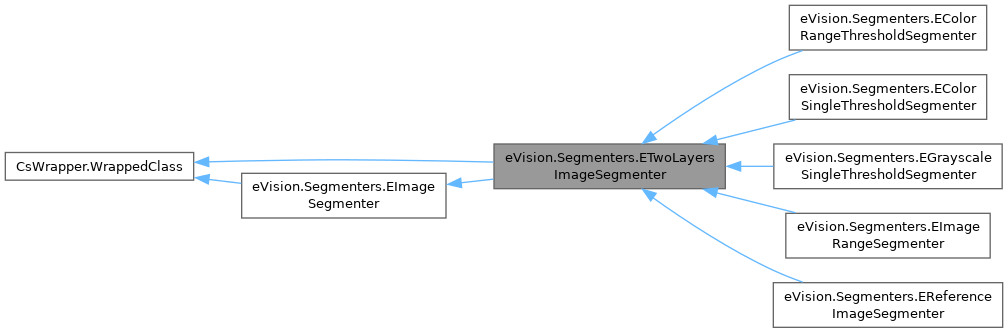

Inheritance diagram for eVision.Segmenters.ETwoLayersImageSegmenter:

Collaboration diagram for eVision.Segmenters.ETwoLayersImageSegmenter:

Public Member Functions
void	Load (string path)
	Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.

Properties
virtual uint	BlackLayerIndex [get, set]
	Index of the black layer in the destination coded image.
virtual bool	BlackLayerEncoded [get, set]
	Black layer encoding status.
virtual uint	WhiteLayerIndex [get, set]
	Index of the white layer in the destination coded image.
virtual bool	WhiteLayerEncoded [get, set]
	White layer encoding status.

Detailed Description

The base class from which all the segmenters that produce two layers derive.

The Layer Encoding can be enabled/disabled for each layer individually. The index of the layers in the coded image can also be assigned individually.

License(s): EasyObject

Member Function Documentation

Load() [1/2]

void eVision.Segmenters.ETwoLayersImageSegmenter.Load

(

eVision.ESerializer

serializer

)

Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Load() [2/2]

void eVision.Segmenters.ETwoLayersImageSegmenter.Load

(

string

path

)

Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Save() [1/2]

void eVision.Segmenters.ETwoLayersImageSegmenter.Save

(

eVision.ESerializer

serializer

)

Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Save() [2/2]

void eVision.Segmenters.ETwoLayersImageSegmenter.Save

(

string

path

)

Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

Property Documentation

BlackLayerEncoded

virtual bool eVision.Segmenters.ETwoLayersImageSegmenter.BlackLayerEncoded

getset

Black layer encoding status.

BlackLayerIndex

virtual uint eVision.Segmenters.ETwoLayersImageSegmenter.BlackLayerIndex

getset

Index of the black layer in the destination coded image.

Setting this property automatically switches on the encoding of the black layer.

WhiteLayerEncoded

virtual bool eVision.Segmenters.ETwoLayersImageSegmenter.WhiteLayerEncoded

getset

White layer encoding status.

WhiteLayerIndex

virtual uint eVision.Segmenters.ETwoLayersImageSegmenter.WhiteLayerIndex

getset

Index of the white layer in the destination coded image.

Setting this property automatically switches on the encoding of the white layer.
