eVision.Legacy.EPolygonMeasurementMode Class Reference

PolygonGauge measurement mode. More...

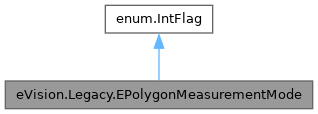

Inheritance diagram for eVision.Legacy.EPolygonMeasurementMode:

Collaboration diagram for eVision.Legacy.EPolygonMeasurementMode:

Static Public Attributes
int	Global = 0
	The polygon is rigid, only the global position and the orientation are adjusted.
int	Edge = 1
	The edges of the polygon are measured independently.
int	Point = 2
	The polygon edges are sampled to fit closely to the measured points.

Detailed Description

PolygonGauge measurement mode.

Member Data Documentation

Edge

int eVision.Legacy.EPolygonMeasurementMode.Edge = 1

static

The edges of the polygon are measured independently.

The result is a new polygon composed by these fitted edges. The measured polygon has the same number of vertices.

Global

int eVision.Legacy.EPolygonMeasurementMode.Global = 0

static

The polygon is rigid, only the global position and the orientation are adjusted.

If eVision.Legacy.EPolygonGauge.EnableScaling is enabled, a scale factor is also computed.

Point

int eVision.Legacy.EPolygonMeasurementMode.Point = 2

static

The polygon edges are sampled to fit closely to the measured points.

The new polygon uses all the measured points of the contour.
