eVision.Segmenters.ETwoLayersImageSegmenter Class Reference

The base class from which all the segmenters that produce two layers derive. More...

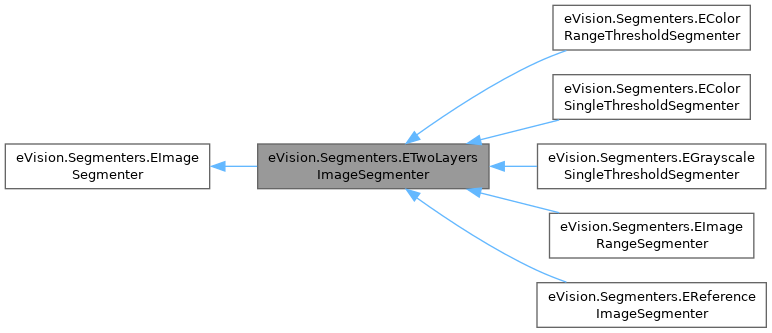

Inheritance diagram for eVision.Segmenters.ETwoLayersImageSegmenter:

Collaboration diagram for eVision.Segmenters.ETwoLayersImageSegmenter:

Public Member Functions
None	Load (self, str path)
	Load the eVision.Segmenters.ETwoLayersImageSegmenter configuration.
None	Load (self, eVision.ESerializer|None serializer)
	Load the eVision.Segmenters.ETwoLayersImageSegmenter configuration.
None	Save (self, str path)
	Save the eVision.Segmenters.ETwoLayersImageSegmenter configuration.
None	Save (self, eVision.ESerializer|None serializer)
	Save the eVision.Segmenters.ETwoLayersImageSegmenter configuration.
int	BlackLayerIndex (self)
	Index of the black layer in the destination coded image.
	BlackLayerIndex (self, int value)
	Index of the black layer in the destination coded image.
bool	BlackLayerEncoded (self)
	Black layer encoding status.
	BlackLayerEncoded (self, bool value)
	Black layer encoding status.
int	WhiteLayerIndex (self)
	Index of the white layer in the destination coded image.
	WhiteLayerIndex (self, int value)
	Index of the white layer in the destination coded image.
bool	WhiteLayerEncoded (self)
	White layer encoding status.
	WhiteLayerEncoded (self, bool value)
	White layer encoding status.

Detailed Description

The base class from which all the segmenters that produce two layers derive.

Remarks:

The Layer Encoding can be enabled/disabled for each layer individually. The index of the layers in the coded image can also be assigned individually.

License(s): EasyObject

Member Function Documentation

BlackLayerEncoded() [1/2]

bool eVision.Segmenters.ETwoLayersImageSegmenter.BlackLayerEncoded

(

self

)

Black layer encoding status.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

BlackLayerEncoded() [2/2]

eVision.Segmenters.ETwoLayersImageSegmenter.BlackLayerEncoded	(		self,
		bool	value )

Black layer encoding status.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

BlackLayerIndex() [1/2]

int eVision.Segmenters.ETwoLayersImageSegmenter.BlackLayerIndex

(

self

)

Index of the black layer in the destination coded image.

Remarks:

Setting this property automatically switches on the encoding of the black layer.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

BlackLayerIndex() [2/2]

eVision.Segmenters.ETwoLayersImageSegmenter.BlackLayerIndex	(		self,
		int	value )

Index of the black layer in the destination coded image.

Remarks:

Setting this property automatically switches on the encoding of the black layer.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

Load() [1/2]

None eVision.Segmenters.ETwoLayersImageSegmenter.Load	(		self,
		eVision.ESerializer | None	serializer )

Load the eVision.Segmenters.ETwoLayersImageSegmenter configuration.

The given eVision.ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Reimplemented in eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

Load() [2/2]

None eVision.Segmenters.ETwoLayersImageSegmenter.Load	(		self,
		str	path )

Load the eVision.Segmenters.ETwoLayersImageSegmenter configuration.

The given eVision.ESerializer must have been created for reading.

Parameters

path	The file path.

Reimplemented in eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

Save() [1/2]

None eVision.Segmenters.ETwoLayersImageSegmenter.Save	(		self,
		eVision.ESerializer | None	serializer )

Save the eVision.Segmenters.ETwoLayersImageSegmenter configuration.

The given eVision.ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Reimplemented in eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

Save() [2/2]

None eVision.Segmenters.ETwoLayersImageSegmenter.Save	(		self,
		str	path )

Save the eVision.Segmenters.ETwoLayersImageSegmenter configuration.

The given eVision.ESerializer must have been created for writing.

Parameters

path	The file path.

Reimplemented in eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorRangeThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EColorSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EGrayscaleSingleThresholdSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

WhiteLayerEncoded() [1/2]

bool eVision.Segmenters.ETwoLayersImageSegmenter.WhiteLayerEncoded

(

self

)

White layer encoding status.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

WhiteLayerEncoded() [2/2]

eVision.Segmenters.ETwoLayersImageSegmenter.WhiteLayerEncoded	(		self,
		bool	value )

White layer encoding status.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

WhiteLayerIndex() [1/2]

int eVision.Segmenters.ETwoLayersImageSegmenter.WhiteLayerIndex

(

self

)

Index of the white layer in the destination coded image.

Remarks:

Setting this property automatically switches on the encoding of the white layer.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.

WhiteLayerIndex() [2/2]

eVision.Segmenters.ETwoLayersImageSegmenter.WhiteLayerIndex	(		self,
		int	value )

Index of the white layer in the destination coded image.

Remarks:

Setting this property automatically switches on the encoding of the white layer.

Reimplemented in eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EImageRangeSegmenter, eVision.Segmenters.EReferenceImageSegmenter, and eVision.Segmenters.EReferenceImageSegmenter.
