Segments an image using a pixel-by-pixel single threshold given as an image. More...

#include <eVision/EasyObject/EasyObject2/Segmenters/EReferenceImageSegmenter.h>

Inheritance diagram for eVision::Segmenters::EReferenceImageSegmenter:

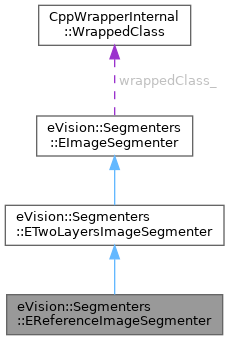

Collaboration diagram for eVision::Segmenters::EReferenceImageSegmenter:

Public Member Functions
virtual	~EReferenceImageSegmenter () throw ()
bool	operator== (const eVision::Segmenters::EReferenceImageSegmenter &other) const
	Comparison operator.
void	Load (const std::string &path)
	Load the EReferenceImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Load the EReferenceImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Save (const std::string &path)
	Save the EReferenceImageSegmenter configuration. The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Save the EReferenceImageSegmenter configuration. The given ESerializer must have been created for writing.
virtual void	SetBlackLayerIndex (unsigned int index)
	Index of the black layer in the destination coded image.
virtual void	SetBlackLayerEncoded (bool encode)
	Black layer encoding status.
virtual void	SetWhiteLayerIndex (unsigned int index)
	Index of the white layer in the destination coded image.
virtual void	SetWhiteLayerEncoded (bool encode)
	White layer encoding status.
void	SetReferenceImageBW8 (const eVision::EROIBW8 *image)
	Reference image for the segmentation of EROIBW8 images.
const eVision::EROIBW8 *	GetReferenceImageBW8 () const
	Reference image for the segmentation of EROIBW8 images.
void	SetReferenceImageBW16 (const eVision::EROIBW16 *image)
	Reference image for the segmentation of EROIBW16 images.
const eVision::EROIBW16 *	GetReferenceImageBW16 () const
	Reference image for the segmentation of EROIBW16 images.
void	SetReferenceImageC24 (const eVision::EROIC24 *image)
	Reference image for the segmentation of EROIC24 images.
const eVision::EROIC24 *	GetReferenceImageC24 () const
	Reference image for the segmentation of EROIC24 images.
	EReferenceImageSegmenter (CppWrapperInternal::InternalConstructor)
Public Member Functions inherited from eVision::Segmenters::ETwoLayersImageSegmenter
virtual	~ETwoLayersImageSegmenter () throw ()
bool	operator== (const eVision::Segmenters::ETwoLayersImageSegmenter &other) const
	Comparison operator.
void	Load (const std::string &path)
	Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Save (const std::string &path)
	Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.
virtual unsigned int	GetBlackLayerIndex () const
	Index of the black layer in the destination coded image.
virtual bool	GetBlackLayerEncoded () const
	Black layer encoding status.
virtual unsigned int	GetWhiteLayerIndex () const
	Index of the white layer in the destination coded image.
virtual bool	GetWhiteLayerEncoded () const
	White layer encoding status.
	ETwoLayersImageSegmenter (CppWrapperInternal::InternalConstructor)
Public Member Functions inherited from eVision::Segmenters::EImageSegmenter
virtual	~EImageSegmenter () throw ()
	EImageSegmenter (CppWrapperInternal::InternalConstructor)

Additional Inherited Members
Public Attributes inherited from eVision::Segmenters::EImageSegmenter
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Segments an image using a pixel-by-pixel single threshold given as an image.

This segmenter is applicable to EROIBW8, EROIBW16 and EROIC24 images. It produces coded images with two layers. The threshold is defined for each pixel individually by means of a reference image of the same type as the source image.

For grayscale images, the White layer (usually, with index 1) contains unmasked pixels having a gray value in a range defined by the gray value of the respective pixel in the reference image and the white color.

For RGB color images, the White layer (usually, with index 1) contains unmasked pixels having a color inside the cube of the RGB color space defined by the color of the respective pixel in the reference image and the white color (255,255,255).

The Black layer (usually, with index 0) contains the remaining unmasked pixels.

License(s): EasyObject

Constructor & Destructor Documentation

◆ ~EReferenceImageSegmenter()

eVision::Segmenters::EReferenceImageSegmenter::~EReferenceImageSegmenter	(		)
throw	(	)

virtual

◆ EReferenceImageSegmenter()

eVision::Segmenters::EReferenceImageSegmenter::EReferenceImageSegmenter ( CppWrapperInternal::InternalConstructor )

Member Function Documentation

◆ GetReferenceImageBW16()

const eVision::EROIBW16 * eVision::Segmenters::EReferenceImageSegmenter::GetReferenceImageBW16 ( ) const

Reference image for the segmentation of EROIBW16 images.

Note that the image is copied internally.

◆ GetReferenceImageBW8()

const eVision::EROIBW8 * eVision::Segmenters::EReferenceImageSegmenter::GetReferenceImageBW8 ( ) const

Reference image for the segmentation of EROIBW8 images.

Note that the image is copied internally.

◆ GetReferenceImageC24()

const eVision::EROIC24 * eVision::Segmenters::EReferenceImageSegmenter::GetReferenceImageC24 ( ) const

Reference image for the segmentation of EROIC24 images.

Note that the image is copied internally.

◆ Load() [1/2]

void eVision::Segmenters::EReferenceImageSegmenter::Load ( const std::string & path )

Load the EReferenceImageSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

◆ Load() [2/2]

void eVision::Segmenters::EReferenceImageSegmenter::Load ( eVision::ESerializer * serializer )

Load the EReferenceImageSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

serializer The serializer.

◆ operator==()

bool eVision::Segmenters::EReferenceImageSegmenter::operator== ( const eVision::Segmenters::EReferenceImageSegmenter & other ) const

Comparison operator.

Parameters

other Other segmenter to compare to.

◆ Save() [1/2]

void eVision::Segmenters::EReferenceImageSegmenter::Save ( const std::string & path )

Save the EReferenceImageSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

◆ Save() [2/2]

void eVision::Segmenters::EReferenceImageSegmenter::Save ( eVision::ESerializer * serializer )

Save the EReferenceImageSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

serializer The serializer.

◆ SetBlackLayerEncoded()

void eVision::Segmenters::EReferenceImageSegmenter::SetBlackLayerEncoded ( bool encode )

virtual

Black layer encoding status.

Reimplemented from eVision::Segmenters::ETwoLayersImageSegmenter.

◆ SetBlackLayerIndex()

void eVision::Segmenters::EReferenceImageSegmenter::SetBlackLayerIndex ( unsigned int index )

virtual

Index of the black layer in the destination coded image.

Setting this property automatically switches on the encoding of the black layer.

Reimplemented from eVision::Segmenters::ETwoLayersImageSegmenter.

◆ SetReferenceImageBW16()

void eVision::Segmenters::EReferenceImageSegmenter::SetReferenceImageBW16 ( const eVision::EROIBW16 * image )

Reference image for the segmentation of EROIBW16 images.

Note that the image is copied internally.

◆ SetReferenceImageBW8()

void eVision::Segmenters::EReferenceImageSegmenter::SetReferenceImageBW8 ( const eVision::EROIBW8 * image )

Reference image for the segmentation of EROIBW8 images.

Note that the image is copied internally.

◆ SetReferenceImageC24()

void eVision::Segmenters::EReferenceImageSegmenter::SetReferenceImageC24 ( const eVision::EROIC24 * image )

Reference image for the segmentation of EROIC24 images.

Note that the image is copied internally.

◆ SetWhiteLayerEncoded()

void eVision::Segmenters::EReferenceImageSegmenter::SetWhiteLayerEncoded ( bool encode )

virtual

White layer encoding status.

Reimplemented from eVision::Segmenters::ETwoLayersImageSegmenter.

◆ SetWhiteLayerIndex()

void eVision::Segmenters::EReferenceImageSegmenter::SetWhiteLayerIndex ( unsigned int index )

virtual

Index of the white layer in the destination coded image.

Setting this property automatically switches on the encoding of the white layer.

Reimplemented from eVision::Segmenters::ETwoLayersImageSegmenter.
