eVision::EasyBarCode2::EBarCodeGridDrawOptions Struct Reference

List of options to customize the drawing of the bar codes. More...

#include <eVision/EasyBarCode/EasyBarCode2/EBarCodeGridDrawOptions.h>

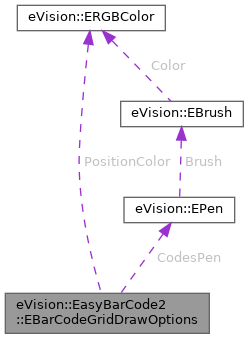

Collaboration diagram for eVision::EasyBarCode2::EBarCodeGridDrawOptions:

Public Member Functions
	EBarCodeGridDrawOptions ()
	Creates an EBarCodeGridDrawOptions object.
	EBarCodeGridDrawOptions (const eVision::EPen &codesPen, bool drawPosition, const eVision::ERGBColor &positionColor, bool drawDecodedString)
	Creates an EBarCodeGridDrawOptions object.

Public Attributes
eVision::EPen	CodesPen
	Pen used for the drawing of the codes.
bool	DrawPosition
	Flag for the drawing of code position.
eVision::ERGBColor	PositionColor
	The color in which to draw the code position.
bool	DrawDecodedString
	Flag for the drawing of the decoded string.

Detailed Description

List of options to customize the drawing of the bar codes.

License(s): EasyBarCode

Constructor & Destructor Documentation

EBarCodeGridDrawOptions() [1/2]

eVision::EasyBarCode2::EBarCodeGridDrawOptions::EBarCodeGridDrawOptions

(

)

Creates an EBarCodeGridDrawOptions object.

EBarCodeGridDrawOptions() [2/2]

eVision::EasyBarCode2::EBarCodeGridDrawOptions::EBarCodeGridDrawOptions	(	const eVision::EPen &	codesPen,
		bool	drawPosition,
		const eVision::ERGBColor &	positionColor,
		bool	drawDecodedString )

Creates an EBarCodeGridDrawOptions object.

Parameters

codesPen	Pen used for the drawing of the codes.
drawPosition	Flag for the drawing of code position.
positionColor	The color in which to draw the code position.
drawDecodedString	Flag for the drawing of the decoded string.

Member Data Documentation

CodesPen

eVision::EPen eVision::EasyBarCode2::EBarCodeGridDrawOptions::CodesPen

Pen used for the drawing of the codes.

DrawDecodedString

bool eVision::EasyBarCode2::EBarCodeGridDrawOptions::DrawDecodedString

Flag for the drawing of the decoded string.

DrawPosition

bool eVision::EasyBarCode2::EBarCodeGridDrawOptions::DrawPosition

Flag for the drawing of code position.

PositionColor

eVision::ERGBColor eVision::EasyBarCode2::EBarCodeGridDrawOptions::PositionColor

The color in which to draw the code position.
