eVision.Easy3D.E3DRightOrthonormalAxisSystem Class Reference

E3DRightOrthonormalAxisSystem is a subassembly of E3DAxisSystem with properties Orthogonal and Normed and Right. More...

Inheritance diagram for eVision.Easy3D.E3DRightOrthonormalAxisSystem:

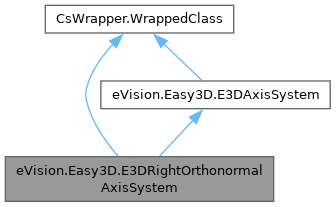

Collaboration diagram for eVision.Easy3D.E3DRightOrthonormalAxisSystem:

Public Member Functions
	E3DRightOrthonormalAxisSystem ()
	Constructs an E3DRightOrthonormalAxisSystem.
	E3DRightOrthonormalAxisSystem (eVision.Easy3D.E3DAxisSystem other)
	Constructs an E3DRightOrthonormalAxisSystem.
	E3DRightOrthonormalAxisSystem (eVision.Easy3D.E3DRightOrthonormalAxisSystem other)
	Constructs an E3DRightOrthonormalAxisSystem.
	E3DRightOrthonormalAxisSystem (eVision.Easy3D.E3DPoint Origin, eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	Constructs an E3DRightOrthonormalAxisSystem.
Public Member Functions inherited from eVision.Easy3D.E3DAxisSystem
	E3DAxisSystem ()
	Constructs an E3DAxisSystem.
	E3DAxisSystem (eVision.Easy3D.E3DPoint Origin, eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	Constructs an E3DAxisSystem.
	E3DAxisSystem (eVision.Easy3D.E3DAxisSystem other)
	Constructs an E3DAxisSystem.
bool	IsRightHanded ()
	return true if this base axis system is Right Handed
bool	IsOrthogonal ()
	return true if this base axis system is Orthogonal
bool	IsNormal ()
	return true if this base axis system is Normed
void	Load (string path)
	Load the E3DAxisSystem configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the E3DAxisSystem configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the E3DAxisSystem configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the E3DAxisSystem configuration. The given ESerializer must have been created for writing.

Additional Inherited Members
Static Public Member Functions inherited from eVision.Easy3D.E3DAxisSystem
static bool	CheckIsOrthogonal (eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	check if the given axis system is Orthogonal
static bool	CheckIsNormal (eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	check if the given axis system is Normed
static bool	CheckIsRightHanded (eVision.Easy3D.E3DPoint axisX, eVision.Easy3D.E3DPoint axisY, eVision.Easy3D.E3DPoint axisZ)
	check if the given axis system is Right
Properties inherited from eVision.Easy3D.E3DAxisSystem
eVision.Easy3D.E3DPoint	Origin [get]
	Gets the origin.
eVision.Easy3D.E3DPoint	AxisX [get]
	Gets the X axis.
eVision.Easy3D.E3DPoint	AxisY [get]
	Gets the Y axis.
eVision.Easy3D.E3DPoint	AxisZ [get]
	Gets the Z axis.
float	NormX [get]
	Gets the norm of the X axis.
float	NormY [get]
	Gets the norm of the Y axis.
float	NormZ [get]
	Gets the norm of the Z axis.

Detailed Description

E3DRightOrthonormalAxisSystem is a subassembly of E3DAxisSystem with properties Orthogonal and Normed and Right.

License(s): Easy3D

Constructor & Destructor Documentation

E3DRightOrthonormalAxisSystem() [1/4]

eVision.Easy3D.E3DRightOrthonormalAxisSystem.E3DRightOrthonormalAxisSystem

(

)

Constructs an E3DRightOrthonormalAxisSystem.

throws an exception if the axis are not orthogonal and normed and right

E3DRightOrthonormalAxisSystem() [2/4]

eVision.Easy3D.E3DRightOrthonormalAxisSystem.E3DRightOrthonormalAxisSystem

(

eVision.Easy3D.E3DAxisSystem

other

)

Constructs an E3DRightOrthonormalAxisSystem.

Parameters

other

Reference to another E3DRightOrthonormalAxisSystem used for the initialization.

throws an exception if the axis are not orthogonal and normed and right

E3DRightOrthonormalAxisSystem() [3/4]

eVision.Easy3D.E3DRightOrthonormalAxisSystem.E3DRightOrthonormalAxisSystem

(

eVision.Easy3D.E3DRightOrthonormalAxisSystem

other

)

Constructs an E3DRightOrthonormalAxisSystem.

Parameters

other

Reference to another E3DRightOrthonormalAxisSystem used for the initialization.

throws an exception if the axis are not orthogonal and normed and right

E3DRightOrthonormalAxisSystem() [4/4]

eVision.Easy3D.E3DRightOrthonormalAxisSystem.E3DRightOrthonormalAxisSystem	(	eVision.Easy3D.E3DPoint	Origin,
		eVision.Easy3D.E3DPoint	axisX,
		eVision.Easy3D.E3DPoint	axisY,
		eVision.Easy3D.E3DPoint	axisZ )

Constructs an E3DRightOrthonormalAxisSystem.

Parameters

Origin	The origin of the axis system
axisX	The X axis
axisY	The Y axis
axisZ	The Z axis

throws an exception if the axis are not orthogonal and normed and right
