eVision.Easy3D.EDecimator Class Reference

Decimation of a point cloud/ZMap/DepthMap. More...

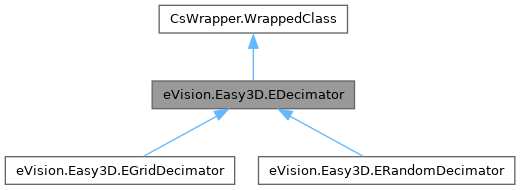

Inheritance diagram for eVision.Easy3D.EDecimator:

Collaboration diagram for eVision.Easy3D.EDecimator:

Public Member Functions
	EDecimator ()
	Creates an EDecimator object.
void	Load (string path)
	Loads the decimator configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Loads the decimator configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Saves the decimator configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Saves the decimator configuration. The given ESerializer must have been created for writing.
virtual void	Decimate (eVision.Easy3D.EPointCloud cloudIn, eVision.Easy3D.EPointCloud cloudOut)
	Decimates a EPointCloud.

Detailed Description

Decimation of a point cloud/ZMap/DepthMap.

License(s): Easy3D

Constructor & Destructor Documentation

EDecimator()

eVision.Easy3D.EDecimator.EDecimator

(

)

Creates an EDecimator object.

Member Function Documentation

Decimate()

virtual void eVision.Easy3D.EDecimator.Decimate ( eVision.Easy3D.EPointCloud cloudIn, eVision.Easy3D.EPointCloud cloudOut )

virtual

Decimates a EPointCloud.

Parameters

cloudIn	The input point cloud.
cloudOut	The output point cloud.

Reimplemented in eVision.Easy3D.EGridDecimator, and eVision.Easy3D.ERandomDecimator.

Load() [1/2]

void eVision.Easy3D.EDecimator.Load

(

eVision.ESerializer

serializer

)

Loads the decimator configuration. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Load() [2/2]

void eVision.Easy3D.EDecimator.Load

(

string

path

)

Loads the decimator configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Save() [1/2]

void eVision.Easy3D.EDecimator.Save

(

eVision.ESerializer

serializer

)

Saves the decimator configuration. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Save() [2/2]

void eVision.Easy3D.EDecimator.Save

(

string

path

)

Saves the decimator configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.
