eVision.Easy3D.ERandomDecimator Class Reference

Decimation of an EPointCloud. More...

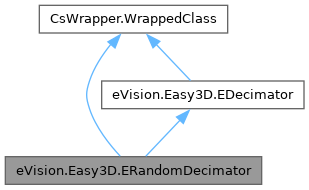

Inheritance diagram for eVision.Easy3D.ERandomDecimator:

Collaboration diagram for eVision.Easy3D.ERandomDecimator:

Public Member Functions
	ERandomDecimator ()
	Creates an ERandomDecimator object. If the required number of points (after decimation) is not specified, the default value is 10000.
	ERandomDecimator (int numberOfPoints)
	Creates an ERandomDecimator object. If the required number of points (after decimation) is not specified, the default value is 10000.
	ERandomDecimator (eVision.Easy3D.ERandomDecimator other)
	Creates an ERandomDecimator object. If the required number of points (after decimation) is not specified, the default value is 10000.
override void	Decimate (eVision.Easy3D.EPointCloud cloudIn, eVision.Easy3D.EPointCloud cloudOut)
	Decimates a given EPointCloud and writes the result into a new point cloud.
Public Member Functions inherited from eVision.Easy3D.EDecimator
	EDecimator ()
	Creates an EDecimator object.
void	Load (string path)
	Loads the decimator configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Loads the decimator configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Saves the decimator configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Saves the decimator configuration. The given ESerializer must have been created for writing.

Properties
int	NumberOfPoints [get, set]
	Sets/gets the parameter "number of points" (number of points after decimation).

Detailed Description

Decimation of an EPointCloud.

The random decimator decimates a point cloud by copying a specified number of points, randomly selected, to a new point cloud.

License(s): Easy3D

Constructor & Destructor Documentation

ERandomDecimator() [1/3]

eVision.Easy3D.ERandomDecimator.ERandomDecimator

(

)

Creates an ERandomDecimator object. If the required number of points (after decimation) is not specified, the default value is 10000.

ERandomDecimator() [2/3]

eVision.Easy3D.ERandomDecimator.ERandomDecimator

(

int

numberOfPoints

)

Creates an ERandomDecimator object. If the required number of points (after decimation) is not specified, the default value is 10000.

Parameters

numberOfPoints

Number of points after decimation.

ERandomDecimator() [3/3]

eVision.Easy3D.ERandomDecimator.ERandomDecimator

(

eVision.Easy3D.ERandomDecimator

other

)

Creates an ERandomDecimator object. If the required number of points (after decimation) is not specified, the default value is 10000.

Parameters

other

Reference to the ERandomDecimator object used for the initialization.

Member Function Documentation

Decimate()

override void eVision.Easy3D.ERandomDecimator.Decimate ( eVision.Easy3D.EPointCloud cloudIn, eVision.Easy3D.EPointCloud cloudOut )

virtual

Decimates a given EPointCloud and writes the result into a new point cloud.

Parameters

cloudIn	The input point cloud.
cloudOut	The output point cloud.

The input point cloud 'cloudIn' should be different from the output point cloud 'cloudOut'. If not a exception will be thrown.

Reimplemented from eVision.Easy3D.EDecimator.

Property Documentation

NumberOfPoints

int eVision.Easy3D.ERandomDecimator.NumberOfPoints

getset

Sets/gets the parameter "number of points" (number of points after decimation).
