Represents a generic DepthMap type interface. More...

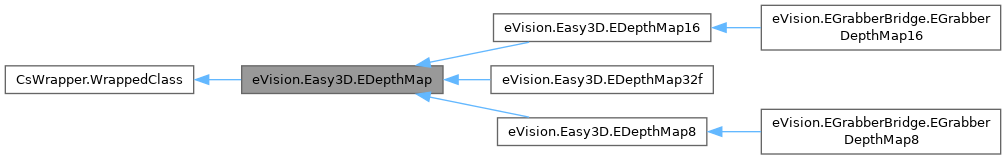

Inheritance diagram for eVision.Easy3D.EDepthMap:

[legend]

Collaboration diagram for eVision.Easy3D.EDepthMap:

Public Member Functions
bool	IsVoid ()
	Tests if the EDepthMap object has a size of zero.
IntPtr	GetBufferPtr ()
	Retrieves the pointer of the pixel buffer.
IntPtr	GetBufferPtr (int x, int y)
	Retrieves the pointer of the pixel buffer.
IntPtr	GetCheckedBufferPtr (int x, int y)
	Retrieves the pointer of the pixel buffer.
void	SetBufferPtr (int width, int height, IntPtr imagePointer, int bitsPerRow)
	Sets the pointer to an externally allocated buffer.
void	SetBufferPtr (int width, int height, IntPtr imagePointer)
	Sets the pointer to an externally allocated buffer.
void	UseExternalBuffer (int width, int height, IntPtr buffer, int rowPitch)
	Sets the pointer to an externally allocated buffer.
eVision.EPoint	ConvertCoordinatesPixelToMap (eVision.EIntPoint pixelCoordinates)
	Converts Pixel coordinates to 3D Map coordinates.
void	ConvertCoordinatesPixelToMap (int xBuffer, int yBuffer, ref float x3D, ref float y3D)
	Converts Pixel coordinates to 3D Map coordinates.
bool	ConvertCoordinatesMapToPixel (eVision.EPoint mapCoordinates, ref eVision.EIntPoint pixelCoordinates)
	Converts 3D Map coordinates to Pixel coordinates.
bool	ConvertCoordinatesMapToPixel (float x3D, float y3D, ref int xBuffer, ref int yBuffer)
	Converts 3D Map coordinates to Pixel coordinates.
void	SetSize (int width, int height)
	Sets the width and height of a DepthMap.
void	SetSize (eVision.Easy3D.EDepthMap other)
	Sets the width and height of a DepthMap.
void	Load (string path)
	Restores the EDepthMap stored in the given eVision file.
void	Load (eVision.ESerializer serializer)
	Restores the EDepthMap stored in the given eVision file.
void	LoadImage (string path, bool withMetadata)
	Restores the EDepthMap image stored in the given image file.
void	LoadImage (string path)
	Restores the EDepthMap image stored in the given image file.
void	Save (string path)
	Saves the EDepthMap object to the given eVision file.
void	Save (eVision.ESerializer serializer)
	Saves the EDepthMap object to the given eVision file.
void	SaveImage (string path, eVision.EImageFileType type, bool withMetadata)
	Saves the EDepthMap image to the given image file.
void	SaveImage (string path, eVision.EImageFileType type)
	Saves the EDepthMap image to the given image file.
void	SaveImage (string path)
	Saves the EDepthMap image to the given image file.
void	SaveJpeg (string path, int quality)
	Saves the EDepthMap object to the given image file, in JPEG format.
void	SaveJpeg (string path)
	Saves the EDepthMap object to the given image file, in JPEG format.
void	SaveJpeg2K (string path, int quality)
	Saves the EDepthMap object to the given image file, in JPEG 2000 format.
void	SaveJpeg2K (string path)
	Saves the EDepthMap object to the given image file, in JPEG 2000 format.
void	SaveMetadata (string path)
	Saves the metadata to a file in JSON format.
void	LoadMetadata (string path)
	Loads the metadata from a file in JSON format.
void	SaveImageAndMetadata (string pathImage, string pathMetadata, eVision.EImageFileType type)
	Saves the image and the metadata to a JSON format file.
void	SaveImageAndMetadata (string pathImage, string pathMetadata)
	Saves the image and the metadata to a JSON format file.
void	LoadImageAndMetadata (string pathImage, string pathMetadata)
	Loads the image and the metadata from a file in JSON format.
void	AddMetadata (string Key, string value)
	Adds a metadata key (name) and value. Overwrites if exists.
void	ModifyMetadata (string Key, string value)
	Changes the value of an existing metadata.
string	GetMetadata (string Key)
	Returns string value of the given metadata.
void	DeleteMetadata (string Key)
	Deletes an existing metadata.
void	ClearMetadata ()
	Deletes all metadata.
void	Clear ()
	Clears the depth map: replaces all pixels with undefined value.
float	GetZValue (int x, int y)
	Gets the Z value of a pixel.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.

Static Public Member Functions
static eVision.Easy3D.EDepthMap	Create (string path)
	Factory method to allocate and read a DepthMap from a file. Depending on the serialized EDepthMap type, it returns the corresponding EDepthMap8, EDepthMap16 or EDepthMap32f object. The allocated EDepthMap must be released after use.

Properties
int	Width `[get, set]`
	Access depth map Width.
int	Height `[get, set]`
	Access depth map Height.
int	RowPitch `[get]`
	Returns the buffer row pitch.
float	ZResolution `[get, set]`
	Access the Z Resolution (depth units per grey scale value).
eVision.EImageType	Type `[get]`
	Returns the image type.
eVision.Easy3D.EAxisSystemType	AxisSystemType `[get, set]`
	Manage the axis coordinate system.

Detailed Description

Represents a generic DepthMap type interface.

License(s): Easy3D

Member Function Documentation

◆ AddMetadata()

void eVision.Easy3D.EDepthMap.AddMetadata	(	string	Key,
		string	value )

abstract

Adds a metadata key (name) and value. Overwrites if exists.

Parameters

Key	The name of the metadata. Names are unique.
value	The value for the given metadata.

◆ Clear()

void eVision.Easy3D.EDepthMap.Clear ( )

abstract

Clears the depth map: replaces all pixels with undefined value.

◆ ClearMetadata()

void eVision.Easy3D.EDepthMap.ClearMetadata ( )

abstract

Deletes all metadata.

◆ ConvertCoordinatesMapToPixel() [1/2]

bool eVision.Easy3D.EDepthMap.ConvertCoordinatesMapToPixel	(	eVision.EPoint	mapCoordinates,
		ref eVision.EIntPoint	pixelCoordinates )

abstract

Converts 3D Map coordinates to Pixel coordinates.

Parameters

mapCoordinates	The map coordinates to convert from.
pixelCoordinates	The pixel coordinates to convert to.

◆ ConvertCoordinatesMapToPixel() [2/2]

bool eVision.Easy3D.EDepthMap.ConvertCoordinatesMapToPixel	(	float	x3D,
		float	y3D,
		ref int	xBuffer,
		ref int	yBuffer )

abstract

Converts 3D Map coordinates to Pixel coordinates.

Parameters

x3D	The Map X coordinate.
y3D	The Map Y coordinate.
xBuffer	The returned Pixel X coordinate.
yBuffer	The returned Pixel Y coordinate.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ ConvertCoordinatesPixelToMap() [1/2]

eVision.EPoint eVision.Easy3D.EDepthMap.ConvertCoordinatesPixelToMap ( eVision.EIntPoint pixelCoordinates )

abstract

Converts Pixel coordinates to 3D Map coordinates.

Parameters

pixelCoordinates The pixel coordinates to convert.

◆ ConvertCoordinatesPixelToMap() [2/2]

void eVision.Easy3D.EDepthMap.ConvertCoordinatesPixelToMap	(	int	xBuffer,
		int	yBuffer,
		ref float	x3D,
		ref float	y3D )

abstract

Converts Pixel coordinates to 3D Map coordinates.

Parameters

xBuffer	The pixel X coordinate.
yBuffer	The pixel Y coordinate.
x3D	The returned Map X coordinate.
y3D	The returned Map Y coordinate.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ Create()

eVision.Easy3D.EDepthMap eVision.Easy3D.EDepthMap.Create ( string path )

static

Factory method to allocate and read a DepthMap from a file. Depending on the serialized EDepthMap type, it returns the corresponding EDepthMap8, EDepthMap16 or EDepthMap32f object. The allocated EDepthMap must be released after use.

Parameters

path	Full path to the file.

◆ DeleteMetadata()

void eVision.Easy3D.EDepthMap.DeleteMetadata ( string Key )

abstract

Deletes an existing metadata.

Throws an exception if it does not exist.

Parameters

Key	The name of an existing metadata.

◆ Draw() [1/54]

void eVision.Easy3D.EDepthMap.Draw ( eVision.EDrawAdapter graphicContext )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext Handle to the device context of the destination window.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [2/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [3/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [4/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [5/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [6/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [7/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [8/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [9/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [10/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [11/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [12/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [13/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [14/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [15/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [16/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [17/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [18/54]

void eVision.Easy3D.EDepthMap.Draw	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ Draw() [19/54]

void eVision.Easy3D.EDepthMap.Draw ( IntPtr graphicContext )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext Handle to the device context of the destination window.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [20/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [21/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [22/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [23/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [24/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [25/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [26/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [27/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [28/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [29/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [30/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [31/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [32/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [33/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [34/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [35/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [36/54]

void eVision.Easy3D.EDepthMap.Draw	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [37/54]

void eVision.Easy3D.EDepthMap.Draw ( System.Drawing.Graphics graphicContext )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext Handle to the device context of the destination window.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [38/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [39/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [40/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [41/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [42/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [43/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [44/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [45/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [46/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [47/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [48/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [49/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [50/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		float	zoomX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [51/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [52/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [53/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [54/54]

void eVision.Easy3D.EDepthMap.Draw	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap.Draw takes the axis coordinate system in account. See EDepthMap.AxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [1/54]

void eVision.Easy3D.EDepthMap.DrawImage ( eVision.EDrawAdapter graphicContext )

abstract

Displays the internal image buffer.

Parameters

graphicContext Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [2/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [3/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [4/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [5/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [6/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [7/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [8/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [9/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [10/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [11/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [12/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [13/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [14/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [15/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [16/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [17/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [18/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	eVision.EDrawAdapter	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

◆ DrawImage() [19/54]

void eVision.Easy3D.EDepthMap.DrawImage ( IntPtr graphicContext )

abstract

Displays the internal image buffer.

Parameters

graphicContext Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [20/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [21/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [22/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [23/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [24/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [25/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [26/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [27/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [28/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [29/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [30/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [31/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [32/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [33/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [34/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [35/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [36/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	IntPtr	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [37/54]

void eVision.Easy3D.EDepthMap.DrawImage ( System.Drawing.Graphics graphicContext )

abstract

Displays the internal image buffer.

Parameters

graphicContext Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [38/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [39/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [40/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [41/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [42/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [43/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EBW8Vector	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [44/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [45/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [46/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [47/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [48/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [49/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		eVision.EC24Vector	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [50/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		float	zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [51/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [52/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [53/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawImage() [54/54]

void eVision.Easy3D.EDepthMap.DrawImage	(	System.Drawing.Graphics	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision.EC24	colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap.DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap.Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ GetBufferPtr() [1/2]

IntPtr eVision.Easy3D.EDepthMap.GetBufferPtr ( )

abstract

Retrieves the pointer of the pixel buffer.

This function does not check the value of the parameters. Use carefully.

◆ GetBufferPtr() [2/2]

IntPtr eVision.Easy3D.EDepthMap.GetBufferPtr	(	int	x,
		int	y )

abstract

Retrieves the pointer of the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

This function does not check the value of the parameters. Use carefully.

◆ GetCheckedBufferPtr()

IntPtr eVision.Easy3D.EDepthMap.GetCheckedBufferPtr	(	int	x,
		int	y )

abstract

Retrieves the pointer of the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

This function checks the value of the parameters.

◆ GetMetadata()

string eVision.Easy3D.EDepthMap.GetMetadata ( string Key )

abstract

Returns string value of the given metadata.

Throws an exception if it does not exist.

Parameters

Key	The name of an existing metadata.

◆ GetZValue()

float eVision.Easy3D.EDepthMap.GetZValue	(	int	x,
		int	y )

abstract

Gets the Z value of a pixel.

Parameters

x	Column of the pixel.
y	Row of the pixel.

◆ IsVoid()

bool eVision.Easy3D.EDepthMap.IsVoid ( )

abstract

Tests if the EDepthMap object has a size of zero.

Returns true if the depthmap size is zero.

◆ Load() [1/2]

void eVision.Easy3D.EDepthMap.Load ( eVision.ESerializer serializer )

abstract

Restores the EDepthMap stored in the given eVision file.

Parameters

serializer ESerializer in read mode.

When loading, the depth map is resized if needed.

This function restores the depth map attributes.

◆ Load() [2/2]

void eVision.Easy3D.EDepthMap.Load ( string path )

abstract

Restores the EDepthMap stored in the given eVision file.

Parameters

path	Full path of the file.

When loading, the depth map is resized if needed.

This function restores the depth map attributes.

◆ LoadImage() [1/2]

void eVision.Easy3D.EDepthMap.LoadImage ( string path )

abstract

Restores the EDepthMap image stored in the given image file.

Parameters

path	Full path to the file.

When loading, the depth map is resized if need be.

This function does not restore the depth map attributes, only the image associated with the EDepthMap is updated.

◆ LoadImage() [2/2]

void eVision.Easy3D.EDepthMap.LoadImage	(	string	path,
		bool	withMetadata )

abstract

Restores the EDepthMap image stored in the given image file.

Parameters

path	Full path to the file.
withMetadata	Parameter to load or not the metadata that has the same filename. False by default.

When loading, the depth map is resized if need be.

This function does not restore the depth map attributes, only the image associated with the EDepthMap is updated.

◆ LoadImageAndMetadata()

void eVision.Easy3D.EDepthMap.LoadImageAndMetadata	(	string	pathImage,
		string	pathMetadata )

abstract

Loads the image and the metadata from a file in JSON format.

Parameters

pathImage	Full path to the image file.
pathMetadata	Full path to the metadata file.

◆ LoadMetadata()

void eVision.Easy3D.EDepthMap.LoadMetadata ( string path )

abstract

Loads the metadata from a file in JSON format.

Parameters

path	Full path to the file.

◆ ModifyMetadata()

void eVision.Easy3D.EDepthMap.ModifyMetadata	(	string	Key,
		string	value )

abstract

Changes the value of an existing metadata.

Throws an exception if the metadata does not exist.

Parameters

Key	The name of an existing metadata.
value	The value for the given metadata.

◆ Save() [1/2]

void eVision.Easy3D.EDepthMap.Save ( eVision.ESerializer serializer )

abstract

Saves the EDepthMap object to the given eVision file.

Parameters

serializer ESerializer in read mode.

This function saves the EDepthMap in a eVision file.

This function stores the depth map attributes.

◆ Save() [2/2]

void eVision.Easy3D.EDepthMap.Save ( string path )

abstract

Saves the EDepthMap object to the given eVision file.

Parameters

path	The full path to the destination file.

This function saves the EDepthMap in a eVision file.

This function stores the depth map attributes.

◆ SaveImage() [1/3]

void eVision.Easy3D.EDepthMap.SaveImage ( string path )

abstract

Saves the EDepthMap image to the given image file.

Parameters

path	The full path to the destination file.

This function saves the image associated to EDepthMap in a standard image file and thus does not store depth map attributes.

◆ SaveImage() [2/3]

void eVision.Easy3D.EDepthMap.SaveImage	(	string	path,
		eVision.EImageFileType	type )

abstract

Saves the EDepthMap image to the given image file.

Parameters

path	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.

This function saves the image associated to EDepthMap in a standard image file and thus does not store depth map attributes.

◆ SaveImage() [3/3]

void eVision.Easy3D.EDepthMap.SaveImage	(	string	path,
		eVision.EImageFileType	type,
		bool	withMetadata )

abstract

Saves the EDepthMap image to the given image file.

Parameters

path	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.
withMetadata	Parameter to save or not the metadata that with the same filename next. False by default.

This function saves the image associated to EDepthMap in a standard image file and thus does not store depth map attributes.

◆ SaveImageAndMetadata() [1/2]

void eVision.Easy3D.EDepthMap.SaveImageAndMetadata	(	string	pathImage,
		string	pathMetadata )

abstract

Saves the image and the metadata to a JSON format file.

Parameters

pathImage	The full path to the destination image file.
pathMetadata	The full path to the destination metadata file.

◆ SaveImageAndMetadata() [2/2]

void eVision.Easy3D.EDepthMap.SaveImageAndMetadata	(	string	pathImage,
		string	pathMetadata,
		eVision.EImageFileType	type )

abstract

Saves the image and the metadata to a JSON format file.

Parameters

pathImage	The full path to the destination image file.
pathMetadata	The full path to the destination metadata file.
type	File format, as defined by EImageFileType.

If not specified, the file format is determined from the file extension.

◆ SaveJpeg() [1/2]

void eVision.Easy3D.EDepthMap.SaveJpeg ( string path )

abstract

Saves the EDepthMap object to the given image file, in JPEG format.

Parameters

path	The full path of the destination file.

◆ SaveJpeg() [2/2]

void eVision.Easy3D.EDepthMap.SaveJpeg	(	string	path,
		int	quality )

abstract

Saves the EDepthMap object to the given image file, in JPEG format.

Parameters

path	The full path of the destination file.
quality	JPEG quality, between 0 and 100 (100 is best quality). The default value is 75.

◆ SaveJpeg2K() [1/2]

void eVision.Easy3D.EDepthMap.SaveJpeg2K ( string path )

abstract

Saves the EDepthMap object to the given image file, in JPEG 2000 format.

Parameters

path	The full path of the destination file.

◆ SaveJpeg2K() [2/2]

void eVision.Easy3D.EDepthMap.SaveJpeg2K	(	string	path,
		int	quality )

abstract

Saves the EDepthMap object to the given image file, in JPEG 2000 format.

Parameters

path	The full path of the destination file.
quality	JPEG 2000 quality, between 1 and 512.

The default value is 16.

◆ SaveMetadata()

void eVision.Easy3D.EDepthMap.SaveMetadata ( string path )

abstract

Saves the metadata to a file in JSON format.

Parameters

path	The full path to the destination file.

◆ SetBufferPtr() [1/2]

void eVision.Easy3D.EDepthMap.SetBufferPtr	(	int	width,
		int	height,
		IntPtr	imagePointer )

abstract

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
imagePointer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.

Deprecated

Use EDepthMap.UseExternalBuffer instead.

Deprecated in version 26.2. Scheduled to be removed in version 27.6.

◆ SetBufferPtr() [2/2]

void eVision.Easy3D.EDepthMap.SetBufferPtr	(	int	width,
		int	height,
		IntPtr	imagePointer,
		int	bitsPerRow )

abstract

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
imagePointer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.
bitsPerRow	The total number of bits contained in a row, padding included. Using the value 0 (default) means that this size is computed from the buffer width and the pixel size plus a padding with the smallest possible value that leads to a multiple of 4 bytes (32 bits), which is the minimum padding accepted by EDepthMap.SetBufferPtr.

Deprecated

Use EDepthMap.UseExternalBuffer instead.

Deprecated in version 26.2. Scheduled to be removed in version 27.6.

◆ SetSize() [1/2]

void eVision.Easy3D.EDepthMap.SetSize ( eVision.Easy3D.EDepthMap other )

abstract

Sets the width and height of a DepthMap.

Parameters

other The other DepthMap whose dimensions have to be used for the current object.

eVision will allocate a new buffer (deallocate the old buffer) if the supplied width and height are different from the existing ones.

If an external buffer has been specified by means of UseExternalBuffer, it will be kept only if the size does not change.

Creating a new buffer and setting its size creates a 4-byte aligned buffer, by default.

◆ SetSize() [2/2]

void eVision.Easy3D.EDepthMap.SetSize	(	int	width,
		int	height )

abstract

Sets the width and height of a DepthMap.

Parameters

width	The new requested DepthMap width.
height	The new requested DepthMap height.

eVision will allocate a new buffer (deallocate the old buffer) if the supplied width and height are different from the existing ones.

If an external buffer has been specified by means of UseExternalBuffer, it will be kept only if the size does not change.

Creating a new buffer and setting its size creates a 4-byte aligned buffer, by default.

◆ UseExternalBuffer()

void eVision.Easy3D.EDepthMap.UseExternalBuffer	(	int	width,
		int	height,
		IntPtr	buffer,
		int	rowPitch )

abstract

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
buffer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.
rowPitch	The total number of bytes contained in a row, padding included.

Property Documentation

◆ AxisSystemType

eVision.Easy3D.EAxisSystemType eVision.Easy3D.EDepthMap.AxisSystemType

getsetabstract

Manage the axis coordinate system.

◆ Height

int eVision.Easy3D.EDepthMap.Height

getsetabstract

Access depth map Height.

◆ RowPitch

int eVision.Easy3D.EDepthMap.RowPitch

getabstract

Returns the buffer row pitch.

◆ Type

eVision.EImageType eVision.Easy3D.EDepthMap.Type

getabstract

Returns the image type.

◆ Width

int eVision.Easy3D.EDepthMap.Width

getsetabstract

Access depth map Width.

◆ ZResolution

float eVision.Easy3D.EDepthMap.ZResolution

getsetabstract

Access the Z Resolution (depth units per grey scale value).

Public Member Functions

Static Public Member Functions

Properties

Detailed Description

Member Function Documentation

◆ AddMetadata()

◆ Clear()

◆ ClearMetadata()

◆ ConvertCoordinatesMapToPixel() [1/2]

◆ ConvertCoordinatesMapToPixel() [2/2]

◆ ConvertCoordinatesPixelToMap() [1/2]

◆ ConvertCoordinatesPixelToMap() [2/2]

◆ Create()

◆ DeleteMetadata()

◆ Draw() [1/54]

◆ Draw() [2/54]

◆ Draw() [3/54]

◆ Draw() [4/54]

◆ Draw() [5/54]

◆ Draw() [6/54]

◆ Draw() [7/54]

◆ Draw() [8/54]

◆ Draw() [9/54]

◆ Draw() [10/54]

◆ Draw() [11/54]

◆ Draw() [12/54]

◆ Draw() [13/54]

◆ Draw() [14/54]

◆ Draw() [15/54]

◆ Draw() [16/54]

◆ Draw() [17/54]

◆ Draw() [18/54]

◆ Draw() [19/54]

◆ Draw() [20/54]

◆ Draw() [21/54]

◆ Draw() [22/54]

◆ Draw() [23/54]

◆ Draw() [24/54]

◆ Draw() [25/54]

◆ Draw() [26/54]

◆ Draw() [27/54]

◆ Draw() [28/54]

◆ Draw() [29/54]

◆ Draw() [30/54]

◆ Draw() [31/54]

◆ Draw() [32/54]

◆ Draw() [33/54]

◆ Draw() [34/54]

◆ Draw() [35/54]

◆ Draw() [36/54]

◆ Draw() [37/54]

◆ Draw() [38/54]

◆ Draw() [39/54]

◆ Draw() [40/54]

◆ Draw() [41/54]

◆ Draw() [42/54]

◆ Draw() [43/54]

◆ Draw() [44/54]

◆ Draw() [45/54]

◆ Draw() [46/54]

◆ Draw() [47/54]

◆ Draw() [48/54]

◆ Draw() [49/54]

◆ Draw() [50/54]

◆ Draw() [51/54]

◆ Draw() [52/54]

◆ Draw() [53/54]

◆ Draw() [54/54]

◆ DrawImage() [1/54]

◆ DrawImage() [2/54]

◆ DrawImage() [3/54]

◆ DrawImage() [4/54]

◆ DrawImage() [5/54]

◆ DrawImage() [6/54]

◆ DrawImage() [7/54]

◆ DrawImage() [8/54]

◆ DrawImage() [9/54]

◆ DrawImage() [10/54]

◆ DrawImage() [11/54]

◆ DrawImage() [12/54]
