Draw adapter interface used for drawing eVision objects and results. More...

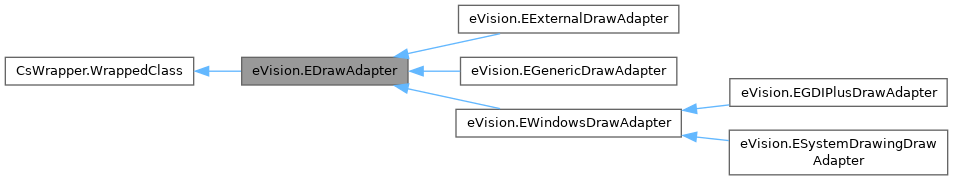

Inheritance diagram for eVision.EDrawAdapter:

[legend]

Collaboration diagram for eVision.EDrawAdapter:

Public Member Functions
void	DrawPoint (int x1, int y1, eVision.EPen pen)
	Draws a point at the given coordinate.
void	DrawPoint (int x1, int y1)
	Draws a point at the given coordinate.
void	Line (int x1, int y1, int x2, int y2, eVision.EPen pen)
	Draws a line between two points.
void	Line (int x1, int y1, int x2, int y2)
	Draws a line between two points.
void	Arc (int orgX, int orgY, int width, int height, float startAngle, float amplitude, eVision.EPen pen)
	Draws an arc defined by a rectangle, angle, and amplitude.
void	Arc (int orgX, int orgY, int width, int height, float startAngle, float amplitude)
	Draws an arc defined by a rectangle, angle, and amplitude.
void	Rectangle (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Draws a rectangle.
void	Rectangle (int orgX, int orgY, int width, int height)
	Draws a rectangle.
void	Polygon (eVision.EPoint[] points, eVision.EPen pen)
	Draws a polygon.
void	Polygon (eVision.EPoint[] points)
	Draws a polygon.
virtual void	Polygon (eVision.EPolygon polygon, eVision.EPen pen)
	Draws a polygon.
virtual void	Polygon (eVision.EPolygon polygon)
	Draws a polygon.
void	Ellipse (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Draws an ellipse.
void	Ellipse (int orgX, int orgY, int width, int height)
	Draws an ellipse.
void	Ellipse (eVision.EEllipse ellipse, eVision.EPen pen)
	Draws an ellipse.
void	Ellipse (eVision.EEllipse ellipse)
	Draws an ellipse.
virtual void	RotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, bool drawDiagonals, eVision.EPen pen)
	Draws a rotated ellipse.
virtual void	RotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, bool drawDiagonals)
	Draws a rotated ellipse.
void	RotatedEllipse (eVision.EEllipse ellipse, bool drawDiagonals, eVision.EPen pen)
	Draws a rotated ellipse.
void	RotatedEllipse (eVision.EEllipse ellipse, bool drawDiagonals)
	Draws a rotated ellipse.
void	FilledRectangle (int orgX, int orgY, int width, int height, eVision.EPen pen, eVision.EBrush brush)
	Fills a rectangle.
void	FilledRectangle (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Fills a rectangle.
void	FilledRectangle (int orgX, int orgY, int width, int height)
	Fills a rectangle.
void	FilledEllipse (int orgX, int orgY, int width, int height, eVision.EPen pen, eVision.EBrush brush)
	Fills an ellipse.
void	FilledEllipse (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Fills an ellipse.
void	FilledEllipse (int orgX, int orgY, int width, int height)
	Fills an ellipse.
void	FilledEllipse (eVision.EEllipse ellipse, eVision.EPen pen, eVision.EBrush brush)
	Fills an ellipse.
void	FilledEllipse (eVision.EEllipse ellipse, eVision.EPen pen)
	Fills an ellipse.
void	FilledEllipse (eVision.EEllipse ellipse)
	Fills an ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, eVision.EPen pen, eVision.EBrush brush)
	Fills a rotated ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, eVision.EPen pen)
	Fills a rotated ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (eVision.EEllipse ellipse, eVision.EPen pen, eVision.EBrush brush)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (eVision.EEllipse ellipse, eVision.EPen pen)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (eVision.EEllipse ellipse)
	Fills a rotated ellipse.
void	FilledPolygon (eVision.EPoint[] points, eVision.EPen pen, eVision.EBrush brush)
	Fills a polygon.
void	FilledPolygon (eVision.EPoint[] points, eVision.EPen pen)
	Fills a polygon.
void	FilledPolygon (eVision.EPoint[] points)
	Fills a polygon.
virtual void	FilledPolygon (eVision.EPolygon polygon, eVision.EPen pen, eVision.EBrush brush)
	Fills a polygon.
virtual void	FilledPolygon (eVision.EPolygon polygon, eVision.EPen pen)
	Fills a polygon.
virtual void	FilledPolygon (eVision.EPolygon polygon)
	Fills a polygon.
virtual void	Text (string text, int x, int y, eVision.EBrush textBrush, eVision.ETextSizeConstraint constraint)
	Draws a text.
virtual void	Text (string text, int x, int y, eVision.EBrush textBrush)
	Draws a text.
virtual void	Text (string text, int x, int y)
	Draws a text.
void	Text (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.ETextSizeConstraint constraint)
	Draws a text.
void	Text (string text, int x, int y, float orientation, eVision.EBrush textBrush)
	Draws a text.
void	Text (string text, int x, int y, float orientation)
	Draws a text.
virtual void	BackedText (string text, int x, int y, eVision.EBrush textBrush, eVision.EBrush backgroundBrush, eVision.ETextSizeConstraint constraint)
	Draws a text with a background.
virtual void	BackedText (string text, int x, int y, eVision.EBrush textBrush, eVision.EBrush backgroundBrush)
	Draws a text with a background.
virtual void	BackedText (string text, int x, int y, eVision.EBrush textBrush)
	Draws a text with a background.
virtual void	BackedText (string text, int x, int y)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.EBrush backgroundBrush, eVision.ETextSizeConstraint constraint)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.EBrush backgroundBrush)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation)
	Draws a text with a background.
virtual void	Image (eVision.EBaseROI image)
	Draws an image.
virtual void	Image (eVision.EROIBW8 image, eVision.EBW8Vector pColorScale)
	Draws an image.
virtual void	Image (eVision.EROIBW8 image, eVision.EC24Vector pColorScale)
	Draws an image.
void	Image (eVision.EBaseROI image, float orgX, float orgY, float width, float height)
	Draws an image.
void	Image (eVision.EROIBW8 image, eVision.EC24Vector pColorScale, float orgX, float orgY, float width, float height)
	Draws an image.
void	Image (eVision.EROIBW8 image, eVision.EBW8Vector pColorScale, float orgX, float orgY, float width, float height)
	Draws an image.
virtual void	DrawMask (eVision.EBaseROI mask, eVision.EBrush brush)
	Draws a mask with a brush.
virtual void	DrawMask (eVision.EBaseROI mask)
	Draws a mask with a brush.
virtual void	DrawMask (eVision.EBaseROI mask, float orgX, float orgY, float width, float height, eVision.EBrush brush)
	Draws a mask with a brush.
virtual void	DrawMask (eVision.EBaseROI mask, float orgX, float orgY, float width, float height)
	Draws a mask with a brush.
eVision.EPoint	GetTextSize (string text)
	Size of the given text using the default font (EDrawAdapter.Font).
void	UseCurrentPen ()
	Use the current pen set in the drawing framework.
void	UseCurrentBrush ()
	Use the current pen set in the drawing framework.
virtual int	ComputeTextSize (string text, int desiredWidth)
	Computes text size for given constraint. Constraint is the desired total width of the text to draw.

Properties
virtual eVision.EPen	Pen `[get, set]`
	Default pen.
virtual eVision.EBrush	Brush `[get, set]`
	Default brush.
virtual eVision.EFont	Font `[get, set]`
	Default font.

Detailed Description

Draw adapter interface used for drawing eVision objects and results.

The interface contains various primitives to draw images and various shapes (line, rectangle, ellipse, polygon). It draws the contours of shapes using a EPen and fills the inside of a shape with a EBrush. It has a default pen (EDrawAdapter.Pen) and default brush (EDrawAdapter.Brush) but they can be overridden using the optional pen and brush arguments of shape primitives. If no default pen and brush are set and no optional pen and brush are specified when calling a shape primitives, the shape will not be drawn. For the "Fill" primitives, no pen will result in no contours being drawn around the shape and no brush is equivalent to the corresponding "Draw" primitive.

License(s): None

Member Function Documentation

◆ Arc() [1/2]

void eVision.EDrawAdapter.Arc	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		float	startAngle,
		float	amplitude )

abstract

Draws an arc defined by a rectangle, angle, and amplitude.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
startAngle	Starting angle of the arc in radians
amplitude	Amplitude of the arc in radians

◆ Arc() [2/2]

void eVision.EDrawAdapter.Arc	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		float	startAngle,
		float	amplitude,
		eVision.EPen	pen )

abstract

Draws an arc defined by a rectangle, angle, and amplitude.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
startAngle	Starting angle of the arc in radians
amplitude	Amplitude of the arc in radians
pen	Optional pen to use

◆ BackedText() [1/8]

virtual void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ BackedText() [2/8]

virtual void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		eVision.EBrush	textBrush )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ BackedText() [3/8]

virtual void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		eVision.EBrush	textBrush,
		eVision.EBrush	backgroundBrush )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ BackedText() [4/8]

virtual void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		eVision.EBrush	textBrush,
		eVision.EBrush	backgroundBrush,
		eVision.ETextSizeConstraint	constraint )

virtual

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ BackedText() [5/8]

void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		float	orientation )

abstract

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ BackedText() [6/8]

void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		float	orientation,
		eVision.EBrush	textBrush )

abstract

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ BackedText() [7/8]

void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		float	orientation,
		eVision.EBrush	textBrush,
		eVision.EBrush	backgroundBrush )

abstract

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ BackedText() [8/8]

void eVision.EDrawAdapter.BackedText	(	string	text,
		int	x,
		int	y,
		float	orientation,
		eVision.EBrush	textBrush,
		eVision.EBrush	backgroundBrush,
		eVision.ETextSizeConstraint	constraint )

abstract

Draws a text with a background.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.
backgroundBrush	Optional brush to use for the background.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ ComputeTextSize()

virtual int eVision.EDrawAdapter.ComputeTextSize	(	string	text,
		int	desiredWidth )

virtual

Computes text size for given constraint. Constraint is the desired total width of the text to draw.

Parameters

text	Text to measure before drawing.
desiredWidth	Width constraint.

Reimplemented in eVision.EExternalDrawAdapter, eVision.EGenericDrawAdapter, and eVision.EWindowsDrawAdapter.

◆ DrawMask() [1/4]

virtual void eVision.EDrawAdapter.DrawMask ( eVision.EBaseROI mask )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawMask() [2/4]

virtual void eVision.EDrawAdapter.DrawMask	(	eVision.EBaseROI	mask,
		eVision.EBrush	brush )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw
brush	Brush to draw the mask with.

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawMask() [3/4]

virtual void eVision.EDrawAdapter.DrawMask	(	eVision.EBaseROI	mask,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawMask() [4/4]

virtual void eVision.EDrawAdapter.DrawMask	(	eVision.EBaseROI	mask,
		float	orgX,
		float	orgY,
		float	width,
		float	height,
		eVision.EBrush	brush )

virtual

Draws a mask with a brush.

Parameters

mask	Mask to draw
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.
brush	Brush to draw the mask with.

The type of the mask image must be BW8, BW16, or BW32.

The default implementation converts the mask into a EImageC24A image using the brush and draws this image.

◆ DrawPoint() [1/2]

void eVision.EDrawAdapter.DrawPoint	(	int	x1,
		int	y1 )

abstract

Draws a point at the given coordinate.

Parameters

x1	X coordinate
y1	Y coordinate

◆ DrawPoint() [2/2]

void eVision.EDrawAdapter.DrawPoint	(	int	x1,
		int	y1,
		eVision.EPen	pen )

abstract

Draws a point at the given coordinate.

Parameters

x1	X coordinate
y1	Y coordinate
pen	Optional pen to use

◆ Ellipse() [1/4]

void eVision.EDrawAdapter.Ellipse ( eVision.EEllipse ellipse )

Draws an ellipse.

Parameters

ellipse the ellipse to be drawn (angle is ignored).

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter.RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ Ellipse() [2/4]

void eVision.EDrawAdapter.Ellipse	(	eVision.EEllipse	ellipse,
		eVision.EPen	pen )

Draws an ellipse.

Parameters

ellipse	the ellipse to be drawn (angle is ignored).
pen	Optional pen to use

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter.RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ Ellipse() [3/4]

void eVision.EDrawAdapter.Ellipse	(	int	orgX,
		int	orgY,
		int	width,
		int	height )

abstract

Draws an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter.RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ Ellipse() [4/4]

void eVision.EDrawAdapter.Ellipse	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		eVision.EPen	pen )

abstract

Draws an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse
pen	Optional pen to use

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw rotated ellipses, use EDrawAdapter.RotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [1/6]

void eVision.EDrawAdapter.FilledEllipse ( eVision.EEllipse ellipse )

Fills an ellipse.

Parameters

ellipse the ellipse to be drawn.

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter.FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [2/6]

void eVision.EDrawAdapter.FilledEllipse	(	eVision.EEllipse	ellipse,
		eVision.EPen	pen )

Fills an ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Optional pen to use for drawing the contour of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter.FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [3/6]

void eVision.EDrawAdapter.FilledEllipse	(	eVision.EEllipse	ellipse,
		eVision.EPen	pen,
		eVision.EBrush	brush )

Fills an ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Optional pen to use for drawing the contour of the ellipse
brush	Optional pen to use for drawing the inside of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter.FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [4/6]

void eVision.EDrawAdapter.FilledEllipse	(	int	orgX,
		int	orgY,
		int	width,
		int	height )

abstract

Fills an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter.FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [5/6]

void eVision.EDrawAdapter.FilledEllipse	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		eVision.EPen	pen )

abstract

Fills an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse
pen	Optional pen to use for drawing the contour of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter.FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledEllipse() [6/6]

void eVision.EDrawAdapter.FilledEllipse	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		eVision.EPen	pen,
		eVision.EBrush	brush )

abstract

Fills an ellipse.

Parameters

orgX	X origin of the rectangle containing the ellipse
orgY	Y origin of the rectangle containing the ellipse
width	Width of the rectangle containing the ellipse
height	Height of the rectangle containing the ellipse
pen	Optional pen to use for drawing the contour of the ellipse
brush	Optional pen to use for drawing the inside of the ellipse

This method only draws axis-aligned ellipses, if the given ellipse has an angle, it is ignored. To draw filled and rotated ellipses, use EDrawAdapter.FilledRotatedEllipse instead. An ellipse with full angular amplitude is always drawn.

◆ FilledPolygon() [1/6]

void eVision.EDrawAdapter.FilledPolygon ( eVision.EPoint[] points )

abstract

Fills a polygon.

Parameters

points Points of the polygon

◆ FilledPolygon() [2/6]

void eVision.EDrawAdapter.FilledPolygon	(	eVision.EPoint[]	points,
		eVision.EPen	pen )

abstract

Fills a polygon.

Parameters

points	Points of the polygon
pen	Optional pen to use for drawing the contour of the polygon

◆ FilledPolygon() [3/6]

void eVision.EDrawAdapter.FilledPolygon	(	eVision.EPoint[]	points,
		eVision.EPen	pen,
		eVision.EBrush	brush )

abstract

Fills a polygon.

Parameters

points	Points of the polygon
pen	Optional pen to use for drawing the contour of the polygon
brush	Optional pen to use for drawing the inside of the polygon

◆ FilledPolygon() [4/6]

virtual void eVision.EDrawAdapter.FilledPolygon ( eVision.EPolygon polygon )

virtual

Fills a polygon.

Parameters

polygon Polygon

◆ FilledPolygon() [5/6]

virtual void eVision.EDrawAdapter.FilledPolygon	(	eVision.EPolygon	polygon,
		eVision.EPen	pen )

virtual

Fills a polygon.

Parameters

polygon	Polygon
pen	Optional pen to use for drawing the contour of the polygon

◆ FilledPolygon() [6/6]

virtual void eVision.EDrawAdapter.FilledPolygon	(	eVision.EPolygon	polygon,
		eVision.EPen	pen,
		eVision.EBrush	brush )

virtual

Fills a polygon.

Parameters

polygon	Polygon
pen	Optional pen to use for drawing the contour of the polygon
brush	Optional pen to use for drawing the inside of the polygon

◆ FilledRectangle() [1/3]

void eVision.EDrawAdapter.FilledRectangle	(	int	orgX,
		int	orgY,
		int	width,
		int	height )

abstract

Fills a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle

◆ FilledRectangle() [2/3]

void eVision.EDrawAdapter.FilledRectangle	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		eVision.EPen	pen )

abstract

Fills a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
pen	Optional pen to use for drawing the contour of the rectangle

◆ FilledRectangle() [3/3]

void eVision.EDrawAdapter.FilledRectangle	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		eVision.EPen	pen,
		eVision.EBrush	brush )

abstract

Fills a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
pen	Optional pen to use for drawing the contour of the rectangle
brush	Optional brush to use for filling the inside of the rectangle

◆ FilledRotatedEllipse() [1/6]

void eVision.EDrawAdapter.FilledRotatedEllipse ( eVision.EEllipse ellipse )

Fills a rotated ellipse.

Parameters

ellipse the ellipse to be drawn.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [2/6]

void eVision.EDrawAdapter.FilledRotatedEllipse	(	eVision.EEllipse	ellipse,
		eVision.EPen	pen )

Fills a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [3/6]

void eVision.EDrawAdapter.FilledRotatedEllipse	(	eVision.EEllipse	ellipse,
		eVision.EPen	pen,
		eVision.EBrush	brush )

Fills a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
pen	Pen to draw the ellipse with.
brush	Brush to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [4/6]

virtual void eVision.EDrawAdapter.FilledRotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis )

virtual

Fills a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [5/6]

virtual void eVision.EDrawAdapter.FilledRotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		eVision.EPen	pen )

virtual

Fills a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ FilledRotatedEllipse() [6/6]

virtual void eVision.EDrawAdapter.FilledRotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		eVision.EPen	pen,
		eVision.EBrush	brush )

virtual

Fills a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
pen	Pen to draw the ellipse with.
brush	Brush to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ GetTextSize()

eVision.EPoint eVision.EDrawAdapter.GetTextSize ( string text )

abstract

Size of the given text using the default font (EDrawAdapter.Font).

Parameters

text Text

◆ Image() [1/6]

virtual void eVision.EDrawAdapter.Image ( eVision.EBaseROI image )

virtual

Draws an image.

Parameters

image Image.

Reimplemented in eVision.EGenericDrawAdapter.

◆ Image() [2/6]

void eVision.EDrawAdapter.Image	(	eVision.EBaseROI	image,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

abstract

Draws an image.

Parameters

image	Image.
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

◆ Image() [3/6]

virtual void eVision.EDrawAdapter.Image	(	eVision.EROIBW8	image,
		eVision.EBW8Vector	pColorScale )

virtual

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.

Reimplemented in eVision.EGenericDrawAdapter.

◆ Image() [4/6]

void eVision.EDrawAdapter.Image	(	eVision.EROIBW8	image,
		eVision.EBW8Vector	pColorScale,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

abstract

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

◆ Image() [5/6]

virtual void eVision.EDrawAdapter.Image	(	eVision.EROIBW8	image,
		eVision.EC24Vector	pColorScale )

virtual

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.

Reimplemented in eVision.EGenericDrawAdapter.

◆ Image() [6/6]

void eVision.EDrawAdapter.Image	(	eVision.EROIBW8	image,
		eVision.EC24Vector	pColorScale,
		float	orgX,
		float	orgY,
		float	width,
		float	height )

abstract

Draws an image.

Parameters

image	Image.
pColorScale	Color scale to draw a grayscale image with.
orgX	X coordinate of the point where to draw the image.
orgY	Y coordinate of the point where to draw the image.
width	Width of the destination rectangle in which to draw the image.
height	Height of the destination rectangle in which to draw the image.

◆ Line() [1/2]

void eVision.EDrawAdapter.Line	(	int	x1,
		int	y1,
		int	x2,
		int	y2 )

abstract

Draws a line between two points.

Parameters

x1	X coordinate of line origin point
y1	Y coordinate of line origin point
x2	X coordinate of line end point
y2	Y coordinate of line end point

◆ Line() [2/2]

void eVision.EDrawAdapter.Line	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		eVision.EPen	pen )

abstract

Draws a line between two points.

Parameters

x1	X coordinate of line origin point
y1	Y coordinate of line origin point
x2	X coordinate of line end point
y2	Y coordinate of line end point
pen	Optional pen to use

◆ Polygon() [1/4]

void eVision.EDrawAdapter.Polygon ( eVision.EPoint[] points )

abstract

Draws a polygon.

Parameters

points Points of the polygon

◆ Polygon() [2/4]

void eVision.EDrawAdapter.Polygon	(	eVision.EPoint[]	points,
		eVision.EPen	pen )

abstract

Draws a polygon.

Parameters

points	Points of the polygon
pen	Optional pen to use

◆ Polygon() [3/4]

virtual void eVision.EDrawAdapter.Polygon ( eVision.EPolygon polygon )

virtual

Draws a polygon.

Parameters

polygon Polygon

◆ Polygon() [4/4]

virtual void eVision.EDrawAdapter.Polygon	(	eVision.EPolygon	polygon,
		eVision.EPen	pen )

virtual

Draws a polygon.

Parameters

polygon	Polygon
pen	Optional pen to use

◆ Rectangle() [1/2]

void eVision.EDrawAdapter.Rectangle	(	int	orgX,
		int	orgY,
		int	width,
		int	height )

abstract

Draws a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle

◆ Rectangle() [2/2]

void eVision.EDrawAdapter.Rectangle	(	int	orgX,
		int	orgY,
		int	width,
		int	height,
		eVision.EPen	pen )

abstract

Draws a rectangle.

Parameters

orgX	X origin of the rectangle
orgY	Y origin of the rectangle
width	Width of the rectangle
height	Height of the rectangle
pen	Optional pen to use

◆ RotatedEllipse() [1/4]

void eVision.EDrawAdapter.RotatedEllipse	(	eVision.EEllipse	ellipse,
		bool	drawDiagonals )

Draws a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
drawDiagonals	Whether to draw the diagonal

An ellipse with full angular amplitude is always drawn.

◆ RotatedEllipse() [2/4]

void eVision.EDrawAdapter.RotatedEllipse	(	eVision.EEllipse	ellipse,
		bool	drawDiagonals,
		eVision.EPen	pen )

Draws a rotated ellipse.

Parameters

ellipse	the ellipse to be drawn.
drawDiagonals	Whether to draw the diagonal
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ RotatedEllipse() [3/4]

virtual void eVision.EDrawAdapter.RotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		bool	drawDiagonals )

virtual

Draws a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
drawDiagonals	Whether to draw the diagonal

An ellipse with full angular amplitude is always drawn.

◆ RotatedEllipse() [4/4]

virtual void eVision.EDrawAdapter.RotatedEllipse	(	float	centerX,
		float	centerY,
		float	radianAngle,
		float	longAxis,
		float	shortAxis,
		bool	drawDiagonals,
		eVision.EPen	pen )

virtual

Draws a rotated ellipse.

Parameters

centerX	X coordinate of the ellipse center
centerY	Y coordinate of the ellipse center
radianAngle	Angle of the rotated ellipse in radian
longAxis	Long axis length
shortAxis	Short axis length
drawDiagonals	Whether to draw the diagonal
pen	Pen to draw the ellipse with.

An ellipse with full angular amplitude is always drawn.

◆ Text() [1/6]

virtual void eVision.EDrawAdapter.Text	(	string	text,
		int	x,
		int	y )

virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ Text() [2/6]

virtual void eVision.EDrawAdapter.Text	(	string	text,
		int	x,
		int	y,
		eVision.EBrush	textBrush )

virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ Text() [3/6]

virtual void eVision.EDrawAdapter.Text	(	string	text,
		int	x,
		int	y,
		eVision.EBrush	textBrush,
		eVision.ETextSizeConstraint	constraint )

virtual

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
textBrush	Optional brush to use for the color of the text.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

Reimplemented in eVision.EGenericDrawAdapter.

◆ Text() [4/6]

void eVision.EDrawAdapter.Text	(	string	text,
		int	x,
		int	y,
		float	orientation )

abstract

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ Text() [5/6]

void eVision.EDrawAdapter.Text	(	string	text,
		int	x,
		int	y,
		float	orientation,
		eVision.EBrush	textBrush )

abstract

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ Text() [6/6]

void eVision.EDrawAdapter.Text	(	string	text,
		int	x,
		int	y,
		float	orientation,
		eVision.EBrush	textBrush,
		eVision.ETextSizeConstraint	constraint )

abstract

Draws a text.

Parameters

text	Text to draw.
x	X position of the text.
y	Y position of the text.
orientation	Orientation of the text in radians.
textBrush	Optional brush to use for the color of the text.
constraint	Text size constraint. By default, no constraint is to be applied.

If desiredWidth is greater than 0, current font size will be ignored and a new one will be temporally set so that the whole drawn text fills in desiredWidth pixels.

◆ UseCurrentBrush()

void eVision.EDrawAdapter.UseCurrentBrush ( )

abstract

Use the current pen set in the drawing framework.

◆ UseCurrentPen()

void eVision.EDrawAdapter.UseCurrentPen ( )

abstract

Use the current pen set in the drawing framework.

Property Documentation

◆ Brush

virtual eVision.EBrush eVision.EDrawAdapter.Brush

getset

Default brush.

◆ Font

virtual eVision.EFont eVision.EDrawAdapter.Font

getset

Default font.

◆ Pen

virtual eVision.EPen eVision.EDrawAdapter.Pen

getset

Default pen.

Public Member Functions

Properties

Detailed Description

Member Function Documentation

◆ Arc() [1/2]

◆ Arc() [2/2]

◆ BackedText() [1/8]

◆ BackedText() [2/8]

◆ BackedText() [3/8]

◆ BackedText() [4/8]

◆ BackedText() [5/8]

◆ BackedText() [6/8]

◆ BackedText() [7/8]

◆ BackedText() [8/8]

◆ ComputeTextSize()

◆ DrawMask() [1/4]

◆ DrawMask() [2/4]

◆ DrawMask() [3/4]

◆ DrawMask() [4/4]

◆ DrawPoint() [1/2]

◆ DrawPoint() [2/2]

◆ Ellipse() [1/4]

◆ Ellipse() [2/4]

◆ Ellipse() [3/4]

◆ Ellipse() [4/4]

◆ FilledEllipse() [1/6]

◆ FilledEllipse() [2/6]

◆ FilledEllipse() [3/6]

◆ FilledEllipse() [4/6]

◆ FilledEllipse() [5/6]

◆ FilledEllipse() [6/6]

◆ FilledPolygon() [1/6]

◆ FilledPolygon() [2/6]

◆ FilledPolygon() [3/6]

◆ FilledPolygon() [4/6]

◆ FilledPolygon() [5/6]

◆ FilledPolygon() [6/6]

◆ FilledRectangle() [1/3]

◆ FilledRectangle() [2/3]

◆ FilledRectangle() [3/3]

◆ FilledRotatedEllipse() [1/6]

◆ FilledRotatedEllipse() [2/6]

◆ FilledRotatedEllipse() [3/6]

◆ FilledRotatedEllipse() [4/6]

◆ FilledRotatedEllipse() [5/6]

◆ FilledRotatedEllipse() [6/6]

◆ GetTextSize()

◆ Image() [1/6]

◆ Image() [2/6]

◆ Image() [3/6]

◆ Image() [4/6]

◆ Image() [5/6]

◆ Image() [6/6]

◆ Line() [1/2]

◆ Line() [2/2]

◆ Polygon() [1/4]

◆ Polygon() [2/4]

◆ Polygon() [3/4]

◆ Polygon() [4/4]

◆ Rectangle() [1/2]

◆ Rectangle() [2/2]

◆ RotatedEllipse() [1/4]

◆ RotatedEllipse() [2/4]

◆ RotatedEllipse() [3/4]

◆ RotatedEllipse() [4/4]

◆ Text() [1/6]

◆ Text() [2/6]

◆ Text() [3/6]

◆ Text() [4/6]

◆ Text() [5/6]

◆ Text() [6/6]

◆ UseCurrentBrush()

◆ UseCurrentPen()

Property Documentation

◆ Brush

◆ Font

◆ Pen
