eVision.Segmenters.EColorSingleThresholdSegmenter Class Reference

Segments an image using a single threshold on a color image. More...

Inheritance diagram for eVision.Segmenters.EColorSingleThresholdSegmenter:

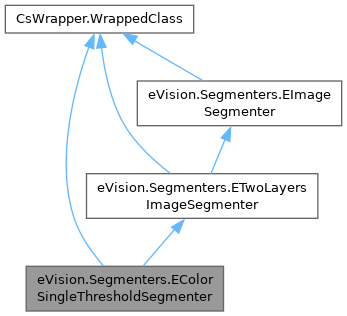

Collaboration diagram for eVision.Segmenters.EColorSingleThresholdSegmenter:

Public Member Functions
new void	Load (string path)
	Load the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for reading.
new void	Load (eVision.ESerializer serializer)
	Load the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for reading.
new void	Save (string path)
	Save the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for writing.
new void	Save (eVision.ESerializer serializer)
	Save the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for writing.
Public Member Functions inherited from eVision.Segmenters.ETwoLayersImageSegmenter
void	Load (string path)
	Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the ETwoLayersImageSegmenter configuration. The given ESerializer must have been created for writing.

Properties
eVision.EC24	Threshold [get, set]
	Value of the threshold.
Properties inherited from eVision.Segmenters.ETwoLayersImageSegmenter
virtual uint	BlackLayerIndex [get, set]
	Index of the black layer in the destination coded image.
virtual bool	BlackLayerEncoded [get, set]
	Black layer encoding status.
virtual uint	WhiteLayerIndex [get, set]
	Index of the white layer in the destination coded image.
virtual bool	WhiteLayerEncoded [get, set]
	White layer encoding status.

Detailed Description

Segments an image using a single threshold on a color image.

This segmenter is applicable to EROIC24 RGB color images. It produces coded images with two layers: The White layer (usually, with index 1) contains the unmasked pixels that belong to the cube of the RGB space defined by the threshold point and the white point (255,255,255); and the Black layer (usually, with index 0) contains the remaining unmasked pixels.

License(s): EasyObject

Member Function Documentation

Load() [1/2]

new void eVision.Segmenters.EColorSingleThresholdSegmenter.Load

(

eVision.ESerializer

serializer

)

Load the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Load() [2/2]

new void eVision.Segmenters.EColorSingleThresholdSegmenter.Load

(

string

path

)

Load the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Save() [1/2]

new void eVision.Segmenters.EColorSingleThresholdSegmenter.Save

(

eVision.ESerializer

serializer

)

Save the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Save() [2/2]

new void eVision.Segmenters.EColorSingleThresholdSegmenter.Save

(

string

path

)

Save the EColorSingleThresholdSegmenter configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

Property Documentation

Threshold

eVision.EC24 eVision.Segmenters.EColorSingleThresholdSegmenter.Threshold

getset

Value of the threshold.
