eVision::EShape Class Reference

Base class for geometrical shapes. More...

#include <eVision/Easy/EShape.h>

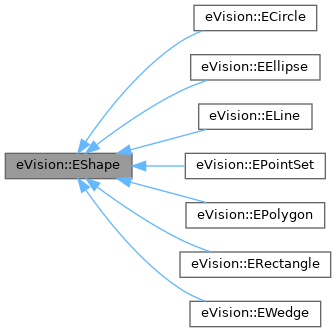

Inheritance diagram for eVision::EShape:

Collaboration diagram for eVision::EShape:

Public Member Functions
virtual	~EShape () throw ()
void	Load (const std::string &path)
	Load the EShape configuration. The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Load the EShape configuration. The given ESerializer must have been created for reading.
void	Save (const std::string &path)
	Save the EShape configuration. The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Save the EShape configuration. The given ESerializer must have been created for writing.
void	Draw (eVision::EDrawAdapter *drawAdapter, float zoomX, float zoomY, float panX, float panY, bool drawDiagonals) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, float zoomX, float zoomY, float panX, float panY) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, float zoomX, float zoomY, float panX) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, float zoomX, float zoomY) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, float zoomX) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY, bool drawDiagonals) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, const eVision::EFrame &frame, float zoomX, float zoomY, float panX) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, const eVision::EFrame &frame, float zoomX, float zoomY) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, const eVision::EFrame &frame, float zoomX) const
	Draws the EShape shape.
void	Draw (eVision::EDrawAdapter *drawAdapter, const eVision::EFrame &frame) const
	Draws the EShape shape.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, float zoomX, float zoomY, float panX, float panY)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, float zoomX, float zoomY, float panX)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, float zoomX, float zoomY)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, float zoomX)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX)
	Detects if the cursor is placed over one of the dragging handles.
void	Drag (int32_t x, int32_t y, float zoomX, float zoomY, float panX, float panY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, float zoomX, float zoomY, float panX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, float zoomX, float zoomY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, float zoomX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	SetEditionMode (eVision::EEditionMode modes)
	Current edition mode for the shape. Default: EEditionMode_None.
eVision::EEditionMode	GetEditionMode () const
	Current edition mode for the shape. Default: EEditionMode_None.
virtual eVision::EEditionMode	GetAvailableEditionModes () const =0
	Available edition modes for the shape.
virtual std::string	GetDescription () const =0
	Textual description of the shape and its parameters.
eVision::EFrame	ToFrame (bool useAngle, eVision::EFrameScaling frameScaling) const
	Converts the shape to a frame.
eVision::EFrame	ToFrame (bool useAngle, eVision::EFrameScaling frameScaling, const eVision::EFrame &shapeFrame) const
	Converts the shape to a frame.
	EShape (CppWrapperInternal::InternalConstructor)

Public Attributes
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Base class for geometrical shapes.

License(s): BasicTypes

Constructor & Destructor Documentation

~EShape()

eVision::EShape::~EShape ( ) throw (  )

virtual

EShape()

eVision::EShape::EShape

(

CppWrapperInternal::InternalConstructor

)

Member Function Documentation

Drag() [1/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [2/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [3/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [4/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [5/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [6/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [7/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [8/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [9/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY,
		float	panX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Drag() [10/10]

void eVision::EShape::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Draw() [1/12]

void eVision::EShape::Draw

(

eVision::EDrawAdapter *

drawAdapter

)

const

Draws the EShape shape.

Parameters

drawAdapter

Handle of the device context on which to draw.

Draw() [2/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EFrame &	frame ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.

Draw() [3/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EFrame &	frame,
		float	zoomX ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.

Draw() [4/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.

Draw() [5/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

Draw() [6/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

Draw() [7/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		bool	drawDiagonals ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
drawDiagonals	If relevant, draw the diagonals of the shape. By default, the diagonals are not drawn.

Draw() [8/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		float	zoomX ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.

Draw() [9/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		float	zoomX,
		float	zoomY ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.

Draw() [10/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		float	zoomX,
		float	zoomY,
		float	panX ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

Draw() [11/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

Draw() [12/12]

void eVision::EShape::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		bool	drawDiagonals ) const

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
drawDiagonals	If relevant, draw the diagonals of the shape. By default, the diagonals are not drawn.

GetAvailableEditionModes()

virtual eVision::EEditionMode eVision::EShape::GetAvailableEditionModes ( ) const

pure virtual

Available edition modes for the shape.

Implemented in eVision::ECircle, eVision::EEllipse, eVision::ELine, eVision::EPointSet, eVision::EPolygon, eVision::ERectangle, and eVision::EWedge.

GetDescription()

virtual std::string eVision::EShape::GetDescription ( ) const

pure virtual

Textual description of the shape and its parameters.

Implemented in eVision::ECircle, eVision::EEllipse, eVision::ELine, eVision::EPointSet, eVision::EPolygon, eVision::ERectangle, and eVision::EWedge.

GetEditionMode()

eVision::EEditionMode eVision::EShape::GetEditionMode

(

)

const

Current edition mode for the shape. Default: EEditionMode_None.

HitTest() [1/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [2/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [3/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [4/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [5/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		float	zoomX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [6/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [7/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY,
		float	panX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

HitTest() [8/8]

eVision::EEditionMode eVision::EShape::HitTest	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape::HitTest and EShape::Drag.

Load() [1/2]

void eVision::EShape::Load

(

const std::string &

path

)

Load the EShape configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

Load() [2/2]

void eVision::EShape::Load

(

eVision::ESerializer *

serializer

)

Load the EShape configuration. The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Save() [1/2]

void eVision::EShape::Save

(

const std::string &

path

)

Save the EShape configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

Save() [2/2]

void eVision::EShape::Save

(

eVision::ESerializer *

serializer

)

Save the EShape configuration. The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

SetEditionMode()

void eVision::EShape::SetEditionMode

(

eVision::EEditionMode

modes

)

Current edition mode for the shape. Default: EEditionMode_None.

Parameters

modes

New edition modes

ToFrame() [1/2]

eVision::EFrame eVision::EShape::ToFrame	(	bool	useAngle,
		eVision::EFrameScaling	frameScaling ) const

Converts the shape to a frame.

Parameters

useAngle	Whether to use the angle of the shape as the orientation of the frame
frameScaling	How to change the scaling of the frame.

ToFrame() [2/2]

eVision::EFrame eVision::EShape::ToFrame	(	bool	useAngle,
		eVision::EFrameScaling	frameScaling,
		const eVision::EFrame &	shapeFrame ) const

Converts the shape to a frame.

Parameters

useAngle	Whether to use the angle of the shape as the orientation of the frame
frameScaling	How to change the scaling of the frame.
shapeFrame	The frame in which the shape is defined

Member Data Documentation

wrappedClass_

CppWrapperInternal::WrappedClass eVision::EShape::wrappedClass_
