Represents a rectangular grid, to be used by readers to read QRCodes, matrix codes, or bar codes. More...

#include <eVision/Easy/EGrid.h>

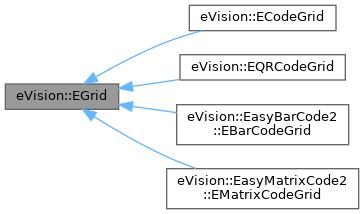

Inheritance diagram for eVision::EGrid:

Collaboration diagram for eVision::EGrid:

Public Member Functions
	EGrid ()
	Constructs a EGrid object.
	EGrid (uint32_t numCellsX, uint32_t numCellsY, const eVision::ERectangle &area, float extension)
	Constructs a EGrid object.
	EGrid (const eVision::EGrid &other)
	Constructs a EGrid object.
virtual	~EGrid () throw ()
eVision::EGrid &	operator= (const eVision::EGrid &other)
	Copies all the data from another EGrid object into the current EGrid object.
uint32_t	GetNumRows () const
	Returns the number of rows in the grid.
uint32_t	GetNumCols () const
	Returns the number of columns in the grid.
void	SetEnableRow (uint32_t row, bool enable)
	Enable/Disable Row.
void	SetEnableColumn (uint32_t column, bool enable)
	Enable/Disable Column.
void	SetEnableCell (uint32_t column, uint32_t row, bool enable)
	Enable/Disable Cell.
void	SetEnableAll (bool enable)
	Enable/Disable all cells.
bool	GetCellEnabled (uint32_t column, uint32_t row) const
	Returns true if Cell is enabled and false otherwise.
eVision::ERegion	GetCellRegion (uint32_t column, uint32_t row)
	Returns the region of a grid cell given its indices in an EGrid object.
void	SetArea (const eVision::ERectangle &area)
	Set the area of an EGrid object.
eVision::ERectangle	GetArea () const
	Returns the area of an EGrid object.
void	SetExtension (float extension)
	Set the extension of an EGrid object.
float	GetExtension () const
	Returns the extension of an EGrid object.
void	DrawGrid (eVision::EDrawAdapter *drawAdapter, const eVision::EGridDrawOptions &options, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY) const
	Draws the grid.
void	DrawGrid (eVision::EDrawAdapter *drawAdapter, const eVision::EGridDrawOptions &options, float zoomX, float zoomY, float panX, float panY) const
	Draws the grid.
eVision::EEditionMode	HitTest (int x, int y, float zoomX, float zoomY, float panX, float panY)
	Detects if the cursor is placed over one of the dragging handles.
eVision::EEditionMode	HitTest (int x, int y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY)
	Detects if the cursor is placed over one of the dragging handles.
virtual void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX, float panY)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
virtual void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY, float panX)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
virtual void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX, float zoomY)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
virtual void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame, float zoomX)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
virtual void	Drag (int32_t x, int32_t y, const eVision::EFrame &frame)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
void	Drag (int32_t x, int32_t y, float zoomX, float zoomY, float panX, float panY)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
void	Drag (int32_t x, int32_t y, float zoomX, float zoomY, float panX)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
void	Drag (int32_t x, int32_t y, float zoomX, float zoomY)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
void	Drag (int32_t x, int32_t y, float zoomX)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
void	Drag (int32_t x, int32_t y)
	Moves the specified handle to a new position and updates all placement parameters of the grid.
void	SetEditionMode (eVision::EEditionMode editionMode)
	Graphical edition mode.
eVision::EEditionMode	GetEditionMode () const
	Graphical edition mode.
void	Load (const std::string &path)
	Load the EGrid configuration. The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Load the EGrid configuration. The given ESerializer must have been created for reading.
void	Save (const std::string &path)
	Save the EGrid configuration. The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Save the EGrid configuration. The given ESerializer must have been created for writing.
	EGrid (CppWrapperInternal::InternalConstructor)

Public Attributes
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Represents a rectangular grid, to be used by readers to read QRCodes, matrix codes, or bar codes.

An EGrid object only contains geometrical information, such as the area, extension, and indices of the grid. Specialized implementations can be found for QRCodes, matrix codes, and bar codes.

License(s): EasyQRCode or EasyMatrixCode or EasyBarCode

Constructor & Destructor Documentation

◆ EGrid() [1/4]

eVision::EGrid::EGrid ( )

Constructs a EGrid object.

◆ EGrid() [2/4]

eVision::EGrid::EGrid	(	uint32_t	numCellsX,
		uint32_t	numCellsY,
		const eVision::ERectangle &	area,
		float	extension )

Constructs a EGrid object.

Parameters

numCellsX	Number of cells in column direction.
numCellsY	Number of cells in row direction.
area	Area of the grid.
extension	extension of the cells grid.

◆ EGrid() [3/4]

eVision::EGrid::EGrid ( const eVision::EGrid & other )

Constructs a EGrid object.

Parameters

other Another EGrid object to be copied in the new EGrid object.

◆ ~EGrid()

eVision::EGrid::~EGrid	(		)
throw	(	)

virtual

◆ EGrid() [4/4]

eVision::EGrid::EGrid ( CppWrapperInternal::InternalConstructor )

Member Function Documentation

◆ Drag() [1/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y )

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [2/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame )

virtual

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame to transform coordinates with.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [3/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX )

virtual

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame to transform coordinates with.
zoomX	Horizontal zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [4/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY )

virtual

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame to transform coordinates with.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [5/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX )

virtual

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame to transform coordinates with.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [6/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

virtual

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame to transform coordinates with.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [7/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX )

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [8/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY )

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [9/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY,
		float	panX )

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Drag() [10/10]

void eVision::EGrid::Drag	(	int32_t	x,
		int32_t	y,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Moves the specified handle to a new position and updates all placement parameters of the grid.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ DrawGrid() [1/2]

void eVision::EGrid::DrawGrid	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EGridDrawOptions &	options,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

Draws the grid.

Parameters

drawAdapter	Handle to the device context of the destination window.
options	Options for grid drawing.
frame	Frame associated with the pattern.
zoomX	Horizontal zooming factor.
zoomY	Vertical zooming factor. If set to 0, the horizontal zooming factor will be used for isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

The zoomX, zoomY, panX and panY parameters can be used to scale and/or translate the drawing operations.

◆ DrawGrid() [2/2]

void eVision::EGrid::DrawGrid	(	eVision::EDrawAdapter *	drawAdapter,
		const eVision::EGridDrawOptions &	options,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

Draws the grid.

Parameters

drawAdapter	Handle to the device context of the destination window.
options	Options for grid drawing.
zoomX	Horizontal zooming factor.
zoomY	Vertical zooming factor. If set to 0, the horizontal zooming factor will be used for isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

The zoomX, zoomY, panX and panY parameters can be used to scale and/or translate the drawing operations.

◆ GetArea()

eVision::ERectangle eVision::EGrid::GetArea ( ) const

Returns the area of an EGrid object.

◆ GetCellEnabled()

bool eVision::EGrid::GetCellEnabled	(	uint32_t	column,
		uint32_t	row ) const

Returns true if Cell is enabled and false otherwise.

Parameters

column	The column of the cell.
row	The row of the cell.

By default, all grid cells are enabled.

◆ GetCellRegion()

eVision::ERegion eVision::EGrid::GetCellRegion	(	uint32_t	column,
		uint32_t	row )

Returns the region of a grid cell given its indices in an EGrid object.

Parameters

column	The column of the cell.
row	The row of the cell.

◆ GetEditionMode()

eVision::EEditionMode eVision::EGrid::GetEditionMode ( ) const

Graphical edition mode.

◆ GetExtension()

float eVision::EGrid::GetExtension ( ) const

Returns the extension of an EGrid object.

◆ GetNumCols()

uint32_t eVision::EGrid::GetNumCols ( ) const

Returns the number of columns in the grid.

◆ GetNumRows()

uint32_t eVision::EGrid::GetNumRows ( ) const

Returns the number of rows in the grid.

◆ HitTest() [1/2]

eVision::EEditionMode eVision::EGrid::HitTest	(	int	x,
		int	y,
		const eVision::EFrame &	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the grid is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ HitTest() [2/2]

eVision::EEditionMode eVision::EGrid::HitTest	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EGrid::HitTest and EGrid::Drag.

◆ Load() [1/2]

void eVision::EGrid::Load ( const std::string & path )

Load the EGrid configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

◆ Load() [2/2]

void eVision::EGrid::Load ( eVision::ESerializer * serializer )

Load the EGrid configuration. The given ESerializer must have been created for reading.

Parameters

serializer The serializer.

◆ operator=()

eVision::EGrid & eVision::EGrid::operator= ( const eVision::EGrid & other )

Copies all the data from another EGrid object into the current EGrid object.

Parameters

other EGrid object to be copied

◆ Save() [1/2]

void eVision::EGrid::Save ( const std::string & path )

Save the EGrid configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

◆ Save() [2/2]

void eVision::EGrid::Save ( eVision::ESerializer * serializer )

Save the EGrid configuration. The given ESerializer must have been created for writing.

Parameters

serializer The serializer.

◆ SetArea()

void eVision::EGrid::SetArea ( const eVision::ERectangle & area )

Set the area of an EGrid object.

Parameters

area	The area of the cell.

◆ SetEditionMode()

void eVision::EGrid::SetEditionMode ( eVision::EEditionMode editionMode )

Graphical edition mode.

Parameters

editionMode EEditionMode flags

◆ SetEnableAll()

void eVision::EGrid::SetEnableAll ( bool enable )

Enable/Disable all cells.

By default, all grid cells are enabled.

◆ SetEnableCell()

void eVision::EGrid::SetEnableCell	(	uint32_t	column,
		uint32_t	row,
		bool	enable )

Enable/Disable Cell.

Parameters

column	The column of the cell to (dis/en)able.
row	The row of the cell to (dis/en)able.
enable	Whether to enable or disable the cell.

By default, all grid cells are enabled.

◆ SetEnableColumn()

void eVision::EGrid::SetEnableColumn	(	uint32_t	column,
		bool	enable )

Enable/Disable Column.

Parameters

column	The column of the cells to (dis/en)able.
enable	Whether to enable or disable the cells.

By default, all grid cells are enabled.

◆ SetEnableRow()

void eVision::EGrid::SetEnableRow	(	uint32_t	row,
		bool	enable )

Enable/Disable Row.

Parameters

row	The row of the cells to (dis/en)able.
enable	Whether to enable or disable the cells.

By default, all grid cells are enabled.

◆ SetExtension()

void eVision::EGrid::SetExtension ( float extension )

Set the extension of an EGrid object.

Parameters

extension The extension of the cell.

Member Data Documentation

◆ wrappedClass_

CppWrapperInternal::WrappedClass eVision::EGrid::wrappedClass_

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EGrid() [1/4]

◆ EGrid() [2/4]

◆ EGrid() [3/4]

◆ ~EGrid()

◆ EGrid() [4/4]

Member Function Documentation

◆ Drag() [1/10]

◆ Drag() [2/10]

◆ Drag() [3/10]

◆ Drag() [4/10]

◆ Drag() [5/10]

◆ Drag() [6/10]

◆ Drag() [7/10]

◆ Drag() [8/10]

◆ Drag() [9/10]

◆ Drag() [10/10]

◆ DrawGrid() [1/2]

◆ DrawGrid() [2/2]

◆ GetArea()

◆ GetCellEnabled()

◆ GetCellRegion()

◆ GetEditionMode()

◆ GetExtension()

◆ GetNumCols()

◆ GetNumRows()

◆ HitTest() [1/2]

◆ HitTest() [2/2]

◆ Load() [1/2]

◆ Load() [2/2]

◆ operator=()

◆ Save() [1/2]

◆ Save() [2/2]

◆ SetArea()

◆ SetEditionMode()

◆ SetEnableAll()

◆ SetEnableCell()

◆ SetEnableColumn()

◆ SetEnableRow()

◆ SetExtension()

Member Data Documentation

◆ wrappedClass_
