Represents a generic DepthMap type interface. More...

#include <eVision/Easy3D/EDepthMap.h>

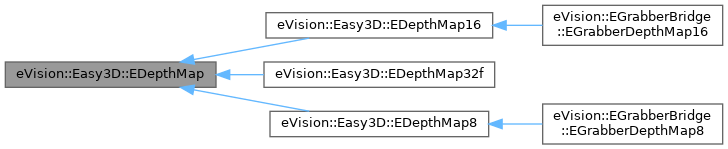

Inheritance diagram for eVision::Easy3D::EDepthMap:

Collaboration diagram for eVision::Easy3D::EDepthMap:

Public Member Functions
virtual	~EDepthMap () throw ()
virtual int32_t	GetWidth () const =0
	Access depth map Width.
virtual void	SetWidth (int32_t width)=0
	Access depth map Width.
virtual int32_t	GetHeight () const =0
	Access depth map Height.
virtual void	SetHeight (int32_t height)=0
	Access depth map Height.
virtual bool	IsVoid () const =0
	Tests if the EDepthMap object has a size of zero.
virtual int32_t	GetRowPitch () const =0
	Returns the buffer row pitch.
virtual void *	GetBufferPtr ()=0
	Retrieves the pointer of the pixel buffer.
virtual void *	GetBufferPtr (int32_t x, int32_t y)=0
	Retrieves the pointer of the pixel buffer.
virtual const void *	GetBufferPtr () const =0
	Retrieves the pointer of the pixel buffer.
virtual const void *	GetBufferPtr (int32_t x, int32_t y) const =0
	Retrieves the pointer of the pixel buffer.
virtual void *	GetCheckedBufferPtr (int32_t x, int32_t y)=0
	Retrieves the pointer of the pixel buffer.
virtual const void *	GetCheckedBufferPtr (int32_t x, int32_t y) const =0
	Retrieves the pointer of the pixel buffer.
virtual void	SetBufferPtr (int32_t width, int32_t height, void *imagePointer, int32_t bitsPerRow)=0
	Sets the pointer to an externally allocated buffer.
virtual void	SetBufferPtr (int32_t width, int32_t height, void *imagePointer)=0
	Sets the pointer to an externally allocated buffer.
virtual void	UseExternalBuffer (int32_t width, int32_t height, void *buffer, int32_t rowPitch)=0
	Sets the pointer to an externally allocated buffer.
virtual eVision::EPoint	ConvertCoordinatesPixelToMap (eVision::EIntPoint pixelCoordinates) const =0
	Converts Pixel coordinates to 3D Map coordinates.
virtual void	ConvertCoordinatesPixelToMap (int xBuffer, int yBuffer, float &x3D, float &y3D) const =0
	Converts Pixel coordinates to 3D Map coordinates.
virtual bool	ConvertCoordinatesMapToPixel (const eVision::EPoint &mapCoordinates, eVision::EIntPoint &pixelCoordinates) const =0
	Converts 3D Map coordinates to Pixel coordinates.
virtual bool	ConvertCoordinatesMapToPixel (float x3D, float y3D, int &xBuffer, int &yBuffer) const =0
	Converts 3D Map coordinates to Pixel coordinates.
virtual void	SetSize (int32_t width, int32_t height)=0
	Sets the width and height of a DepthMap.
virtual void	SetSize (const eVision::Easy3D::EDepthMap &other)=0
	Sets the width and height of a DepthMap.
virtual void	Load (const std::string &path)=0
	Restores the EDepthMap stored in the given eVision file.
virtual void	Load (eVision::ESerializer *serializer)=0
	Restores the EDepthMap stored in the given eVision file.
virtual void	LoadImage (const std::string &path, bool withMetadata)=0
	Restores the EDepthMap image stored in the given image file.
virtual void	LoadImage (const std::string &path)=0
	Restores the EDepthMap image stored in the given image file.
virtual void	Save (const std::string &path) const =0
	Saves the EDepthMap object to the given eVision file.
virtual void	Save (eVision::ESerializer *serializer) const =0
	Saves the EDepthMap object to the given eVision file.
virtual void	SaveImage (const std::string &path, eVision::EImageFileType type, bool withMetadata) const =0
	Saves the EDepthMap image to the given image file.
virtual void	SaveImage (const std::string &path, eVision::EImageFileType type) const =0
	Saves the EDepthMap image to the given image file.
virtual void	SaveImage (const std::string &path) const =0
	Saves the EDepthMap image to the given image file.
virtual void	SaveJpeg (const std::string &path, int quality) const =0
	Saves the EDepthMap object to the given image file, in JPEG format.
virtual void	SaveJpeg (const std::string &path) const =0
	Saves the EDepthMap object to the given image file, in JPEG format.
virtual void	SaveJpeg2K (const std::string &path, int quality) const =0
	Saves the EDepthMap object to the given image file, in JPEG 2000 format.
virtual void	SaveJpeg2K (const std::string &path) const =0
	Saves the EDepthMap object to the given image file, in JPEG 2000 format.
virtual void	SaveMetadata (const std::string &path)=0
	Saves the metadata to a file in JSON format.
virtual void	LoadMetadata (const std::string &path)=0
	Loads the metadata from a file in JSON format.
virtual void	SaveImageAndMetadata (const std::string &pathImage, const std::string &pathMetadata, eVision::EImageFileType type) const =0
	Saves the image and the metadata to a JSON format file.
virtual void	SaveImageAndMetadata (const std::string &pathImage, const std::string &pathMetadata) const =0
	Saves the image and the metadata to a JSON format file.
virtual void	LoadImageAndMetadata (const std::string &pathImage, const std::string &pathMetadata)=0
	Loads the image and the metadata from a file in JSON format.
virtual void	AddMetadata (const std::string &Key, const std::string &value)=0
	Adds a metadata key (name) and value. Overwrites if exists.
virtual void	ModifyMetadata (const std::string &Key, const std::string &value)=0
	Changes the value of an existing metadata.
virtual std::string	GetMetadata (const std::string &Key) const =0
	Returns string value of the given metadata.
virtual void	DeleteMetadata (const std::string &Key)=0
	Deletes an existing metadata.
virtual void	ClearMetadata ()=0
	Deletes all metadata.
virtual void	Clear ()=0
	Clears the depth map: replaces all pixels with undefined value.
virtual float	GetZResolution () const =0
	Access the Z Resolution (depth units per grey scale value).
virtual void	SetZResolution (float resolution)=0
	Access the Z Resolution (depth units per grey scale value).
virtual float	GetZValue (const int32_t x, const int32_t y) const =0
	Gets the Z value of a pixel.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY, float panX, float panY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY, float panX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, float zoomX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter *graphicContext) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY, float panX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY, float panX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, float zoomX, float zoomY, float panX, float panY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, float zoomX, float zoomY, float panX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, float zoomX, float zoomY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, float zoomX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY, float panX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EC24Vector *c24Vector) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY, float panX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EBW8Vector *bw8Vector) const =0
	Draws a DepthMap in a device context.
virtual void	Draw (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Draws a DepthMap in a device context.
virtual void	DrawImage (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY, float panX, float panY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY, float panX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter *graphicContext, float zoomX, float zoomY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter *graphicContext, float zoomX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter *graphicContext) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY, float panX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX, float zoomY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector, float zoomX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EC24Vector c24Vector) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY, float panX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX, float zoomY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector, float zoomX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (eVision::EDrawAdapter graphicContext, eVision::EBW8Vector bw8Vector) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, float zoomX, float zoomY, float panX, float panY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, float zoomX, float zoomY, float panX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, float zoomX, float zoomY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, float zoomX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY, float panX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX, float zoomY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EC24Vector *c24Vector, float zoomX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EC24Vector *c24Vector) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision::EC24 colorUndefinedPixel) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY, float panX, float panY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY, float panX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX, float zoomY) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EBW8Vector *bw8Vector, float zoomX) const =0
	Displays the internal image buffer.
virtual void	DrawImage (HDC graphicContext, eVision::EBW8Vector *bw8Vector) const =0
	Displays the internal image buffer.
virtual eVision::EImageType	GetType () const =0
	Returns the image type.
virtual eVision::Easy3D::EAxisSystemType	GetAxisSystemType () const =0
	Manage the axis coordinate system.
virtual void	SetAxisSystemType (eVision::Easy3D::EAxisSystemType baseType)=0
	Manage the axis coordinate system.
	EDepthMap (CppWrapperInternal::InternalConstructor)

Static Public Member Functions
static std::unique_ptr< eVision::Easy3D::EDepthMap >	Create (const std::string &path)
	Factory method to allocate and read a DepthMap from a file. Depending on the serialized EDepthMap type, it returns the corresponding EDepthMap8, EDepthMap16 or EDepthMap32f object. The allocated EDepthMap must be released after use.

Public Attributes
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Represents a generic DepthMap type interface.

License(s): Easy3D

Constructor & Destructor Documentation

◆ ~EDepthMap()

eVision::Easy3D::EDepthMap::~EDepthMap	(		)
throw	(	)

virtual

◆ EDepthMap()

eVision::Easy3D::EDepthMap::EDepthMap ( CppWrapperInternal::InternalConstructor )

Member Function Documentation

◆ AddMetadata()

virtual void eVision::Easy3D::EDepthMap::AddMetadata	(	const std::string &	Key,
		const std::string &	value )

pure virtual

Adds a metadata key (name) and value. Overwrites if exists.

Parameters

Key	The name of the metadata. Names are unique.
value	The value for the given metadata.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Clear()

virtual void eVision::Easy3D::EDepthMap::Clear ( )

pure virtual

Clears the depth map: replaces all pixels with undefined value.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ ClearMetadata()

virtual void eVision::Easy3D::EDepthMap::ClearMetadata ( )

pure virtual

Deletes all metadata.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ ConvertCoordinatesMapToPixel() [1/2]

virtual bool eVision::Easy3D::EDepthMap::ConvertCoordinatesMapToPixel	(	const eVision::EPoint &	mapCoordinates,
		eVision::EIntPoint &	pixelCoordinates ) const

pure virtual

Converts 3D Map coordinates to Pixel coordinates.

Parameters

mapCoordinates	The map coordinates to convert from.
pixelCoordinates	The pixel coordinates to convert to.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ ConvertCoordinatesMapToPixel() [2/2]

virtual bool eVision::Easy3D::EDepthMap::ConvertCoordinatesMapToPixel	(	float	x3D,
		float	y3D,
		int &	xBuffer,
		int &	yBuffer ) const

pure virtual

Converts 3D Map coordinates to Pixel coordinates.

Parameters

x3D	The Map X coordinate.
y3D	The Map Y coordinate.
xBuffer	The returned Pixel X coordinate.
yBuffer	The returned Pixel Y coordinate.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ ConvertCoordinatesPixelToMap() [1/2]

virtual eVision::EPoint eVision::Easy3D::EDepthMap::ConvertCoordinatesPixelToMap ( eVision::EIntPoint pixelCoordinates ) const

pure virtual

Converts Pixel coordinates to 3D Map coordinates.

Parameters

pixelCoordinates The pixel coordinates to convert.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ ConvertCoordinatesPixelToMap() [2/2]

virtual void eVision::Easy3D::EDepthMap::ConvertCoordinatesPixelToMap	(	int	xBuffer,
		int	yBuffer,
		float &	x3D,
		float &	y3D ) const

pure virtual

Converts Pixel coordinates to 3D Map coordinates.

Parameters

xBuffer	The pixel X coordinate.
yBuffer	The pixel Y coordinate.
x3D	The returned Map X coordinate.
y3D	The returned Map Y coordinate.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Create()

std::unique_ptr< eVision::Easy3D::EDepthMap > eVision::Easy3D::EDepthMap::Create ( const std::string & path )

static

Factory method to allocate and read a DepthMap from a file. Depending on the serialized EDepthMap type, it returns the corresponding EDepthMap8, EDepthMap16 or EDepthMap32f object. The allocated EDepthMap must be released after use.

Parameters

path	Full path to the file.

◆ DeleteMetadata()

virtual void eVision::Easy3D::EDepthMap::DeleteMetadata ( const std::string & Key )

pure virtual

Deletes an existing metadata.

Throws an exception if it does not exist.

Parameters

Key	The name of an existing metadata.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [1/36]

virtual void eVision::Easy3D::EDepthMap::Draw ( eVision::EDrawAdapter * graphicContext ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext Handle to the device context of the destination window.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [2/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [3/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [4/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [5/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [6/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [7/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [8/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [9/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [10/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [11/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [12/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [13/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [14/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [15/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [16/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [17/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [18/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [19/36]

virtual void eVision::Easy3D::EDepthMap::Draw ( HDC graphicContext ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext Handle to the device context of the destination window.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [20/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [21/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [22/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [23/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [24/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [25/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [26/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [27/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [28/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [29/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [30/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [31/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [32/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		float	zoomX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [33/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [34/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [35/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Draw() [36/36]

virtual void eVision::Easy3D::EDepthMap::Draw	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Draws a DepthMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the depthmap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A DepthMap can be drawn (its pixels rendered) using a device context.

EDepthMap::Draw takes the axis coordinate system in account. See EDepthMap::GetAxisSystemType.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [1/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage ( eVision::EDrawAdapter * graphicContext ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [2/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [3/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [4/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [5/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [6/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [7/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [8/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [9/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [10/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [11/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [12/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [13/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [14/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [15/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [16/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [17/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [18/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	eVision::EDrawAdapter *	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [19/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage ( HDC graphicContext ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [20/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [21/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [22/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [23/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [24/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [25/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EBW8Vector *	bw8Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [26/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [27/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [28/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [29/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [30/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [31/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		eVision::EC24Vector *	c24Vector,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [32/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		float	zoomX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [33/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [34/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [35/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ DrawImage() [36/36]

virtual void eVision::Easy3D::EDepthMap::DrawImage	(	HDC	graphicContext,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		eVision::EC24	colorUndefinedPixel ) const

pure virtual

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context.

EDepthMap::DrawImage does not takes the axis coordinate system in account. It displays the internal image buffer without flipping the axis. See EDepthMap::Draw method for an alternative drawing method.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetAxisSystemType()

virtual eVision::Easy3D::EAxisSystemType eVision::Easy3D::EDepthMap::GetAxisSystemType ( ) const

pure virtual

Manage the axis coordinate system.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetBufferPtr() [1/4]

virtual const void * eVision::Easy3D::EDepthMap::GetBufferPtr ( ) const

pure virtual

Retrieves the pointer of the pixel buffer.

This function does not check the value of the parameters. Use carefully.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetBufferPtr() [2/4]

virtual void * eVision::Easy3D::EDepthMap::GetBufferPtr ( )

pure virtual

Retrieves the pointer of the pixel buffer.

This function does not check the value of the parameters. Use carefully.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetBufferPtr() [3/4]

virtual const void * eVision::Easy3D::EDepthMap::GetBufferPtr	(	int32_t	x,
		int32_t	y ) const

pure virtual

Retrieves the pointer of the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

This function does not check the value of the parameters. Use carefully.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetBufferPtr() [4/4]

virtual void * eVision::Easy3D::EDepthMap::GetBufferPtr	(	int32_t	x,
		int32_t	y )

pure virtual

Retrieves the pointer of the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

This function does not check the value of the parameters. Use carefully.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetCheckedBufferPtr() [1/2]

virtual const void * eVision::Easy3D::EDepthMap::GetCheckedBufferPtr	(	int32_t	x,
		int32_t	y ) const

pure virtual

Retrieves the pointer of the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

This function checks the value of the parameters.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetCheckedBufferPtr() [2/2]

virtual void * eVision::Easy3D::EDepthMap::GetCheckedBufferPtr	(	int32_t	x,
		int32_t	y )

pure virtual

Retrieves the pointer of the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

This function checks the value of the parameters.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetHeight()

virtual int32_t eVision::Easy3D::EDepthMap::GetHeight ( ) const

pure virtual

Access depth map Height.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetMetadata()

virtual std::string eVision::Easy3D::EDepthMap::GetMetadata ( const std::string & Key ) const

pure virtual

Returns string value of the given metadata.

Throws an exception if it does not exist.

Parameters

Key	The name of an existing metadata.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetRowPitch()

virtual int32_t eVision::Easy3D::EDepthMap::GetRowPitch ( ) const

pure virtual

Returns the buffer row pitch.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetType()

virtual eVision::EImageType eVision::Easy3D::EDepthMap::GetType ( ) const

pure virtual

Returns the image type.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetWidth()

virtual int32_t eVision::Easy3D::EDepthMap::GetWidth ( ) const

pure virtual

Access depth map Width.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetZResolution()

virtual float eVision::Easy3D::EDepthMap::GetZResolution ( ) const

pure virtual

Access the Z Resolution (depth units per grey scale value).

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ GetZValue()

virtual float eVision::Easy3D::EDepthMap::GetZValue	(	const int32_t	x,
		const int32_t	y ) const

pure virtual

Gets the Z value of a pixel.

Parameters

x	Column of the pixel.
y	Row of the pixel.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ IsVoid()

virtual bool eVision::Easy3D::EDepthMap::IsVoid ( ) const

pure virtual

Tests if the EDepthMap object has a size of zero.

Returns true if the depthmap size is zero.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Load() [1/2]

virtual void eVision::Easy3D::EDepthMap::Load ( const std::string & path )

pure virtual

Restores the EDepthMap stored in the given eVision file.

Parameters

path	Full path of the file.

When loading, the depth map is resized if needed.

This function restores the depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Load() [2/2]

virtual void eVision::Easy3D::EDepthMap::Load ( eVision::ESerializer * serializer )

pure virtual

Restores the EDepthMap stored in the given eVision file.

Parameters

serializer ESerializer in read mode.

When loading, the depth map is resized if needed.

This function restores the depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ LoadImage() [1/2]

virtual void eVision::Easy3D::EDepthMap::LoadImage ( const std::string & path )

pure virtual

Restores the EDepthMap image stored in the given image file.

Parameters

path	Full path to the file.

When loading, the depth map is resized if need be.

This function does not restore the depth map attributes, only the image associated with the EDepthMap is updated.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ LoadImage() [2/2]

virtual void eVision::Easy3D::EDepthMap::LoadImage	(	const std::string &	path,
		bool	withMetadata )

pure virtual

Restores the EDepthMap image stored in the given image file.

Parameters

path	Full path to the file.
withMetadata	Parameter to load or not the metadata that has the same filename. False by default.

When loading, the depth map is resized if need be.

This function does not restore the depth map attributes, only the image associated with the EDepthMap is updated.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ LoadImageAndMetadata()

virtual void eVision::Easy3D::EDepthMap::LoadImageAndMetadata	(	const std::string &	pathImage,
		const std::string &	pathMetadata )

pure virtual

Loads the image and the metadata from a file in JSON format.

Parameters

pathImage	Full path to the image file.
pathMetadata	Full path to the metadata file.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ LoadMetadata()

virtual void eVision::Easy3D::EDepthMap::LoadMetadata ( const std::string & path )

pure virtual

Loads the metadata from a file in JSON format.

Parameters

path	Full path to the file.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ ModifyMetadata()

virtual void eVision::Easy3D::EDepthMap::ModifyMetadata	(	const std::string &	Key,
		const std::string &	value )

pure virtual

Changes the value of an existing metadata.

Throws an exception if the metadata does not exist.

Parameters

Key	The name of an existing metadata.
value	The value for the given metadata.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Save() [1/2]

virtual void eVision::Easy3D::EDepthMap::Save ( const std::string & path ) const

pure virtual

Saves the EDepthMap object to the given eVision file.

Parameters

path	The full path to the destination file.

This function saves the EDepthMap in a eVision file.

This function stores the depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ Save() [2/2]

virtual void eVision::Easy3D::EDepthMap::Save ( eVision::ESerializer * serializer ) const

pure virtual

Saves the EDepthMap object to the given eVision file.

Parameters

serializer ESerializer in read mode.

This function saves the EDepthMap in a eVision file.

This function stores the depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveImage() [1/3]

virtual void eVision::Easy3D::EDepthMap::SaveImage ( const std::string & path ) const

pure virtual

Saves the EDepthMap image to the given image file.

Parameters

path	The full path to the destination file.

This function saves the image associated to EDepthMap in a standard image file and thus does not store depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveImage() [2/3]

virtual void eVision::Easy3D::EDepthMap::SaveImage	(	const std::string &	path,
		eVision::EImageFileType	type ) const

pure virtual

Saves the EDepthMap image to the given image file.

Parameters

path	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.

This function saves the image associated to EDepthMap in a standard image file and thus does not store depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveImage() [3/3]

virtual void eVision::Easy3D::EDepthMap::SaveImage	(	const std::string &	path,
		eVision::EImageFileType	type,
		bool	withMetadata ) const

pure virtual

Saves the EDepthMap image to the given image file.

Parameters

path	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.
withMetadata	Parameter to save or not the metadata that with the same filename next. False by default.

This function saves the image associated to EDepthMap in a standard image file and thus does not store depth map attributes.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveImageAndMetadata() [1/2]

virtual void eVision::Easy3D::EDepthMap::SaveImageAndMetadata	(	const std::string &	pathImage,
		const std::string &	pathMetadata ) const

pure virtual

Saves the image and the metadata to a JSON format file.

Parameters

pathImage	The full path to the destination image file.
pathMetadata	The full path to the destination metadata file.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveImageAndMetadata() [2/2]

virtual void eVision::Easy3D::EDepthMap::SaveImageAndMetadata	(	const std::string &	pathImage,
		const std::string &	pathMetadata,
		eVision::EImageFileType	type ) const

pure virtual

Saves the image and the metadata to a JSON format file.

Parameters

pathImage	The full path to the destination image file.
pathMetadata	The full path to the destination metadata file.
type	File format, as defined by EImageFileType.

If not specified, the file format is determined from the file extension.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveJpeg() [1/2]

virtual void eVision::Easy3D::EDepthMap::SaveJpeg ( const std::string & path ) const

pure virtual

Saves the EDepthMap object to the given image file, in JPEG format.

Parameters

path	The full path of the destination file.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveJpeg() [2/2]

virtual void eVision::Easy3D::EDepthMap::SaveJpeg	(	const std::string &	path,
		int	quality ) const

pure virtual

Saves the EDepthMap object to the given image file, in JPEG format.

Parameters

path	The full path of the destination file.
quality	JPEG quality, between 0 and 100 (100 is best quality). The default value is 75.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveJpeg2K() [1/2]

virtual void eVision::Easy3D::EDepthMap::SaveJpeg2K ( const std::string & path ) const

pure virtual

Saves the EDepthMap object to the given image file, in JPEG 2000 format.

Parameters

path	The full path of the destination file.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveJpeg2K() [2/2]

virtual void eVision::Easy3D::EDepthMap::SaveJpeg2K	(	const std::string &	path,
		int	quality ) const

pure virtual

Saves the EDepthMap object to the given image file, in JPEG 2000 format.

Parameters

path	The full path of the destination file.
quality	JPEG 2000 quality, between 1 and 512.

The default value is 16.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SaveMetadata()

virtual void eVision::Easy3D::EDepthMap::SaveMetadata ( const std::string & path )

pure virtual

Saves the metadata to a file in JSON format.

Parameters

path	The full path to the destination file.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetAxisSystemType()

virtual void eVision::Easy3D::EDepthMap::SetAxisSystemType ( eVision::Easy3D::EAxisSystemType baseType )

pure virtual

Manage the axis coordinate system.

Parameters

baseType An axis system.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetBufferPtr() [1/2]

virtual void eVision::Easy3D::EDepthMap::SetBufferPtr	(	int32_t	width,
		int32_t	height,
		void *	imagePointer )

pure virtual

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
imagePointer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.

Deprecated

Use EDepthMap::UseExternalBuffer instead.

Deprecated in version 26.2. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetBufferPtr() [2/2]

virtual void eVision::Easy3D::EDepthMap::SetBufferPtr	(	int32_t	width,
		int32_t	height,
		void *	imagePointer,
		int32_t	bitsPerRow )

pure virtual

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
imagePointer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.
bitsPerRow	The total number of bits contained in a row, padding included. Using the value 0 (default) means that this size is computed from the buffer width and the pixel size plus a padding with the smallest possible value that leads to a multiple of 4 bytes (32 bits), which is the minimum padding accepted by EDepthMap::SetBufferPtr.

Deprecated

Use EDepthMap::UseExternalBuffer instead.

Deprecated in version 26.2. Scheduled to be removed in version 27.6.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetHeight()

virtual void eVision::Easy3D::EDepthMap::SetHeight ( int32_t height )

pure virtual

Access depth map Height.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetSize() [1/2]

virtual void eVision::Easy3D::EDepthMap::SetSize ( const eVision::Easy3D::EDepthMap & other )

pure virtual

Sets the width and height of a DepthMap.

Parameters

other The other DepthMap whose dimensions have to be used for the current object.

eVision will allocate a new buffer (deallocate the old buffer) if the supplied width and height are different from the existing ones.

If an external buffer has been specified by means of UseExternalBuffer, it will be kept only if the size does not change.

Creating a new buffer and setting its size creates a 4-byte aligned buffer, by default.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetSize() [2/2]

virtual void eVision::Easy3D::EDepthMap::SetSize	(	int32_t	width,
		int32_t	height )

pure virtual

Sets the width and height of a DepthMap.

Parameters

width	The new requested DepthMap width.
height	The new requested DepthMap height.

eVision will allocate a new buffer (deallocate the old buffer) if the supplied width and height are different from the existing ones.

If an external buffer has been specified by means of UseExternalBuffer, it will be kept only if the size does not change.

Creating a new buffer and setting its size creates a 4-byte aligned buffer, by default.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetWidth()

virtual void eVision::Easy3D::EDepthMap::SetWidth ( int32_t width )

pure virtual

Access depth map Width.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ SetZResolution()

virtual void eVision::Easy3D::EDepthMap::SetZResolution ( float resolution )

pure virtual

Access the Z Resolution (depth units per grey scale value).

Parameters

resolution The resolution of the Z axis in depth units per grey scale value.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

◆ UseExternalBuffer()

virtual void eVision::Easy3D::EDepthMap::UseExternalBuffer	(	int32_t	width,
		int32_t	height,
		void *	buffer,
		int32_t	rowPitch )

pure virtual

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
buffer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.
rowPitch	The total number of bytes contained in a row, padding included.

Implemented in eVision::Easy3D::EDepthMap16, eVision::Easy3D::EDepthMap32f, and eVision::Easy3D::EDepthMap8.

Member Data Documentation

◆ wrappedClass_

CppWrapperInternal::WrappedClass eVision::Easy3D::EDepthMap::wrappedClass_

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~EDepthMap()

◆ EDepthMap()

Member Function Documentation

◆ AddMetadata()

◆ Clear()

◆ ClearMetadata()

◆ ConvertCoordinatesMapToPixel() [1/2]

◆ ConvertCoordinatesMapToPixel() [2/2]

◆ ConvertCoordinatesPixelToMap() [1/2]

◆ ConvertCoordinatesPixelToMap() [2/2]

◆ Create()

◆ DeleteMetadata()

◆ Draw() [1/36]

◆ Draw() [2/36]

◆ Draw() [3/36]

◆ Draw() [4/36]

◆ Draw() [5/36]

◆ Draw() [6/36]

◆ Draw() [7/36]

◆ Draw() [8/36]

◆ Draw() [9/36]

◆ Draw() [10/36]

◆ Draw() [11/36]

◆ Draw() [12/36]

◆ Draw() [13/36]

◆ Draw() [14/36]

◆ Draw() [15/36]

◆ Draw() [16/36]

◆ Draw() [17/36]

◆ Draw() [18/36]

◆ Draw() [19/36]

◆ Draw() [20/36]

◆ Draw() [21/36]

◆ Draw() [22/36]

◆ Draw() [23/36]

◆ Draw() [24/36]

◆ Draw() [25/36]

◆ Draw() [26/36]

◆ Draw() [27/36]

◆ Draw() [28/36]

◆ Draw() [29/36]

◆ Draw() [30/36]

◆ Draw() [31/36]

◆ Draw() [32/36]

◆ Draw() [33/36]

◆ Draw() [34/36]

◆ Draw() [35/36]

◆ Draw() [36/36]

◆ DrawImage() [1/36]

◆ DrawImage() [2/36]

◆ DrawImage() [3/36]

◆ DrawImage() [4/36]

◆ DrawImage() [5/36]

◆ DrawImage() [6/36]

◆ DrawImage() [7/36]

◆ DrawImage() [8/36]

◆ DrawImage() [9/36]

◆ DrawImage() [10/36]

◆ DrawImage() [11/36]

◆ DrawImage() [12/36]

◆ DrawImage() [13/36]

◆ DrawImage() [14/36]

◆ DrawImage() [15/36]

◆ DrawImage() [16/36]

◆ DrawImage() [17/36]

◆ DrawImage() [18/36]

◆ DrawImage() [19/36]

◆ DrawImage() [20/36]

◆ DrawImage() [21/36]

◆ DrawImage() [22/36]

◆ DrawImage() [23/36]

◆ DrawImage() [24/36]

◆ DrawImage() [25/36]

◆ DrawImage() [26/36]

◆ DrawImage() [27/36]
