Manages a polygon fitting gauge. More...

#include <eVision/EasyGauge/Legacy/EPolygonGauge.h>

Inheritance diagram for eVision::Legacy::EPolygonGauge:

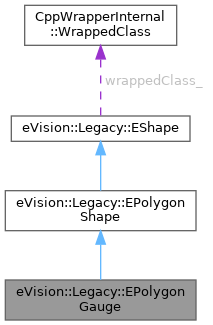

Collaboration diagram for eVision::Legacy::EPolygonGauge:

Public Member Functions
	EPolygonGauge ()
	Constructs a polygon measurement context.
	EPolygonGauge (const eVision::Legacy::EPolygonGauge &other)
	Constructs a polygon measurement context.
virtual	~EPolygonGauge () throw ()
eVision::Legacy::EPolygonGauge &	operator= (const eVision::Legacy::EPolygonGauge &other)
	Copies all the data from another EPolygonGauge object into the current EPolygonGauge object.
float	GetFilteringThreshold () const
	Relative filtering threshold, that is the fraction of the average distance between the sampled points and the fitted model above which a point is filtered out.
void	SetFilteringThreshold (float f32FilteringThreshold)
	Relative filtering threshold, that is the fraction of the average distance between the sampled points and the fitted model above which a point is filtered out.
uint32_t	GetNumFilteringPasses () const
	Number of filtering passes for a model fitting operation.
void	SetNumFilteringPasses (uint32_t un32NumFilteringPasses)
	Number of filtering passes for a model fitting operation.
int32_t	GetNumFilteringPassesInt () const
void	SetNumFilteringPassesInt (int32_t un32NumFilteringPasses)
uint32_t	GetNumValidSamples () const
	Number of valid sample points remaining after a model fitting operation.
float	GetAverageDistance () const
	Average distance between the sampled points and the fitted model.
void	SetMinNumFitSamples (int32_t side)
	Sets the minimum number of samples required for fitting on each edges of the polygon.
int32_t	GetMinNumFitSamples ()
	Returns the minimum number of samples required for fitting on each edges of the polygon.
uint32_t	AddSkipRange (const uint32_t start, const uint32_t end)
	Adds an item to the set of skip ranges and returns the index of the newly added range.
uint32_t	AddSkipRange (const eVision::EIntegerRange &range)
	Adds an item to the set of skip ranges and returns the index of the newly added range.
uint32_t	GetNumSkipRanges () const
	Number of skip ranges in the gauge after a call to EPolygonGauge::AddSkipRange.
void	GetSkipRange (const uint32_t index, uint32_t &start, uint32_t &end) const
	Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the EPolygonGauge::AddSkipRange method.
eVision::EIntegerRange	GetSkipRange (uint32_t index) const
	Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the EPolygonGauge::AddSkipRange method.
void	RemoveSkipRange (const uint32_t index)
	After a call to EPolygonGauge::AddSkipRange, removes the skip range with the given index.
void	RemoveAllSkipRanges ()
	Removes all the skip ranges previously created by a call to EPolygonGauge::AddSkipRange.
void	CopyTo (eVision::Legacy::EPolygonGauge &other, bool recursive) const
	Copies all the data of the current EPolygonGauge object into another EPolygonGauge object, and returns it.
void	CopyTo (eVision::Legacy::EPolygonGauge &other) const
	Copies all the data of the current EPolygonGauge object into another EPolygonGauge object, and returns it.
eVision::Legacy::EPolygonGauge *	CopyTo (eVision::Legacy::EPolygonGauge *other, bool recursive) const
	Copies all the data of the current EPolygonGauge object into another EPolygonGauge object, and returns it.
virtual eVision::EShapeType	GetType () const
	Shape type.
eVision::Legacy::EPolygon	GetShape ()
bool	GetActive ()
	Sets the flag indicating whether the gauge is active or not.
virtual void	SetActive (bool active)
	Sets the flag indicating whether the gauge is active or not.
void	SetTolerance (float f32Tolerance)
	Searching area half thickness of the polygon fitting gauge.
float	GetTolerance ()
	Searching area half thickness of the polygon fitting gauge.
void	SetHVConstraint (bool bHVConstraint)
	Status of the restriction on the orientation of the point location gauge or model fitting sample paths.
bool	GetHVConstraint ()
	Status of the restriction on the orientation of the point location gauge or model fitting sample paths.
void	SetTransitionType (eVision::ETransitionType eTransitionType)
	Transition type.
eVision::ETransitionType	GetTransitionType ()
	Transition type.
void	SetTransitionChoice (eVision::ETransitionChoice eTransitionChoice)
	Transition choice.
eVision::ETransitionChoice	GetTransitionChoice ()
	Transition choice.
void	SetTransitionIndex (uint32_t un32TransitionIndex)
	Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice::ETransitionChoice_NthFromBegin or ETransitionChoice::ETransitionChoice_NthFromEnd.
uint32_t	GetTransitionIndex ()
	Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice::ETransitionChoice_NthFromBegin or ETransitionChoice::ETransitionChoice_NthFromEnd.
void	SetThreshold (uint32_t un32Threshold)
	Threshold level used to delimit significant peaks in the data profile.
uint32_t	GetThreshold ()
	Threshold level used to delimit significant peaks in the data profile.
void	SetMinAmplitude (uint32_t un32MinAmplitude)
	Offset added to the Threshold when a peak is to be detected.
uint32_t	GetMinAmplitude ()
	Offset added to the Threshold when a peak is to be detected.
void	SetMinArea (uint32_t un32MinArea)
	Minimum area value.
uint32_t	GetMinArea ()
	Minimum area value.
uint32_t	GetThickness ()
	Number of parallel segments used to extract the data profile.
void	SetThickness (uint32_t un32Thickness)
	Number of parallel segments used to extract the data profile.
uint32_t	GetSmoothing ()
	Number of pixels used for the low-pass filtering operation.
void	SetSmoothing (uint32_t un32Smoothing)
	Number of pixels used for the low-pass filtering operation.
float	GetSamplingStep () const
	Approximate distance between sampled points during a model fitting operation.
void	SetSamplingStep (float f32SamplingStep)
	Approximate distance between sampled points during a model fitting operation.
uint32_t	GetNumSamples () const
	Number of sampled points during the model fitting operation. The samples are distributed evenly on the polygon.
eVision::Legacy::EPolygonMeasurementMode	GetMeasurementMode () const
	The polygon gauge measurement mode, in EPolygonMeasurementMode. The default mode is EPolygonMeasurementMode::EPolygonMeasurementMode_Global.
void	SetMeasurementMode (eVision::Legacy::EPolygonMeasurementMode mode)
	The polygon gauge measurement mode, in EPolygonMeasurementMode. The default mode is EPolygonMeasurementMode::EPolygonMeasurementMode_Global.
void	SetEnableScaling (bool state)
	When using the EPolygonMeasurementMode::EPolygonMeasurementMode_Global mode, if EPolygonGauge::SetEnableScaling is enable then the best scale is evaluated.
bool	GetEnableScaling () const
	When using the EPolygonMeasurementMode::EPolygonMeasurementMode_Global mode, if EPolygonGauge::SetEnableScaling is enable then the best scale is evaluated.
virtual void	Process (eVision::EROIBW8 *sourceImage, bool daughters)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
virtual void	Process (eVision::EROIBW8 *sourceImage)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
virtual void	Process (eVision::EROIBW8 *sourceImage, const eVision::ERegion &region, bool daughters)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
virtual void	Process (eVision::EROIBW8 *sourceImage, const eVision::ERegion &region)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
void	Measure (eVision::EROIBW8 *sourceImage)
	Triggers the point location or the model fitting operation.
void	Measure (eVision::EROIBW8 *sourceImage, const eVision::ERegion &region)
	Triggers the point location or the model fitting operation.
void	MeasureSample (eVision::EROIBW8 *image, int edgeIndex, int sampleIndex)
	Computes the sample points along the sample path whose index in the list is given by the edgeIndex and sampleIndex parameters.
void	MeasureSample (eVision::EROIBW8 *image, const eVision::ERegion &region, int edgeIndex, int sampleIndex)
	Computes the sample points along the sample path whose index in the list is given by the edgeIndex and sampleIndex parameters.
eVision::Legacy::EPolygon	GetMeasuredPolygon ()
	Returns the measured polygon (if found) or the nominal polygon otherwise.
virtual void	Draw (eVision::EDrawAdapter *drawAdapter, eVision::EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (eVision::EDrawAdapter *drawAdapter, eVision::EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (eVision::EDrawAdapter *drawAdapter)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, const eVision::ERGBColor &color, eVision::EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, const eVision::ERGBColor &color, eVision::EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, const eVision::ERGBColor &color)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, eVision::EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, eVision::EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	DrawWithCurrentPen (HDC graphicContext, eVision::EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	DrawWithCurrentPen (HDC graphicContext, eVision::EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual void	DrawWithCurrentPen (HDC graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
virtual bool	HitTest (bool daughters)
	Checks whether the cursor is positioned over a handle (true) or not (false).
virtual bool	HitTest ()
	Checks whether the cursor is positioned over a handle (true) or not (false).
virtual void	Drag (int32_t x, int32_t y)
	Moves a handle to a new position and updates the position parameters of the gauge.
	EPolygonGauge (CppWrapperInternal::InternalConstructor)
Public Member Functions inherited from eVision::Legacy::EPolygonShape
	EPolygonShape ()
	Constructs a EPolygonShape.
	EPolygonShape (const eVision::Legacy::EPolygonShape &other)
	Constructs a EPolygonShape.
	EPolygonShape (const std::vector< eVision::EPoint > &vertices, bool closed)
	Constructs a EPolygonShape.
	EPolygonShape (const std::vector< eVision::EPoint > &vertices)
	Constructs a EPolygonShape.
virtual	~EPolygonShape () throw ()
eVision::Legacy::EPolygonShape &	operator= (const eVision::Legacy::EPolygonShape &other)
	Copies all the data from another EPolygonShape object into the current EPolygonShape object.
void	AddVertexAtDisplayPosition (int x, int y)
	Add a vertex to the polygon at a position depending on a display coordinate. The current display parameters (zoom and pan) are used to find the best insert position.
void	RemoveVertexAtDisplayPosition (int x, int y)
	Remove the closest vertex to the display position (x,y).
eVision::EPoint	GetCenter () const
	Center point of the shape.
void	SetCenter (const eVision::EPoint &center)
	Center point of the shape.
void	SetCenterXY (float centerX, float centerY)
	Sets the center coordinates of a EPolygonShape object.
float	GetCenterX () const
	Abscissa of the origin point of the shape.
float	GetCenterY () const
	Ordinate of the origin point of the shape.
float	GetAngle () const
	Orientation of the shape.
void	SetAngle (float f32Angle)
	Orientation of the shape.
float	GetScale () const
	Scale of the polygon.
void	SetScale (float f32Scale)
	Scale of the polygon.
float	GetLength () const
	Returns the length (perimeter) of the polygon.
void	SetIsClosed (bool state)
	The polygon close attribute.
bool	GetIsClosed () const
	The polygon close attribute.
void	SetPolygon (const eVision::Legacy::EPolygon &polygon)
	Sets/Gets the polygon according to a known EPolygon object.
const eVision::Legacy::EPolygon &	GetPolygon () const
	Sets/Gets the polygon according to a known EPolygon object.
int	GetNumVertices () const
	Returns the number of polygon's vertices.
int	GetNumEdges () const
	Returns the number of polygon's edges (or sides). Depends on the EPolygon::SetIsClosed status.
eVision::EPoint	GetVertex (int index) const
	Gets a polygon vertex.
void	SetVertex (int index, const eVision::EPoint &pt)
	Sets a polygon vertex.
void	AppendVertex (const eVision::EPoint &pt)
	Append a polygon vertex after the last.
void	CopyTo (eVision::Legacy::EPolygonShape &other, bool bRecursive) const
	Copies all the data of the current EPolygonShape object into another EPolygonShape object and returns it.
void	CopyTo (eVision::Legacy::EPolygonShape &other) const
	Copies all the data of the current EPolygonShape object into another EPolygonShape object and returns it.
eVision::Legacy::EPolygonShape *	CopyTo (eVision::Legacy::EPolygonShape *dest, bool bRecursive) const
	Copies all the data of the current EPolygonShape object into another EPolygonShape object and returns it.
virtual void	Closest ()
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape::GetClosestShape.
	EPolygonShape (CppWrapperInternal::InternalConstructor)
Public Member Functions inherited from eVision::Legacy::EShape
virtual	~EShape () throw ()
std::string	GetName () const
	Name of the EShape object.
void	SetName (const std::string &name)
	Name of the EShape object.
eVision::Legacy::EShape *	GetShapeNamed (const std::string &name)
	Returns a pointer to a daughter gauge or shape specified by its name.
bool	GetVisible () const
	Flag indicating whether the shape is visible or not.
void	SetVisible (bool visible)
	Flag indicating whether the shape is visible or not.
void	SetVisibleRecursive (bool visible)
	Sets the flag indicating whether the shape and its daughter shapes are visible or not.
bool	GetSelected () const
	Flag indicating whether the shape is selected or not.
void	SetSelected (bool selected)
	Flag indicating whether the shape is selected or not.
void	SetSelectedRecursive (bool selected)
	Sets the flag indicating whether the shape and all its daughters are selected or not.
bool	GetSelectable () const
	Flag indicating whether the shape can be selected or not.
void	SetSelectable (bool selectable)
	Flag indicating whether the shape can be selected or not.
void	SetSelectableRecursive (bool selectable)
	Sets the flag indicating whether the shape and all its daughters can be selected or not.
bool	GetDragable () const
	Flag indicating whether the shape can be dragged or not.
void	SetDragable (bool dragable)
	Flag indicating whether the shape can be dragged or not.
void	SetDragableRecursive (bool dragable)
	Sets the flag indicating whether the shape and all its daughters can be dragged or not.
bool	GetResizable () const
	Flag indicating whether the shape can be resized or not.
void	SetResizable (bool resizable)
	Flag indicating whether the shape can be resized or not.
void	SetResizableRecursive (bool resizable)
	Sets the flag indicating whether the shape and all its daughters can be resized or not.
bool	GetRotatable () const
	Flag indicating whether the shape can be rotated or not.
void	SetRotatable (bool rotatable)
	Flag indicating whether the shape can be rotated or not.
void	SetRotatableRecursive (bool rotatable)
	Sets the flag indicating whether the shape and all its daughters can be rotated or not.
bool	GetLabeled () const
	Flag indicating whether the shape label should be displayed or not.
void	SetLabeled (bool labeled)
	Flag indicating whether the shape label should be displayed or not.
void	SetLabeledRecursive (bool labeled)
	Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.
virtual bool	GetActive () const
	Flag indicating whether the shape is active or not.
virtual void	SetActiveRecursive (bool active)
	Sets the flag indicating whether the shape and all its daughters are active or not.
bool	GetActualShape () const
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
void	SetActualShape (bool actualShape)
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
void	SetActualShapeRecursive (bool actualShape)
	Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.
bool	GetFound () const
	Flag indicating whether a measured shape has been found.
bool	GetAutoArrange () const
void	SetAutoArrange (bool bAutoArrange, bool bDaughters)
void	SetAutoArrange (bool bAutoArrange)
virtual void	SetFound (bool bFound, bool bDaughters)
virtual void	SetFound (bool bFound)
bool	GetInspected () const
void	SetInspected (bool bFound, bool bDaughters)
void	SetInspected (bool bFound)
bool	GetPassed () const
void	SetPassed (bool bFound, bool bDaughters)
void	SetPassed (bool bFound)
bool	GetQuickDraw () const
void	SetQuickDraw (bool bFound, bool bDaughters)
void	SetQuickDraw (bool bFound)
bool	GetOptionalDraw () const
void	SetOptionalDraw (bool bFound, bool bDaughters)
void	SetOptionalDraw (bool bFound)
bool	GetUserFlag () const
void	SetUserFlag (bool bUserFlag, bool bDaughters)
void	SetUserFlag (bool bUserFlag)
bool	GetAllocated () const
	Gets the allocated flag.
void	EnableBehaviorFilter (eVision::EShapeBehavior behavior, bool value)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	EnableBehaviorFilter (eVision::EShapeBehavior behavior)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	DisableBehaviorFilter (eVision::EShapeBehavior behavior)
	Disables (i.e. removes) a condition from the list of conditions in the behavior filter.
void	Attach (eVision::Legacy::EShape *mother)
	Attaches the gauge to a mother gauge or shape.
void	Detach ()
	Detaches the gauge from its mother gauge or shape.
void	DetachDaughters ()
	Detaches the daughter gauges or shapes.
uint32_t	GetNumDaughters () const
	Number of daughters attached to the shape.
eVision::Legacy::EShape *	GetMother () const
	Pointer to the mother shape.
virtual eVision::Legacy::EShape *	GetDaughter (uint32_t index) const
	Returns a pointer to the specified daughter gauge or shape.
eVision::Legacy::EWorldShape *	GetWorldShape () const
	World ancestor.
bool	IsWorld () const
void	InvalidateWorld ()
	Invalidates the world shape for this shape and all its ancestors.
eVision::EPoint	LocalToSensor (const eVision::EPoint &LPoint)
	Transforms a point from local coordinates to sensor coordinates.
eVision::EPoint	SensorToLocal (const eVision::EPoint &SPoint)
	Transforms a point from sensor coordinates to local coordinates.
virtual float	GetZoomX () const
	Current horizontal zooming factor for drawing operations.
virtual float	GetZoomY () const
	Current vertical zooming factor for drawing operations.
virtual float	GetPanX () const
	Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual float	GetPanY () const
	Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual void	SetZoom (float zoomX, float zoomY)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom (float zoomX)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom ()
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetPan (float panX, float panY)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan (float panX)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan ()
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
eVision::EDragHandle	GetHitHandle () const
	Handle currently under the cursor.
eVision::Legacy::EShape *	GetHitShape () const
	Pointer to the shape currently under the cursor.
void	SetDraggingMode (eVision::EDraggingMode eDraggingMode, bool bDaughters)
	Sets the dragging mode which defines how the shape could be dragged.
void	SetDraggingMode (eVision::EDraggingMode eDraggingMode)
	Sets the dragging mode which defines how the shape could be dragged.
eVision::EDraggingMode	GetDraggingMode () const
	Gets the dragging mode which defines how the shape could be dragged.
void	SetCursor (int32_t x, int32_t y)
	Sets the cursor current coordinates.
eVision::Legacy::EShape *	GetClosestShape () const
	Closest shape among the daughters.
void	Save (const std::string &path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (const std::string &path)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Load (const std::string &path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (const std::string &path)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Loads a Shape.The given ESerializer must have been created for reading.
bool	HasProperty (const std::string &aProperty) const
	Returns whether a EShape has a property named aProperty.
std::string	GetProperty (const std::string &aProperty) const
	Gets the value of property aProperty. Throws an exception if no such property exists.
void	SetProperty (const std::string &aProperty, const std::string &aValue)
	Sets the value of property aProperty to aValue for this EShape.
void	SetPropertyRecursive (const std::string &aProperty, const std::string &aValue)
	Sets the value of property aProperty to aValue for this EShape and all of its daughters.
void	RemoveProperty (const std::string &aProperty)
	Removes the property name aProperty from the EShape.
bool	HasValidPolarityProperty () const
	Returns whether the EShape has a valid polarity property.
virtual void	EnableTypeFilter (uint32_t un32Types)
	Enables the filter of the specified shape type.
virtual void	DisableTypeFilter ()
	Enables all shape types.
	EShape (CppWrapperInternal::InternalConstructor)

Additional Inherited Members
Public Attributes inherited from eVision::Legacy::EShape
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Manages a polygon fitting gauge.

License(s): EasyGauge

Constructor & Destructor Documentation

◆ EPolygonGauge() [1/3]

eVision::Legacy::EPolygonGauge::EPolygonGauge ( )

Constructs a polygon measurement context.

With the default constructor, all the parameters are initialized to their respective default values.

With the copy constructor, the constructed polygon measurement context is based on a pre-existing EPolygonGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the EPolygonGauge::CopyTo method.

◆ EPolygonGauge() [2/3]

eVision::Legacy::EPolygonGauge::EPolygonGauge ( const eVision::Legacy::EPolygonGauge & other )

Constructs a polygon measurement context.

Parameters

other Another EPolygonGauge object to be copied in the new EPolygonGauge object.

With the default constructor, all the parameters are initialized to their respective default values.

With the copy constructor, the constructed polygon measurement context is based on a pre-existing EPolygonGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the EPolygonGauge::CopyTo method.

◆ ~EPolygonGauge()

eVision::Legacy::EPolygonGauge::~EPolygonGauge	(		)
throw	(	)

virtual

◆ EPolygonGauge() [3/3]

eVision::Legacy::EPolygonGauge::EPolygonGauge ( CppWrapperInternal::InternalConstructor )

Member Function Documentation

◆ AddSkipRange() [1/2]

uint32_t eVision::Legacy::EPolygonGauge::AddSkipRange ( const eVision::EIntegerRange & range )

Adds an item to the set of skip ranges and returns the index of the newly added range.

Parameters

range The skip range.

The samples indices between start and end (including the boundaries) will be discarded during the measurement process.

This method allows to define skip ranges in an EPolygonGauge. This means that, at measure time, samples belonging to these ranges will not be taken into account.

A sample may belong to more than one skip range; to be discarded, a sample has to pertain to at least one range. Moreover, the skip ranges are allowed to overlap one another.

The range is allowed to be reversed (i.e. end is not required to be greater than start).

Also, start and end are not required to reference valid indices at the time of the call (i.e. the range may lie outside of the current return value for EPolygonGauge::GetNumSamples).

◆ AddSkipRange() [2/2]

uint32_t eVision::Legacy::EPolygonGauge::AddSkipRange	(	const uint32_t	start,
		const uint32_t	end )

Adds an item to the set of skip ranges and returns the index of the newly added range.

Parameters

start	Beginning of the skip range.
end	End of the skip range.

The samples indices between start and end (including the boundaries) will be discarded during the measurement process.

This method allows to define skip ranges in an EPolygonGauge. This means that, at measure time, samples belonging to these ranges will not be taken into account.

A sample may belong to more than one skip range; to be discarded, a sample has to pertain to at least one range. Moreover, the skip ranges are allowed to overlap one another.

The range is allowed to be reversed (i.e. end is not required to be greater than start).

Also, start and end are not required to reference valid indices at the time of the call (i.e. the range may lie outside of the current return value for EPolygonGauge::GetNumSamples).

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ CopyTo() [1/3]

void eVision::Legacy::EPolygonGauge::CopyTo ( eVision::Legacy::EPolygonGauge & other ) const

Copies all the data of the current EPolygonGauge object into another EPolygonGauge object, and returns it.

Parameters

other Pointer to the EPolygonGauge object in which the current EPolygonGauge object data have to be copied.

In the overload taking a pointer, in case of a NULL pointer, a new EPolygonGauge object will be created and returned.

◆ CopyTo() [2/3]

void eVision::Legacy::EPolygonGauge::CopyTo	(	eVision::Legacy::EPolygonGauge &	other,
		bool	recursive ) const

Copies all the data of the current EPolygonGauge object into another EPolygonGauge object, and returns it.

Parameters

other	Pointer to the EPolygonGauge object in which the current EPolygonGauge object data have to be copied.
recursive	true if the children gauges have to be copied as well, false otherwise.

In the overload taking a pointer, in case of a NULL pointer, a new EPolygonGauge object will be created and returned.

◆ CopyTo() [3/3]

eVision::Legacy::EPolygonGauge * eVision::Legacy::EPolygonGauge::CopyTo	(	eVision::Legacy::EPolygonGauge *	other,
		bool	recursive ) const

Copies all the data of the current EPolygonGauge object into another EPolygonGauge object, and returns it.

Parameters

other	Pointer to the EPolygonGauge object in which the current EPolygonGauge object data have to be copied.
recursive	true if the children gauges have to be copied as well, false otherwise.

In the overload taking a pointer, in case of a NULL pointer, a new EPolygonGauge object will be created and returned.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Drag()

void eVision::Legacy::EPolygonGauge::Drag	(	int32_t	x,
		int32_t	y )

virtual

Moves a handle to a new position and updates the position parameters of the gauge.

Parameters

x	Cursor current X coordinate.
y	Cursor current Y coordinate.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [1/9]

void eVision::Legacy::EPolygonGauge::Draw ( eVision::EDrawAdapter * drawAdapter )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

drawAdapter A pointer to an EDrawAdapter (like the EWindowsDrawAdapter).

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [2/9]

void eVision::Legacy::EPolygonGauge::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		eVision::EDrawingMode	drawingMode )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

drawAdapter	A pointer to an EDrawAdapter (like the EWindowsDrawAdapter).
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [3/9]

void eVision::Legacy::EPolygonGauge::Draw	(	eVision::EDrawAdapter *	drawAdapter,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

drawAdapter	A pointer to an EDrawAdapter (like the EWindowsDrawAdapter).
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [4/9]

void eVision::Legacy::EPolygonGauge::Draw ( HDC graphicContext )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [5/9]

void eVision::Legacy::EPolygonGauge::Draw	(	HDC	graphicContext,
		const eVision::ERGBColor &	color )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [6/9]

void eVision::Legacy::EPolygonGauge::Draw	(	HDC	graphicContext,
		const eVision::ERGBColor &	color,
		eVision::EDrawingMode	drawingMode )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [7/9]

void eVision::Legacy::EPolygonGauge::Draw	(	HDC	graphicContext,
		const eVision::ERGBColor &	color,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [8/9]

void eVision::Legacy::EPolygonGauge::Draw	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Draw() [9/9]

void eVision::Legacy::EPolygonGauge::Draw	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ DrawWithCurrentPen() [1/3]

void eVision::Legacy::EPolygonGauge::DrawWithCurrentPen ( HDC graphicContext )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ DrawWithCurrentPen() [2/3]

void eVision::Legacy::EPolygonGauge::DrawWithCurrentPen	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ DrawWithCurrentPen() [3/3]

void eVision::Legacy::EPolygonGauge::DrawWithCurrentPen	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

virtual

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ GetActive()

bool eVision::Legacy::EPolygonGauge::GetActive ( )

Sets the flag indicating whether the gauge is active or not.

When complex gauging is required, several gauges can be grouped together. Applying EPolygonGauge::Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process. By default, the gauge is active (true).

◆ GetAverageDistance()

float eVision::Legacy::EPolygonGauge::GetAverageDistance ( ) const

Average distance between the sampled points and the fitted model.

Irrelevant in case of a point location operation.

◆ GetEnableScaling()

bool eVision::Legacy::EPolygonGauge::GetEnableScaling ( ) const

When using the EPolygonMeasurementMode::EPolygonMeasurementMode_Global mode, if EPolygonGauge::SetEnableScaling is enable then the best scale is evaluated.

◆ GetFilteringThreshold()

float eVision::Legacy::EPolygonGauge::GetFilteringThreshold ( ) const

Relative filtering threshold, that is the fraction of the average distance between the sampled points and the fitted model above which a point is filtered out.

Irrelevant in case of a point location operation.

During a model fitting operation, the "filtering" process can be invoked to remove outliers, i.e. points that were located significantly far away from the fitted model (so that their position is dubious).

◆ GetHVConstraint()

bool eVision::Legacy::EPolygonGauge::GetHVConstraint ( )

Status of the restriction on the orientation of the point location gauge or model fitting sample paths.

Sample paths are the point location gauges placed along the model to be fitted.

◆ GetMeasuredPolygon()

eVision::Legacy::EPolygon eVision::Legacy::EPolygonGauge::GetMeasuredPolygon ( )

Returns the measured polygon (if found) or the nominal polygon otherwise.

Use method EShape::GetFound to get the status of the measurement. EPolygonGauge::GetMeasuredPolygon returns a successful fitted polygon if EShape::GetFound is true, otherwise it returns the orginal (nominal) polygon.

◆ GetMeasurementMode()

eVision::Legacy::EPolygonMeasurementMode eVision::Legacy::EPolygonGauge::GetMeasurementMode ( ) const

The polygon gauge measurement mode, in EPolygonMeasurementMode. The default mode is EPolygonMeasurementMode::EPolygonMeasurementMode_Global.

◆ GetMinAmplitude()

uint32_t eVision::Legacy::EPolygonGauge::GetMinAmplitude ( )

Offset added to the Threshold when a peak is to be detected.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value.

To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected.

When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ GetMinArea()

uint32_t eVision::Legacy::EPolygonGauge::GetMinArea ( )

Minimum area value.

A transition is detected if its derivative peak reaches Threshold + MinAmplitude value, and then declared valid if the area between the peak curve and the horizontal at level Threshold reaches the MinArea value.

◆ GetMinNumFitSamples()

int32_t eVision::Legacy::EPolygonGauge::GetMinNumFitSamples ( )

Returns the minimum number of samples required for fitting on each edges of the polygon.

◆ GetNumFilteringPasses()

uint32_t eVision::Legacy::EPolygonGauge::GetNumFilteringPasses ( ) const

Number of filtering passes for a model fitting operation.

Irrelevant in case of a point location operation.

During a filtering pass, the points that are too distant from the model are discarded.

During a model fitting operation, the "filtering" process can be invoked to remove outliers, i.e. points that were located significantly far away from the fitted model (so that their position is dubious).

By default (the number of filtering passes is 0), the outliers rejection process is disabled.

◆ GetNumFilteringPassesInt()

int32_t eVision::Legacy::EPolygonGauge::GetNumFilteringPassesInt ( ) const

◆ GetNumSamples()

uint32_t eVision::Legacy::EPolygonGauge::GetNumSamples ( ) const

Number of sampled points during the model fitting operation. The samples are distributed evenly on the polygon.

After a model fitting operation, a number of points have been fitted along the model. Among them, some are not reliable because of their Area value. Among the remaining ones, some are filtered out (NumFilteringPasses, FilteringThreshold).

◆ GetNumSkipRanges()

uint32_t eVision::Legacy::EPolygonGauge::GetNumSkipRanges ( ) const

Number of skip ranges in the gauge after a call to EPolygonGauge::AddSkipRange.

◆ GetNumValidSamples()

uint32_t eVision::Legacy::EPolygonGauge::GetNumValidSamples ( ) const

Number of valid sample points remaining after a model fitting operation.

Irrelevant in case of a point location operation.

After a model fitting operation, a number of points have been fitted along the model. Among them, some are not reliable because of their Area value. Among the remaining ones, some are filtered out (NumFilteringPasses, FilteringThreshold).

◆ GetSamplingStep()

float eVision::Legacy::EPolygonGauge::GetSamplingStep ( ) const

Approximate distance between sampled points during a model fitting operation.

Irrelevant in case of a point location operation.

To fit a model, a series of point location operations are performed along the model. The point location gauges spacing is given by the sampling step.

By default, the sampling step is set to 5, which means 5 pixels when the field of view is not calibrated, and 5 physical units in case of a calibrated field of view.

Be aware that if the sampling step is too large, the number of sampled points along the model will not be sufficient enough to accurately locate it.

◆ GetShape()

eVision::Legacy::EPolygon eVision::Legacy::EPolygonGauge::GetShape ( )

◆ GetSkipRange() [1/2]

void eVision::Legacy::EPolygonGauge::GetSkipRange	(	const uint32_t	index,
		uint32_t &	start,
		uint32_t &	end ) const

Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the EPolygonGauge::AddSkipRange method.

Parameters

index	Index of the skip range.
start	Beginning of the skip range.
end	End of the skip range.

Start is guaranteed to be smaller or equal to end.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ GetSkipRange() [2/2]

eVision::EIntegerRange eVision::Legacy::EPolygonGauge::GetSkipRange ( uint32_t index ) const

Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the EPolygonGauge::AddSkipRange method.

Parameters

index Index of the skip range.

Start is guaranteed to be smaller or equal to end.

◆ GetSmoothing()

uint32_t eVision::Legacy::EPolygonGauge::GetSmoothing ( )

Number of pixels used for the low-pass filtering operation.

To reduce the effect of noise, the profile data can be low-pass filtered along the point location gauge direction.

◆ GetThickness()

uint32_t eVision::Legacy::EPolygonGauge::GetThickness ( )

Number of parallel segments used to extract the data profile.

To reduce the effect of noise and/or strengthen a transition, several parallel profiles can be accumulated.

◆ GetThreshold()

uint32_t eVision::Legacy::EPolygonGauge::GetThreshold ( )

Threshold level used to delimit significant peaks in the data profile.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value.

To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected.

When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ GetTolerance()

float eVision::Legacy::EPolygonGauge::GetTolerance ( )

Searching area half thickness of the polygon fitting gauge.

A polygon fitting gauge is fully defined knowing its nominal positions (vertices), its nominal origin, angle and scale, and its outline tolerance.

By default, the searching area thickness of the polygon fitting gauge is 20 (2x10), which means 20 pixels when the field of view is not calibrated, and 20 physical units in case of a calibrated field of view.

◆ GetTransitionChoice()

eVision::ETransitionChoice eVision::Legacy::EPolygonGauge::GetTransitionChoice ( )

Transition choice.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition.

In case of ETransitionChoice::ETransitionChoice_NthFromBegin or ETransitionChoice::ETransitionChoice_NthFromEnd transition choice, set EPolygonGauge::SetTransitionIndex to specify the desired transition.

By default, the selected transition corresponds to the one with the largest amplitude (ETransitionChoice::ETransitionChoice_LargestAmplitude).

◆ GetTransitionIndex()

uint32_t eVision::Legacy::EPolygonGauge::GetTransitionIndex ( )

Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice::ETransitionChoice_NthFromBegin or ETransitionChoice::ETransitionChoice_NthFromEnd.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition.

By default, the first transition is retained (the index value is 0).

◆ GetTransitionType()

eVision::ETransitionType eVision::Legacy::EPolygonGauge::GetTransitionType ( )

Transition type.

The type of a transition tells whether it crosses increasing or decreasing gray-level values. This helps discriminate between nearby edges of an object.

By default, the searched transition type is indifferently a black to white or a white to black transition (ETransitionType::ETransitionType_BwOrWb).

◆ GetType()

eVision::EShapeType eVision::Legacy::EPolygonGauge::GetType ( ) const

virtual

Shape type.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ HitTest() [1/2]

bool eVision::Legacy::EPolygonGauge::HitTest ( )

virtual

Checks whether the cursor is positioned over a handle (true) or not (false).

Reimplemented from eVision::Legacy::EPolygonShape.

◆ HitTest() [2/2]

bool eVision::Legacy::EPolygonGauge::HitTest ( bool daughters )

virtual

Checks whether the cursor is positioned over a handle (true) or not (false).

Parameters

daughters true if the daughters gauges handles have to be considered as well.

Reimplemented from eVision::Legacy::EPolygonShape.

◆ Measure() [1/2]

void eVision::Legacy::EPolygonGauge::Measure ( eVision::EROIBW8 * sourceImage )

Triggers the point location or the model fitting operation.

Parameters

sourceImage Pointer to the source image.

When this method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ Measure() [2/2]

void eVision::Legacy::EPolygonGauge::Measure	(	eVision::EROIBW8 *	sourceImage,
		const eVision::ERegion &	region )

Triggers the point location or the model fitting operation.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.

When this method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ MeasureSample() [1/2]

void eVision::Legacy::EPolygonGauge::MeasureSample	(	eVision::EROIBW8 *	image,
		const eVision::ERegion &	region,
		int	edgeIndex,
		int	sampleIndex )

Computes the sample points along the sample path whose index in the list is given by the edgeIndex and sampleIndex parameters.

Parameters

image	Pointer to the source image/ROI.
region	Region on which to measure.
edgeIndex	Index of the edge to inspect within the edges of the polygon.
sampleIndex	Index of the sample to inspect within the selected edge.

This method stores its results into a temporary variable inside the EPolygonGauge object.

◆ MeasureSample() [2/2]

void eVision::Legacy::EPolygonGauge::MeasureSample	(	eVision::EROIBW8 *	image,
		int	edgeIndex,
		int	sampleIndex )

Computes the sample points along the sample path whose index in the list is given by the edgeIndex and sampleIndex parameters.

Parameters

image	Pointer to the source image/ROI.
edgeIndex	Index of the edge to inspect within the edges of the polygon.
sampleIndex	Index of the sample to inspect within the selected edge.

This method stores its results into a temporary variable inside the EPolygonGauge object.

◆ operator=()

eVision::Legacy::EPolygonGauge & eVision::Legacy::EPolygonGauge::operator= ( const eVision::Legacy::EPolygonGauge & other )

Copies all the data from another EPolygonGauge object into the current EPolygonGauge object.

Parameters

other EPolygonGauge object to be copied

◆ Process() [1/4]

void eVision::Legacy::EPolygonGauge::Process ( eVision::EROIBW8 * sourceImage )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage Pointer to the source image.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision::Legacy::EShape.

◆ Process() [2/4]

void eVision::Legacy::EPolygonGauge::Process	(	eVision::EROIBW8 *	sourceImage,
		bool	daughters )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
daughters	Flag indicating whether the daughters shapes inherit of the same behavior.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision::Legacy::EShape.

◆ Process() [3/4]

void eVision::Legacy::EPolygonGauge::Process	(	eVision::EROIBW8 *	sourceImage,
		const eVision::ERegion &	region )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision::Legacy::EShape.

◆ Process() [4/4]

void eVision::Legacy::EPolygonGauge::Process	(	eVision::EROIBW8 *	sourceImage,
		const eVision::ERegion &	region,
		bool	daughters )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.
daughters	Flag indicating whether the daughters shapes inherit of the same behavior.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision::Legacy::EShape.

◆ RemoveAllSkipRanges()

void eVision::Legacy::EPolygonGauge::RemoveAllSkipRanges ( )

Removes all the skip ranges previously created by a call to EPolygonGauge::AddSkipRange.

◆ RemoveSkipRange()

void eVision::Legacy::EPolygonGauge::RemoveSkipRange ( const uint32_t index )

After a call to EPolygonGauge::AddSkipRange, removes the skip range with the given index.

Parameters

index Index of the skip range to remove, as returned by EPolygonGauge::AddSkipRange.

◆ SetActive()

void eVision::Legacy::EPolygonGauge::SetActive ( bool active )

virtual

Sets the flag indicating whether the gauge is active or not.

Parameters

active Flag indicating whether the gauge is active (true) or not (false).

When complex gauging is required, several gauges can be grouped together. Applying EPolygonGauge::Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process. By default, the gauge is active (true).

Reimplemented from eVision::Legacy::EShape.

◆ SetEnableScaling()

void eVision::Legacy::EPolygonGauge::SetEnableScaling ( bool state )

When using the EPolygonMeasurementMode::EPolygonMeasurementMode_Global mode, if EPolygonGauge::SetEnableScaling is enable then the best scale is evaluated.

Parameters

state The scaling status.

◆ SetFilteringThreshold()

void eVision::Legacy::EPolygonGauge::SetFilteringThreshold ( float f32FilteringThreshold )

Relative filtering threshold, that is the fraction of the average distance between the sampled points and the fitted model above which a point is filtered out.

Irrelevant in case of a point location operation.

During a model fitting operation, the "filtering" process can be invoked to remove outliers, i.e. points that were located significantly far away from the fitted model (so that their position is dubious).

◆ SetHVConstraint()

void eVision::Legacy::EPolygonGauge::SetHVConstraint ( bool bHVConstraint )

Status of the restriction on the orientation of the point location gauge or model fitting sample paths.

Sample paths are the point location gauges placed along the model to be fitted.

◆ SetMeasurementMode()

void eVision::Legacy::EPolygonGauge::SetMeasurementMode ( eVision::Legacy::EPolygonMeasurementMode mode )

The polygon gauge measurement mode, in EPolygonMeasurementMode. The default mode is EPolygonMeasurementMode::EPolygonMeasurementMode_Global.

Parameters

mode	The measurement mode.

◆ SetMinAmplitude()

void eVision::Legacy::EPolygonGauge::SetMinAmplitude ( uint32_t un32MinAmplitude )

Offset added to the Threshold when a peak is to be detected.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value.

To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected.

When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ SetMinArea()

void eVision::Legacy::EPolygonGauge::SetMinArea ( uint32_t un32MinArea )

Minimum area value.

A transition is detected if its derivative peak reaches Threshold + MinAmplitude value, and then declared valid if the area between the peak curve and the horizontal at level Threshold reaches the MinArea value.

◆ SetMinNumFitSamples()

void eVision::Legacy::EPolygonGauge::SetMinNumFitSamples ( int32_t side )

Sets the minimum number of samples required for fitting on each edges of the polygon.

Parameters

side	Minimum number of samples. The default value is 2.

When the EPolygonGauge::Measure method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ SetNumFilteringPasses()

void eVision::Legacy::EPolygonGauge::SetNumFilteringPasses ( uint32_t un32NumFilteringPasses )

Number of filtering passes for a model fitting operation.

Irrelevant in case of a point location operation.

During a filtering pass, the points that are too distant from the model are discarded.

During a model fitting operation, the "filtering" process can be invoked to remove outliers, i.e. points that were located significantly far away from the fitted model (so that their position is dubious).

By default (the number of filtering passes is 0), the outliers rejection process is disabled.

◆ SetNumFilteringPassesInt()

void eVision::Legacy::EPolygonGauge::SetNumFilteringPassesInt ( int32_t un32NumFilteringPasses )

◆ SetSamplingStep()

void eVision::Legacy::EPolygonGauge::SetSamplingStep ( float f32SamplingStep )

Approximate distance between sampled points during a model fitting operation.

Irrelevant in case of a point location operation.

To fit a model, a series of point location operations are performed along the model. The point location gauges spacing is given by the sampling step.

By default, the sampling step is set to 5, which means 5 pixels when the field of view is not calibrated, and 5 physical units in case of a calibrated field of view.

Be aware that if the sampling step is too large, the number of sampled points along the model will not be sufficient enough to accurately locate it.

◆ SetSmoothing()

void eVision::Legacy::EPolygonGauge::SetSmoothing ( uint32_t un32Smoothing )

Number of pixels used for the low-pass filtering operation.

To reduce the effect of noise, the profile data can be low-pass filtered along the point location gauge direction.

◆ SetThickness()

void eVision::Legacy::EPolygonGauge::SetThickness ( uint32_t un32Thickness )

Number of parallel segments used to extract the data profile.

To reduce the effect of noise and/or strengthen a transition, several parallel profiles can be accumulated.

◆ SetThreshold()

void eVision::Legacy::EPolygonGauge::SetThreshold ( uint32_t un32Threshold )

Threshold level used to delimit significant peaks in the data profile.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value.

To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected.

When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ SetTolerance()

void eVision::Legacy::EPolygonGauge::SetTolerance ( float f32Tolerance )

Searching area half thickness of the polygon fitting gauge.

A polygon fitting gauge is fully defined knowing its nominal positions (vertices), its nominal origin, angle and scale, and its outline tolerance.

By default, the searching area thickness of the polygon fitting gauge is 20 (2x10), which means 20 pixels when the field of view is not calibrated, and 20 physical units in case of a calibrated field of view.

◆ SetTransitionChoice()

void eVision::Legacy::EPolygonGauge::SetTransitionChoice ( eVision::ETransitionChoice eTransitionChoice )

Transition choice.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition.

In case of ETransitionChoice::ETransitionChoice_NthFromBegin or ETransitionChoice::ETransitionChoice_NthFromEnd transition choice, set EPolygonGauge::SetTransitionIndex to specify the desired transition.

By default, the selected transition corresponds to the one with the largest amplitude (ETransitionChoice::ETransitionChoice_LargestAmplitude).

◆ SetTransitionIndex()

void eVision::Legacy::EPolygonGauge::SetTransitionIndex ( uint32_t un32TransitionIndex )

Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice::ETransitionChoice_NthFromBegin or ETransitionChoice::ETransitionChoice_NthFromEnd.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition.

By default, the first transition is retained (the index value is 0).

◆ SetTransitionType()

void eVision::Legacy::EPolygonGauge::SetTransitionType ( eVision::ETransitionType eTransitionType )

Transition type.

The type of a transition tells whether it crosses increasing or decreasing gray-level values. This helps discriminate between nearby edges of an object.

By default, the searched transition type is indifferently a black to white or a white to black transition (ETransitionType::ETransitionType_BwOrWb).

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EPolygonGauge() [1/3]

◆ EPolygonGauge() [2/3]

◆ ~EPolygonGauge()

◆ EPolygonGauge() [3/3]

Member Function Documentation

◆ AddSkipRange() [1/2]

◆ AddSkipRange() [2/2]

◆ CopyTo() [1/3]

◆ CopyTo() [2/3]

◆ CopyTo() [3/3]

◆ Drag()

◆ Draw() [1/9]

◆ Draw() [2/9]

◆ Draw() [3/9]

◆ Draw() [4/9]

◆ Draw() [5/9]

◆ Draw() [6/9]

◆ Draw() [7/9]

◆ Draw() [8/9]

◆ Draw() [9/9]

◆ DrawWithCurrentPen() [1/3]

◆ DrawWithCurrentPen() [2/3]

◆ DrawWithCurrentPen() [3/3]

◆ GetActive()

◆ GetAverageDistance()

◆ GetEnableScaling()

◆ GetFilteringThreshold()

◆ GetHVConstraint()

◆ GetMeasuredPolygon()

◆ GetMeasurementMode()

◆ GetMinAmplitude()

◆ GetMinArea()

◆ GetMinNumFitSamples()

◆ GetNumFilteringPasses()

◆ GetNumFilteringPassesInt()

◆ GetNumSamples()

◆ GetNumSkipRanges()

◆ GetNumValidSamples()

◆ GetSamplingStep()

◆ GetShape()

◆ GetSkipRange() [1/2]

◆ GetSkipRange() [2/2]

◆ GetSmoothing()

◆ GetThickness()

◆ GetThreshold()

◆ GetTolerance()

◆ GetTransitionChoice()

◆ GetTransitionIndex()

◆ GetTransitionType()

◆ GetType()

◆ HitTest() [1/2]

◆ HitTest() [2/2]

◆ Measure() [1/2]

◆ Measure() [2/2]

◆ MeasureSample() [1/2]

◆ MeasureSample() [2/2]

◆ operator=()

◆ Process() [1/4]

◆ Process() [2/4]

◆ Process() [3/4]

◆ Process() [4/4]

◆ RemoveAllSkipRanges()

◆ RemoveSkipRange()

◆ SetActive()

◆ SetEnableScaling()

◆ SetFilteringThreshold()

◆ SetHVConstraint()

◆ SetMeasurementMode()

◆ SetMinAmplitude()

◆ SetMinArea()

◆ SetMinNumFitSamples()

◆ SetNumFilteringPasses()

◆ SetNumFilteringPassesInt()

◆ SetSamplingStep()

◆ SetSmoothing()

◆ SetThickness()
