Abstract class to federate the classes that can be hierarchically attached together (from a geometrical point of view). More...

#include <eVision/EasyGauge/Legacy/EShape.h>

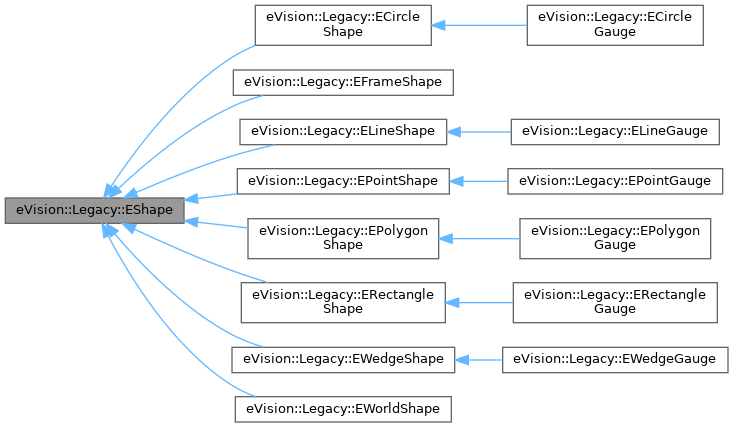

Inheritance diagram for eVision::Legacy::EShape:

Collaboration diagram for eVision::Legacy::EShape:

Public Member Functions
virtual	~EShape () throw ()
virtual eVision::EShapeType	GetType () const =0
	Shape type.
std::string	GetName () const
	Name of the EShape object.
void	SetName (const std::string &name)
	Name of the EShape object.
eVision::Legacy::EShape *	GetShapeNamed (const std::string &name)
	Returns a pointer to a daughter gauge or shape specified by its name.
bool	GetVisible () const
	Flag indicating whether the shape is visible or not.
void	SetVisible (bool visible)
	Flag indicating whether the shape is visible or not.
void	SetVisibleRecursive (bool visible)
	Sets the flag indicating whether the shape and its daughter shapes are visible or not.
bool	GetSelected () const
	Flag indicating whether the shape is selected or not.
void	SetSelected (bool selected)
	Flag indicating whether the shape is selected or not.
void	SetSelectedRecursive (bool selected)
	Sets the flag indicating whether the shape and all its daughters are selected or not.
bool	GetSelectable () const
	Flag indicating whether the shape can be selected or not.
void	SetSelectable (bool selectable)
	Flag indicating whether the shape can be selected or not.
void	SetSelectableRecursive (bool selectable)
	Sets the flag indicating whether the shape and all its daughters can be selected or not.
bool	GetDragable () const
	Flag indicating whether the shape can be dragged or not.
void	SetDragable (bool dragable)
	Flag indicating whether the shape can be dragged or not.
void	SetDragableRecursive (bool dragable)
	Sets the flag indicating whether the shape and all its daughters can be dragged or not.
bool	GetResizable () const
	Flag indicating whether the shape can be resized or not.
void	SetResizable (bool resizable)
	Flag indicating whether the shape can be resized or not.
void	SetResizableRecursive (bool resizable)
	Sets the flag indicating whether the shape and all its daughters can be resized or not.
bool	GetRotatable () const
	Flag indicating whether the shape can be rotated or not.
void	SetRotatable (bool rotatable)
	Flag indicating whether the shape can be rotated or not.
void	SetRotatableRecursive (bool rotatable)
	Sets the flag indicating whether the shape and all its daughters can be rotated or not.
bool	GetLabeled () const
	Flag indicating whether the shape label should be displayed or not.
void	SetLabeled (bool labeled)
	Flag indicating whether the shape label should be displayed or not.
void	SetLabeledRecursive (bool labeled)
	Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.
virtual bool	GetActive () const
	Flag indicating whether the shape is active or not.
virtual void	SetActive (bool active)
	Flag indicating whether the shape is active or not.
virtual void	SetActiveRecursive (bool active)
	Sets the flag indicating whether the shape and all its daughters are active or not.
bool	GetActualShape () const
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
void	SetActualShape (bool actualShape)
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
void	SetActualShapeRecursive (bool actualShape)
	Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.
bool	GetFound () const
	Flag indicating whether a measured shape has been found.
bool	GetAutoArrange () const
void	SetAutoArrange (bool bAutoArrange, bool bDaughters)
void	SetAutoArrange (bool bAutoArrange)
virtual void	SetFound (bool bFound, bool bDaughters)
virtual void	SetFound (bool bFound)
bool	GetInspected () const
void	SetInspected (bool bFound, bool bDaughters)
void	SetInspected (bool bFound)
bool	GetPassed () const
void	SetPassed (bool bFound, bool bDaughters)
void	SetPassed (bool bFound)
bool	GetQuickDraw () const
void	SetQuickDraw (bool bFound, bool bDaughters)
void	SetQuickDraw (bool bFound)
bool	GetOptionalDraw () const
void	SetOptionalDraw (bool bFound, bool bDaughters)
void	SetOptionalDraw (bool bFound)
bool	GetUserFlag () const
void	SetUserFlag (bool bUserFlag, bool bDaughters)
void	SetUserFlag (bool bUserFlag)
bool	GetAllocated () const
	Gets the allocated flag.
void	EnableBehaviorFilter (eVision::EShapeBehavior behavior, bool value)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	EnableBehaviorFilter (eVision::EShapeBehavior behavior)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	DisableBehaviorFilter (eVision::EShapeBehavior behavior)
	Disables (i.e. removes) a condition from the list of conditions in the behavior filter.
void	Attach (eVision::Legacy::EShape *mother)
	Attaches the gauge to a mother gauge or shape.
void	Detach ()
	Detaches the gauge from its mother gauge or shape.
void	DetachDaughters ()
	Detaches the daughter gauges or shapes.
uint32_t	GetNumDaughters () const
	Number of daughters attached to the shape.
eVision::Legacy::EShape *	GetMother () const
	Pointer to the mother shape.
virtual eVision::Legacy::EShape *	GetDaughter (uint32_t index) const
	Returns a pointer to the specified daughter gauge or shape.
eVision::Legacy::EWorldShape *	GetWorldShape () const
	World ancestor.
bool	IsWorld () const
void	InvalidateWorld ()
	Invalidates the world shape for this shape and all its ancestors.
eVision::EPoint	LocalToSensor (const eVision::EPoint &LPoint)
	Transforms a point from local coordinates to sensor coordinates.
eVision::EPoint	SensorToLocal (const eVision::EPoint &SPoint)
	Transforms a point from sensor coordinates to local coordinates.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, eVision::EDrawingMode drawingMode, bool daughters)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (eVision::EDrawAdapter *graphicContext, eVision::EDrawingMode drawingMode)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (eVision::EDrawAdapter *graphicContext)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, eVision::EDrawingMode drawingMode, bool daughters)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, eVision::EDrawingMode drawingMode)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, const eVision::ERGBColor &color, eVision::EDrawingMode drawingMode, bool daughters)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, const eVision::ERGBColor &color, eVision::EDrawingMode drawingMode)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	Draw (HDC graphicContext, const eVision::ERGBColor &color)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	DrawWithCurrentPen (HDC graphicContext, eVision::EDrawingMode drawingMode, bool daughters)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	DrawWithCurrentPen (HDC graphicContext, eVision::EDrawingMode drawingMode)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	DrawWithCurrentPen (HDC graphicContext)=0
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual float	GetZoomX () const
	Current horizontal zooming factor for drawing operations.
virtual float	GetZoomY () const
	Current vertical zooming factor for drawing operations.
virtual float	GetPanX () const
	Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual float	GetPanY () const
	Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual void	SetZoom (float zoomX, float zoomY)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom (float zoomX)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom ()
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetPan (float panX, float panY)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan (float panX)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan ()
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual bool	HitTest (bool bDaughters)=0
	Checks if there is a handle under the cursor.
virtual bool	HitTest ()=0
	Checks if there is a handle under the cursor.
eVision::EDragHandle	GetHitHandle () const
	Handle currently under the cursor.
eVision::Legacy::EShape *	GetHitShape () const
	Pointer to the shape currently under the cursor.
void	SetDraggingMode (eVision::EDraggingMode eDraggingMode, bool bDaughters)
	Sets the dragging mode which defines how the shape could be dragged.
void	SetDraggingMode (eVision::EDraggingMode eDraggingMode)
	Sets the dragging mode which defines how the shape could be dragged.
eVision::EDraggingMode	GetDraggingMode () const
	Gets the dragging mode which defines how the shape could be dragged.
void	SetCursor (int32_t x, int32_t y)
	Sets the cursor current coordinates.
virtual void	Drag (int32_t n32CursorX, int32_t n32CursorY)=0
	Moves a handle to a new position and updates the position parameters of the shape.
virtual void	Closest ()=0
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape::GetClosestShape.
eVision::Legacy::EShape *	GetClosestShape () const
	Closest shape among the daughters.
virtual void	Process (eVision::EROIBW8 *pSrc, bool bDaughters)
virtual void	Process (eVision::EROIBW8 *pSrc)
virtual void	Process (eVision::EROIBW8 *pSrc, const eVision::ERegion &region, bool bDaughters)
virtual void	Process (eVision::EROIBW8 *pSrc, const eVision::ERegion &region)
void	Save (const std::string &path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (const std::string &path)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision::ESerializer *serializer)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Load (const std::string &path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (const std::string &path)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision::ESerializer *serializer)
	Loads a Shape.The given ESerializer must have been created for reading.
bool	HasProperty (const std::string &aProperty) const
	Returns whether a EShape has a property named aProperty.
std::string	GetProperty (const std::string &aProperty) const
	Gets the value of property aProperty. Throws an exception if no such property exists.
void	SetProperty (const std::string &aProperty, const std::string &aValue)
	Sets the value of property aProperty to aValue for this EShape.
void	SetPropertyRecursive (const std::string &aProperty, const std::string &aValue)
	Sets the value of property aProperty to aValue for this EShape and all of its daughters.
void	RemoveProperty (const std::string &aProperty)
	Removes the property name aProperty from the EShape.
bool	HasValidPolarityProperty () const
	Returns whether the EShape has a valid polarity property.
virtual void	EnableTypeFilter (uint32_t un32Types)
	Enables the filter of the specified shape type.
virtual void	DisableTypeFilter ()
	Enables all shape types.
	EShape (CppWrapperInternal::InternalConstructor)

Public Attributes
CppWrapperInternal::WrappedClass	wrappedClass_

Detailed Description

Abstract class to federate the classes that can be hierarchically attached together (from a geometrical point of view).

License(s): BasicTypes

Constructor & Destructor Documentation

◆ ~EShape()

eVision::Legacy::EShape::~EShape	(		)
throw	(	)

virtual

◆ EShape()

eVision::Legacy::EShape::EShape ( CppWrapperInternal::InternalConstructor )

Member Function Documentation

◆ Attach()

void eVision::Legacy::EShape::Attach ( eVision::Legacy::EShape * mother )

Attaches the gauge to a mother gauge or shape.

Parameters

mother Pointer to the mother gauge or shape.

When attached to a mother gauge, be aware that daughter gauges are not positioned according to the nominal mother gauge position, but to its corresponding fitted model.

◆ Closest()

virtual void eVision::Legacy::EShape::Closest ( )

pure virtual

Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape::GetClosestShape.

Implemented in eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineShape, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Detach()

void eVision::Legacy::EShape::Detach ( )

Detaches the gauge from its mother gauge or shape.

◆ DetachDaughters()

void eVision::Legacy::EShape::DetachDaughters ( )

Detaches the daughter gauges or shapes.

◆ DisableBehaviorFilter()

void eVision::Legacy::EShape::DisableBehaviorFilter ( eVision::EShapeBehavior behavior )

Disables (i.e. removes) a condition from the list of conditions in the behavior filter.

Parameters

behavior The behavior of the shape to be removed from the behavior filter.

The condition to be disabled is identified by the behavior about which the condition is. Disabling a behavior leads to less restrictive conditions for the Draw and HitTest methods to be actually carried on.

◆ DisableTypeFilter()

void eVision::Legacy::EShape::DisableTypeFilter ( )

virtual

Enables all shape types.

Reimplemented in eVision::Legacy::EWorldShape.

◆ Drag()

virtual void eVision::Legacy::EShape::Drag	(	int32_t	n32CursorX,
		int32_t	n32CursorY )

pure virtual

Moves a handle to a new position and updates the position parameters of the shape.

Parameters

n32CursorX	Current cursor coordinates.
n32CursorY	Current cursor coordinates.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [1/9]

virtual void eVision::Legacy::EShape::Draw ( eVision::EDrawAdapter * graphicContext )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [2/9]

virtual void eVision::Legacy::EShape::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EDrawingMode	drawingMode )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [3/9]

virtual void eVision::Legacy::EShape::Draw	(	eVision::EDrawAdapter *	graphicContext,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [4/9]

virtual void eVision::Legacy::EShape::Draw ( HDC graphicContext )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [5/9]

virtual void eVision::Legacy::EShape::Draw	(	HDC	graphicContext,
		const eVision::ERGBColor &	color )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [6/9]

virtual void eVision::Legacy::EShape::Draw	(	HDC	graphicContext,
		const eVision::ERGBColor &	color,
		eVision::EDrawingMode	drawingMode )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [7/9]

virtual void eVision::Legacy::EShape::Draw	(	HDC	graphicContext,
		const eVision::ERGBColor &	color,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [8/9]

virtual void eVision::Legacy::EShape::Draw	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ Draw() [9/9]

virtual void eVision::Legacy::EShape::Draw	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ DrawWithCurrentPen() [1/3]

virtual void eVision::Legacy::EShape::DrawWithCurrentPen ( HDC graphicContext )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated

Use the overload of EShape::Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ DrawWithCurrentPen() [2/3]

virtual void eVision::Legacy::EShape::DrawWithCurrentPen	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload of EShape::Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ DrawWithCurrentPen() [3/3]

virtual void eVision::Legacy::EShape::DrawWithCurrentPen	(	HDC	graphicContext,
		eVision::EDrawingMode	drawingMode,
		bool	daughters )

pure virtual

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload of EShape::Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ EnableBehaviorFilter() [1/2]

void eVision::Legacy::EShape::EnableBehaviorFilter ( eVision::EShapeBehavior behavior )

Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.

Parameters

behavior The behavior of the shape to be tested.

This method registers a new necessary condition for the Draw and HitTest families of methods to be actually carried on. Such a condition is about the behavior of the shape, as specified by the behavior argument. Initially, the behavior filter contains an empty list of conditions, which means that the Draw and HitTest methods will always be executed. Adding a new condition through EShape::EnableBehaviorFilter will introduce a new restriction on the effective execution of these methods. Use EShape::DisableBehaviorFilter to remove a condition from the behavior filter.

◆ EnableBehaviorFilter() [2/2]

void eVision::Legacy::EShape::EnableBehaviorFilter	(	eVision::EShapeBehavior	behavior,
		bool	value )

Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.

Parameters

behavior	The behavior of the shape to be tested.
value	The value at which the behavior property should be set to pass the test. By default, equals True.

This method registers a new necessary condition for the Draw and HitTest families of methods to be actually carried on. Such a condition is about the behavior of the shape, as specified by the behavior argument. Initially, the behavior filter contains an empty list of conditions, which means that the Draw and HitTest methods will always be executed. Adding a new condition through EShape::EnableBehaviorFilter will introduce a new restriction on the effective execution of these methods. Use EShape::DisableBehaviorFilter to remove a condition from the behavior filter.

◆ EnableTypeFilter()

void eVision::Legacy::EShape::EnableTypeFilter ( uint32_t un32Types )

virtual

Enables the filter of the specified shape type.

Parameters

un32Types The type of the shape to filter.

Reimplemented in eVision::Legacy::EWorldShape.

◆ GetActive()

bool eVision::Legacy::EShape::GetActive ( ) const

virtual

Flag indicating whether the shape is active or not.

◆ GetActualShape()

bool eVision::Legacy::EShape::GetActualShape ( ) const

Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

◆ GetAllocated()

bool eVision::Legacy::EShape::GetAllocated ( ) const

Gets the allocated flag.

◆ GetAutoArrange()

bool eVision::Legacy::EShape::GetAutoArrange ( ) const

◆ GetClosestShape()

eVision::Legacy::EShape * eVision::Legacy::EShape::GetClosestShape ( ) const

Closest shape among the daughters.

Use EShape::Closest to recompute the closest shape.

◆ GetDaughter()

eVision::Legacy::EShape * eVision::Legacy::EShape::GetDaughter ( uint32_t index ) const

virtual

Returns a pointer to the specified daughter gauge or shape.

Parameters

index Daughter gauge or shape index.

◆ GetDragable()

bool eVision::Legacy::EShape::GetDragable ( ) const

Flag indicating whether the shape can be dragged or not.

◆ GetDraggingMode()

eVision::EDraggingMode eVision::Legacy::EShape::GetDraggingMode ( ) const

Gets the dragging mode which defines how the shape could be dragged.

◆ GetFound()

bool eVision::Legacy::EShape::GetFound ( ) const

Flag indicating whether a measured shape has been found.

After calling Process() or Measure() on a gauge object, use GetFound() to get the status of the measurement.

◆ GetHitHandle()

eVision::EDragHandle eVision::Legacy::EShape::GetHitHandle ( ) const

Handle currently under the cursor.

When the cursor is over a particular handle, its shape could be changed for feedback.

◆ GetHitShape()

eVision::Legacy::EShape * eVision::Legacy::EShape::GetHitShape ( ) const

Pointer to the shape currently under the cursor.

When the cursor is over a particular shape, its shape could be changed for feedback.

◆ GetInspected()

bool eVision::Legacy::EShape::GetInspected ( ) const

◆ GetLabeled()

bool eVision::Legacy::EShape::GetLabeled ( ) const

Flag indicating whether the shape label should be displayed or not.

◆ GetMother()

eVision::Legacy::EShape * eVision::Legacy::EShape::GetMother ( ) const

Pointer to the mother shape.

◆ GetName()

std::string eVision::Legacy::EShape::GetName ( ) const

Name of the EShape object.

◆ GetNumDaughters()

uint32_t eVision::Legacy::EShape::GetNumDaughters ( ) const

Number of daughters attached to the shape.

◆ GetOptionalDraw()

bool eVision::Legacy::EShape::GetOptionalDraw ( ) const

◆ GetPanX()

float eVision::Legacy::EShape::GetPanX ( ) const

virtual

Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.

Reimplemented in eVision::Legacy::EWorldShape.

◆ GetPanY()

float eVision::Legacy::EShape::GetPanY ( ) const

virtual

Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.

Reimplemented in eVision::Legacy::EWorldShape.

◆ GetPassed()

bool eVision::Legacy::EShape::GetPassed ( ) const

◆ GetProperty()

std::string eVision::Legacy::EShape::GetProperty ( const std::string & aProperty ) const

Gets the value of property aProperty. Throws an exception if no such property exists.

Parameters

aProperty The name of the property.

◆ GetQuickDraw()

bool eVision::Legacy::EShape::GetQuickDraw ( ) const

◆ GetResizable()

bool eVision::Legacy::EShape::GetResizable ( ) const

Flag indicating whether the shape can be resized or not.

◆ GetRotatable()

bool eVision::Legacy::EShape::GetRotatable ( ) const

Flag indicating whether the shape can be rotated or not.

◆ GetSelectable()

bool eVision::Legacy::EShape::GetSelectable ( ) const

Flag indicating whether the shape can be selected or not.

◆ GetSelected()

bool eVision::Legacy::EShape::GetSelected ( ) const

Flag indicating whether the shape is selected or not.

◆ GetShapeNamed()

eVision::Legacy::EShape * eVision::Legacy::EShape::GetShapeNamed ( const std::string & name )

Returns a pointer to a daughter gauge or shape specified by its name.

Parameters

name	Name of the daughter gauge or shape.

◆ GetType()

virtual eVision::EShapeType eVision::Legacy::EShape::GetType ( ) const

pure virtual

Shape type.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ GetUserFlag()

bool eVision::Legacy::EShape::GetUserFlag ( ) const

◆ GetVisible()

bool eVision::Legacy::EShape::GetVisible ( ) const

Flag indicating whether the shape is visible or not.

◆ GetWorldShape()

eVision::Legacy::EWorldShape * eVision::Legacy::EShape::GetWorldShape ( ) const

World ancestor.

◆ GetZoomX()

float eVision::Legacy::EShape::GetZoomX ( ) const

virtual

Current horizontal zooming factor for drawing operations.

Reimplemented in eVision::Legacy::EWorldShape.

◆ GetZoomY()

float eVision::Legacy::EShape::GetZoomY ( ) const

virtual

Current vertical zooming factor for drawing operations.

Reimplemented in eVision::Legacy::EWorldShape.

◆ HasProperty()

bool eVision::Legacy::EShape::HasProperty ( const std::string & aProperty ) const

Returns whether a EShape has a property named aProperty.

Parameters

aProperty The name of the property.

◆ HasValidPolarityProperty()

bool eVision::Legacy::EShape::HasValidPolarityProperty ( ) const

Returns whether the EShape has a valid polarity property.

I.e. if it has a property named "polarity" whose value is either "inverted" or "direct".

The "polarity" property is mostly used to define the orientation of the gradient in a shape of a EVectorModel.

◆ HitTest() [1/2]

virtual bool eVision::Legacy::EShape::HitTest ( )

pure virtual

Checks if there is a handle under the cursor.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ HitTest() [2/2]

virtual bool eVision::Legacy::EShape::HitTest ( bool bDaughters )

pure virtual

Checks if there is a handle under the cursor.

Parameters

bDaughters Indicates if the check must be done in the whole hierarchy or just this object.

Implemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ECircleShape, eVision::Legacy::EFrameShape, eVision::Legacy::ELineGauge, eVision::Legacy::ELineShape, eVision::Legacy::EPointGauge, eVision::Legacy::EPointShape, eVision::Legacy::EPolygonGauge, eVision::Legacy::EPolygonShape, eVision::Legacy::ERectangleGauge, eVision::Legacy::ERectangleShape, eVision::Legacy::EWedgeGauge, eVision::Legacy::EWedgeShape, and eVision::Legacy::EWorldShape.

◆ InvalidateWorld()

void eVision::Legacy::EShape::InvalidateWorld ( )

Invalidates the world shape for this shape and all its ancestors.

◆ IsWorld()

bool eVision::Legacy::EShape::IsWorld ( ) const

◆ Load() [1/4]

void eVision::Legacy::EShape::Load ( const std::string & path )

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

path	The file path.

◆ Load() [2/4]

void eVision::Legacy::EShape::Load	(	const std::string &	path,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

path	The file path.
daughters	Indicates if the load must be done on the whole hierarchy or just this object.

◆ Load() [3/4]

void eVision::Legacy::EShape::Load ( eVision::ESerializer * serializer )

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

serializer Pointer to the ESerializer created for reading.

◆ Load() [4/4]

void eVision::Legacy::EShape::Load	(	eVision::ESerializer *	serializer,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

serializer	Pointer to the ESerializer created for reading.
daughters	Indicates if the load must be done on the whole hierarchy or just this object.

◆ LocalToSensor()

eVision::EPoint eVision::Legacy::EShape::LocalToSensor ( const eVision::EPoint & LPoint )

Transforms a point from local coordinates to sensor coordinates.

Parameters

LPoint The point in local coordinates.

◆ Process() [1/4]

void eVision::Legacy::EShape::Process ( eVision::EROIBW8 * pSrc )

virtual

Reimplemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ELineGauge, eVision::Legacy::EPointGauge, eVision::Legacy::EPolygonGauge, eVision::Legacy::ERectangleGauge, and eVision::Legacy::EWedgeGauge.

◆ Process() [2/4]

void eVision::Legacy::EShape::Process	(	eVision::EROIBW8 *	pSrc,
		bool	bDaughters )

virtual

Reimplemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ELineGauge, eVision::Legacy::EPointGauge, eVision::Legacy::EPolygonGauge, eVision::Legacy::ERectangleGauge, and eVision::Legacy::EWedgeGauge.

◆ Process() [3/4]

void eVision::Legacy::EShape::Process	(	eVision::EROIBW8 *	pSrc,
		const eVision::ERegion &	region )

virtual

Reimplemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ELineGauge, eVision::Legacy::EPointGauge, eVision::Legacy::EPolygonGauge, eVision::Legacy::ERectangleGauge, and eVision::Legacy::EWedgeGauge.

◆ Process() [4/4]

void eVision::Legacy::EShape::Process	(	eVision::EROIBW8 *	pSrc,
		const eVision::ERegion &	region,
		bool	bDaughters )

virtual

Reimplemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ELineGauge, eVision::Legacy::EPointGauge, eVision::Legacy::EPolygonGauge, eVision::Legacy::ERectangleGauge, and eVision::Legacy::EWedgeGauge.

◆ RemoveProperty()

void eVision::Legacy::EShape::RemoveProperty ( const std::string & aProperty )

Removes the property name aProperty from the EShape.

Parameters

aProperty The name of the property.

◆ Save() [1/4]

void eVision::Legacy::EShape::Save ( const std::string & path )

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

path	The file path.

◆ Save() [2/4]

void eVision::Legacy::EShape::Save	(	const std::string &	path,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

path	The file path.
daughters	Indicates if the save must be done on the whole hierarchy or just this object.

◆ Save() [3/4]

void eVision::Legacy::EShape::Save ( eVision::ESerializer * serializer )

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

serializer Pointer to the ESerializer created for writing.

◆ Save() [4/4]

void eVision::Legacy::EShape::Save	(	eVision::ESerializer *	serializer,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

serializer	Pointer to the ESerializer created for writing.
daughters	Indicates if the save must be done on the whole hierarchy or just this object.

◆ SensorToLocal()

eVision::EPoint eVision::Legacy::EShape::SensorToLocal ( const eVision::EPoint & SPoint )

Transforms a point from sensor coordinates to local coordinates.

Parameters

SPoint The point in sensor coordinates.

◆ SetActive()

void eVision::Legacy::EShape::SetActive ( bool active )

virtual

Flag indicating whether the shape is active or not.

Reimplemented in eVision::Legacy::ECircleGauge, eVision::Legacy::ELineGauge, eVision::Legacy::EPointGauge, eVision::Legacy::EPolygonGauge, eVision::Legacy::ERectangleGauge, and eVision::Legacy::EWedgeGauge.

◆ SetActiveRecursive()

void eVision::Legacy::EShape::SetActiveRecursive ( bool active )

virtual

Sets the flag indicating whether the shape and all its daughters are active or not.

Parameters

active Flag indicating whether the shapes are active (true, default) or not (false).

When complex gauging is required, several gauges can be grouped together. Applying Process() to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

◆ SetActualShape()

void eVision::Legacy::EShape::SetActualShape ( bool actualShape )

Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

◆ SetActualShapeRecursive()

void eVision::Legacy::EShape::SetActualShapeRecursive ( bool actualShape )

Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.

Parameters

actualShape Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true)

◆ SetAutoArrange() [1/2]

void eVision::Legacy::EShape::SetAutoArrange ( bool bAutoArrange )

◆ SetAutoArrange() [2/2]

void eVision::Legacy::EShape::SetAutoArrange	(	bool	bAutoArrange,
		bool	bDaughters )

◆ SetCursor()

void eVision::Legacy::EShape::SetCursor	(	int32_t	x,
		int32_t	y )

Sets the cursor current coordinates.

Parameters

x	Cursor current coordinates.
y	Cursor current coordinates.

◆ SetDragable()

void eVision::Legacy::EShape::SetDragable ( bool dragable )

Flag indicating whether the shape can be dragged or not.

◆ SetDragableRecursive()

void eVision::Legacy::EShape::SetDragableRecursive ( bool dragable )

Sets the flag indicating whether the shape and all its daughters can be dragged or not.

Parameters

dragable Flag indicating whether the shape can be dragged (true) or not (false, default).

◆ SetDraggingMode() [1/2]

void eVision::Legacy::EShape::SetDraggingMode ( eVision::EDraggingMode eDraggingMode )

Sets the dragging mode which defines how the shape could be dragged.

Parameters

eDraggingMode The draggingMode.

◆ SetDraggingMode() [2/2]

void eVision::Legacy::EShape::SetDraggingMode	(	eVision::EDraggingMode	eDraggingMode,
		bool	bDaughters )

Sets the dragging mode which defines how the shape could be dragged.

Parameters

eDraggingMode	The draggingMode.
bDaughters	Indicates if the set must be done in the whole hierarchy or just this object.

◆ SetFound() [1/2]

void eVision::Legacy::EShape::SetFound ( bool bFound )

virtual

◆ SetFound() [2/2]

void eVision::Legacy::EShape::SetFound	(	bool	bFound,
		bool	bDaughters )

virtual

◆ SetInspected() [1/2]

void eVision::Legacy::EShape::SetInspected ( bool bFound )

◆ SetInspected() [2/2]

void eVision::Legacy::EShape::SetInspected	(	bool	bFound,
		bool	bDaughters )

◆ SetLabeled()

void eVision::Legacy::EShape::SetLabeled ( bool labeled )

Flag indicating whether the shape label should be displayed or not.

◆ SetLabeledRecursive()

void eVision::Legacy::EShape::SetLabeledRecursive ( bool labeled )

Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.

Parameters

labeled Flag indicating whether the shape label should be displayed (true) or not (false, default).

◆ SetName()

void eVision::Legacy::EShape::SetName ( const std::string & name )

Name of the EShape object.

◆ SetOptionalDraw() [1/2]

void eVision::Legacy::EShape::SetOptionalDraw ( bool bFound )

◆ SetOptionalDraw() [2/2]

void eVision::Legacy::EShape::SetOptionalDraw	(	bool	bFound,
		bool	bDaughters )

◆ SetPan() [1/3]

void eVision::Legacy::EShape::SetPan ( )

virtual

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

All objects attached to an EWorldShape object inherit of the same panning factor.

Reimplemented in eVision::Legacy::EWorldShape.

◆ SetPan() [2/3]

void eVision::Legacy::EShape::SetPan ( float panX )

virtual

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Parameters

panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

All objects attached to an EWorldShape object inherit of the same panning factor.

Reimplemented in eVision::Legacy::EWorldShape.

◆ SetPan() [3/3]

void eVision::Legacy::EShape::SetPan	(	float	panX,
		float	panY )

virtual

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Parameters

panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

All objects attached to an EWorldShape object inherit of the same panning factor.

Reimplemented in eVision::Legacy::EWorldShape.

◆ SetPassed() [1/2]

void eVision::Legacy::EShape::SetPassed ( bool bFound )

◆ SetPassed() [2/2]

void eVision::Legacy::EShape::SetPassed	(	bool	bFound,
		bool	bDaughters )

◆ SetProperty()

void eVision::Legacy::EShape::SetProperty	(	const std::string &	aProperty,
		const std::string &	aValue )

Sets the value of property aProperty to aValue for this EShape.

Parameters

aProperty	The name of the property.
aValue	The value of the property.

You may use a shape property to define the orientation of the gradient in a shape of a EVectorModel. This is done by setting a property named "polarity" to "inverted" or "direct".

Additionally, you may set any property to any value for your own needs.

◆ SetPropertyRecursive()

void eVision::Legacy::EShape::SetPropertyRecursive	(	const std::string &	aProperty,
		const std::string &	aValue )

Sets the value of property aProperty to aValue for this EShape and all of its daughters.

Parameters

aProperty	The name of the property.
aValue	The value of the property.

◆ SetQuickDraw() [1/2]

void eVision::Legacy::EShape::SetQuickDraw ( bool bFound )

◆ SetQuickDraw() [2/2]

void eVision::Legacy::EShape::SetQuickDraw	(	bool	bFound,
		bool	bDaughters )

◆ SetResizable()

void eVision::Legacy::EShape::SetResizable ( bool resizable )

Flag indicating whether the shape can be resized or not.

◆ SetResizableRecursive()

void eVision::Legacy::EShape::SetResizableRecursive ( bool resizable )

Sets the flag indicating whether the shape and all its daughters can be resized or not.

Parameters

resizable Flag indicating whether the shape can be resized (true) or not (false, default).

◆ SetRotatable()

void eVision::Legacy::EShape::SetRotatable ( bool rotatable )

Flag indicating whether the shape can be rotated or not.

◆ SetRotatableRecursive()

void eVision::Legacy::EShape::SetRotatableRecursive ( bool rotatable )

Sets the flag indicating whether the shape and all its daughters can be rotated or not.

Parameters

rotatable Flag indicating whether the shape can be rotated (true) or not (false, default).

◆ SetSelectable()

void eVision::Legacy::EShape::SetSelectable ( bool selectable )

Flag indicating whether the shape can be selected or not.

◆ SetSelectableRecursive()

void eVision::Legacy::EShape::SetSelectableRecursive ( bool selectable )

Sets the flag indicating whether the shape and all its daughters can be selected or not.

Parameters

selectable Flag indicating whether the shape can be selected (true, default) or not (false).

◆ SetSelected()

void eVision::Legacy::EShape::SetSelected ( bool selected )

Flag indicating whether the shape is selected or not.

◆ SetSelectedRecursive()

void eVision::Legacy::EShape::SetSelectedRecursive ( bool selected )

Sets the flag indicating whether the shape and all its daughters are selected or not.

Parameters

selected Flag indicating whether the shape is selected (true) or not (false).

◆ SetUserFlag() [1/2]

void eVision::Legacy::EShape::SetUserFlag ( bool bUserFlag )

◆ SetUserFlag() [2/2]

void eVision::Legacy::EShape::SetUserFlag	(	bool	bUserFlag,
		bool	bDaughters )

◆ SetVisible()

void eVision::Legacy::EShape::SetVisible ( bool visible )

Flag indicating whether the shape is visible or not.

◆ SetVisibleRecursive()

void eVision::Legacy::EShape::SetVisibleRecursive ( bool visible )

Sets the flag indicating whether the shape and its daughter shapes are visible or not.

Parameters

visible Flag indicating whether the shape is visible (true, default) or not (false).

◆ SetZoom() [1/3]

void eVision::Legacy::EShape::SetZoom ( )

virtual

Sets the horizontal and vertical zooming factors for drawing operations.

All objects attached to an EWorldShape inherit of the same zooming factor.

Reimplemented in eVision::Legacy::EWorldShape.

◆ SetZoom() [2/3]

void eVision::Legacy::EShape::SetZoom ( float zoomX )

virtual

Sets the horizontal and vertical zooming factors for drawing operations.

Parameters

zoomX Horizontal zooming factor. By default, true scale is used.

All objects attached to an EWorldShape inherit of the same zooming factor.

Reimplemented in eVision::Legacy::EWorldShape.

◆ SetZoom() [3/3]

void eVision::Legacy::EShape::SetZoom	(	float	zoomX,
		float	zoomY )

virtual

Sets the horizontal and vertical zooming factors for drawing operations.

Parameters

zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0, the default value, the horizontal zooming factor is used instead, so as to provide isotropic zooming.

All objects attached to an EWorldShape inherit of the same zooming factor.

Reimplemented in eVision::Legacy::EWorldShape.

Member Data Documentation

◆ wrappedClass_

CppWrapperInternal::WrappedClass eVision::Legacy::EShape::wrappedClass_

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~EShape()

◆ EShape()

Member Function Documentation

◆ Attach()

◆ Closest()

◆ Detach()

◆ DetachDaughters()

◆ DisableBehaviorFilter()

◆ DisableTypeFilter()

◆ Drag()

◆ Draw() [1/9]

◆ Draw() [2/9]

◆ Draw() [3/9]

◆ Draw() [4/9]

◆ Draw() [5/9]

◆ Draw() [6/9]

◆ Draw() [7/9]

◆ Draw() [8/9]

◆ Draw() [9/9]

◆ DrawWithCurrentPen() [1/3]

◆ DrawWithCurrentPen() [2/3]

◆ DrawWithCurrentPen() [3/3]

◆ EnableBehaviorFilter() [1/2]

◆ EnableBehaviorFilter() [2/2]

◆ EnableTypeFilter()

◆ GetActive()

◆ GetActualShape()

◆ GetAllocated()

◆ GetAutoArrange()

◆ GetClosestShape()

◆ GetDaughter()

◆ GetDragable()

◆ GetDraggingMode()

◆ GetFound()

◆ GetHitHandle()

◆ GetHitShape()

◆ GetInspected()

◆ GetLabeled()

◆ GetMother()

◆ GetName()

◆ GetNumDaughters()

◆ GetOptionalDraw()

◆ GetPanX()

◆ GetPanY()

◆ GetPassed()

◆ GetProperty()

◆ GetQuickDraw()

◆ GetResizable()

◆ GetRotatable()

◆ GetSelectable()

◆ GetSelected()

◆ GetShapeNamed()

◆ GetType()

◆ GetUserFlag()

◆ GetVisible()

◆ GetWorldShape()

◆ GetZoomX()

◆ GetZoomY()

◆ HasProperty()

◆ HasValidPolarityProperty()

◆ HitTest() [1/2]

◆ HitTest() [2/2]

◆ InvalidateWorld()

◆ IsWorld()

◆ Load() [1/4]

◆ Load() [2/4]

◆ Load() [3/4]

◆ Load() [4/4]

◆ LocalToSensor()

◆ Process() [1/4]

◆ Process() [2/4]

◆ Process() [3/4]

◆ Process() [4/4]

◆ RemoveProperty()

◆ Save() [1/4]

◆ Save() [2/4]
