Represents a geometrical frame of reference as well as the parameters needed to transform from/to local and global coordinates. More...

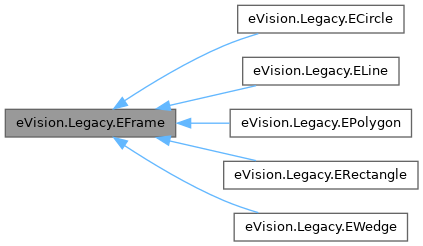

Inheritance diagram for eVision.Legacy.EFrame:

[legend]

Public Member Functions
None	__init__ (self)
	Constructs a eVision.Legacy.EFrame object.
None	__init__ (self, float centerX, float centerY, float angle, float scale)
	Constructs a eVision.Legacy.EFrame object.
None	__init__ (self, float centerX, float centerY, float angle)
	Constructs a eVision.Legacy.EFrame object.
None	__init__ (self, float centerX, float centerY)
	Constructs a eVision.Legacy.EFrame object.
None	__init__ (self, eVision.EPoint center, float angle, float scale)
	Constructs a eVision.Legacy.EFrame object.
None	__init__ (self, eVision.Legacy.EFrame frame)
	Constructs a eVision.Legacy.EFrame object.
None	CopyTo (self, eVision.Legacy.EFrame other)
	Copies all the data from the current eVision.Legacy.EFrame object into another eVision.Legacy.EFrame object, and returns it.
eVision.EPoint	LocalToGlobal (self, eVision.EPoint local)
	Transforms a geometrical element from local to global coordinates (local to world).
eVision.Legacy.ELine	LocalToGlobal (self, eVision.Legacy.ELine local)
	Transforms a geometrical element from local to global coordinates (local to world).
eVision.Legacy.ECircle	LocalToGlobal (self, eVision.Legacy.ECircle local)
	Transforms a geometrical element from local to global coordinates (local to world).
eVision.Legacy.EFrame	LocalToGlobal (self, eVision.Legacy.EFrame local)
	Transforms a geometrical element from local to global coordinates (local to world).
eVision.EPoint	GlobalToLocal (self, eVision.EPoint global_)
	Transforms a geometrical element from global to local coordinates (world to local).
eVision.Legacy.EFrame	GlobalToLocal (self, eVision.Legacy.EFrame global_)
	Transforms a geometrical element from global to local coordinates (world to local).
None	Load (self, str path)
	Load the eVision.Legacy.EFrame configuration.
None	Load (self, eVision.ESerializer\|None serializer)
	Load the eVision.Legacy.EFrame configuration.
None	Save (self, str path)
	Save the eVision.Legacy.EFrame configuration.
None	Save (self, eVision.ESerializer\|None serializer)
	Save the eVision.Legacy.EFrame configuration.
None	SetCenterXY (self, float centerX, float centerY)
	Sets the center coordinates of a eVision.Legacy.EFrame object.
eVision.EPoint	MidPoint (self, eVision.EPoint Point)
	Returns the middle coordinate between this eVision.Legacy.EFrame object's center and another eVision.Legacy.EFrame object's center.
eVision.EPoint	Rotate (self, float angle)
	Returns another eVision.EPoint object containing the coordinates of the rotated center point.
float	Square (self)
	Compute the sum of the squared coordinates of the center of a eVision.Legacy.EFrame.
float	Modulus (self)
	Compute the euclidean modulus of the center of a eVision.Legacy.EFrame.
float	Argument (self)
	Compute the polar argument of the center of eVision.Legacy.EFrame object.
float	Dot (self, eVision.EPoint Point)
	Compute the dot product of the centers of two eVision.Legacy.EFrame objects.
float	Cross (self, eVision.EPoint Point)
	Compute the cross product of the centers of two eVision.Legacy.EFrame objects.
float	Area (self, eVision.EPoint Point)
	Compute the oriented area of the parallelogram built on the centers of two eVision.Legacy.EFrame.
eVision.EPoint	Project (self, eVision.Legacy.ELine shape)
	Compute the orthogonal projection of the center of a eVision.Legacy.EFrame on another shape.
eVision.EPoint	Project (self, eVision.Legacy.ECircle shape)
	Compute the orthogonal projection of the center of a eVision.Legacy.EFrame on another shape.
float	SquaredDistance (self, eVision.EPoint Point)
	Compute the squared distance between the centers of two eVision.Legacy.EFrame.
eVision.EPoint	Move (self, float angle, float distance)
	Return the position by moving the center along angle by distance.
float	Distance (self, eVision.EPoint point)
	Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.
float	Distance (self, eVision.Legacy.ELine line, bool segmentOnly)
	Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.
float	Distance (self, eVision.Legacy.ELine line)
	Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.
float	Distance (self, eVision.Legacy.ECircle circle, bool arcOnly)
	Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.
float	Distance (self, eVision.Legacy.ECircle circle)
	Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.
float	Angle (self)
	Orientation of the frame.
	Angle (self, float value)
	Orientation of the frame.
float	Scale (self)
	Horizontal sensor resolution, in pixels per unit.
	Scale (self, float value)
	Horizontal sensor resolution, in pixels per unit.
float	CenterX (self)
	Abscissa of the origin point of the frame.
float	CenterY (self)
	Ordinate of the origin point of the frame.
eVision.EPoint	Center (self)
	Center.
	Center (self, eVision.EPoint value)
	Center.
float	X (self)
	Abscissa (X coordinate) of the eVision.Legacy.EFrame object.
	X (self, float value)
	Abscissa (X coordinate) of the eVision.Legacy.EFrame object.
float	Y (self)
	Ordinate (Y coordinate) of the eVision.Legacy.EFrame object.
	Y (self, float value)
	Ordinate (Y coordinate) of the eVision.Legacy.EFrame object.

Detailed Description

Represents a geometrical frame of reference as well as the parameters needed to transform from/to local and global coordinates.

It contains a point and an angle and serves as a base class for geometrical elements.

Remarks:

License(s): BasicTypes

Constructor & Destructor Documentation

◆ init() [1/6]

None eVision.Legacy.EFrame.__init__ ( self )

Constructs a eVision.Legacy.EFrame object.

◆ init() [2/6]

None eVision.Legacy.EFrame.__init__	(		self,
		float	centerX,
		float	centerY,
		float	angle,
		float	scale )

Constructs a eVision.Legacy.EFrame object.

Parameters

centerX	Abscissa of the center point of the frame.
centerY	Ordinate of the center point of the frame.
angle	Orientation of the frame.
scale	Horizontal sensor resolution.

◆ init() [3/6]

None eVision.Legacy.EFrame.__init__	(		self,
		float	centerX,
		float	centerY,
		float	angle )

Constructs a eVision.Legacy.EFrame object.

Parameters

centerX	Abscissa of the center point of the frame.
centerY	Ordinate of the center point of the frame.
angle	Orientation of the frame.

◆ init() [4/6]

None eVision.Legacy.EFrame.__init__	(		self,
		float	centerX,
		float	centerY )

Constructs a eVision.Legacy.EFrame object.

Parameters

centerX	Abscissa of the center point of the frame.
centerY	Ordinate of the center point of the frame.

◆ init() [5/6]

None eVision.Legacy.EFrame.__init__	(		self,
		eVision.EPoint	center,
		float	angle,
		float	scale )

Constructs a eVision.Legacy.EFrame object.

Parameters

center	Coordinates of the center point of the frame.
angle	Orientation of the frame.
scale	Horizontal sensor resolution.

◆ init() [6/6]

None eVision.Legacy.EFrame.__init__	(		self,
		eVision.Legacy.EFrame	frame )

Constructs a eVision.Legacy.EFrame object.

Parameters

frame Pre-existing eVision.Legacy.EFrame object used by the copy constructor.

Member Function Documentation

◆ Angle() [1/2]

float eVision.Legacy.EFrame.Angle ( self )

Orientation of the frame.

◆ Angle() [2/2]

eVision.Legacy.EFrame.Angle	(		self,
		float	value )

Orientation of the frame.

◆ Area()

float eVision.Legacy.EFrame.Area	(		self,
		eVision.EPoint	Point )

Compute the oriented area of the parallelogram built on the centers of two eVision.Legacy.EFrame.

Remarks:

Compute the oriented area of the parallelogram built on the center of two eVision.Legacy.EFrame. The area is counted as positive if the oriented vector pair ('first edge', 'second edge') is in the same sense that the axis frame. This oriented area can also be viewed as the z-coordinate of a vector product of two 3D vectors obtained in supplementing each edges with a third z-coordinate (set to zero).

Parameters

Point Second edge of the parallelogram.

Reimplemented in eVision.Legacy.EPolygon.

◆ Argument()

float eVision.Legacy.EFrame.Argument ( self )

Compute the polar argument of the center of eVision.Legacy.EFrame object.

Remarks:

Compute the angle (in radians) between the oriented X-axis and the vector going from the axis origin and the eVision.Legacy.EFrame. If the axis frame is orthogonal, this number is also the polar argument of the eVision.Legacy.EFrame.

◆ Center() [1/2]

eVision.EPoint eVision.Legacy.EFrame.Center ( self )

Center.

◆ Center() [2/2]

eVision.Legacy.EFrame.Center	(		self,
		eVision.EPoint	value )

Center.

◆ CenterX()

float eVision.Legacy.EFrame.CenterX ( self )

Abscissa of the origin point of the frame.

◆ CenterY()

float eVision.Legacy.EFrame.CenterY ( self )

Ordinate of the origin point of the frame.

◆ CopyTo()

None eVision.Legacy.EFrame.CopyTo	(		self,
		eVision.Legacy.EFrame	other )

Copies all the data from the current eVision.Legacy.EFrame object into another eVision.Legacy.EFrame object, and returns it.

Remarks:

In the overload taking a pointer, in case of a NULL pointer, a new eVision.Legacy.EFrame object will be created and returned.

Parameters

other Pointer to the eVision.Legacy.EFrame object in which the current eVision.Legacy.EFrame object data have to be copied.

Reimplemented in eVision.Legacy.ECircle, eVision.Legacy.ELine, eVision.Legacy.EPolygon, eVision.Legacy.ERectangle, and eVision.Legacy.EWedge.

◆ Cross()

float eVision.Legacy.EFrame.Cross	(		self,
		eVision.EPoint	Point )

Compute the cross product of the centers of two eVision.Legacy.EFrame objects.

Parameters

Point Second factor of the cross product.

◆ Distance() [1/5]

float eVision.Legacy.EFrame.Distance	(		self,
		eVision.EPoint	point )

Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.

Remarks:

Many EasyGauge members provide measurement result as a eVision.EPoint object (see eVision.Legacy.EPointGauge.Center, eVision.Legacy.EPointGauge.GetMeasuredPoint,...). The eVision.Legacy.EFrame class has its own members to retrieve all the information pertaining to a point. Among them, the Distance method returns the distance between a point pair or between a point and a line segment, a circle arc or a rectangle.

Parameters

point eVision.EPoint object with which to calculate the distance.

Reimplemented in eVision.Legacy.ECircle.

◆ Distance() [2/5]

float eVision.Legacy.EFrame.Distance	(		self,
		eVision.Legacy.ECircle	circle )

Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.

Remarks:

Many EasyGauge members provide measurement result as a eVision.EPoint object (see eVision.Legacy.EPointGauge.Center, eVision.Legacy.EPointGauge.GetMeasuredPoint,...). The eVision.Legacy.EFrame class has its own members to retrieve all the information pertaining to a point. Among them, the Distance method returns the distance between a point pair or between a point and a line segment, a circle arc or a rectangle.

Parameters

circle eVision.Legacy.ECircle object with which to calculate the distance.

Reimplemented in eVision.Legacy.ECircle.

◆ Distance() [3/5]

float eVision.Legacy.EFrame.Distance	(		self,
		eVision.Legacy.ECircle	circle,
		bool	arcOnly )

Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.

Remarks:

Many EasyGauge members provide measurement result as a eVision.EPoint object (see eVision.Legacy.EPointGauge.Center, eVision.Legacy.EPointGauge.GetMeasuredPoint,...). The eVision.Legacy.EFrame class has its own members to retrieve all the information pertaining to a point. Among them, the Distance method returns the distance between a point pair or between a point and a line segment, a circle arc or a rectangle.

Parameters

circle	eVision.Legacy.ECircle object with which to calculate the distance.
arcOnly	By default (false), the circle is not restricted to an arc.

Reimplemented in eVision.Legacy.ECircle.

◆ Distance() [4/5]

float eVision.Legacy.EFrame.Distance	(		self,
		eVision.Legacy.ELine	line )

Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.

Remarks:

Many EasyGauge members provide measurement result as a eVision.EPoint object (see eVision.Legacy.EPointGauge.Center, eVision.Legacy.EPointGauge.GetMeasuredPoint,...). The eVision.Legacy.EFrame class has its own members to retrieve all the information pertaining to a point. Among them, the Distance method returns the distance between a point pair or between a point and a line segment, a circle arc or a rectangle.

Parameters

line	eVision.Legacy.ELine object with which to calculate the distance.

Reimplemented in eVision.Legacy.ECircle.

◆ Distance() [5/5]

float eVision.Legacy.EFrame.Distance	(		self,
		eVision.Legacy.ELine	line,
		bool	segmentOnly )

Returns the distance between the addressed point and the center of eVision.Legacy.EFrame object.

Remarks:

Many EasyGauge members provide measurement result as a eVision.EPoint object (see eVision.Legacy.EPointGauge.Center, eVision.Legacy.EPointGauge.GetMeasuredPoint,...). The eVision.Legacy.EFrame class has its own members to retrieve all the information pertaining to a point. Among them, the Distance method returns the distance between a point pair or between a point and a line segment, a circle arc or a rectangle.

Parameters

line	eVision.Legacy.ELine object with which to calculate the distance.
segmentOnly	By default (false), the line is not restricted to a segment.

Reimplemented in eVision.Legacy.ECircle.

◆ Dot()

float eVision.Legacy.EFrame.Dot	(		self,
		eVision.EPoint	Point )

Compute the dot product of the centers of two eVision.Legacy.EFrame objects.

Parameters

Point Second factor of the dot product.

◆ GlobalToLocal() [1/2]

eVision.EPoint eVision.Legacy.EFrame.GlobalToLocal	(		self,
		eVision.EPoint	global_ )

Transforms a geometrical element from global to local coordinates (world to local).

Parameters

global_ The element, expressed in global coordinates.

◆ GlobalToLocal() [2/2]

eVision.Legacy.EFrame eVision.Legacy.EFrame.GlobalToLocal	(		self,
		eVision.Legacy.EFrame	global_ )

Transforms a geometrical element from global to local coordinates (world to local).

Parameters

global_ The element, expressed in global coordinates.

◆ Load() [1/2]

None eVision.Legacy.EFrame.Load	(		self,
		eVision.ESerializer \| None	serializer )

Load the eVision.Legacy.EFrame configuration.

The given eVision.ESerializer must have been created for reading.

Parameters

serializer The serializer.

Reimplemented in eVision.Legacy.ELine, eVision.Legacy.ELine, eVision.Legacy.EPolygon, and eVision.Legacy.EPolygon.

◆ Load() [2/2]

None eVision.Legacy.EFrame.Load	(		self,
		str	path )

Load the eVision.Legacy.EFrame configuration.

The given eVision.ESerializer must have been created for reading.

Parameters

path	The file path.

Reimplemented in eVision.Legacy.ELine, eVision.Legacy.ELine, eVision.Legacy.EPolygon, and eVision.Legacy.EPolygon.

◆ LocalToGlobal() [1/4]

eVision.EPoint eVision.Legacy.EFrame.LocalToGlobal	(		self,
		eVision.EPoint	local )

Transforms a geometrical element from local to global coordinates (local to world).

Parameters

local The element, expressed in local coordinates.

◆ LocalToGlobal() [2/4]

eVision.Legacy.ECircle eVision.Legacy.EFrame.LocalToGlobal	(		self,
		eVision.Legacy.ECircle	local )

Transforms a geometrical element from local to global coordinates (local to world).

Parameters

local The element, expressed in local coordinates.

◆ LocalToGlobal() [3/4]

eVision.Legacy.EFrame eVision.Legacy.EFrame.LocalToGlobal	(		self,
		eVision.Legacy.EFrame	local )

Transforms a geometrical element from local to global coordinates (local to world).

Parameters

local The element, expressed in local coordinates.

◆ LocalToGlobal() [4/4]

eVision.Legacy.ELine eVision.Legacy.EFrame.LocalToGlobal	(		self,
		eVision.Legacy.ELine	local )

Transforms a geometrical element from local to global coordinates (local to world).

Parameters

local The element, expressed in local coordinates.

◆ MidPoint()

eVision.EPoint eVision.Legacy.EFrame.MidPoint	(		self,
		eVision.EPoint	Point )

Returns the middle coordinate between this eVision.Legacy.EFrame object's center and another eVision.Legacy.EFrame object's center.

Parameters

Point The other point.

◆ Modulus()

float eVision.Legacy.EFrame.Modulus ( self )

Compute the euclidean modulus of the center of a eVision.Legacy.EFrame.

Remarks:

Compute the squared root of the sum of the squared coordinates of an eVision.Legacy.EFrame. If the axis frame is orthogonal, this number is also the euclidean norm of the eVision.Legacy.EFrame.

◆ Move()

eVision.EPoint eVision.Legacy.EFrame.Move	(		self,
		float	angle,
		float	distance )

Return the position by moving the center along angle by distance.

Parameters

angle	The direction of the displacement, in radians.
distance	The distance of the displacement.

◆ Project() [1/2]

eVision.EPoint eVision.Legacy.EFrame.Project	(		self,
		eVision.Legacy.ECircle	shape )

Compute the orthogonal projection of the center of a eVision.Legacy.EFrame on another shape.

Remarks:

Compute the orthogonal projection of a eVision.Legacy.EFrame on another shape. This computation is only valid when the axis frame is orthogonal.

Parameters

shape Shape object to which point is projected

◆ Project() [2/2]

eVision.EPoint eVision.Legacy.EFrame.Project	(		self,
		eVision.Legacy.ELine	shape )

Compute the orthogonal projection of the center of a eVision.Legacy.EFrame on another shape.

Remarks:

Compute the orthogonal projection of a eVision.Legacy.EFrame on another shape. This computation is only valid when the axis frame is orthogonal.

Parameters

shape Shape object to which point is projected

◆ Rotate()

eVision.EPoint eVision.Legacy.EFrame.Rotate	(		self,
		float	angle )

Returns another eVision.EPoint object containing the coordinates of the rotated center point.

Remarks:

Rotates a eVision.Legacy.EFrame around the origin (0, 0) by an angle of angle radians. By definition, the smallest (in absolute value) rotation of the oriented X-Axis toward the oriented Y-Axis is chosen as the positive sense of rotation. In a direct frame, this is also the trigonometric sense (counter clockwise).

Parameters

angle Rotation angle (in radians)

◆ Save() [1/2]

None eVision.Legacy.EFrame.Save	(		self,
		eVision.ESerializer \| None	serializer )

Save the eVision.Legacy.EFrame configuration.

The given eVision.ESerializer must have been created for writing.

Parameters

serializer The serializer.

Reimplemented in eVision.Legacy.ELine, eVision.Legacy.ELine, eVision.Legacy.EPolygon, and eVision.Legacy.EPolygon.

◆ Save() [2/2]

None eVision.Legacy.EFrame.Save	(		self,
		str	path )

Save the eVision.Legacy.EFrame configuration.

The given eVision.ESerializer must have been created for writing.

Parameters

path	The file path.

Reimplemented in eVision.Legacy.ELine, eVision.Legacy.ELine, eVision.Legacy.EPolygon, and eVision.Legacy.EPolygon.

◆ Scale() [1/2]

float eVision.Legacy.EFrame.Scale ( self )

Horizontal sensor resolution, in pixels per unit.

◆ Scale() [2/2]

eVision.Legacy.EFrame.Scale	(		self,
		float	value )

Horizontal sensor resolution, in pixels per unit.

◆ SetCenterXY()

None eVision.Legacy.EFrame.SetCenterXY	(		self,
		float	centerX,
		float	centerY )

Sets the center coordinates of a eVision.Legacy.EFrame object.

Parameters

centerX	Center coordinates of the origin.
centerY	Center coordinates of the origin.

◆ Square()

float eVision.Legacy.EFrame.Square ( self )

Compute the sum of the squared coordinates of the center of a eVision.Legacy.EFrame.

Remarks:

Compute the sum of the squared coordinates of a eVision.Legacy.EFrame. If the axis frame is orthogonal, this sum of squares is also the squared euclidean norm of the eVision.Legacy.EFrame object.

◆ SquaredDistance()

float eVision.Legacy.EFrame.SquaredDistance	(		self,
		eVision.EPoint	Point )

Compute the squared distance between the centers of two eVision.Legacy.EFrame.

Remarks:

Compute the sum of squared coordinates differences of two eVision.Legacy.EFrame. If the axis frame is orthogonal, this number is also the squared euclidean distance between two eVision.Legacy.EFrame.

Parameters

Point Second eVision.Legacy.EFrame.

◆ X() [1/2]

float eVision.Legacy.EFrame.X ( self )

Abscissa (X coordinate) of the eVision.Legacy.EFrame object.

◆ X() [2/2]

eVision.Legacy.EFrame.X	(		self,
		float	value )

Abscissa (X coordinate) of the eVision.Legacy.EFrame object.

◆ Y() [1/2]

float eVision.Legacy.EFrame.Y ( self )

Ordinate (Y coordinate) of the eVision.Legacy.EFrame object.

◆ Y() [2/2]

eVision.Legacy.EFrame.Y	(		self,
		float	value )

Ordinate (Y coordinate) of the eVision.Legacy.EFrame object.

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ __init__() [1/6]

◆ __init__() [2/6]

◆ __init__() [3/6]

◆ __init__() [4/6]

◆ __init__() [5/6]

◆ __init__() [6/6]

Member Function Documentation

◆ Angle() [1/2]

◆ Angle() [2/2]

◆ Area()

◆ Argument()

◆ Center() [1/2]

◆ Center() [2/2]

◆ CenterX()

◆ CenterY()

◆ CopyTo()

◆ Cross()

◆ Distance() [1/5]

◆ Distance() [2/5]

◆ Distance() [3/5]

◆ Distance() [4/5]

◆ Distance() [5/5]

◆ Dot()

◆ GlobalToLocal() [1/2]

◆ GlobalToLocal() [2/2]

◆ Load() [1/2]

◆ Load() [2/2]

◆ LocalToGlobal() [1/4]

◆ LocalToGlobal() [2/4]

◆ LocalToGlobal() [3/4]

◆ LocalToGlobal() [4/4]

◆ MidPoint()

◆ Modulus()

◆ Move()

◆ Project() [1/2]

◆ Project() [2/2]

◆ Rotate()

◆ Save() [1/2]

◆ Save() [2/2]

◆ Scale() [1/2]

◆ Scale() [2/2]

◆ SetCenterXY()

◆ Square()

◆ SquaredDistance()

◆ X() [1/2]

◆ X() [2/2]

◆ Y() [1/2]

◆ Y() [2/2]

◆ init() [1/6]

◆ init() [2/6]

◆ init() [3/6]

◆ init() [4/6]

◆ init() [5/6]

◆ init() [6/6]
