eVision.EGrabberBridge.EGrabberDepthMap8 Class Reference

Inheritance diagram for eVision.EGrabberBridge.EGrabberDepthMap8:

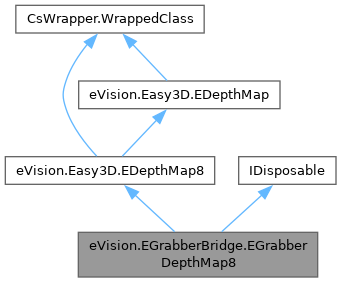

Collaboration diagram for eVision.EGrabberBridge.EGrabberDepthMap8:

Public Member Functions
	EGrabberDepthMap8 (object bufferInfos)
	EGrabberDepthMap8 (object formatConverter, object bufferInfos)
void	Dispose ()
Public Member Functions inherited from eVision.Easy3D.EDepthMap8
	EDepthMap8 ()
	Creates a 8 bits EDepthMap.
	EDepthMap8 (int width, int height)
	Creates a 8 bits EDepthMap.
	EDepthMap8 (eVision.Easy3D.EDepthMap8 other)
	Creates a 8 bits EDepthMap.
override bool	IsVoid ()
	Tests if the EDepthMap8 object has a size of zero.
override IntPtr	GetBufferPtr ()
	Retrieves the pointer of the pixel buffer.
override IntPtr	GetBufferPtr (int x, int y)
	Retrieves the pointer of the pixel buffer.
override IntPtr	GetCheckedBufferPtr (int x, int y)
	Retrieves the pointer of the pixel buffer.
eVision.EDepth8	GetPixel (int x, int y)
	Gets the value of a pixel.
override float	GetZValue (int x, int y)
	Gets Z value of a pixel.
void	SetPixel (eVision.EDepth8 value, int x, int y)
	Sets the value of a pixel.
override void	SetBufferPtr (int width, int height, IntPtr imagePointer, int bitsPerRow)
	Sets the pointer to an externally allocated buffer.
override void	SetBufferPtr (int width, int height, IntPtr imagePointer)
	Sets the pointer to an externally allocated buffer.
override void	UseExternalBuffer (int width, int height, IntPtr buffer, int rowPitch)
	Sets the pointer to an externally allocated buffer.
override void	SetSize (int width, int height)
	Sets the width and height of a DepthMap.
override void	SetSize (eVision.Easy3D.EDepthMap other)
	Sets the width and height of a DepthMap.
override void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
override void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
override void	Load (string path)
	Restores the EDepthMap8 stored in the given eVision file.
override void	Load (eVision.ESerializer serializer)
override void	LoadImage (string path, bool withMetadata)
	Restores the EDepthMap8 image stored in the given image file.
override void	LoadImage (string path)
	Restores the EDepthMap8 image stored in the given image file.
override void	Save (string path)
	Saves the EDepthMap8 object to the given eVision file.
override void	Save (eVision.ESerializer serializer)
override void	SaveImage (string path, eVision.EImageFileType type, bool withMetadata)
	Saves the EDepthMap8 image to the given image file.
override void	SaveImage (string path, eVision.EImageFileType type)
	Saves the EDepthMap8 image to the given image file.
override void	SaveImage (string path)
	Saves the EDepthMap8 image to the given image file.
override void	SaveJpeg (string path, int quality)
	Saves the EDepthMap8 object to the given image file, in JPEG format.
override void	SaveJpeg (string path)
	Saves the EDepthMap8 object to the given image file, in JPEG format.
override void	SaveJpeg2K (string path, int quality)
	Saves the EDepthMap8 object to the given image file, in JPEG 2000 format.
override void	SaveJpeg2K (string path)
	Saves the EDepthMap8 object to the given image file, in JPEG 2000 format.
override void	LoadMetadata (string path)
	Loads the metadata from a file in JSON format.
override void	SaveMetadata (string path)
	Saves the metadata to a file in JSON format.
override void	LoadImageAndMetadata (string pathImage, string pathMetadata)
	Loads the image and the metadata from a file in JSON format.
override void	SaveImageAndMetadata (string pathImage, string pathMetadata, eVision.EImageFileType type)
	Saves the image and the metadata to a JSON format file.
override void	SaveImageAndMetadata (string pathImage, string pathMetadata)
	Saves the image and the metadata to a JSON format file.
override void	AddMetadata (string Key, string value)
	Adds a metadata key (name) and value. Overwrites if exists.
override void	ModifyMetadata (string Key, string value)
	Changes the value of an existing metadata.
override string	GetMetadata (string Key)
	Returns string value of the given metadata.
override void	DeleteMetadata (string Key)
	Deletes an existing metadata.
override void	ClearMetadata ()
	Deletes all metadata.
void	CopyMetadataTo (eVision.Easy3D.EDepthMap8 other)
	Copies all metadata to another EDepthMap8.
eVision.EImageBW8	AsEImage ()
	Casts the EDepthMap8 to an EImageBW8 to use with the eVision 2D tools.
override void	Clear ()
	Clears the depth map: replaces all pixels with undefined value.
void	FillUndefinedPixelsWithMedian (eVision.Easy3D.EDepthMap8 outMap, uint halfOfKernelWidth, uint halfOfKernelHeight)
	Fills undefined pixels, used to fill the "holes" in the depth map using a median rectangular kernel of odd size.
void	FillUndefinedPixelsWithMedian (eVision.Easy3D.EDepthMap8 outMap, uint halfOfKernelWidth)
	Fills undefined pixels, used to fill the "holes" in the depth map using a median rectangular kernel of odd size.
void	FillUndefinedPixelsWithMedian (eVision.Easy3D.EDepthMap8 outMap)
	Fills undefined pixels, used to fill the "holes" in the depth map using a median rectangular kernel of odd size.
void	FillUndefinedPixels (eVision.Easy3D.EDepthMap8 outMap, eVision.Easy3D.EFillUndefinedPixelsDirection direction, eVision.Easy3D.EFillUndefinedPixelsMethod method)
	Fills undefined pixels, used to fill the "holes" in the depth map.
void	FillUndefinedPixels (eVision.Easy3D.EDepthMap8 outMap, eVision.Easy3D.EFillUndefinedPixelsDirection direction)
	Fills undefined pixels, used to fill the "holes" in the depth map.
void	FillUndefinedPixels (eVision.Easy3D.EDepthMap8 outMap)
	Fills undefined pixels, used to fill the "holes" in the depth map.
override void	ConvertCoordinatesPixelToMap (int xBuffer, int yBuffer, ref float x3D, ref float y3D)
	Converts Pixel coordinates to 3D Map coordinates.
override eVision.EPoint	ConvertCoordinatesPixelToMap (eVision.EIntPoint pixelCoordinates)
	Converts Pixel coordinates to 3D Map coordinates.
override bool	ConvertCoordinatesMapToPixel (float x3D, float y3D, ref int xBuffer, ref int yBuffer)
	Converts 3D Map coordinates to Pixel coordinates.
override bool	ConvertCoordinatesMapToPixel (eVision.EPoint mapCoordinates, ref eVision.EIntPoint pixelCoordinates)
	Converts 3D Map coordinates to Pixel coordinates.
override void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
override void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
override void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
Public Member Functions inherited from eVision.Easy3D.EDepthMap
bool	IsVoid ()
	Tests if the EDepthMap object has a size of zero.
IntPtr	GetBufferPtr ()
	Retrieves the pointer of the pixel buffer.
IntPtr	GetBufferPtr (int x, int y)
	Retrieves the pointer of the pixel buffer.
IntPtr	GetCheckedBufferPtr (int x, int y)
	Retrieves the pointer of the pixel buffer.
void	SetBufferPtr (int width, int height, IntPtr imagePointer, int bitsPerRow)
	Sets the pointer to an externally allocated buffer.
void	SetBufferPtr (int width, int height, IntPtr imagePointer)
	Sets the pointer to an externally allocated buffer.
void	UseExternalBuffer (int width, int height, IntPtr buffer, int rowPitch)
	Sets the pointer to an externally allocated buffer.
eVision.EPoint	ConvertCoordinatesPixelToMap (eVision.EIntPoint pixelCoordinates)
	Converts Pixel coordinates to 3D Map coordinates.
void	ConvertCoordinatesPixelToMap (int xBuffer, int yBuffer, ref float x3D, ref float y3D)
	Converts Pixel coordinates to 3D Map coordinates.
bool	ConvertCoordinatesMapToPixel (eVision.EPoint mapCoordinates, ref eVision.EIntPoint pixelCoordinates)
	Converts 3D Map coordinates to Pixel coordinates.
bool	ConvertCoordinatesMapToPixel (float x3D, float y3D, ref int xBuffer, ref int yBuffer)
	Converts 3D Map coordinates to Pixel coordinates.
void	SetSize (int width, int height)
	Sets the width and height of a DepthMap.
void	SetSize (eVision.Easy3D.EDepthMap other)
	Sets the width and height of a DepthMap.
void	Load (string path)
	Restores the EDepthMap stored in the given eVision file.
void	Load (eVision.ESerializer serializer)
	Restores the EDepthMap stored in the given eVision file.
void	LoadImage (string path, bool withMetadata)
	Restores the EDepthMap image stored in the given image file.
void	LoadImage (string path)
	Restores the EDepthMap image stored in the given image file.
void	Save (string path)
	Saves the EDepthMap object to the given eVision file.
void	Save (eVision.ESerializer serializer)
	Saves the EDepthMap object to the given eVision file.
void	SaveImage (string path, eVision.EImageFileType type, bool withMetadata)
	Saves the EDepthMap image to the given image file.
void	SaveImage (string path, eVision.EImageFileType type)
	Saves the EDepthMap image to the given image file.
void	SaveImage (string path)
	Saves the EDepthMap image to the given image file.
void	SaveJpeg (string path, int quality)
	Saves the EDepthMap object to the given image file, in JPEG format.
void	SaveJpeg (string path)
	Saves the EDepthMap object to the given image file, in JPEG format.
void	SaveJpeg2K (string path, int quality)
	Saves the EDepthMap object to the given image file, in JPEG 2000 format.
void	SaveJpeg2K (string path)
	Saves the EDepthMap object to the given image file, in JPEG 2000 format.
void	SaveMetadata (string path)
	Saves the metadata to a file in JSON format.
void	LoadMetadata (string path)
	Loads the metadata from a file in JSON format.
void	SaveImageAndMetadata (string pathImage, string pathMetadata, eVision.EImageFileType type)
	Saves the image and the metadata to a JSON format file.
void	SaveImageAndMetadata (string pathImage, string pathMetadata)
	Saves the image and the metadata to a JSON format file.
void	LoadImageAndMetadata (string pathImage, string pathMetadata)
	Loads the image and the metadata from a file in JSON format.
void	AddMetadata (string Key, string value)
	Adds a metadata key (name) and value. Overwrites if exists.
void	ModifyMetadata (string Key, string value)
	Changes the value of an existing metadata.
string	GetMetadata (string Key)
	Returns string value of the given metadata.
void	DeleteMetadata (string Key)
	Deletes an existing metadata.
void	ClearMetadata ()
	Deletes all metadata.
void	Clear ()
	Clears the depth map: replaces all pixels with undefined value.
float	GetZValue (int x, int y)
	Gets the Z value of a pixel.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Draws a DepthMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws a DepthMap in a device context.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.

Additional Inherited Members
Static Public Member Functions inherited from eVision.Easy3D.EDepthMap
static eVision.Easy3D.EDepthMap	Create (string path)
	Factory method to allocate and read a DepthMap from a file. Depending on the serialized EDepthMap type, it returns the corresponding EDepthMap8, EDepthMap16 or EDepthMap32f object. The allocated EDepthMap must be released after use.
Properties inherited from eVision.Easy3D.EDepthMap8
override float	ZResolution [get, set]
	Access the Z Resolution (depth units per grey scale value).
eVision.EDepth8	UndefinedValue [get]
	Returns the Undefined value. That value is used to mark pixels with no valid depth value.
override int	Width [get, set]
	Access depth map Width.
override int	Height [get, set]
	Access depth map Height.
override int	RowPitch [get]
	Returns the buffer row pitch.
override eVision.EImageType	Type [get]
	Returns the image type.
override eVision.Easy3D.EAxisSystemType	AxisSystemType [get, set]
	Manage the axis coordinate system.
Properties inherited from eVision.Easy3D.EDepthMap
int	Width [get, set]
	Access depth map Width.
int	Height [get, set]
	Access depth map Height.
int	RowPitch [get]
	Returns the buffer row pitch.
float	ZResolution [get, set]
	Access the Z Resolution (depth units per grey scale value).
eVision.EImageType	Type [get]
	Returns the image type.
eVision.Easy3D.EAxisSystemType	AxisSystemType [get, set]
	Manage the axis coordinate system.

Constructor & Destructor Documentation

EGrabberDepthMap8() [1/2]

eVision.EGrabberBridge.EGrabberDepthMap8.EGrabberDepthMap8

(

object

bufferInfos

)

EGrabberDepthMap8() [2/2]

eVision.EGrabberBridge.EGrabberDepthMap8.EGrabberDepthMap8	(	object	formatConverter,
		object	bufferInfos )

Member Function Documentation

Dispose()

void eVision.EGrabberBridge.EGrabberDepthMap8.Dispose

(

)
