Base class for geometrical shapes. More...

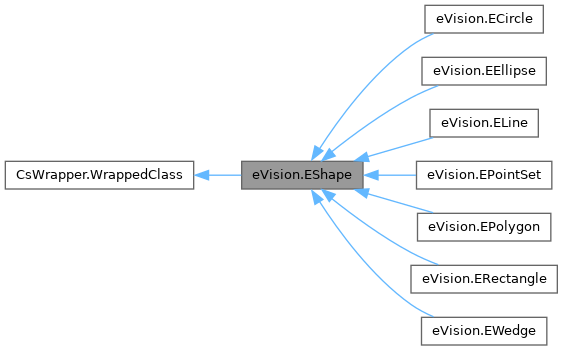

Inheritance diagram for eVision.EShape:

[legend]

Collaboration diagram for eVision.EShape:

Public Member Functions
void	Load (string path)
	Load the EShape configuration. The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Load the EShape configuration. The given ESerializer must have been created for reading.
void	Save (string path)
	Save the EShape configuration. The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Save the EShape configuration. The given ESerializer must have been created for writing.
void	Draw (eVision.EDrawAdapter drawAdapter, float zoomX, float zoomY, float panX, float panY, bool drawDiagonals)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, float zoomX, float zoomY, float panX, float panY)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, float zoomX, float zoomY, float panX)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, float zoomX, float zoomY)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, float zoomX)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EFrame frame, float zoomX, float zoomY, float panX, float panY, bool drawDiagonals)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EFrame frame, float zoomX, float zoomY, float panX, float panY)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EFrame frame, float zoomX, float zoomY, float panX)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EFrame frame, float zoomX, float zoomY)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EFrame frame, float zoomX)
	Draws the EShape shape.
void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EFrame frame)
	Draws the EShape shape.
eVision.EEditionMode	HitTest (int x, int y, float zoomX, float zoomY, float panX, float panY)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, float zoomX, float zoomY, float panX)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, float zoomX, float zoomY)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, float zoomX)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, eVision.EFrame frame, float zoomX, float zoomY, float panX, float panY)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, eVision.EFrame frame, float zoomX, float zoomY, float panX)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, eVision.EFrame frame, float zoomX, float zoomY)
	Detects if the cursor is placed over one of the dragging handles.
eVision.EEditionMode	HitTest (int x, int y, eVision.EFrame frame, float zoomX)
	Detects if the cursor is placed over one of the dragging handles.
void	Drag (int x, int y, float zoomX, float zoomY, float panX, float panY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, float zoomX, float zoomY, float panX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, float zoomX, float zoomY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, float zoomX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, eVision.EFrame frame, float zoomX, float zoomY, float panX, float panY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, eVision.EFrame frame, float zoomX, float zoomY, float panX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, eVision.EFrame frame, float zoomX, float zoomY)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, eVision.EFrame frame, float zoomX)
	Moves the specified handle to a new position and updates all placement parameters of the region.
void	Drag (int x, int y, eVision.EFrame frame)
	Moves the specified handle to a new position and updates all placement parameters of the region.
eVision.EFrame	ToFrame (bool useAngle, eVision.EFrameScaling frameScaling)
	Converts the shape to a frame.
eVision.EFrame	ToFrame (bool useAngle, eVision.EFrameScaling frameScaling, eVision.EFrame shapeFrame)
	Converts the shape to a frame.

Properties
eVision.EEditionMode	EditionMode `[get, set]`
	Current edition mode for the shape. Default: EEditionMode_None.
eVision.EEditionMode	AvailableEditionModes `[get]`
	Available edition modes for the shape.
string	Description `[get]`
	Textual description of the shape and its parameters.

Detailed Description

Base class for geometrical shapes.

License(s): BasicTypes

Member Function Documentation

◆ Drag() [1/10]

void eVision.EShape.Drag	(	int	x,
		int	y )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [2/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		eVision.EFrame	frame )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [3/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [4/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [5/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [6/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [7/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		float	zoomX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [8/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [9/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY,
		float	panX )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Drag() [10/10]

void eVision.EShape.Drag	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Moves the specified handle to a new position and updates all placement parameters of the region.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Draw() [1/12]

void eVision.EShape.Draw ( eVision.EDrawAdapter drawAdapter )

Draws the EShape shape.

Parameters

drawAdapter Handle of the device context on which to draw.

◆ Draw() [2/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EFrame	frame )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.

◆ Draw() [3/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EFrame	frame,
		float	zoomX )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.

◆ Draw() [4/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.

◆ Draw() [5/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

◆ Draw() [6/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

◆ Draw() [7/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		bool	drawDiagonals )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
drawDiagonals	If relevant, draw the diagonals of the shape. By default, the diagonals are not drawn.

◆ Draw() [8/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		float	zoomX )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.

◆ Draw() [9/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		float	zoomX,
		float	zoomY )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.

◆ Draw() [10/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		float	zoomX,
		float	zoomY,
		float	panX )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

◆ Draw() [11/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

◆ Draw() [12/12]

void eVision.EShape.Draw	(	eVision.EDrawAdapter	drawAdapter,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY,
		bool	drawDiagonals )

Draws the EShape shape.

Parameters

drawAdapter	Handle of the device context on which to draw.
zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0 (default), the horizontal zooming factor is used instead, so as to provide isotropic zooming.
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
drawDiagonals	If relevant, draw the diagonals of the shape. By default, the diagonals are not drawn.

◆ HitTest() [1/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [2/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [3/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [4/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		eVision.EFrame	frame,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
frame	Frame of reference in which the shape is defined.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [5/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		float	zoomX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [6/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [7/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY,
		float	panX )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ HitTest() [8/8]

eVision.EEditionMode eVision.EShape.HitTest	(	int	x,
		int	y,
		float	zoomX,
		float	zoomY,
		float	panX,
		float	panY )

Detects if the cursor is placed over one of the dragging handles.

Parameters

x	x-coordinate of the mouse cursor.
y	y-coordinate of the mouse cursor.
zoomX	Horizontal zoom factor. By default, true scale is used.
zoomY	Vertical zoom factor. By default, true scale is used.
panX	Horizontal pan offset. By default, no pan is added.
panY	Vertical pan offset. By default, no pan is added.

Returns an EEditionMode indicating the type of handle under the mouse.

If zooming and/or panning were used when drawing the region, the same values must be used with EShape.HitTest and EShape.Drag.

◆ Load() [1/2]

void eVision.EShape.Load ( eVision.ESerializer serializer )

Load the EShape configuration. The given ESerializer must have been created for reading.

Parameters

serializer The serializer.

◆ Load() [2/2]

void eVision.EShape.Load ( string path )

Load the EShape configuration. The given ESerializer must have been created for reading.

Parameters

path	The file path.

◆ Save() [1/2]

void eVision.EShape.Save ( eVision.ESerializer serializer )

Save the EShape configuration. The given ESerializer must have been created for writing.

Parameters

serializer The serializer.

◆ Save() [2/2]

void eVision.EShape.Save ( string path )

Save the EShape configuration. The given ESerializer must have been created for writing.

Parameters

path	The file path.

◆ ToFrame() [1/2]

eVision.EFrame eVision.EShape.ToFrame	(	bool	useAngle,
		eVision.EFrameScaling	frameScaling )

Converts the shape to a frame.

Parameters

useAngle	Whether to use the angle of the shape as the orientation of the frame
frameScaling	How to change the scaling of the frame.

◆ ToFrame() [2/2]

eVision.EFrame eVision.EShape.ToFrame	(	bool	useAngle,
		eVision.EFrameScaling	frameScaling,
		eVision.EFrame	shapeFrame )

Converts the shape to a frame.

Parameters

useAngle	Whether to use the angle of the shape as the orientation of the frame
frameScaling	How to change the scaling of the frame.
shapeFrame	The frame in which the shape is defined

Property Documentation

◆ AvailableEditionModes

eVision.EEditionMode eVision.EShape.AvailableEditionModes

getabstract

Available edition modes for the shape.

◆ Description

string eVision.EShape.Description

getabstract

Textual description of the shape and its parameters.

◆ EditionMode

eVision.EEditionMode eVision.EShape.EditionMode

getset

Current edition mode for the shape. Default: EEditionMode_None.

Public Member Functions

Properties

Detailed Description

Member Function Documentation

◆ Drag() [1/10]

◆ Drag() [2/10]

◆ Drag() [3/10]

◆ Drag() [4/10]

◆ Drag() [5/10]

◆ Drag() [6/10]

◆ Drag() [7/10]

◆ Drag() [8/10]

◆ Drag() [9/10]

◆ Drag() [10/10]

◆ Draw() [1/12]

◆ Draw() [2/12]

◆ Draw() [3/12]

◆ Draw() [4/12]

◆ Draw() [5/12]

◆ Draw() [6/12]

◆ Draw() [7/12]

◆ Draw() [8/12]

◆ Draw() [9/12]

◆ Draw() [10/12]

◆ Draw() [11/12]

◆ Draw() [12/12]

◆ HitTest() [1/8]

◆ HitTest() [2/8]

◆ HitTest() [3/8]

◆ HitTest() [4/8]

◆ HitTest() [5/8]

◆ HitTest() [6/8]

◆ HitTest() [7/8]

◆ HitTest() [8/8]

◆ Load() [1/2]

◆ Load() [2/2]

◆ Save() [1/2]

◆ Save() [2/2]

◆ ToFrame() [1/2]

◆ ToFrame() [2/2]

Property Documentation

◆ AvailableEditionModes

◆ Description

◆ EditionMode
