eVision.ESystemDrawingDrawAdapter Class Reference

A kind of draw adapter supporting drawing in a System.Drawing.Graphics object. More...

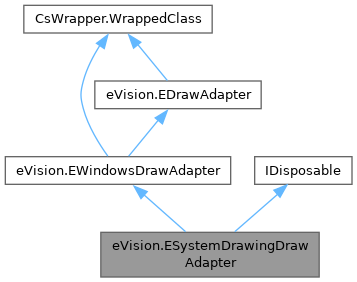

Inheritance diagram for eVision.ESystemDrawingDrawAdapter:

Collaboration diagram for eVision.ESystemDrawingDrawAdapter:

Public Member Functions
	ESystemDrawingDrawAdapter (Graphics graphics)
	Initialize an instance of ESystemDrawingDrawAdapter from a System.Drawing.Graphics object.
	ESystemDrawingDrawAdapter (Image image)
	Initialize an instance of ESystemDrawingDrawAdapter to draw on a System.Drawing.Image object.
void	Dispose ()
	Flushes all the drawing operations that were performed and properly release all ressources.
Public Member Functions inherited from eVision.EWindowsDrawAdapter
	EWindowsDrawAdapter (IntPtr dc)
	Creates an EWindowsDrawAdapter either by providing a drawing context or an image.
	EWindowsDrawAdapter (eVision.EImageBW8 pImage)
	Creates an EWindowsDrawAdapter either by providing a drawing context or an image.
	EWindowsDrawAdapter (eVision.EImageC24 pImage)
	Creates an EWindowsDrawAdapter either by providing a drawing context or an image.
override void	DrawPoint (int x1, int y1, eVision.EPen pen)
	Draws a point at the given coordinate.
override void	DrawPoint (int x1, int y1)
	Draws a point at the given coordinate.
override void	Line (int x1, int y1, int x2, int y2, eVision.EPen pen)
	Draws a line between two points.
override void	Line (int x1, int y1, int x2, int y2)
	Draws a line between two points.
override void	Arc (int orgX, int orgY, int width, int height, float startAngle, float amplitude, eVision.EPen pen)
	Draws an arc defined by a rectangle, angle, and amplitude.
override void	Arc (int orgX, int orgY, int width, int height, float startAngle, float amplitude)
	Draws an arc defined by a rectangle, angle, and amplitude.
override void	Rectangle (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Draws a rectangle.
override void	Rectangle (int orgX, int orgY, int width, int height)
	Draws a rectangle.
override void	Polygon (eVision.EPoint[] points, eVision.EPen pen)
	Draws a polygon.
override void	Polygon (eVision.EPoint[] points)
	Draws a polygon.
override void	Ellipse (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Draws an ellipse.
override void	Ellipse (int orgX, int orgY, int width, int height)
	Draws an ellipse.
override void	FilledRectangle (int orgX, int orgY, int width, int height, eVision.EPen pen, eVision.EBrush brush)
	Fills a rectangle.
override void	FilledRectangle (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Fills a rectangle.
override void	FilledRectangle (int orgX, int orgY, int width, int height)
	Fills a rectangle.
override void	FilledEllipse (int orgX, int orgY, int width, int height, eVision.EPen pen, eVision.EBrush brush)
	Fills an ellipse.
override void	FilledEllipse (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Fills an ellipse.
override void	FilledEllipse (int orgX, int orgY, int width, int height)
	Fills an ellipse.
override void	FilledPolygon (eVision.EPoint[] points, eVision.EPen pen, eVision.EBrush brush)
	Fills a polygon.
override void	FilledPolygon (eVision.EPoint[] points, eVision.EPen pen)
	Fills a polygon.
override void	FilledPolygon (eVision.EPoint[] points)
	Fills a polygon.
override void	Text (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.ETextSizeConstraint constraint)
	Draws a text.
override void	Text (string text, int x, int y, float orientation, eVision.EBrush textBrush)
	Draws a text.
override void	Text (string text, int x, int y, float orientation)
	Draws a text.
override void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.EBrush backgroundBrush, eVision.ETextSizeConstraint constraint)
	Draws a text with a background.
override void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.EBrush backgroundBrush)
	Draws a text with a background.
override void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush)
	Draws a text with a background.
override void	BackedText (string text, int x, int y, float orientation)
	Draws a text with a background.
override void	Image (eVision.EBaseROI image, float orgX, float orgY, float width, float height)
	Draws an image.
override void	Image (eVision.EROIBW8 image, eVision.EC24Vector pColorScale, float orgX, float orgY, float width, float height)
	Draws an image.
override void	Image (eVision.EROIBW8 image, eVision.EBW8Vector pColorScale, float orgX, float orgY, float width, float height)
	Draws an image.
override eVision.EPoint	GetTextSize (string text)
	Size of the given text using the default font (EWindowsDrawAdapter.Font).
override void	UseCurrentPen ()
	Uses the current GDI pen.
override void	UseCurrentBrush ()
	Use the current pen set in the drawing framework.
void	Close ()
	Closes the attached drawing context, if the current instance was initialized from an image.
override int	ComputeTextSize (string text, int desiredWidth)
	Computes text size for given constraint. Constraint is the desired total width of the text to draw.
Public Member Functions inherited from eVision.EDrawAdapter
void	DrawPoint (int x1, int y1, eVision.EPen pen)
	Draws a point at the given coordinate.
void	DrawPoint (int x1, int y1)
	Draws a point at the given coordinate.
void	Line (int x1, int y1, int x2, int y2, eVision.EPen pen)
	Draws a line between two points.
void	Line (int x1, int y1, int x2, int y2)
	Draws a line between two points.
void	Arc (int orgX, int orgY, int width, int height, float startAngle, float amplitude, eVision.EPen pen)
	Draws an arc defined by a rectangle, angle, and amplitude.
void	Arc (int orgX, int orgY, int width, int height, float startAngle, float amplitude)
	Draws an arc defined by a rectangle, angle, and amplitude.
void	Rectangle (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Draws a rectangle.
void	Rectangle (int orgX, int orgY, int width, int height)
	Draws a rectangle.
void	Polygon (eVision.EPoint[] points, eVision.EPen pen)
	Draws a polygon.
void	Polygon (eVision.EPoint[] points)
	Draws a polygon.
virtual void	Polygon (eVision.EPolygon polygon, eVision.EPen pen)
	Draws a polygon.
virtual void	Polygon (eVision.EPolygon polygon)
	Draws a polygon.
void	Ellipse (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Draws an ellipse.
void	Ellipse (int orgX, int orgY, int width, int height)
	Draws an ellipse.
void	Ellipse (eVision.EEllipse ellipse, eVision.EPen pen)
	Draws an ellipse.
void	Ellipse (eVision.EEllipse ellipse)
	Draws an ellipse.
virtual void	RotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, bool drawDiagonals, eVision.EPen pen)
	Draws a rotated ellipse.
virtual void	RotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, bool drawDiagonals)
	Draws a rotated ellipse.
void	RotatedEllipse (eVision.EEllipse ellipse, bool drawDiagonals, eVision.EPen pen)
	Draws a rotated ellipse.
void	RotatedEllipse (eVision.EEllipse ellipse, bool drawDiagonals)
	Draws a rotated ellipse.
void	FilledRectangle (int orgX, int orgY, int width, int height, eVision.EPen pen, eVision.EBrush brush)
	Fills a rectangle.
void	FilledRectangle (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Fills a rectangle.
void	FilledRectangle (int orgX, int orgY, int width, int height)
	Fills a rectangle.
void	FilledEllipse (int orgX, int orgY, int width, int height, eVision.EPen pen, eVision.EBrush brush)
	Fills an ellipse.
void	FilledEllipse (int orgX, int orgY, int width, int height, eVision.EPen pen)
	Fills an ellipse.
void	FilledEllipse (int orgX, int orgY, int width, int height)
	Fills an ellipse.
void	FilledEllipse (eVision.EEllipse ellipse, eVision.EPen pen, eVision.EBrush brush)
	Fills an ellipse.
void	FilledEllipse (eVision.EEllipse ellipse, eVision.EPen pen)
	Fills an ellipse.
void	FilledEllipse (eVision.EEllipse ellipse)
	Fills an ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, eVision.EPen pen, eVision.EBrush brush)
	Fills a rotated ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis, eVision.EPen pen)
	Fills a rotated ellipse.
virtual void	FilledRotatedEllipse (float centerX, float centerY, float radianAngle, float longAxis, float shortAxis)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (eVision.EEllipse ellipse, eVision.EPen pen, eVision.EBrush brush)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (eVision.EEllipse ellipse, eVision.EPen pen)
	Fills a rotated ellipse.
void	FilledRotatedEllipse (eVision.EEllipse ellipse)
	Fills a rotated ellipse.
void	FilledPolygon (eVision.EPoint[] points, eVision.EPen pen, eVision.EBrush brush)
	Fills a polygon.
void	FilledPolygon (eVision.EPoint[] points, eVision.EPen pen)
	Fills a polygon.
void	FilledPolygon (eVision.EPoint[] points)
	Fills a polygon.
virtual void	FilledPolygon (eVision.EPolygon polygon, eVision.EPen pen, eVision.EBrush brush)
	Fills a polygon.
virtual void	FilledPolygon (eVision.EPolygon polygon, eVision.EPen pen)
	Fills a polygon.
virtual void	FilledPolygon (eVision.EPolygon polygon)
	Fills a polygon.
virtual void	Text (string text, int x, int y, eVision.EBrush textBrush, eVision.ETextSizeConstraint constraint)
	Draws a text.
virtual void	Text (string text, int x, int y, eVision.EBrush textBrush)
	Draws a text.
virtual void	Text (string text, int x, int y)
	Draws a text.
void	Text (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.ETextSizeConstraint constraint)
	Draws a text.
void	Text (string text, int x, int y, float orientation, eVision.EBrush textBrush)
	Draws a text.
void	Text (string text, int x, int y, float orientation)
	Draws a text.
virtual void	BackedText (string text, int x, int y, eVision.EBrush textBrush, eVision.EBrush backgroundBrush, eVision.ETextSizeConstraint constraint)
	Draws a text with a background.
virtual void	BackedText (string text, int x, int y, eVision.EBrush textBrush, eVision.EBrush backgroundBrush)
	Draws a text with a background.
virtual void	BackedText (string text, int x, int y, eVision.EBrush textBrush)
	Draws a text with a background.
virtual void	BackedText (string text, int x, int y)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.EBrush backgroundBrush, eVision.ETextSizeConstraint constraint)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush, eVision.EBrush backgroundBrush)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation, eVision.EBrush textBrush)
	Draws a text with a background.
void	BackedText (string text, int x, int y, float orientation)
	Draws a text with a background.
virtual void	Image (eVision.EBaseROI image)
	Draws an image.
virtual void	Image (eVision.EROIBW8 image, eVision.EBW8Vector pColorScale)
	Draws an image.
virtual void	Image (eVision.EROIBW8 image, eVision.EC24Vector pColorScale)
	Draws an image.
void	Image (eVision.EBaseROI image, float orgX, float orgY, float width, float height)
	Draws an image.
void	Image (eVision.EROIBW8 image, eVision.EC24Vector pColorScale, float orgX, float orgY, float width, float height)
	Draws an image.
void	Image (eVision.EROIBW8 image, eVision.EBW8Vector pColorScale, float orgX, float orgY, float width, float height)
	Draws an image.
virtual void	DrawMask (eVision.EBaseROI mask, eVision.EBrush brush)
	Draws a mask with a brush.
virtual void	DrawMask (eVision.EBaseROI mask)
	Draws a mask with a brush.
virtual void	DrawMask (eVision.EBaseROI mask, float orgX, float orgY, float width, float height, eVision.EBrush brush)
	Draws a mask with a brush.
virtual void	DrawMask (eVision.EBaseROI mask, float orgX, float orgY, float width, float height)
	Draws a mask with a brush.
eVision.EPoint	GetTextSize (string text)
	Size of the given text using the default font (EDrawAdapter.Font).
void	UseCurrentPen ()
	Use the current pen set in the drawing framework.
void	UseCurrentBrush ()
	Use the current pen set in the drawing framework.

Protected Member Functions
virtual void	Dispose (bool disposing)

Additional Inherited Members
Properties inherited from eVision.EWindowsDrawAdapter
override eVision.EPen	Pen [set]
	Default pen.
override eVision.EBrush	Brush [set]
	Default brush.
override eVision.EFont	Font [set]
	Default font.
IntPtr	HDC [get]
	Gets the HDC associated with this instance of EWindowsDrawAdapter.
Properties inherited from eVision.EDrawAdapter
virtual eVision.EPen	Pen [get, set]
	Default pen.
virtual eVision.EBrush	Brush [get, set]
	Default brush.
virtual eVision.EFont	Font [get, set]
	Default font.

Detailed Description

A kind of draw adapter supporting drawing in a System.Drawing.Graphics object.

This class implements IDisposable and it is required to use it in a using block.

Constructor & Destructor Documentation

ESystemDrawingDrawAdapter() [1/2]

eVision.ESystemDrawingDrawAdapter.ESystemDrawingDrawAdapter

(

Graphics

graphics

)

Initialize an instance of ESystemDrawingDrawAdapter from a System.Drawing.Graphics object.

Parameters

graphics

A System.Drawing.Graphics object. An HDC will be acquired from this object during the class initialization and will be released when the Dispose() method is called.

ESystemDrawingDrawAdapter() [2/2]

eVision.ESystemDrawingDrawAdapter.ESystemDrawingDrawAdapter

(



)

Initialize an instance of ESystemDrawingDrawAdapter to draw on a System.Drawing.Image object.

Parameters


A System.Drawing.Image object.

Member Function Documentation

Dispose() [1/2]

void eVision.ESystemDrawingDrawAdapter.Dispose

(

)

Flushes all the drawing operations that were performed and properly release all ressources.

If the constructor taking a System.Drawing.Graphics object was used this method does not call the Dispose() method on that System.Drawing.Graphics object.

Dispose() [2/2]

virtual void eVision.ESystemDrawingDrawAdapter.Dispose ( bool disposing )

protectedvirtual
