eVision.Easy3D.EZMap Class Reference

Represents a generic ZMap type interface. More...

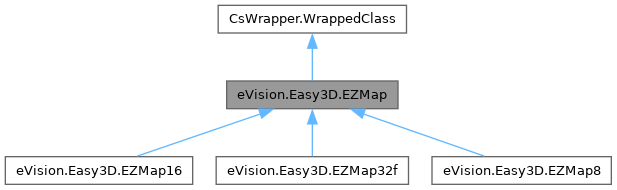

Inheritance diagram for eVision.Easy3D.EZMap:

Collaboration diagram for eVision.Easy3D.EZMap:

Public Member Functions
bool	IsVoid ()
	Tests if the EZMap object size is zero.
IntPtr	GetBufferPtr ()
	Retrieves the pointer to the internal pixel buffer.
IntPtr	GetBufferPtr (int x, int y)
	Retrieves the pointer to the internal pixel buffer.
IntPtr	GetCheckedBufferPtr (int x, int y)
	Retrieves the pointer to the pixel buffer.
void	SetBufferPtr (int width, int height, IntPtr imagePointer, int bitsPerRow)
	Sets the pointer to an externally allocated image buffer.
void	SetBufferPtr (int width, int height, IntPtr imagePointer)
	Sets the pointer to an externally allocated image buffer.
void	UseExternalBuffer (int width, int height, IntPtr buffer, int rowPitch)
	Sets the pointer to an externally allocated buffer.
eVision.EPoint	ConvertCoordinatesPixelToMap (eVision.EIntPoint pixelCoordinates)
	Converts Pixel coordinates to 3D Map coordinates.
void	ConvertCoordinatesPixelToMap (int xBuffer, int yBuffer, ref float x3D, ref float y3D)
	Converts Pixel coordinates to 3D Map coordinates.
bool	ConvertCoordinatesMapToPixel (eVision.EPoint mapCoordinates, ref eVision.EIntPoint pixelCoordinates)
	Converts 3D Map coordinates to Pixel coordinates.
bool	ConvertCoordinatesMapToPixel (float x3D, float y3D, ref int xBuffer, ref int yBuffer)
	Converts 3D Map coordinates to Pixel coordinates.
void	SetSize (int width, int height)
	Sets the width and height of the EZMap.
void	SetSize (eVision.Easy3D.EZMap other)
	Sets the width and height of the EZMap.
void	Load (string path)
	Restores the EZMap stored in the given eVision file.
void	Load (eVision.ESerializer serializer)
	Restores the EZMap stored in the given eVision file.
void	LoadImage (string path, bool withMetadata)
	Restores the EZMap image stored in the given image file.
void	LoadImage (string path)
	Restores the EZMap image stored in the given image file.
void	Save (string path)
	Saves the EZMap object to the given eVision file.
void	Save (eVision.ESerializer serializer)
	Saves the EZMap object to the given eVision file.
void	SaveImage (string path, eVision.EImageFileType type, bool withMetadata)
	Saves the EZMap image to the given image file.
void	SaveImage (string path, eVision.EImageFileType type)
	Saves the EZMap image to the given image file.
void	SaveImage (string path)
	Saves the EZMap image to the given image file.
void	SaveMetadata (string path)
	Saves Metadata in JSON format.
void	LoadMetadata (string path)
	Loads Metadata in JSON format.
void	SaveImageAndMetadata (string pathImage, string pathMetadata, eVision.EImageFileType type)
	Saves image format and Metadata JSON format.
void	SaveImageAndMetadata (string pathImage, string pathMetadata)
	Saves image format and Metadata JSON format.
void	LoadImageAndMetadata (string pathImage, string pathMetadata)
	Loads image format and Metadata in JSON format.
void	AddMetadata (string Key, string value)
	Adds a metadata key (name) and value.
string	GetMetadata (string Key)
	Returns the string value of the given metadata.
void	Clear ()
	Clears the ZMap: replaces all pixels with the undefined value.
void	ResetWorldTransformation ()
	Reset the world transformation, Map to World and World to Map matrices become identity matrix.
eVision.Easy3D.E3DPoint	GetWorldPositionFromPixelPosition (int u, int v)
	Returns the 3D world position corresponding to a EZMap pixel position. The world position is in the original point cloud space. The pixel space origin is at the upper left corner of the image and ranges to (width-1, height-1). The transformation to the world position is calculated using the center of the pixel. The pixel value at position (u,v) must not be undefined, otherwise an exception will be thrown.
eVision.Easy3D.E3DPoint	GetWorldPositionFromMapPosition (float x, float y)
	Returns the 3D world position corresponding to a EZMap 2D coordinate. The world position is in the original point cloud space. (x,y) is the ZMap position (which has the same scale as the world space). The value at position (x, y) must not be undefined in the EZMap, otherwise an exception will be thrown.
eVision.Easy3D.E3DPoint	GetZMapPositionFromPixelPosition (int u, int v)
	Returns the corresponding EZMap 3D position of a ZMap pixel. The ZMap position is in the original point ZMap space. The pixel position origin is the upper left corner of the image and ranges to (width-1, height-1). The center of the pixel is used for the transformation to the ZMap position. Pixel at position (u,v) must be defined, otherwise an exception will be thrown.
void	GetSizeInWorld (ref float worldWidth, ref float worldHeight)
	Returns the dimensions of the EZMap in real world space (e.g metric unit).
void	GetResolution (ref float sx, ref float sy, ref float sz)
	Gets the resolution of the EZMap along the X, Y and Z axis.
void	SetResolution (float rx, float ry, float rz)
	Sets the resolution of the EZMap along the X, Y and Z axis.
void	ImageToZMap (eVision.EPoint uv, ref eVision.EPoint xy)
	Converts a 2D image (sub)pixel coordinate to the EZMap space.
void	ImageToZMap (float u, float v, ref float x, ref float y)
	Converts a 2D image (sub)pixel coordinate to the EZMap space.
bool	ZMapToImage (eVision.EPoint xy, ref eVision.EPoint uv)
	Converts a 2D coordinate in the EZMap space to image (sub)pixel space.
bool	ZMapToImage (float x, float y, ref float u, ref float v)
	Converts a 2D coordinate in the EZMap space to image (sub)pixel space.
void	WorldToZMap (eVision.Easy3D.E3DPoint worldPt, ref eVision.Easy3D.E3DPoint zmapPt)
	Transforms a 3D world position to a 3D EZMap position.
void	ZMapToWorld (eVision.Easy3D.E3DPoint zmapPt, ref eVision.Easy3D.E3DPoint worldPt)
	Transforms a 3D EZMap position to a 3D world space position.
bool	WorldToImage (eVision.Easy3D.E3DPoint worldPt, ref eVision.Easy3D.E3DPoint pixelPt)
	Transforms a 3D world position to a floating point (sub)pixel image position.
void	ImageToWorld (eVision.Easy3D.E3DPoint pixelPoint, ref eVision.Easy3D.E3DPoint worldPoint)
	Transforms a floating point (sub)pixel image position to a 3D world position.
void	ImageToWorld (eVision.EPoint pixel2DPoint, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint)
	Transforms a floating point (sub)pixel image position to a 3D world position.
void	ImageToWorld (eVision.EPoint pixel2DPoint, eVision.Easy3D.EZMapImageToWorldKernel kernel, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint)
	Transforms a floating point (sub)pixel image position to a 3D world position.
void	ImageToWorld (eVision.EPoint pixel2DPoint, eVision.EFrame frame, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint)
	Transforms a floating point (sub)pixel image position to a 3D world position.
void	ImageToWorld (eVision.EPoint pixel2DPoint, eVision.EFrame frame, eVision.Easy3D.EZMapImageToWorldKernel kernel, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint)
	Transforms a floating point (sub)pixel image position to a 3D world position.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Draws an EZMap in a device context.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Draws an EZMap in a device context.
void	Draw (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (IntPtr graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Draws an EZMap in a device context.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Draws an EZMap in a device context.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX)
	Displays the internal image buffer.
void	DrawImage (System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector)
	Displays the internal image buffer.

Static Public Member Functions
static eVision.Easy3D.EZMap	Create (string path)
	Factory method to allocate and read a ZMap from a file. Depending on the serialized EZMap type, it returns the corresponding EZMap8, EZMap16 or EZMap32f object. The allocated EZMap must be released after use.

Properties
int	Width [get, set]
	Access ZMap Width.
int	Height [get, set]
	Access ZMap Height.
int	RowPitch [get]
	Returns the buffer row pitch.
eVision.Legacy.EWorldShape	WorldShape [get]
	Returns the EWorldShape for conversion between 2D image and 2D world space coordinates. This EWorldShape can be used by EasyGauge to do measurements on a EZMap in real space coordinates (e.g mm).
eVision.Easy3D.E3DTransformMatrix	MapToWorldMatrix [get, set]
	E3DTransformMatrix that transforms positions from the EZMap space to the world space. This transformation is composed of rotation and translation only, so it is a rigid transformation and preserves distances.
eVision.Easy3D.E3DTransformMatrix	WorldToMapMatrix [get, set]
	Sets/Gets the E3DTransformMatrix that transforms positions from the world space to the EZMap space. This transformation is composed of rotation and translation only, so it is a rigid transformation and it preserves distances.
eVision.EFrame	ZMapPositionFrame [get]
	Returns the EFrame from which the EZMap position of a pixel can be retrieved. The ZMap position is in the original point ZMap space.
eVision.EPoint	SizeInWorld [get]
	Returns the dimensions of the EZMap in real world space (e.g metric unit).
eVision.Easy3D.E3DPoint	Resolution [get, set]
	Gets/Sets the resolution of the EZMap along the X, Y and Z axis.
float	XResolution [get, set]
	Resolution of the EZMap along the X axis.
float	YResolution [get, set]
	Resolution of the EZMap along the Y axis.
float	ZResolution [get, set]
	Resolution of the EZMap along the Z axis.
eVision.EImageType	Type [get]
	Pixel accessor type.
eVision.Easy3D.E3DPlane	ProjectionPlane [get]
	Retrieves the E3DPlane on which the ZMap was projected.

Detailed Description

Represents a generic ZMap type interface.

License(s): Easy3D

Member Function Documentation

AddMetadata()

void eVision.Easy3D.EZMap.AddMetadata ( string Key, string value )

abstract

Adds a metadata key (name) and value.

If the metadata key already exists, its value will be overwritten.

Parameters

Key	The name of the metadata. Names are unique.
value	The value for the given metadata.

Clear()

void eVision.Easy3D.EZMap.Clear ( )

abstract

Clears the ZMap: replaces all pixels with the undefined value.

ConvertCoordinatesMapToPixel() [1/2]

bool eVision.Easy3D.EZMap.ConvertCoordinatesMapToPixel ( eVision.EPoint mapCoordinates, ref eVision.EIntPoint pixelCoordinates )

abstract

Converts 3D Map coordinates to Pixel coordinates.

Parameters

mapCoordinates	The map coordinates to convert from.
pixelCoordinates	The pixel coordinates to convert to.

ConvertCoordinatesMapToPixel() [2/2]

bool eVision.Easy3D.EZMap.ConvertCoordinatesMapToPixel ( float x3D, float y3D, ref int xBuffer, ref int yBuffer )

abstract

Converts 3D Map coordinates to Pixel coordinates.

Parameters

x3D	The Map X coordinate.
y3D	The Map Y coordinate.
xBuffer	The returned Pixel X coordinate.
yBuffer	The returned Pixel Y coordinate.

Deprecated

Deprecated in version 24.6. Scheduled to be removed in version 27.6.

ConvertCoordinatesPixelToMap() [1/2]

eVision.EPoint eVision.Easy3D.EZMap.ConvertCoordinatesPixelToMap ( eVision.EIntPoint pixelCoordinates )

abstract

Converts Pixel coordinates to 3D Map coordinates.

Parameters

pixelCoordinates

The pixel coordinates to convert.

ConvertCoordinatesPixelToMap() [2/2]

void eVision.Easy3D.EZMap.ConvertCoordinatesPixelToMap ( int xBuffer, int yBuffer, ref float x3D, ref float y3D )

abstract

Converts Pixel coordinates to 3D Map coordinates.

Parameters

xBuffer	The pixel X coordinate.
yBuffer	The pixel Y coordinate.
x3D	The returned Map X coordinate.
y3D	The returned Map Y coordinate.

Deprecated

Deprecated in version 24.6. Scheduled to be removed in version 27.6.

Create()

eVision.Easy3D.EZMap eVision.Easy3D.EZMap.Create ( string path )

static

Factory method to allocate and read a ZMap from a file. Depending on the serialized EZMap type, it returns the corresponding EZMap8, EZMap16 or EZMap32f object. The allocated EZMap must be released after use.

Parameters

path	Full path to the file.

Draw() [1/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext

Handle to the device context of the destination window.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [2/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [3/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [4/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [5/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [6/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [7/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [8/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [9/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [10/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [11/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [12/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [13/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [14/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [15/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [16/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [17/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [18/54]

void eVision.Easy3D.EZMap.Draw ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Draw() [19/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext

Handle to the device context of the destination window.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [20/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [21/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [22/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [23/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [24/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [25/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [26/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EC24Vector c24Vector )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [27/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [28/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [29/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [30/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [31/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [32/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [33/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [34/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [35/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [36/54]

void eVision.Easy3D.EZMap.Draw ( IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [37/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext

Handle to the device context of the destination window.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [38/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [39/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [40/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [41/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [42/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [43/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [44/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [45/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [46/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [47/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [48/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [49/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [50/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, float zoomX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [51/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [52/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [53/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [54/54]

void eVision.Easy3D.EZMap.Draw ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Draws an EZMap in a device context.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the ZMap is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

A ZMap can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [1/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext )

abstract

Displays the internal image buffer.

Parameters

graphicContext

Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [2/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [3/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [4/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [5/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [6/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [7/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [8/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [9/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [10/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [11/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [12/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [13/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [14/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [15/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [16/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [17/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [18/54]

void eVision.Easy3D.EZMap.DrawImage ( eVision.EDrawAdapter graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

DrawImage() [19/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext )

abstract

Displays the internal image buffer.

Parameters

graphicContext

Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [20/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [21/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [22/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [23/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [24/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [25/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [26/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EC24Vector c24Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [27/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [28/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [29/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [30/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [31/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [32/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [33/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [34/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [35/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [36/54]

void eVision.Easy3D.EZMap.DrawImage ( IntPtr graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [37/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext )

abstract

Displays the internal image buffer.

Parameters

graphicContext

Handle to the device context of the destination window.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [38/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [39/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [40/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [41/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [42/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [43/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EBW8Vector bw8Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
bw8Vector	When supplied, this parameter allows using a LUT that maps from Depth to BW8 when drawing.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [44/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [45/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [46/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [47/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [48/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [49/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, eVision.EC24Vector c24Vector, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
c24Vector	When supplied, this parameter allows using a LUT that maps from Depth to C24 when drawing (false colors).
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [50/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, float zoomX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [51/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [52/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [53/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawImage() [54/54]

void eVision.Easy3D.EZMap.DrawImage ( System.Drawing.Graphics graphicContext, float zoomX, float zoomY, float panX, float panY, eVision.EC24 colorUndefinedPixel )

abstract

Displays the internal image buffer.

Parameters

graphicContext	Handle to the device context of the destination window.
zoomX	Magnification factor for zooming in or out in the horizontal direction. By default, the image is displayed in 1:1 scale.
zoomY	Magnification factor for zooming in or out in the vertical direction. Setting a 0 value (which is the default) will result in isotropic scaling (i.e. equal horizontal and vertical factors).
panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.
colorUndefinedPixel	An optional parameter to choose the drawing color of undefined pixels.

An image can be drawn (its pixels rendered) using a device context. EZMap.Draw and EZMap.DrawImage produce the same output.

The horizontal and vertical zooming factors can be different but must be in the 1/16..16 range.

(MFC users can use the CDC::GetSafeHdc() method to obtain a suitable device context handle from a CDC instance.)

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

GetBufferPtr() [1/2]

IntPtr eVision.Easy3D.EZMap.GetBufferPtr ( )

abstract

Retrieves the pointer to the internal pixel buffer.

This function does not check the value of the parameters. Use carefully.

GetBufferPtr() [2/2]

IntPtr eVision.Easy3D.EZMap.GetBufferPtr ( int x, int y )

abstract

Retrieves the pointer to the internal pixel buffer.

Parameters

x	Column of the pixel which we want the address.
y	Row of the pixel which we want the address.

This function does not check the value of the parameters. Use carefully.

GetCheckedBufferPtr()

IntPtr eVision.Easy3D.EZMap.GetCheckedBufferPtr ( int x, int y )

abstract

Retrieves the pointer to the pixel buffer.

Parameters

x	Column of the pixel of which we want the address.
y	Row of the pixel of which we want the address.

GetMetadata()

string eVision.Easy3D.EZMap.GetMetadata ( string Key )

abstract

Returns the string value of the given metadata.

Throws an exception if it does not exist.

Parameters

Key	The name of an existing metadata.

GetResolution()

void eVision.Easy3D.EZMap.GetResolution ( ref float sx, ref float sy, ref float sz )

abstract

Gets the resolution of the EZMap along the X, Y and Z axis.

On the Z axis, the resolution is the number of metric units per grey value. On the X and Y axis, the resolution is the number of metric units per pixel.

Parameters

sx	Contains the resolution along the X axis.
sy	Contains the resolution along the Y axis.
sz	Contains the resolution along the Z axis.

Deprecated

Use EZMap.Resolution instead.

Deprecated in version 24.6. Scheduled to be removed in version 27.6.

GetSizeInWorld()

void eVision.Easy3D.EZMap.GetSizeInWorld ( ref float worldWidth, ref float worldHeight )

abstract

Returns the dimensions of the EZMap in real world space (e.g metric unit).

Parameters

worldWidth	Contains the size of the ZMap along the X axis (column).
worldHeight	Contains the size of the ZMap along the Y axis (row).

Deprecated

Use EZMap.SizeInWorld instead.

Deprecated in version 24.6. Scheduled to be removed in version 27.6.

GetWorldPositionFromMapPosition()

eVision.Easy3D.E3DPoint eVision.Easy3D.EZMap.GetWorldPositionFromMapPosition ( float x, float y )

abstract

Returns the 3D world position corresponding to a EZMap 2D coordinate. The world position is in the original point cloud space. (x,y) is the ZMap position (which has the same scale as the world space). The value at position (x, y) must not be undefined in the EZMap, otherwise an exception will be thrown.

Parameters

x	The X coordinate.
y	The Y coordinate.

GetWorldPositionFromPixelPosition()

eVision.Easy3D.E3DPoint eVision.Easy3D.EZMap.GetWorldPositionFromPixelPosition ( int u, int v )

abstract

Returns the 3D world position corresponding to a EZMap pixel position. The world position is in the original point cloud space. The pixel space origin is at the upper left corner of the image and ranges to (width-1, height-1). The transformation to the world position is calculated using the center of the pixel. The pixel value at position (u,v) must not be undefined, otherwise an exception will be thrown.

Parameters

u	Column of the pixel (bounds: [0,width[).
v	Row of the pixel (bounds: [0,height[).

GetZMapPositionFromPixelPosition()

eVision.Easy3D.E3DPoint eVision.Easy3D.EZMap.GetZMapPositionFromPixelPosition ( int u, int v )

abstract

Returns the corresponding EZMap 3D position of a ZMap pixel. The ZMap position is in the original point ZMap space. The pixel position origin is the upper left corner of the image and ranges to (width-1, height-1). The center of the pixel is used for the transformation to the ZMap position. Pixel at position (u,v) must be defined, otherwise an exception will be thrown.

Parameters

u	Column of the pixel (bounds: [0,width[).
v	Row of the pixel (bounds: [0,height[).

ImageToWorld() [1/5]

void eVision.Easy3D.EZMap.ImageToWorld ( eVision.Easy3D.E3DPoint pixelPoint, ref eVision.Easy3D.E3DPoint worldPoint )

abstract

Transforms a floating point (sub)pixel image position to a 3D world position.

The image space origin is at the upper left corner of the image and the X/Y unit size is one pixel. The pixel Z value is in grey scale values (its range depends on the ZMap type).

Parameters

pixelPoint	Position in the image space.
worldPoint	Position in the 3D world space.

ImageToWorld() [2/5]

void eVision.Easy3D.EZMap.ImageToWorld ( eVision.EPoint pixel2DPoint, eVision.Easy3D.EZMapImageToWorldKernel kernel, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint )

abstract

Transforms a floating point (sub)pixel image position to a 3D world position.

The image space origin is at the upper left corner of the image and the X/Y unit size is one pixel. The pixel Z value is in grey scale values (its range depends on the ZMap type).

Parameters

pixel2DPoint	X and Y position in the image space.
kernel	Kernel to use to compute the Z coordinate of the world point. Defaults to EZMapImageToWorldKernel.EZMapImageToWorldKernel_Median.
halfKernelSize	Half of the size (in pixels) of the square around the pixel2DPoint inside which we compute the average grayscale value.
worldPoint	Position in the 3D world space.

ImageToWorld() [3/5]

void eVision.Easy3D.EZMap.ImageToWorld ( eVision.EPoint pixel2DPoint, eVision.EFrame frame, eVision.Easy3D.EZMapImageToWorldKernel kernel, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint )

abstract

Transforms a floating point (sub)pixel image position to a 3D world position.

The image space origin is at the upper left corner of the image and the X/Y unit size is one pixel. The pixel Z value is in grey scale values (its range depends on the ZMap type).

Parameters

pixel2DPoint	X and Y position in the image space.
frame	frame associated with the image space.
kernel	Kernel to use to compute the Z coordinate of the world point. Defaults to EZMapImageToWorldKernel.EZMapImageToWorldKernel_Median.
halfKernelSize	Half of the size (in pixels) of the square around the pixel2DPoint inside which we compute the average grayscale value.
worldPoint	Position in the 3D world space.

ImageToWorld() [4/5]

void eVision.Easy3D.EZMap.ImageToWorld ( eVision.EPoint pixel2DPoint, eVision.EFrame frame, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint )

abstract

Transforms a floating point (sub)pixel image position to a 3D world position.

The image space origin is at the upper left corner of the image and the X/Y unit size is one pixel. The pixel Z value is in grey scale values (its range depends on the ZMap type).

Parameters

pixel2DPoint	X and Y position in the image space.
frame	frame associated with the image space.
halfKernelSize	Half of the size (in pixels) of the square around the pixel2DPoint inside which we compute the average grayscale value.
worldPoint	Position in the 3D world space.

ImageToWorld() [5/5]

void eVision.Easy3D.EZMap.ImageToWorld ( eVision.EPoint pixel2DPoint, uint halfKernelSize, ref eVision.Easy3D.E3DPoint worldPoint )

abstract

Transforms a floating point (sub)pixel image position to a 3D world position.

The image space origin is at the upper left corner of the image and the X/Y unit size is one pixel. The pixel Z value is in grey scale values (its range depends on the ZMap type).

Parameters

pixel2DPoint	X and Y position in the image space.
halfKernelSize	Half of the size (in pixels) of the square around the pixel2DPoint inside which we compute the average grayscale value.
worldPoint	Position in the 3D world space.

ImageToZMap() [1/2]

void eVision.Easy3D.EZMap.ImageToZMap ( eVision.EPoint uv, ref eVision.EPoint xy )

abstract

Converts a 2D image (sub)pixel coordinate to the EZMap space.

• (u,v) is the pixel position (with its origin in the upper left corner of the image).
• (x,y) is the corresponding ZMap position (which has the same scale as the world space). All values are expressed in floating point numbers.

Parameters

uv	horizontal and vertical coordinates of the pixel as an EPoint.
xy	X and Y coordinates of the pixel as an EPoint.

ImageToZMap() [2/2]

void eVision.Easy3D.EZMap.ImageToZMap ( float u, float v, ref float x, ref float y )

abstract

Converts a 2D image (sub)pixel coordinate to the EZMap space.

• (u,v) is the pixel position (with its origin in the upper left corner of the image).
• (x,y) is the corresponding ZMap position (which has the same scale as the world space). All values are expressed in floating point numbers.

Parameters

u	X Coordinate of the pixel as a floating point value.
v	Y Coordinate of the pixel as a floating point value.
x	Position along horizontal axis in the ZMap space.
y	Position along vertical axis in the ZMap space.

Deprecated

Use the overload taking EPoint as arguments instead.

Deprecated in version 24.6. Scheduled to be removed in version 27.6.

IsVoid()

bool eVision.Easy3D.EZMap.IsVoid ( )

abstract

Tests if the EZMap object size is zero.

Returns true if the ZMap size is zero.

Load() [1/2]

void eVision.Easy3D.EZMap.Load ( eVision.ESerializer serializer )

abstract

Restores the EZMap stored in the given eVision file.

Parameters

serializer

ESerializer in read mode.

When loading, the ZMap is resized if needed. This function restores all the ZMap attributes.

Load() [2/2]

void eVision.Easy3D.EZMap.Load ( string path )

abstract

Restores the EZMap stored in the given eVision file.

Parameters

path	Full path to the file.

When loading, the ZMap is resized if needed. This function restores all the ZMap attributes.

LoadImage() [1/2]

void eVision.Easy3D.EZMap.LoadImage ( string path )

abstract

Restores the EZMap image stored in the given image file.

Parameters

path	Full path to the file.

When loading, the ZMap is resized if needed. This function does not restore the ZMap attributes, only the image associated with the EZMap is updated.

LoadImage() [2/2]

void eVision.Easy3D.EZMap.LoadImage ( string path, bool withMetadata )

abstract

Restores the EZMap image stored in the given image file.

Parameters

path	Full path to the file.
withMetadata	Parameter to load or not the metadata that has the same filename. False by default.

When loading, the ZMap is resized if needed. This function does not restore the ZMap attributes, only the image associated with the EZMap is updated.

LoadImageAndMetadata()

void eVision.Easy3D.EZMap.LoadImageAndMetadata ( string pathImage, string pathMetadata )

abstract

Loads image format and Metadata in JSON format.

Parameters

pathImage	Full path to the file.
pathMetadata	Full path to the file.

LoadMetadata()

void eVision.Easy3D.EZMap.LoadMetadata ( string path )

abstract

Loads Metadata in JSON format.

Parameters

path	Full path to the file.

ResetWorldTransformation()

void eVision.Easy3D.EZMap.ResetWorldTransformation ( )

abstract

Reset the world transformation, Map to World and World to Map matrices become identity matrix.

Save() [1/2]

void eVision.Easy3D.EZMap.Save ( eVision.ESerializer serializer )

abstract

Saves the EZMap object to the given eVision file.

Parameters

serializer

ESerializer in write mode.

This format save the EZMap in a eVision file. This function stores all the ZMap attributes.

Save() [2/2]

void eVision.Easy3D.EZMap.Save ( string path )

abstract

Saves the EZMap object to the given eVision file.

Parameters

path	The full path to the destination file.

This format save the EZMap in a eVision file. This function stores all the ZMap attributes.

SaveImage() [1/3]

void eVision.Easy3D.EZMap.SaveImage ( string path )

abstract

Saves the EZMap image to the given image file.

Parameters

path	The full path to the destination file.

This format save the image associated to EZMap in a standard image file and thus does not store ZMap attributes.

SaveImage() [2/3]

void eVision.Easy3D.EZMap.SaveImage ( string path, eVision.EImageFileType type )

abstract

Saves the EZMap image to the given image file.

Parameters

path	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.

This format save the image associated to EZMap in a standard image file and thus does not store ZMap attributes.

SaveImage() [3/3]

void eVision.Easy3D.EZMap.SaveImage ( string path, eVision.EImageFileType type, bool withMetadata )

abstract

Saves the EZMap image to the given image file.

Parameters

path	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.
withMetadata	Parameter to save or not the metadata that with the same filename next. False by default.

This format save the image associated to EZMap in a standard image file and thus does not store ZMap attributes.

SaveImageAndMetadata() [1/2]

void eVision.Easy3D.EZMap.SaveImageAndMetadata ( string pathImage, string pathMetadata )

abstract

Saves image format and Metadata JSON format.

Parameters

pathImage	The full path to the destination file.
pathMetadata	The full path to the destination file.

SaveImageAndMetadata() [2/2]

void eVision.Easy3D.EZMap.SaveImageAndMetadata ( string pathImage, string pathMetadata, eVision.EImageFileType type )

abstract

Saves image format and Metadata JSON format.

Parameters

pathImage	The full path to the destination file.
pathMetadata	The full path to the destination file.
type	File format, as defined by EImageFileType. If not specified, the file format is determined from the file extension.

SaveMetadata()

void eVision.Easy3D.EZMap.SaveMetadata ( string path )

abstract

Saves Metadata in JSON format.

Parameters

path	The full path to the destination file.

SetBufferPtr() [1/2]

void eVision.Easy3D.EZMap.SetBufferPtr ( int width, int height, IntPtr imagePointer )

abstract

Sets the pointer to an externally allocated image buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
imagePointer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the data.

Deprecated

Use EZMap.UseExternalBuffer instead.

Deprecated in version 26.2. Scheduled to be removed in version 27.6.

SetBufferPtr() [2/2]

void eVision.Easy3D.EZMap.SetBufferPtr ( int width, int height, IntPtr imagePointer, int bitsPerRow )

abstract

Sets the pointer to an externally allocated image buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
imagePointer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the data.
bitsPerRow	The total number of bits contained in a row, padding included.

Using the value 0 (default) means that this size is computed from the buffer width and the pixel size plus a padding with the smallest possible value that leads to a multiple of 4 bytes (32 bits), which is the minimum padding accepted by EZMap.SetBufferPtr.

Deprecated

Use EZMap.UseExternalBuffer instead.

Deprecated in version 26.2. Scheduled to be removed in version 27.6.

SetResolution()

void eVision.Easy3D.EZMap.SetResolution ( float rx, float ry, float rz )

abstract

Sets the resolution of the EZMap along the X, Y and Z axis.

On the Z axis, the resolution is the number of metric units per grey value. On the X and Y axis, the resolution is the number of metric units per pixel.

Parameters

rx	Contains the resolution along the X axis.
ry	Contains the resolution along the Y axis.
rz	Contains the resolution along the Z axis.

SetSize() [1/2]

void eVision.Easy3D.EZMap.SetSize ( eVision.Easy3D.EZMap other )

abstract

Sets the width and height of the EZMap.

Parameters

other

The other ZMap whose dimensions have to be used for the current object.

eVision will allocate a new image buffer (deallocate the old image buffer) if the supplied width and height are different from the existing ones.

If an external buffer has been specified by means of UseExternalBuffer, it will be kept only if the size does not change.

Creating a new eVision image buffer and setting its size creates a 4-byte aligned buffer, by default. The size of an ZMap is specified as a number of columns (width) and rows (height).

The maximum image dimensions are 2^30 by 2^30. Furthermore, it must fit into the available memory, that depends upon the physical memory, the operating system and the memory already allocated by the process in other modules or libraries.

SetSize() [2/2]

void eVision.Easy3D.EZMap.SetSize ( int width, int height )

abstract

Sets the width and height of the EZMap.

Parameters

width	The new requested width.
height	The new requested height.

eVision will allocate a new image buffer (deallocate the old image buffer) if the supplied width and height are different from the existing ones.

If an external buffer has been specified by means of UseExternalBuffer, it will be kept only if the size does not change.

Creating a new eVision image buffer and setting its size creates a 4-byte aligned buffer, by default. The size of an ZMap is specified as a number of columns (width) and rows (height).

The maximum image dimensions are 2^30 by 2^30. Furthermore, it must fit into the available memory, that depends upon the physical memory, the operating system and the memory already allocated by the process in other modules or libraries.

UseExternalBuffer()

void eVision.Easy3D.EZMap.UseExternalBuffer ( int width, int height, IntPtr buffer, int rowPitch )

abstract

Sets the pointer to an externally allocated buffer.

Parameters

width	The width of the supplied buffer, in pixels.
height	The height of the supplied buffer, in pixels.
buffer	The pointer (aligned on 4 bytes) to the buffer, which must be large enough to hold the image.
rowPitch	The total number of bytes contained in a row, padding included.

WorldToImage()

bool eVision.Easy3D.EZMap.WorldToImage ( eVision.Easy3D.E3DPoint worldPt, ref eVision.Easy3D.E3DPoint pixelPt )

abstract

Transforms a 3D world position to a floating point (sub)pixel image position.

The image space origin is at the upper left corner of the image and the X/Y unit size is one pixel. The Z value is given in grey scale value.

Returns true if the pixel position is inside the image limits and the Z value is positive. The parameter pixelPt is filled even if the point is outside the image.

Parameters

worldPt	Position in the 3D world space.
pixelPt	Position in the image space.

WorldToZMap()

void eVision.Easy3D.EZMap.WorldToZMap ( eVision.Easy3D.E3DPoint worldPt, ref eVision.Easy3D.E3DPoint zmapPt )

abstract

Transforms a 3D world position to a 3D EZMap position.

The ZMap space origin is at the lower left corner of the image.

The scales of the world space and ZMap space are the same.

Parameters

worldPt	Position in the 3D world space.
zmapPt	Position in the ZMap space.

Do not use this method with the same variable as input and output. It might lead to incorrect results.

ZMapToImage() [1/2]

bool eVision.Easy3D.EZMap.ZMapToImage ( eVision.EPoint xy, ref eVision.EPoint uv )

abstract

Converts a 2D coordinate in the EZMap space to image (sub)pixel space.

• (x,y) is the ZMap position (which has the same scale as the world space).
• (u,v) is the corresponding pixel position (with its origin in the upper left corner of the image). All values are expressed in floating point numbers. Returns true if the pixel position is inside the image limits.

Parameters

xy	X and Y coordinates of the pixel as an EPoint.
uv	horizontal and vertical coordinates of the pixel as an EPoint.

ZMapToImage() [2/2]

bool eVision.Easy3D.EZMap.ZMapToImage ( float x, float y, ref float u, ref float v )

abstract

Converts a 2D coordinate in the EZMap space to image (sub)pixel space.

• (x,y) is the ZMap position (which has the same scale as the world space).
• (u,v) is the corresponding pixel position (with its origin in the upper left corner of the image). All values are expressed in floating point numbers. Returns true if the pixel position is inside the image limits.

Parameters

x	Position along horizontal axis in the ZMap space.
y	Position along vertical axis in the ZMap space.
u	Column of the pixel as a floating point value.
v	Row of the pixel as a floating point value.

Deprecated

Use the overload taking EPoint as arguments instead.

Deprecated in version 24.6. Scheduled to be removed in version 27.6.

ZMapToWorld()

void eVision.Easy3D.EZMap.ZMapToWorld ( eVision.Easy3D.E3DPoint zmapPt, ref eVision.Easy3D.E3DPoint worldPt )

abstract

Transforms a 3D EZMap position to a 3D world space position.

The ZMap space origin is at the lower left corner of the image.

Parameters

zmapPt	Position in the ZMap space.
worldPt	Position in the 3D world space.

Do not use this method with the same variable as input and output. It might lead to incorrect results.

Property Documentation

Height

int eVision.Easy3D.EZMap.Height

getsetabstract

Access ZMap Height.

MapToWorldMatrix

eVision.Easy3D.E3DTransformMatrix eVision.Easy3D.EZMap.MapToWorldMatrix

getsetabstract

E3DTransformMatrix that transforms positions from the EZMap space to the world space. This transformation is composed of rotation and translation only, so it is a rigid transformation and preserves distances.

ProjectionPlane

eVision.Easy3D.E3DPlane eVision.Easy3D.EZMap.ProjectionPlane

get

Retrieves the E3DPlane on which the ZMap was projected.

Resolution

eVision.Easy3D.E3DPoint eVision.Easy3D.EZMap.Resolution

getsetabstract

Gets/Sets the resolution of the EZMap along the X, Y and Z axis.

On the Z axis, the resolution is the number of metric units per grey value.

On the X and Y axis, the resolution is the number of metric units per pixel.

RowPitch

int eVision.Easy3D.EZMap.RowPitch

getabstract

Returns the buffer row pitch.

SizeInWorld

eVision.EPoint eVision.Easy3D.EZMap.SizeInWorld

getabstract

Returns the dimensions of the EZMap in real world space (e.g metric unit).

Type

eVision.EImageType eVision.Easy3D.EZMap.Type

getabstract

Pixel accessor type.

Width

int eVision.Easy3D.EZMap.Width

getsetabstract

Access ZMap Width.

WorldShape

eVision.Legacy.EWorldShape eVision.Easy3D.EZMap.WorldShape

getabstract

Returns the EWorldShape for conversion between 2D image and 2D world space coordinates. This EWorldShape can be used by EasyGauge to do measurements on a EZMap in real space coordinates (e.g mm).

WorldToMapMatrix

eVision.Easy3D.E3DTransformMatrix eVision.Easy3D.EZMap.WorldToMapMatrix

getsetabstract

Sets/Gets the E3DTransformMatrix that transforms positions from the world space to the EZMap space. This transformation is composed of rotation and translation only, so it is a rigid transformation and it preserves distances.

XResolution

float eVision.Easy3D.EZMap.XResolution

getsetabstract

Resolution of the EZMap along the X axis.

The resolution is the number of metric units per pixel.

YResolution

float eVision.Easy3D.EZMap.YResolution

getsetabstract

Resolution of the EZMap along the Y axis.

The resolution is the number of metric units per pixel.

ZMapPositionFrame

eVision.EFrame eVision.Easy3D.EZMap.ZMapPositionFrame

getabstract

Returns the EFrame from which the EZMap position of a pixel can be retrieved. The ZMap position is in the original point ZMap space.

The returned EFrame may be used to perform 2D analysis in metric space, for example EasyGauge.

ZResolution

float eVision.Easy3D.EZMap.ZResolution

getsetabstract

Resolution of the EZMap along the Z axis.

The resolution is the number of metric units per grey value.
