eVision.Easy3D.ECalibrationModel Class Reference

Represents a 3D calibration model. More...

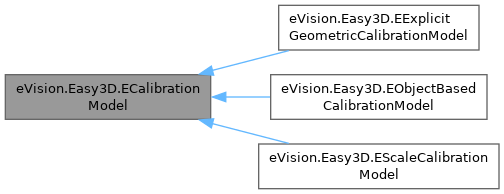

Inheritance diagram for eVision.Easy3D.ECalibrationModel:

Public Member Functions
eVision.Easy3D.E3DPoint	Apply (self, eVision.Easy3D.E3DPoint uvwPoint)
	Applies this model to convert an uncalibrated point to a world position.
None	Load (self, str path)
	Loads the calibration model.
None	Load (self, eVision.ESerializer|None serializer)
	Loads the calibration model.
None	Save (self, str path)
	Saves the calibration model.
None	Save (self, eVision.ESerializer|None serializer)
	Saves the calibration model.
eVision.Easy3D.ECalibrationType	Type (self)
	Returns the type of calibration model, see eVision.Easy3D.ECalibrationType.

Static Public Member Functions
eVision.Easy3D.ECalibrationModel|None	Create (str path)
	Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.
eVision.Easy3D.ECalibrationModel|None	Create (eVision.ESerializer|None file)
	Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.

Detailed Description

Represents a 3D calibration model.

Remarks:

License(s): Easy3D

Member Function Documentation

Apply()

eVision.Easy3D.E3DPoint eVision.Easy3D.ECalibrationModel.Apply	(		self,
		eVision.Easy3D.E3DPoint	uvwPoint )

Applies this model to convert an uncalibrated point to a world position.

This method returns a world position.

Parameters

uvwPoint

The position of a depth map pixel.

Create() [1/2]

eVision.Easy3D.ECalibrationModel | None eVision.Easy3D.ECalibrationModel.Create ( eVision.ESerializer | None file )

static

Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.

Returns the corresponding calibration model, must be released by caller.

Parameters

file	A serializer created for reading.

Create() [2/2]

eVision.Easy3D.ECalibrationModel | None eVision.Easy3D.ECalibrationModel.Create ( str path )

static

Factory method from a serializer stream: allocates and reads the calibration model from the given serializer.

Returns the corresponding calibration model, must be released by caller.

Parameters

path	The file path.

Load() [1/2]

None eVision.Easy3D.ECalibrationModel.Load	(		self,
		eVision.ESerializer | None	serializer )

Loads the calibration model.

The given ESerializer must have been created for reading.

Parameters

serializer

The serializer.

Reimplemented in eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EScaleCalibrationModel, and eVision.Easy3D.EScaleCalibrationModel.

Load() [2/2]

None eVision.Easy3D.ECalibrationModel.Load	(		self,
		str	path )

Loads the calibration model.

The given ESerializer must have been created for reading.

Parameters

path	The file path.

Reimplemented in eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EScaleCalibrationModel, and eVision.Easy3D.EScaleCalibrationModel.

Save() [1/2]

None eVision.Easy3D.ECalibrationModel.Save	(		self,
		eVision.ESerializer | None	serializer )

Saves the calibration model.

The given ESerializer must have been created for writing.

Parameters

serializer

The serializer.

Reimplemented in eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EScaleCalibrationModel, and eVision.Easy3D.EScaleCalibrationModel.

Save() [2/2]

None eVision.Easy3D.ECalibrationModel.Save	(		self,
		str	path )

Saves the calibration model.

The given ESerializer must have been created for writing.

Parameters

path	The file path.

Reimplemented in eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, eVision.Easy3D.EScaleCalibrationModel, and eVision.Easy3D.EScaleCalibrationModel.

Type()

eVision.Easy3D.ECalibrationType eVision.Easy3D.ECalibrationModel.Type

(

self

)

Returns the type of calibration model, see eVision.Easy3D.ECalibrationType.

Reimplemented in eVision.Easy3D.EExplicitGeometricCalibrationModel, eVision.Easy3D.EObjectBasedCalibrationModel, and eVision.Easy3D.EScaleCalibrationModel.
