eVision.Legacy.EShape Class Reference

Abstract class to federate the classes that can be hierarchically attached together (from a geometrical point of view). More...

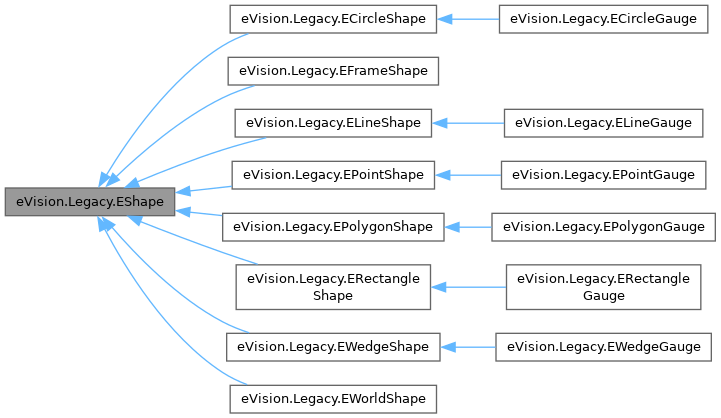

Inheritance diagram for eVision.Legacy.EShape:

Public Member Functions
eVision.Legacy.EShape|None	GetShapeNamed (self, str name)
	Returns a pointer to a daughter gauge or shape specified by its name.
bool	GetFound (self)
	Flag indicating whether a measured shape has been found.
bool	GetAutoArrange (self)
None	SetAutoArrange (self, bool bAutoArrange, bool bDaughters)
None	SetAutoArrange (self, bool bAutoArrange)
None	SetFound (self, bool bFound, bool bDaughters)
None	SetFound (self, bool bFound)
bool	GetInspected (self)
None	SetInspected (self, bool bFound, bool bDaughters)
None	SetInspected (self, bool bFound)
bool	GetPassed (self)
None	SetPassed (self, bool bFound, bool bDaughters)
None	SetPassed (self, bool bFound)
bool	GetQuickDraw (self)
None	SetQuickDraw (self, bool bFound, bool bDaughters)
None	SetQuickDraw (self, bool bFound)
bool	GetOptionalDraw (self)
None	SetOptionalDraw (self, bool bFound, bool bDaughters)
None	SetOptionalDraw (self, bool bFound)
bool	GetUserFlag (self)
None	SetUserFlag (self, bool bUserFlag, bool bDaughters)
None	SetUserFlag (self, bool bUserFlag)
bool	GetAllocated (self)
	Gets the allocated flag.
None	EnableBehaviorFilter (self, eVision.EShapeBehavior behavior, bool value)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
None	EnableBehaviorFilter (self, eVision.EShapeBehavior behavior)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
None	DisableBehaviorFilter (self, eVision.EShapeBehavior behavior)
	Disables (i.e.
None	Attach (self, eVision.Legacy.EShape|None mother)
	Attaches the gauge to a mother gauge or shape.
None	Detach (self)
	Detaches the gauge from its mother gauge or shape.
None	DetachDaughters (self)
	Detaches the daughter gauges or shapes.
eVision.Legacy.EShape|None	GetDaughter (self, int index)
	Returns a pointer to the specified daughter gauge or shape.
bool	IsWorld (self)
None	InvalidateWorld (self)
	Invalidates the world shape for this shape and all its ancestors.
eVision.EPoint	LocalToSensor (self, eVision.EPoint LPoint)
	Transforms a point from local coordinates to sensor coordinates.
eVision.EPoint	SensorToLocal (self, eVision.EPoint SPoint)
	Transforms a point from sensor coordinates to local coordinates.
None	Draw (self, eVision.EDrawAdapter|None graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by eVision.EDrawingMode.
None	Draw (self, eVision.EDrawAdapter|None graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by eVision.EDrawingMode.
None	Draw (self, eVision.EDrawAdapter|None graphicContext)
	Draws a graphical representation of a shape, as defined by eVision.EDrawingMode.
None	SetZoom (self, float zoomX, float zoomY)
	Sets the horizontal and vertical zooming factors for drawing operations.
None	SetZoom (self, float zoomX)
	Sets the horizontal and vertical zooming factors for drawing operations.
None	SetZoom (self)
	Sets the horizontal and vertical zooming factors for drawing operations.
None	SetPan (self, float panX, float panY)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
None	SetPan (self, float panX)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
None	SetPan (self)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
bool	HitTest (self, bool bDaughters)
	Checks if there is a handle under the cursor.
bool	HitTest (self)
	Checks if there is a handle under the cursor.
None	SetDraggingMode (self, eVision.EDraggingMode eDraggingMode, bool bDaughters)
	Sets the dragging mode which defines how the shape could be dragged.
None	SetDraggingMode (self, eVision.EDraggingMode eDraggingMode)
	Sets the dragging mode which defines how the shape could be dragged.
eVision.EDraggingMode	GetDraggingMode (self)
	Gets the dragging mode which defines how the shape could be dragged.
None	SetCursor (self, int x, int y)
	Sets the cursor current coordinates.
None	Drag (self, int n32CursorX, int n32CursorY)
	Moves a handle to a new position and updates the position parameters of the shape.
None	Closest (self)
	Find the daughter shape that is the closest to this shape.
None	Process (self, eVision.EROIBW8|None pSrc, bool bDaughters)
None	Process (self, eVision.EROIBW8|None pSrc)
None	Process (self, eVision.EROIBW8|None pSrc, eVision.ERegion region, bool bDaughters)
None	Process (self, eVision.EROIBW8|None pSrc, eVision.ERegion region)
None	Save (self, str path, bool daughters)
	Loads a Shape.The given eVision.ESerializer must have been created for writing.
None	Save (self, str path)
	Loads a Shape.The given eVision.ESerializer must have been created for writing.
None	Save (self, eVision.ESerializer|None serializer, bool daughters)
	Loads a Shape.The given eVision.ESerializer must have been created for writing.
None	Save (self, eVision.ESerializer|None serializer)
	Loads a Shape.The given eVision.ESerializer must have been created for writing.
None	Load (self, str path, bool daughters)
	Loads a Shape.The given eVision.ESerializer must have been created for reading.
None	Load (self, str path)
	Loads a Shape.The given eVision.ESerializer must have been created for reading.
None	Load (self, eVision.ESerializer|None serializer, bool daughters)
	Loads a Shape.The given eVision.ESerializer must have been created for reading.
None	Load (self, eVision.ESerializer|None serializer)
	Loads a Shape.The given eVision.ESerializer must have been created for reading.
bool	HasProperty (self, str aProperty)
	Returns whether a eVision.Legacy.EShape has a property named aProperty.
str	GetProperty (self, str aProperty)
	Gets the value of property aProperty.
None	SetProperty (self, str aProperty, str aValue)
	Sets the value of property aProperty to aValue for this eVision.Legacy.EShape.
None	SetPropertyRecursive (self, str aProperty, str aValue)
	Sets the value of property aProperty to aValue for this eVision.Legacy.EShape and all of its daughters.
None	RemoveProperty (self, str aProperty)
	Removes the property name aProperty from the eVision.Legacy.EShape.
bool	HasValidPolarityProperty (self)
	Returns whether the eVision.Legacy.EShape has a valid polarity property.
None	EnableTypeFilter (self, int un32Types)
	Enables the filter of the specified shape type.
None	DisableTypeFilter (self)
	Enables all shape types.
eVision.EShapeType	Type (self)
	Shape type.
str	Name (self)
	Name of the eVision.Legacy.EShape object.
	Name (self, str value)
	Name of the eVision.Legacy.EShape object.
bool	Visible (self)
	Flag indicating whether the shape is visible or not.
	Visible (self, bool value)
	Flag indicating whether the shape is visible or not.
bool	Selected (self)
	Flag indicating whether the shape is selected or not.
	Selected (self, bool value)
	Flag indicating whether the shape is selected or not.
bool	Selectable (self)
	Flag indicating whether the shape can be selected or not.
	Selectable (self, bool value)
	Flag indicating whether the shape can be selected or not.
bool	Dragable (self)
	Flag indicating whether the shape can be dragged or not.
	Dragable (self, bool value)
	Flag indicating whether the shape can be dragged or not.
bool	Resizable (self)
	Flag indicating whether the shape can be resized or not.
	Resizable (self, bool value)
	Flag indicating whether the shape can be resized or not.
bool	Rotatable (self)
	Flag indicating whether the shape can be rotated or not.
	Rotatable (self, bool value)
	Flag indicating whether the shape can be rotated or not.
bool	Labeled (self)
	Flag indicating whether the shape label should be displayed or not.
	Labeled (self, bool value)
	Flag indicating whether the shape label should be displayed or not.
bool	Active (self)
	Flag indicating whether the shape is active or not.
	Active (self, bool value)
	Flag indicating whether the shape is active or not.
bool	ActualShape (self)
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
	ActualShape (self, bool value)
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
int	NumDaughters (self)
	Number of daughters attached to the shape.
eVision.Legacy.EShape|None	Mother (self)
	Pointer to the mother shape.
eVision.Legacy.EWorldShape|None	WorldShape (self)
	World ancestor.
float	ZoomX (self)
	Current horizontal zooming factor for drawing operations.
float	ZoomY (self)
	Current vertical zooming factor for drawing operations.
float	PanX (self)
	Current horizontal panning value for drawing operations, expressed in pixels.
float	PanY (self)
	Current vertical panning value for drawing operations, expressed in pixels.
eVision.EDragHandle	HitHandle (self)
	Handle currently under the cursor.
eVision.Legacy.EShape|None	HitShape (self)
	Pointer to the shape currently under the cursor.
eVision.Legacy.EShape|None	ClosestShape (self)
	Closest shape among the daughters.

Protected Member Functions
	_VisibleRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and its daughter shapes are visible or not.
	_SelectedRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and all its daughters are selected or not.
	_SelectableRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and all its daughters can be selected or not.
	_DragableRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and all its daughters can be dragged or not.
	_ResizableRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and all its daughters can be resized or not.
	_RotatableRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and all its daughters can be rotated or not.
	_LabeledRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape label should be displayed or not.
	_ActiveRecursive__setter (self, bool value)
	Sets the flag indicating whether the shape and all its daughters are active or not.
	_ActualShapeRecursive__setter (self, bool value)
	Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

Properties
	VisibleRecursive
	SelectedRecursive
	SelectableRecursive
	DragableRecursive
	ResizableRecursive
	RotatableRecursive
	LabeledRecursive
	ActiveRecursive
	ActualShapeRecursive

Detailed Description

Abstract class to federate the classes that can be hierarchically attached together (from a geometrical point of view).

Remarks:

License(s): BasicTypes

Member Function Documentation

_ActiveRecursive__setter()

eVision.Legacy.EShape._ActiveRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and all its daughters are active or not.

Remarks:

When complex gauging is required, several gauges can be grouped together. Applying Process() to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

_ActualShapeRecursive__setter()

eVision.Legacy.EShape._ActualShapeRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

The flag is set in this shape and all its daughters.

_DragableRecursive__setter()

eVision.Legacy.EShape._DragableRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and all its daughters can be dragged or not.

_LabeledRecursive__setter()

eVision.Legacy.EShape._LabeledRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape label should be displayed or not.

The flag is set in this shape and all its daughters.

_ResizableRecursive__setter()

eVision.Legacy.EShape._ResizableRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and all its daughters can be resized or not.

_RotatableRecursive__setter()

eVision.Legacy.EShape._RotatableRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and all its daughters can be rotated or not.

_SelectableRecursive__setter()

eVision.Legacy.EShape._SelectableRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and all its daughters can be selected or not.

_SelectedRecursive__setter()

eVision.Legacy.EShape._SelectedRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and all its daughters are selected or not.

_VisibleRecursive__setter()

eVision.Legacy.EShape._VisibleRecursive__setter ( self, bool value )

protected

Sets the flag indicating whether the shape and its daughter shapes are visible or not.

Active() [1/2]

bool eVision.Legacy.EShape.Active

(

self

)

Flag indicating whether the shape is active or not.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.EWedgeGauge, and eVision.Legacy.EWedgeGauge.

Active() [2/2]

eVision.Legacy.EShape.Active	(		self,
		bool	value )

Flag indicating whether the shape is active or not.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.EWedgeGauge, and eVision.Legacy.EWedgeGauge.

ActualShape() [1/2]

bool eVision.Legacy.EShape.ActualShape

(

self

)

Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

ActualShape() [2/2]

eVision.Legacy.EShape.ActualShape	(		self,
		bool	value )

Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

Attach()

None eVision.Legacy.EShape.Attach	(		self,
		eVision.Legacy.EShape | None	mother )

Attaches the gauge to a mother gauge or shape.

Remarks:

When attached to a mother gauge, be aware that daughter gauges are not positioned according to the nominal mother gauge position, but to its corresponding fitted model.

Parameters

mother

Pointer to the mother gauge or shape.

Closest()

None eVision.Legacy.EShape.Closest

(

self

)

Find the daughter shape that is the closest to this shape.

To retrieve the closest shape, use eVision.Legacy.EShape.ClosestShape.

Reimplemented in eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineShape, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeShape, and eVision.Legacy.EWorldShape.

ClosestShape()

eVision.Legacy.EShape | None eVision.Legacy.EShape.ClosestShape

(

self

)

Closest shape among the daughters.

Remarks:

Use eVision.Legacy.EShape.Closest to recompute the closest shape.

Detach()

None eVision.Legacy.EShape.Detach

(

self

)

Detaches the gauge from its mother gauge or shape.

DetachDaughters()

None eVision.Legacy.EShape.DetachDaughters

(

self

)

Detaches the daughter gauges or shapes.

DisableBehaviorFilter()

None eVision.Legacy.EShape.DisableBehaviorFilter	(		self,
		eVision.EShapeBehavior	behavior )

Disables (i.e.

removes) a condition from the list of conditions in the behavior filter.

Remarks:

The condition to be disabled is identified by the behavior about which the condition is. Disabling a behavior leads to less restrictive conditions for the Draw and HitTest methods to be actually carried on.

Parameters

behavior

The behavior of the shape to be removed from the behavior filter.

DisableTypeFilter()

None eVision.Legacy.EShape.DisableTypeFilter

(

self

)

Enables all shape types.

Reimplemented in eVision.Legacy.EWorldShape.

Drag()

None eVision.Legacy.EShape.Drag	(		self,
		int	n32CursorX,
		int	n32CursorY )

Moves a handle to a new position and updates the position parameters of the shape.

Parameters

n32CursorX	Current cursor coordinates.
n32CursorY	Current cursor coordinates.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, and eVision.Legacy.EWorldShape.

Dragable() [1/2]

bool eVision.Legacy.EShape.Dragable

(

self

)

Flag indicating whether the shape can be dragged or not.

Dragable() [2/2]

eVision.Legacy.EShape.Dragable	(		self,
		bool	value )

Flag indicating whether the shape can be dragged or not.

Draw() [1/3]

None eVision.Legacy.EShape.Draw	(		self,
		eVision.EDrawAdapter | None	graphicContext )

Draws a graphical representation of a shape, as defined by eVision.EDrawingMode.

Parameters

graphicContext

Handle of the device context on which to draw.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

Draw() [2/3]

None eVision.Legacy.EShape.Draw	(		self,
		eVision.EDrawAdapter | None	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a shape, as defined by eVision.EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by eVision.EDrawingMode.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

Draw() [3/3]

None eVision.Legacy.EShape.Draw	(		self,
		eVision.EDrawAdapter | None	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a shape, as defined by eVision.EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by eVision.EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

EnableBehaviorFilter() [1/2]

None eVision.Legacy.EShape.EnableBehaviorFilter	(		self,
		eVision.EShapeBehavior	behavior )

Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.

Remarks:

This method registers a new necessary condition for the Draw and HitTest families of methods to be actually carried on. Such a condition is about the behavior of the shape, as specified by the behavior argument. Initially, the behavior filter contains an empty list of conditions, which means that the Draw and HitTest methods will always be executed. Adding a new condition through eVision.Legacy.EShape.EnableBehaviorFilter will introduce a new restriction on the effective execution of these methods. Use eVision.Legacy.EShape.DisableBehaviorFilter to remove a condition from the behavior filter.

Parameters

behavior

The behavior of the shape to be tested.

EnableBehaviorFilter() [2/2]

None eVision.Legacy.EShape.EnableBehaviorFilter	(		self,
		eVision.EShapeBehavior	behavior,
		bool	value )

Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.

Remarks:

This method registers a new necessary condition for the Draw and HitTest families of methods to be actually carried on. Such a condition is about the behavior of the shape, as specified by the behavior argument. Initially, the behavior filter contains an empty list of conditions, which means that the Draw and HitTest methods will always be executed. Adding a new condition through eVision.Legacy.EShape.EnableBehaviorFilter will introduce a new restriction on the effective execution of these methods. Use eVision.Legacy.EShape.DisableBehaviorFilter to remove a condition from the behavior filter.

Parameters

behavior	The behavior of the shape to be tested.
value	The value at which the behavior property should be set to pass the test. By default, equals True.

EnableTypeFilter()

None eVision.Legacy.EShape.EnableTypeFilter	(		self,
		int	un32Types )

Enables the filter of the specified shape type.

Parameters

un32Types

The type of the shape to filter.

Reimplemented in eVision.Legacy.EWorldShape.

GetAllocated()

bool eVision.Legacy.EShape.GetAllocated

(

self

)

Gets the allocated flag.

GetAutoArrange()

bool eVision.Legacy.EShape.GetAutoArrange

(

self

)

GetDaughter()

eVision.Legacy.EShape | None eVision.Legacy.EShape.GetDaughter	(		self,
		int	index )

Returns a pointer to the specified daughter gauge or shape.

Parameters

index

Daughter gauge or shape index.

GetDraggingMode()

eVision.EDraggingMode eVision.Legacy.EShape.GetDraggingMode

(

self

)

Gets the dragging mode which defines how the shape could be dragged.

GetFound()

bool eVision.Legacy.EShape.GetFound

(

self

)

Flag indicating whether a measured shape has been found.

Remarks:

After calling Process() or Measure() on a gauge object, use GetFound() to get the status of the measurement.

GetInspected()

bool eVision.Legacy.EShape.GetInspected

(

self

)

GetOptionalDraw()

bool eVision.Legacy.EShape.GetOptionalDraw

(

self

)

GetPassed()

bool eVision.Legacy.EShape.GetPassed

(

self

)

GetProperty()

str eVision.Legacy.EShape.GetProperty	(		self,
		str	aProperty )

Gets the value of property aProperty.

Throws an exception if no such property exists.

Parameters

aProperty

The name of the property.

GetQuickDraw()

bool eVision.Legacy.EShape.GetQuickDraw

(

self

)

GetShapeNamed()

eVision.Legacy.EShape | None eVision.Legacy.EShape.GetShapeNamed	(		self,
		str	name )

Returns a pointer to a daughter gauge or shape specified by its name.

Parameters

name	Name of the daughter gauge or shape.

GetUserFlag()

bool eVision.Legacy.EShape.GetUserFlag

(

self

)

HasProperty()

bool eVision.Legacy.EShape.HasProperty	(		self,
		str	aProperty )

Returns whether a eVision.Legacy.EShape has a property named aProperty.

Parameters

aProperty

The name of the property.

HasValidPolarityProperty()

bool eVision.Legacy.EShape.HasValidPolarityProperty

(

self

)

Returns whether the eVision.Legacy.EShape has a valid polarity property.

I.e. if it has a property named "polarity" whose value is either "inverted" or "direct".

Remarks:

The "polarity" property is mostly used to define the orientation of the gradient in a shape of a eVision.EVectorModel.

HitHandle()

eVision.EDragHandle eVision.Legacy.EShape.HitHandle

(

self

)

Handle currently under the cursor.

Remarks:

When the cursor is over a particular handle, its shape could be changed for feedback.

HitShape()

eVision.Legacy.EShape | None eVision.Legacy.EShape.HitShape

(

self

)

Pointer to the shape currently under the cursor.

Remarks:

When the cursor is over a particular shape, its shape could be changed for feedback.

HitTest() [1/2]

bool eVision.Legacy.EShape.HitTest

(

self

)

Checks if there is a handle under the cursor.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

HitTest() [2/2]

bool eVision.Legacy.EShape.HitTest	(		self,
		bool	bDaughters )

Checks if there is a handle under the cursor.

Parameters

bDaughters

Indicates if the check must be done in the whole hierarchy or just this object.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, eVision.Legacy.EWedgeShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

InvalidateWorld()

None eVision.Legacy.EShape.InvalidateWorld

(

self

)

Invalidates the world shape for this shape and all its ancestors.

IsWorld()

bool eVision.Legacy.EShape.IsWorld

(

self

)

Labeled() [1/2]

bool eVision.Legacy.EShape.Labeled

(

self

)

Flag indicating whether the shape label should be displayed or not.

Labeled() [2/2]

eVision.Legacy.EShape.Labeled	(		self,
		bool	value )

Flag indicating whether the shape label should be displayed or not.

Load() [1/4]

None eVision.Legacy.EShape.Load	(		self,
		eVision.ESerializer | None	serializer )

Loads a Shape.The given eVision.ESerializer must have been created for reading.

Parameters

serializer

Pointer to the eVision.ESerializer created for reading.

Load() [2/4]

None eVision.Legacy.EShape.Load	(		self,
		eVision.ESerializer | None	serializer,
		bool	daughters )

Loads a Shape.The given eVision.ESerializer must have been created for reading.

Parameters

serializer	Pointer to the eVision.ESerializer created for reading.
daughters	Indicates if the load must be done on the whole hierarchy or just this object.

Load() [3/4]

None eVision.Legacy.EShape.Load	(		self,
		str	path )

Loads a Shape.The given eVision.ESerializer must have been created for reading.

Parameters

path	The file path.

Load() [4/4]

None eVision.Legacy.EShape.Load	(		self,
		str	path,
		bool	daughters )

Loads a Shape.The given eVision.ESerializer must have been created for reading.

Parameters

path	The file path.
daughters	Indicates if the load must be done on the whole hierarchy or just this object.

LocalToSensor()

eVision.EPoint eVision.Legacy.EShape.LocalToSensor	(		self,
		eVision.EPoint	LPoint )

Transforms a point from local coordinates to sensor coordinates.

Parameters

LPoint

The point in local coordinates.

Mother()

eVision.Legacy.EShape | None eVision.Legacy.EShape.Mother

(

self

)

Pointer to the mother shape.

Name() [1/2]

str eVision.Legacy.EShape.Name

(

self

)

Name of the eVision.Legacy.EShape object.

Name() [2/2]

eVision.Legacy.EShape.Name	(		self,
		str	value )

Name of the eVision.Legacy.EShape object.

NumDaughters()

int eVision.Legacy.EShape.NumDaughters

(

self

)

Number of daughters attached to the shape.

PanX()

float eVision.Legacy.EShape.PanX

(

self

)

Current horizontal panning value for drawing operations, expressed in pixels.

By default, no panning occurs.

Reimplemented in eVision.Legacy.EWorldShape.

PanY()

float eVision.Legacy.EShape.PanY

(

self

)

Current vertical panning value for drawing operations, expressed in pixels.

By default, no panning occurs.

Reimplemented in eVision.Legacy.EWorldShape.

Process() [1/4]

None eVision.Legacy.EShape.Process	(		self,
		eVision.EROIBW8 | None	pSrc )

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, and eVision.Legacy.EWedgeGauge.

Process() [2/4]

None eVision.Legacy.EShape.Process	(		self,
		eVision.EROIBW8 | None	pSrc,
		bool	bDaughters )

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, and eVision.Legacy.EWedgeGauge.

Process() [3/4]

None eVision.Legacy.EShape.Process	(		self,
		eVision.EROIBW8 | None	pSrc,
		eVision.ERegion	region )

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, and eVision.Legacy.EWedgeGauge.

Process() [4/4]

None eVision.Legacy.EShape.Process	(		self,
		eVision.EROIBW8 | None	pSrc,
		eVision.ERegion	region,
		bool	bDaughters )

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeGauge, and eVision.Legacy.EWedgeGauge.

RemoveProperty()

None eVision.Legacy.EShape.RemoveProperty	(		self,
		str	aProperty )

Removes the property name aProperty from the eVision.Legacy.EShape.

Parameters

aProperty

The name of the property.

Resizable() [1/2]

bool eVision.Legacy.EShape.Resizable

(

self

)

Flag indicating whether the shape can be resized or not.

Resizable() [2/2]

eVision.Legacy.EShape.Resizable	(		self,
		bool	value )

Flag indicating whether the shape can be resized or not.

Rotatable() [1/2]

bool eVision.Legacy.EShape.Rotatable

(

self

)

Flag indicating whether the shape can be rotated or not.

Rotatable() [2/2]

eVision.Legacy.EShape.Rotatable	(		self,
		bool	value )

Flag indicating whether the shape can be rotated or not.

Save() [1/4]

None eVision.Legacy.EShape.Save	(		self,
		eVision.ESerializer | None	serializer )

Loads a Shape.The given eVision.ESerializer must have been created for writing.

Parameters

serializer

Pointer to the eVision.ESerializer created for writing.

Save() [2/4]

None eVision.Legacy.EShape.Save	(		self,
		eVision.ESerializer | None	serializer,
		bool	daughters )

Loads a Shape.The given eVision.ESerializer must have been created for writing.

Parameters

serializer	Pointer to the eVision.ESerializer created for writing.
daughters	Indicates if the save must be done on the whole hierarchy or just this object.

Save() [3/4]

None eVision.Legacy.EShape.Save	(		self,
		str	path )

Loads a Shape.The given eVision.ESerializer must have been created for writing.

Parameters

path	The file path.

Save() [4/4]

None eVision.Legacy.EShape.Save	(		self,
		str	path,
		bool	daughters )

Loads a Shape.The given eVision.ESerializer must have been created for writing.

Parameters

path	The file path.
daughters	Indicates if the save must be done on the whole hierarchy or just this object.

Selectable() [1/2]

bool eVision.Legacy.EShape.Selectable

(

self

)

Flag indicating whether the shape can be selected or not.

Selectable() [2/2]

eVision.Legacy.EShape.Selectable	(		self,
		bool	value )

Flag indicating whether the shape can be selected or not.

Selected() [1/2]

bool eVision.Legacy.EShape.Selected

(

self

)

Flag indicating whether the shape is selected or not.

Selected() [2/2]

eVision.Legacy.EShape.Selected	(		self,
		bool	value )

Flag indicating whether the shape is selected or not.

SensorToLocal()

eVision.EPoint eVision.Legacy.EShape.SensorToLocal	(		self,
		eVision.EPoint	SPoint )

Transforms a point from sensor coordinates to local coordinates.

Parameters

SPoint

The point in sensor coordinates.

SetAutoArrange() [1/2]

None eVision.Legacy.EShape.SetAutoArrange	(		self,
		bool	bAutoArrange )

SetAutoArrange() [2/2]

None eVision.Legacy.EShape.SetAutoArrange	(		self,
		bool	bAutoArrange,
		bool	bDaughters )

SetCursor()

None eVision.Legacy.EShape.SetCursor	(		self,
		int	x,
		int	y )

Sets the cursor current coordinates.

Parameters

x	Cursor current coordinates.
y	Cursor current coordinates.

SetDraggingMode() [1/2]

None eVision.Legacy.EShape.SetDraggingMode	(		self,
		eVision.EDraggingMode	eDraggingMode )

Sets the dragging mode which defines how the shape could be dragged.

Parameters

eDraggingMode

The draggingMode.

SetDraggingMode() [2/2]

None eVision.Legacy.EShape.SetDraggingMode	(		self,
		eVision.EDraggingMode	eDraggingMode,
		bool	bDaughters )

Sets the dragging mode which defines how the shape could be dragged.

Parameters

eDraggingMode	The draggingMode.
bDaughters	Indicates if the set must be done in the whole hierarchy or just this object.

SetFound() [1/2]

None eVision.Legacy.EShape.SetFound	(		self,
		bool	bFound )

SetFound() [2/2]

None eVision.Legacy.EShape.SetFound	(		self,
		bool	bFound,
		bool	bDaughters )

SetInspected() [1/2]

None eVision.Legacy.EShape.SetInspected	(		self,
		bool	bFound )

SetInspected() [2/2]

None eVision.Legacy.EShape.SetInspected	(		self,
		bool	bFound,
		bool	bDaughters )

SetOptionalDraw() [1/2]

None eVision.Legacy.EShape.SetOptionalDraw	(		self,
		bool	bFound )

SetOptionalDraw() [2/2]

None eVision.Legacy.EShape.SetOptionalDraw	(		self,
		bool	bFound,
		bool	bDaughters )

SetPan() [1/3]

None eVision.Legacy.EShape.SetPan

(

self

)

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Remarks:

All objects attached to an eVision.Legacy.EWorldShape object inherit of the same panning factor.

Reimplemented in eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

SetPan() [2/3]

None eVision.Legacy.EShape.SetPan	(		self,
		float	panX )

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Remarks:

All objects attached to an eVision.Legacy.EWorldShape object inherit of the same panning factor.

Parameters

panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

Reimplemented in eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

SetPan() [3/3]

None eVision.Legacy.EShape.SetPan	(		self,
		float	panX,
		float	panY )

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Remarks:

All objects attached to an eVision.Legacy.EWorldShape object inherit of the same panning factor.

Parameters

panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

Reimplemented in eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

SetPassed() [1/2]

None eVision.Legacy.EShape.SetPassed	(		self,
		bool	bFound )

SetPassed() [2/2]

None eVision.Legacy.EShape.SetPassed	(		self,
		bool	bFound,
		bool	bDaughters )

SetProperty()

None eVision.Legacy.EShape.SetProperty	(		self,
		str	aProperty,
		str	aValue )

Sets the value of property aProperty to aValue for this eVision.Legacy.EShape.

Remarks:

You may use a shape property to define the orientation of the gradient in a shape of a eVision.EVectorModel. This is done by setting a property named "polarity" to "inverted" or "direct".

Additionally, you may set any property to any value for your own needs.

Parameters

aProperty	The name of the property.
aValue	The value of the property.

SetPropertyRecursive()

None eVision.Legacy.EShape.SetPropertyRecursive	(		self,
		str	aProperty,
		str	aValue )

Sets the value of property aProperty to aValue for this eVision.Legacy.EShape and all of its daughters.

Parameters

aProperty	The name of the property.
aValue	The value of the property.

SetQuickDraw() [1/2]

None eVision.Legacy.EShape.SetQuickDraw	(		self,
		bool	bFound )

SetQuickDraw() [2/2]

None eVision.Legacy.EShape.SetQuickDraw	(		self,
		bool	bFound,
		bool	bDaughters )

SetUserFlag() [1/2]

None eVision.Legacy.EShape.SetUserFlag	(		self,
		bool	bUserFlag )

SetUserFlag() [2/2]

None eVision.Legacy.EShape.SetUserFlag	(		self,
		bool	bUserFlag,
		bool	bDaughters )

SetZoom() [1/3]

None eVision.Legacy.EShape.SetZoom

(

self

)

Sets the horizontal and vertical zooming factors for drawing operations.

Remarks:

All objects attached to an eVision.Legacy.EWorldShape inherit of the same zooming factor.

Reimplemented in eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

SetZoom() [2/3]

None eVision.Legacy.EShape.SetZoom	(		self,
		float	zoomX )

Sets the horizontal and vertical zooming factors for drawing operations.

Remarks:

All objects attached to an eVision.Legacy.EWorldShape inherit of the same zooming factor.

Parameters

zoomX

Horizontal zooming factor. By default, true scale is used.

Reimplemented in eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

SetZoom() [3/3]

None eVision.Legacy.EShape.SetZoom	(		self,
		float	zoomX,
		float	zoomY )

Sets the horizontal and vertical zooming factors for drawing operations.

Remarks:

All objects attached to an eVision.Legacy.EWorldShape inherit of the same zooming factor.

Parameters

zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0, the default value, the horizontal zooming factor is used instead, so as to provide isotropic zooming.

Reimplemented in eVision.Legacy.EWorldShape, eVision.Legacy.EWorldShape, and eVision.Legacy.EWorldShape.

Type()

eVision.EShapeType eVision.Legacy.EShape.Type

(

self

)

Shape type.

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ECircleShape, eVision.Legacy.EFrameShape, eVision.Legacy.ELineGauge, eVision.Legacy.ELineShape, eVision.Legacy.EPointGauge, eVision.Legacy.EPointShape, eVision.Legacy.EPolygonGauge, eVision.Legacy.EPolygonShape, eVision.Legacy.ERectangleGauge, eVision.Legacy.ERectangleShape, eVision.Legacy.EWedgeGauge, eVision.Legacy.EWedgeShape, and eVision.Legacy.EWorldShape.

Visible() [1/2]

bool eVision.Legacy.EShape.Visible

(

self

)

Flag indicating whether the shape is visible or not.

Visible() [2/2]

eVision.Legacy.EShape.Visible	(		self,
		bool	value )

Flag indicating whether the shape is visible or not.

WorldShape()

eVision.Legacy.EWorldShape | None eVision.Legacy.EShape.WorldShape

(

self

)

World ancestor.

ZoomX()

float eVision.Legacy.EShape.ZoomX

(

self

)

Current horizontal zooming factor for drawing operations.

Reimplemented in eVision.Legacy.EWorldShape.

ZoomY()

float eVision.Legacy.EShape.ZoomY

(

self

)

Current vertical zooming factor for drawing operations.

Reimplemented in eVision.Legacy.EWorldShape.

Property Documentation

ActiveRecursive

eVision.Legacy.EShape.ActiveRecursive

static

Initial value:

=  property(None, _ActiveRecursive__setter, None,

    )

ActualShapeRecursive

eVision.Legacy.EShape.ActualShapeRecursive

static

Initial value:

=  property(None, _ActualShapeRecursive__setter, None,

    )

DragableRecursive

eVision.Legacy.EShape.DragableRecursive

static

Initial value:

=  property(None, _DragableRecursive__setter, None,

    )

LabeledRecursive

eVision.Legacy.EShape.LabeledRecursive

static

Initial value:

=  property(None, _LabeledRecursive__setter, None,

    )

ResizableRecursive

eVision.Legacy.EShape.ResizableRecursive

static

Initial value:

=  property(None, _ResizableRecursive__setter, None,

    )

RotatableRecursive

eVision.Legacy.EShape.RotatableRecursive

static

Initial value:

=  property(None, _RotatableRecursive__setter, None,

    )

SelectableRecursive

eVision.Legacy.EShape.SelectableRecursive

static

Initial value:

=  property(None, _SelectableRecursive__setter, None,

    )

SelectedRecursive

eVision.Legacy.EShape.SelectedRecursive

static

Initial value:

=  property(None, _SelectedRecursive__setter, None,

    )

VisibleRecursive

eVision.Legacy.EShape.VisibleRecursive

static

Initial value:

=  property(None, _VisibleRecursive__setter, None,

    )
