Manages a point location gauge. More...

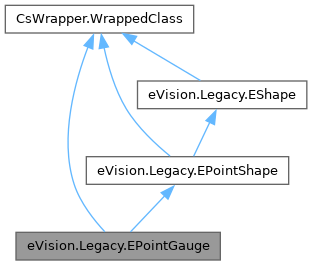

Inheritance diagram for eVision.Legacy.EPointGauge:

[legend]

Collaboration diagram for eVision.Legacy.EPointGauge:

[legend]

Public Member Functions
	EPointGauge ()
	Constructs a point measurement context.
	EPointGauge (float centerX, float centerY)
	Constructs a point measurement context.
	EPointGauge (eVision.Legacy.EPointGauge other)
	Constructs a point measurement context.
void	SetTolerances (float tolerance, float angle)
	Sets the half length and the rotation angle of the point location gauge.
void	SetTolerances (float tolerance)
	Sets the half length and the rotation angle of the point location gauge.
eVision.EPeak	GetMeasuredPeak (uint index)
	Returns information pertaining to the derivative peak associated with the specified edge-crossing point, such as its area, amplitude, start, length and center.
eVision.EPeak	GetMeasuredPeak ()
	Returns information pertaining to the derivative peak associated with the specified edge-crossing point, such as its area, amplitude, start, length and center.
void	Plot (eVision.EDrawAdapter graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (eVision.EDrawAdapter graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (eVision.EDrawAdapter graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	PlotWithCurrentPen (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	PlotWithCurrentPen (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	PlotWithCurrentPen (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	CopyTo (eVision.Legacy.EPointGauge other, bool recursive)
	Copies all the data of the current EPointGauge object into another EPointGauge object, and returns it.
void	CopyTo (eVision.Legacy.EPointGauge other)
	Copies all the data of the current EPointGauge object into another EPointGauge object, and returns it.
override void	SetCenterXY (float centerX, float centerY)
	Sets the center coordinates of a EPointGauge object.
void	Measure (eVision.EROIBW8 sourceImage)
	Triggers the point location or the model fitting operation.
void	Measure (eVision.EROIBW8 sourceImage, eVision.ERegion region)
	Triggers the point location or the model fitting operation.
override void	Process (eVision.EROIBW8 sourceImage, bool daughters)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
override void	Process (eVision.EROIBW8 sourceImage)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
override void	Process (eVision.EROIBW8 sourceImage, eVision.ERegion region, bool daughters)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
override void	Process (eVision.EROIBW8 sourceImage, eVision.ERegion region)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
eVision.EPoint	GetMeasuredPoint (uint index)
	Returns the coordinates of an edge-crossing point, measured along the unique sample path of the point location gauge.
eVision.EPoint	GetMeasuredPoint ()
	Returns the coordinates of an edge-crossing point, measured along the unique sample path of the point location gauge.
override void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter drawAdapter, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter drawAdapter)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override bool	HitTest (bool daughters)
	Checks whether the cursor is positioned over a handle (true) or not (false).
override bool	HitTest ()
	Checks whether the cursor is positioned over a handle (true) or not (false).
override void	Drag (int x, int y)
	Moves a handle to a new position and updates the position parameters of the gauge.
void	Plot (System.Drawing.Graphics graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
Public Member Functions inherited from eVision.Legacy.EPointShape
void	CopyTo (eVision.Legacy.EPointShape other, bool recursive)
	Copies all the data of the current EPointShape object into another EPointShape object, and returns it.
void	CopyTo (eVision.Legacy.EPointShape other)
	Copies all the data of the current EPointShape object into another EPointShape object, and returns it.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Closest ()
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape.ClosestShape.
override bool	HitTest (bool bDaughters)
	Checks if there is a handle under the cursor.
override bool	HitTest ()
	Checks if there is a handle under the cursor.
override void	Drag (int x, int y)
	Moves a handle to a new position and updates the position parameters of the gauge.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
Public Member Functions inherited from eVision.Legacy.EShape
eVision.Legacy.EShape	GetShapeNamed (string name)
	Returns a pointer to a daughter gauge or shape specified by its name.
bool	GetFound ()
	Flag indicating whether a measured shape has been found.
bool	GetAutoArrange ()
void	SetAutoArrange (bool bAutoArrange, bool bDaughters)
void	SetAutoArrange (bool bAutoArrange)
virtual void	SetFound (bool bFound, bool bDaughters)
virtual void	SetFound (bool bFound)
bool	GetInspected ()
void	SetInspected (bool bFound, bool bDaughters)
void	SetInspected (bool bFound)
bool	GetPassed ()
void	SetPassed (bool bFound, bool bDaughters)
void	SetPassed (bool bFound)
bool	GetQuickDraw ()
void	SetQuickDraw (bool bFound, bool bDaughters)
void	SetQuickDraw (bool bFound)
bool	GetOptionalDraw ()
void	SetOptionalDraw (bool bFound, bool bDaughters)
void	SetOptionalDraw (bool bFound)
bool	GetUserFlag ()
void	SetUserFlag (bool bUserFlag, bool bDaughters)
void	SetUserFlag (bool bUserFlag)
bool	GetAllocated ()
	Gets the allocated flag.
void	EnableBehaviorFilter (eVision.EShapeBehavior behavior, bool value)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	EnableBehaviorFilter (eVision.EShapeBehavior behavior)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	DisableBehaviorFilter (eVision.EShapeBehavior behavior)
	Disables (i.e. removes) a condition from the list of conditions in the behavior filter.
void	Attach (eVision.Legacy.EShape mother)
	Attaches the gauge to a mother gauge or shape.
void	Detach ()
	Detaches the gauge from its mother gauge or shape.
void	DetachDaughters ()
	Detaches the daughter gauges or shapes.
virtual eVision.Legacy.EShape	GetDaughter (uint index)
	Returns a pointer to the specified daughter gauge or shape.
bool	IsWorld ()
void	InvalidateWorld ()
	Invalidates the world shape for this shape and all its ancestors.
eVision.EPoint	LocalToSensor (eVision.EPoint LPoint)
	Transforms a point from local coordinates to sensor coordinates.
eVision.EPoint	SensorToLocal (eVision.EPoint SPoint)
	Transforms a point from sensor coordinates to local coordinates.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	SetZoom (float zoomX, float zoomY)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom (float zoomX)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom ()
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetPan (float panX, float panY)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan (float panX)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan ()
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
bool	HitTest (bool bDaughters)
	Checks if there is a handle under the cursor.
bool	HitTest ()
	Checks if there is a handle under the cursor.
void	SetDraggingMode (eVision.EDraggingMode eDraggingMode, bool bDaughters)
	Sets the dragging mode which defines how the shape could be dragged.
void	SetDraggingMode (eVision.EDraggingMode eDraggingMode)
	Sets the dragging mode which defines how the shape could be dragged.
eVision.EDraggingMode	GetDraggingMode ()
	Gets the dragging mode which defines how the shape could be dragged.
void	SetCursor (int x, int y)
	Sets the cursor current coordinates.
void	Drag (int n32CursorX, int n32CursorY)
	Moves a handle to a new position and updates the position parameters of the shape.
void	Closest ()
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape.ClosestShape.
void	Save (string path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (string path)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Load (string path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (string path)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Loads a Shape.The given ESerializer must have been created for reading.
bool	HasProperty (string aProperty)
	Returns whether a EShape has a property named aProperty.
string	GetProperty (string aProperty)
	Gets the value of property aProperty. Throws an exception if no such property exists.
void	SetProperty (string aProperty, string aValue)
	Sets the value of property aProperty to aValue for this EShape.
void	SetPropertyRecursive (string aProperty, string aValue)
	Sets the value of property aProperty to aValue for this EShape and all of its daughters.
void	RemoveProperty (string aProperty)
	Removes the property name aProperty from the EShape.
bool	HasValidPolarityProperty ()
	Returns whether the EShape has a valid polarity property.
virtual void	EnableTypeFilter (uint un32Types)
	Enables the filter of the specified shape type.
virtual void	DisableTypeFilter ()
	Enables all shape types.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.

Properties
float	Tolerance `[get, set]`
	Half length of the point location gauge.
float	ToleranceAngle `[get, set]`
	Rotation angle of the point location gauge.
bool	HVConstraint `[get, set]`
	Status of the restriction on the orientation of the point location gauge or model fitting sample paths.
uint	Thickness `[get, set]`
	Number of parallel segments used to extract the data profile.
uint	Smoothing `[get, set]`
	Number of pixels used for the low-pass filtering operation.
eVision.ETransitionType	TransitionType `[get, set]`
	Transition type.
eVision.ETransitionChoice	TransitionChoice `[get, set]`
	Transition choice.
uint	TransitionIndex `[get, set]`
	Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice.ETransitionChoice_NthFromBegin or ETransitionChoice.ETransitionChoice_NthFromEnd.
uint	Threshold `[get, set]`
	Threshold level used to delimit significant peaks in the data profile.
uint	MinAmplitude `[get, set]`
	Offset added to the Threshold when a peak is to be detected.
uint	MinArea `[get, set]`
	Minimum area value.
uint	NumMeasuredPoints `[get]`
	Number of edge-crossing points along the point location gauge.
eVision.EPeak[]	MeasuredPeaks `[get]`
	Returns information pertaining to the derivative peak associated with all of the edge-crossing point, such as its area, amplitude, start, length and center.
bool	Valid `[get]`
	Flag indicating if at least one valid transition has been found.
eVision.EPoint	Shape `[get]`
override eVision.EPoint	Center `[set]`
	Center coordinates of a EPointGauge object.
new bool	Active `[get, set]`
	Sets the flag indicating whether the gauge is active or not.
bool	RectangularSamplingArea `[get, set]`
	Flag indicating whether the sampling area remains a rectangle when rotated, instead of becoming a parallelogram.
eVision.EPoint[]	MeasuredPoints `[get]`
	Returns the coordinates of all edge-crossing points, measured along the unique sample path of the point location gauge.
override eVision.EShapeType	Type `[get]`
	Shape type.
Properties inherited from eVision.Legacy.EPointShape
virtual eVision.EPoint	Center `[get, set]`
	Center coordinates of a EPointShape object.
float	CenterX `[get]`
	Abscissa of the origin point of the frame.
float	CenterY `[get]`
	Ordinate of the origin point of the frame.
float	Scale `[get, set]`
float	Angle `[get, set]`
override eVision.EShapeType	Type `[get]`
	Shape type.
Properties inherited from eVision.Legacy.EShape
eVision.EShapeType	Type `[get]`
	Shape type.
string	Name `[get, set]`
	Name of the EShape object.
bool	Visible `[get, set]`
	Flag indicating whether the shape is visible or not.
bool	VisibleRecursive `[set]`
	Sets the flag indicating whether the shape and its daughter shapes are visible or not.
bool	Selected `[get, set]`
	Flag indicating whether the shape is selected or not.
bool	SelectedRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters are selected or not.
bool	Selectable `[get, set]`
	Flag indicating whether the shape can be selected or not.
bool	SelectableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be selected or not.
bool	Dragable `[get, set]`
	Flag indicating whether the shape can be dragged or not.
bool	DragableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be dragged or not.
bool	Resizable `[get, set]`
	Flag indicating whether the shape can be resized or not.
bool	ResizableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be resized or not.
bool	Rotatable `[get, set]`
	Flag indicating whether the shape can be rotated or not.
bool	RotatableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be rotated or not.
bool	Labeled `[get, set]`
	Flag indicating whether the shape label should be displayed or not.
bool	LabeledRecursive `[set]`
	Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.
virtual bool	Active `[get, set]`
	Flag indicating whether the shape is active or not.
virtual bool	ActiveRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters are active or not.
bool	ActualShape `[get, set]`
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
bool	ActualShapeRecursive `[set]`
	Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.
uint	NumDaughters `[get]`
	Number of daughters attached to the shape.
eVision.Legacy.EShape	Mother `[get]`
	Pointer to the mother shape.
eVision.Legacy.EWorldShape	WorldShape `[get]`
	World ancestor.
virtual float	ZoomX `[get]`
	Current horizontal zooming factor for drawing operations.
virtual float	ZoomY `[get]`
	Current vertical zooming factor for drawing operations.
virtual float	PanX `[get]`
	Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual float	PanY `[get]`
	Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.
eVision.EDragHandle	HitHandle `[get]`
	Handle currently under the cursor.
eVision.Legacy.EShape	HitShape `[get]`
	Pointer to the shape currently under the cursor.
eVision.Legacy.EShape	ClosestShape `[get]`
	Closest shape among the daughters.

Detailed Description

Manages a point location gauge.

License(s): EasyGauge

Constructor & Destructor Documentation

◆ EPointGauge() [1/3]

eVision.Legacy.EPointGauge.EPointGauge ( )

Constructs a point measurement context.

With the default constructor, all the parameters are initialized to their respective default values. With the copy constructor, the constructed point measurement context is based on a pre-existing EPointGauge.EPointGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the EPointGauge.CopyTo method.

◆ EPointGauge() [2/3]

eVision.Legacy.EPointGauge.EPointGauge	(	float	centerX,
		float	centerY )

Constructs a point measurement context.

Parameters

centerX	Point X coordinate.
centerY	Point Y coordinate.

With the default constructor, all the parameters are initialized to their respective default values. With the copy constructor, the constructed point measurement context is based on a pre-existing EPointGauge.EPointGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the EPointGauge.CopyTo method.

◆ EPointGauge() [3/3]

eVision.Legacy.EPointGauge.EPointGauge ( eVision.Legacy.EPointGauge other )

Constructs a point measurement context.

Parameters

other Another EPointGauge object to be copied in the new EPointGauge object.

With the default constructor, all the parameters are initialized to their respective default values. With the copy constructor, the constructed point measurement context is based on a pre-existing EPointGauge.EPointGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the EPointGauge.CopyTo method.

Member Function Documentation

◆ CopyTo() [1/2]

void eVision.Legacy.EPointGauge.CopyTo ( eVision.Legacy.EPointGauge other )

Copies all the data of the current EPointGauge object into another EPointGauge object, and returns it.

Parameters

other Pointer to the EPointGauge object in which the current EPointGauge object data have to be copied.

In the overload taking a pointer, in case of a NULL pointer, a new EPointGauge object will be created and returned.

◆ CopyTo() [2/2]

void eVision.Legacy.EPointGauge.CopyTo	(	eVision.Legacy.EPointGauge	other,
		bool	recursive )

Copies all the data of the current EPointGauge object into another EPointGauge object, and returns it.

Parameters

other	Pointer to the EPointGauge object in which the current EPointGauge object data have to be copied.
recursive	true if the children gauges have to be copied as well, false otherwise.

In the overload taking a pointer, in case of a NULL pointer, a new EPointGauge object will be created and returned.

◆ Drag()

override void eVision.Legacy.EPointGauge.Drag	(	int	x,
		int	y )

Moves a handle to a new position and updates the position parameters of the gauge.

Parameters

x	Cursor current X coordinate.
y	Cursor current Y coordinate.

◆ Draw() [1/15]

override void eVision.Legacy.EPointGauge.Draw ( eVision.EDrawAdapter drawAdapter )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

drawAdapter A pointer to an EDrawAdapter (like the EWindowsDrawAdapter).

◆ Draw() [2/15]

override void eVision.Legacy.EPointGauge.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

drawAdapter	A pointer to an EDrawAdapter (like the EWindowsDrawAdapter).
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

◆ Draw() [3/15]

override void eVision.Legacy.EPointGauge.Draw	(	eVision.EDrawAdapter	drawAdapter,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

drawAdapter	A pointer to an EDrawAdapter (like the EWindowsDrawAdapter).
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

◆ Draw() [4/15]

override void eVision.Legacy.EPointGauge.Draw ( IntPtr graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [5/15]

override void eVision.Legacy.EPointGauge.Draw	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [6/15]

override void eVision.Legacy.EPointGauge.Draw	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [7/15]

override void eVision.Legacy.EPointGauge.Draw	(	IntPtr	graphicContext,
		eVision.ERGBColor	color )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [8/15]

override void eVision.Legacy.EPointGauge.Draw	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [9/15]

override void eVision.Legacy.EPointGauge.Draw	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [10/15]

override void eVision.Legacy.EPointGauge.Draw ( System.Drawing.Graphics graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [11/15]

override void eVision.Legacy.EPointGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [12/15]

override void eVision.Legacy.EPointGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [13/15]

override void eVision.Legacy.EPointGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [14/15]

override void eVision.Legacy.EPointGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [15/15]

override void eVision.Legacy.EPointGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawWithCurrentPen() [1/3]

override void eVision.Legacy.EPointGauge.DrawWithCurrentPen ( IntPtr graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated

Use the overload of EPointGauge.Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawWithCurrentPen() [2/3]

override void eVision.Legacy.EPointGauge.DrawWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload of EPointGauge.Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawWithCurrentPen() [3/3]

override void eVision.Legacy.EPointGauge.DrawWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload of EPointGauge.Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ GetMeasuredPeak() [1/2]

eVision.EPeak eVision.Legacy.EPointGauge.GetMeasuredPeak ( )

Returns information pertaining to the derivative peak associated with the specified edge-crossing point, such as its area, amplitude, start, length and center.

If index is left unchanged from its default value (i.e. ~0 = 0xFFFFFFFF), the peak associated to the default edge-crossing point is inspected. This default point is chosen according to the transition choice parameter that is managed by the EPointGauge.TransitionChoice property.

If you want to query more than 10 peaks, using EPointGauge.MeasuredPeaks should be faster.

Note: For this method to succeed, it is necessary to previously call EPointGauge.Measure.

◆ GetMeasuredPeak() [2/2]

eVision.EPeak eVision.Legacy.EPointGauge.GetMeasuredPeak ( uint index )

Returns information pertaining to the derivative peak associated with the specified edge-crossing point, such as its area, amplitude, start, length and center.

Parameters

index Index of the edge-crossing point along the probed line segment, between 0 and EPointGauge.NumMeasuredPoints (excluded).

If index is left unchanged from its default value (i.e. ~0 = 0xFFFFFFFF), the peak associated to the default edge-crossing point is inspected. This default point is chosen according to the transition choice parameter that is managed by the EPointGauge.TransitionChoice property.

If you want to query more than 10 peaks, using EPointGauge.MeasuredPeaks should be faster.

Note: For this method to succeed, it is necessary to previously call EPointGauge.Measure.

◆ GetMeasuredPoint() [1/2]

eVision.EPoint eVision.Legacy.EPointGauge.GetMeasuredPoint ( )

Returns the coordinates of an edge-crossing point, measured along the unique sample path of the point location gauge.

These coordinates pertain to the World space; they are expressed in the reference frame to which the current EPointGauge object belongs. An EPointGauge object features only one sample path, which contrasts with the other kinds of gauges. The argument index specifies the index of the edge-crossing point that is considered along this unique sample path. If index is left unchanged from its default value (i.e. ~0 = 0xFFFFFFFF), the default edge-crossing point is inspected. This default point is chosen according to the transition choice parameter that is managed by the EPointGauge.TransitionChoice property.

If you want to query more than 10 points, using EPointGauge.MeasuredPoints should be faster.

Note: For this method to succeed, it is necessary to previously call EPointGauge.Measure.

◆ GetMeasuredPoint() [2/2]

eVision.EPoint eVision.Legacy.EPointGauge.GetMeasuredPoint ( uint index )

Returns the coordinates of an edge-crossing point, measured along the unique sample path of the point location gauge.

Parameters

index Index of the edge-crossing point along the probed line segment, between 0 and EPointGauge.NumMeasuredPoints (excluded).

These coordinates pertain to the World space; they are expressed in the reference frame to which the current EPointGauge object belongs. An EPointGauge object features only one sample path, which contrasts with the other kinds of gauges. The argument index specifies the index of the edge-crossing point that is considered along this unique sample path. If index is left unchanged from its default value (i.e. ~0 = 0xFFFFFFFF), the default edge-crossing point is inspected. This default point is chosen according to the transition choice parameter that is managed by the EPointGauge.TransitionChoice property.

If you want to query more than 10 points, using EPointGauge.MeasuredPoints should be faster.

Note: For this method to succeed, it is necessary to previously call EPointGauge.Measure.

◆ HitTest() [1/2]

override bool eVision.Legacy.EPointGauge.HitTest ( )

Checks whether the cursor is positioned over a handle (true) or not (false).

◆ HitTest() [2/2]

override bool eVision.Legacy.EPointGauge.HitTest ( bool daughters )

Checks whether the cursor is positioned over a handle (true) or not (false).

Parameters

daughters true if the daughters gauges handles have to be considered as well.

◆ Measure() [1/2]

void eVision.Legacy.EPointGauge.Measure ( eVision.EROIBW8 sourceImage )

Triggers the point location or the model fitting operation.

Parameters

sourceImage Pointer to the source image.

When this method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ Measure() [2/2]

void eVision.Legacy.EPointGauge.Measure	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region )

Triggers the point location or the model fitting operation.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.

When this method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ Plot() [1/15]

void eVision.Legacy.EPointGauge.Plot	(	eVision.EDrawAdapter	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

◆ Plot() [2/15]

void eVision.Legacy.EPointGauge.Plot	(	eVision.EDrawAdapter	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

◆ Plot() [3/15]

void eVision.Legacy.EPointGauge.Plot	(	eVision.EDrawAdapter	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

◆ Plot() [4/15]

void eVision.Legacy.EPointGauge.Plot	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [5/15]

void eVision.Legacy.EPointGauge.Plot	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [6/15]

void eVision.Legacy.EPointGauge.Plot	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [7/15]

void eVision.Legacy.EPointGauge.Plot	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [8/15]

void eVision.Legacy.EPointGauge.Plot	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [9/15]

void eVision.Legacy.EPointGauge.Plot	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [10/15]

void eVision.Legacy.EPointGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [11/15]

void eVision.Legacy.EPointGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [12/15]

void eVision.Legacy.EPointGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [13/15]

void eVision.Legacy.EPointGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [14/15]

void eVision.Legacy.EPointGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [15/15]

void eVision.Legacy.EPointGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ PlotWithCurrentPen() [1/3]

void eVision.Legacy.EPointGauge.PlotWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

Deprecated

Use the overload of EPointGauge.Plot taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ PlotWithCurrentPen() [2/3]

void eVision.Legacy.EPointGauge.PlotWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

Deprecated

Use the overload of EPointGauge.Plot taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ PlotWithCurrentPen() [3/3]

void eVision.Legacy.EPointGauge.PlotWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by a point location gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

Deprecated

Use the overload of EPointGauge.Plot taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Process() [1/4]

override void eVision.Legacy.EPointGauge.Process ( eVision.EROIBW8 sourceImage )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage Pointer to the source image.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ Process() [2/4]

override void eVision.Legacy.EPointGauge.Process	(	eVision.EROIBW8	sourceImage,
		bool	daughters )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
daughters	Flag indicating whether the daughters shapes inherit of the same behavior.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ Process() [3/4]

override void eVision.Legacy.EPointGauge.Process	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ Process() [4/4]

override void eVision.Legacy.EPointGauge.Process	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region,
		bool	daughters )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.
daughters	Flag indicating whether the daughters shapes inherit of the same behavior.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ SetCenterXY()

override void eVision.Legacy.EPointGauge.SetCenterXY	(	float	centerX,
		float	centerY )

virtual

Sets the center coordinates of a EPointGauge object.

Parameters

centerX	Center coordinates of the EPointGauge object.
centerY	Center coordinates of the EPointGauge object.

Reimplemented from eVision.Legacy.EPointShape.

◆ SetTolerances() [1/2]

void eVision.Legacy.EPointGauge.SetTolerances ( float tolerance )

Sets the half length and the rotation angle of the point location gauge.

Parameters

tolerance Half length of the point location gauge. The default value is 10.

By default, the point location gauge length value is 20 (2x10), which means 20 pixels when the field of view is not calibrated and 20 "units" in case of a calibrated field of view. The sign of the rotation angle depends whether the field of view is calibrated or not.

When the field of view is calibrated, the coordinate system is said to be direct, the abscissa extends rightwards and the ordinate extends upwards. In this case, an anticlockwise rotation leads to a positive angle value.
When the field of view is not calibrated, the coordinate system is said to be inverse, the abscissa extends rightwards and the ordinate extends downwards. In this case, a clockwise rotation leads to a positive angle value.

◆ SetTolerances() [2/2]

void eVision.Legacy.EPointGauge.SetTolerances	(	float	tolerance,
		float	angle )

Sets the half length and the rotation angle of the point location gauge.

Parameters

tolerance	Half length of the point location gauge. The default value is 10.
angle	Rotation angle of the point location gauge. The default value is 0.

By default, the point location gauge length value is 20 (2x10), which means 20 pixels when the field of view is not calibrated and 20 "units" in case of a calibrated field of view. The sign of the rotation angle depends whether the field of view is calibrated or not.

When the field of view is calibrated, the coordinate system is said to be direct, the abscissa extends rightwards and the ordinate extends upwards. In this case, an anticlockwise rotation leads to a positive angle value.
When the field of view is not calibrated, the coordinate system is said to be inverse, the abscissa extends rightwards and the ordinate extends downwards. In this case, a clockwise rotation leads to a positive angle value.

Property Documentation

◆ Active

new bool eVision.Legacy.EPointGauge.Active

getset

Sets the flag indicating whether the gauge is active or not.

When complex gauging is required, several gauges can be grouped together. Applying EPointGauge.Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process. By default, the gauge is active (true).

◆ Center

override eVision.EPoint eVision.Legacy.EPointGauge.Center

set

Center coordinates of a EPointGauge object.

◆ HVConstraint

bool eVision.Legacy.EPointGauge.HVConstraint

getset

Status of the restriction on the orientation of the point location gauge or model fitting sample paths.

Sample paths are the point location gauges placed along the model to be fitted.

◆ MeasuredPeaks

eVision.EPeak [] eVision.Legacy.EPointGauge.MeasuredPeaks

get

Returns information pertaining to the derivative peak associated with all of the edge-crossing point, such as its area, amplitude, start, length and center.

If you want to query less than 10 peaks, using EPointGauge.GetMeasuredPeak should be faster.

Note: For this method to succeed, it is necessary to previously call EPointGauge.Measure.

◆ MeasuredPoints

eVision.EPoint [] eVision.Legacy.EPointGauge.MeasuredPoints

get

Returns the coordinates of all edge-crossing points, measured along the unique sample path of the point location gauge.

These coordinates pertain to the World space; they are expressed in the reference frame to which the current EPointGauge object belongs.

If you want to query less than 10 points, using EPointGauge.GetMeasuredPoint should be faster.

Note: For this method to succeed, it is necessary to previously call EPointGauge.Measure.

◆ MinAmplitude

uint eVision.Legacy.EPointGauge.MinAmplitude

getset

Offset added to the Threshold when a peak is to be detected.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value. To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected. When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ MinArea

uint eVision.Legacy.EPointGauge.MinArea

getset

Minimum area value.

A transition is detected if its derivative peak reaches Threshold + MinAmplitude value, and then declared valid if the area between the peak curve and the horizontal at level Threshold reaches the MinArea value.

◆ NumMeasuredPoints

uint eVision.Legacy.EPointGauge.NumMeasuredPoints

get

Number of edge-crossing points along the point location gauge.

◆ RectangularSamplingArea

bool eVision.Legacy.EPointGauge.RectangularSamplingArea

getset

Flag indicating whether the sampling area remains a rectangle when rotated, instead of becoming a parallelogram.

By default, this flag is set to true: the sampling area always remains a rectangle. Setting this property is only useful when the thickness transition parameter is greater than 1. In fact, when thickness transition parameter is equal to 1, rectangle and parallelogram reduce to the same segment.

◆ Shape

eVision.EPoint eVision.Legacy.EPointGauge.Shape

get

◆ Smoothing

uint eVision.Legacy.EPointGauge.Smoothing

getset

Number of pixels used for the low-pass filtering operation.

To reduce the effect of noise, the profile data can be low-pass filtered along the point location gauge direction.

◆ Thickness

uint eVision.Legacy.EPointGauge.Thickness

getset

Number of parallel segments used to extract the data profile.

To reduce the effect of noise and/or strengthen a transition, several parallel profiles can be accumulated.

◆ Threshold

uint eVision.Legacy.EPointGauge.Threshold

getset

Threshold level used to delimit significant peaks in the data profile.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value. To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected. When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ Tolerance

float eVision.Legacy.EPointGauge.Tolerance

getset

Half length of the point location gauge.

By default, the length of the point location gauge is 20 (2x10), which means 20 pixels when the field of view is not calibrated, and 20 physical units in case of a calibrated field of view.

◆ ToleranceAngle

float eVision.Legacy.EPointGauge.ToleranceAngle

getset

Rotation angle of the point location gauge.

By default, the rotation angle of the point location gauge is 0. The sign of the rotation angle depends whether the field of view is calibrated or not.

When the field of view is calibrated, the coordinate system is said to be direct, the abscissa extends rightwards and the ordinate extends upwards. In this case, an anticlockwise rotation leads to a positive angle value.
When the field of view is not calibrated, the coordinate system is said to be inverse, the abscissa extends rightwards and the ordinate extends downwards. In this case, a clockwise rotation leads to a positive angle value.

◆ TransitionChoice

eVision.ETransitionChoice eVision.Legacy.EPointGauge.TransitionChoice

getset

Transition choice.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition. In case of ETransitionChoice.ETransitionChoice_NthFromBegin or ETransitionChoice.ETransitionChoice_NthFromEnd transition choice, set EPointGauge.TransitionIndex to specify the desired transition. By default, the selected transition corresponds to the one with the largest amplitude (ETransitionChoice.ETransitionChoice_LargestAmplitude).

◆ TransitionIndex

uint eVision.Legacy.EPointGauge.TransitionIndex

getset

Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice.ETransitionChoice_NthFromBegin or ETransitionChoice.ETransitionChoice_NthFromEnd.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition. By default, the first transition is retained (the index value is 0).

◆ TransitionType

eVision.ETransitionType eVision.Legacy.EPointGauge.TransitionType

getset

Transition type.

The type of a transition tells whether it crosses increasing or decreasing gray-level values. This helps discriminate between nearby edges of an object. By default, the searched transition type is indifferently a black to white or a white to black transition (ETransitionType.ETransitionType_BwOrWb).

◆ Type

override eVision.EShapeType eVision.Legacy.EPointGauge.Type

get

Shape type.

◆ Valid

bool eVision.Legacy.EPointGauge.Valid

get

Flag indicating if at least one valid transition has been found.

A false value means that no measurement has been performed. A true value means that a transition was found along the sample path defined by the EPointGauge, and thus a point was measured.

Public Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ EPointGauge() [1/3]

◆ EPointGauge() [2/3]

◆ EPointGauge() [3/3]

Member Function Documentation

◆ CopyTo() [1/2]

◆ CopyTo() [2/2]

◆ Drag()

◆ Draw() [1/15]

◆ Draw() [2/15]

◆ Draw() [3/15]

◆ Draw() [4/15]

◆ Draw() [5/15]

◆ Draw() [6/15]

◆ Draw() [7/15]

◆ Draw() [8/15]

◆ Draw() [9/15]

◆ Draw() [10/15]

◆ Draw() [11/15]

◆ Draw() [12/15]

◆ Draw() [13/15]

◆ Draw() [14/15]

◆ Draw() [15/15]

◆ DrawWithCurrentPen() [1/3]

◆ DrawWithCurrentPen() [2/3]

◆ DrawWithCurrentPen() [3/3]

◆ GetMeasuredPeak() [1/2]

◆ GetMeasuredPeak() [2/2]

◆ GetMeasuredPoint() [1/2]

◆ GetMeasuredPoint() [2/2]

◆ HitTest() [1/2]

◆ HitTest() [2/2]

◆ Measure() [1/2]

◆ Measure() [2/2]

◆ Plot() [1/15]

◆ Plot() [2/15]

◆ Plot() [3/15]

◆ Plot() [4/15]

◆ Plot() [5/15]

◆ Plot() [6/15]

◆ Plot() [7/15]

◆ Plot() [8/15]

◆ Plot() [9/15]

◆ Plot() [10/15]

◆ Plot() [11/15]

◆ Plot() [12/15]

◆ Plot() [13/15]

◆ Plot() [14/15]

◆ Plot() [15/15]

◆ PlotWithCurrentPen() [1/3]

◆ PlotWithCurrentPen() [2/3]

◆ PlotWithCurrentPen() [3/3]

◆ Process() [1/4]

◆ Process() [2/4]

◆ Process() [3/4]

◆ Process() [4/4]

◆ SetCenterXY()

◆ SetTolerances() [1/2]

◆ SetTolerances() [2/2]

Property Documentation

◆ Active

◆ Center

◆ HVConstraint

◆ MeasuredPeaks

◆ MeasuredPoints

◆ MinAmplitude

◆ MinArea

◆ NumMeasuredPoints

◆ RectangularSamplingArea

◆ Shape

◆ Smoothing

◆ Thickness

◆ Threshold

◆ Tolerance

◆ ToleranceAngle

◆ TransitionChoice

◆ TransitionIndex
