eVision.Legacy.EShape Class Reference

Abstract class to federate the classes that can be hierarchically attached together (from a geometrical point of view). More...

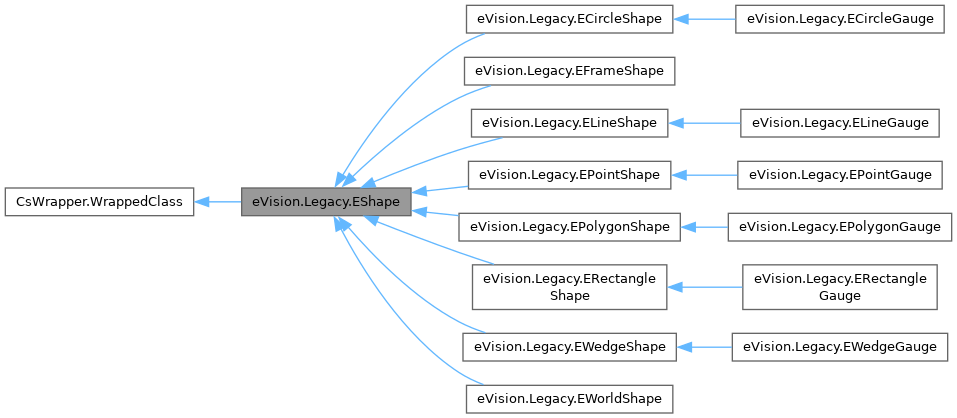

Inheritance diagram for eVision.Legacy.EShape:

Collaboration diagram for eVision.Legacy.EShape:

Public Member Functions
eVision.Legacy.EShape	GetShapeNamed (string name)
	Returns a pointer to a daughter gauge or shape specified by its name.
bool	GetFound ()
	Flag indicating whether a measured shape has been found.
bool	GetAutoArrange ()
void	SetAutoArrange (bool bAutoArrange, bool bDaughters)
void	SetAutoArrange (bool bAutoArrange)
virtual void	SetFound (bool bFound, bool bDaughters)
virtual void	SetFound (bool bFound)
bool	GetInspected ()
void	SetInspected (bool bFound, bool bDaughters)
void	SetInspected (bool bFound)
bool	GetPassed ()
void	SetPassed (bool bFound, bool bDaughters)
void	SetPassed (bool bFound)
bool	GetQuickDraw ()
void	SetQuickDraw (bool bFound, bool bDaughters)
void	SetQuickDraw (bool bFound)
bool	GetOptionalDraw ()
void	SetOptionalDraw (bool bFound, bool bDaughters)
void	SetOptionalDraw (bool bFound)
bool	GetUserFlag ()
void	SetUserFlag (bool bUserFlag, bool bDaughters)
void	SetUserFlag (bool bUserFlag)
bool	GetAllocated ()
	Gets the allocated flag.
void	EnableBehaviorFilter (eVision.EShapeBehavior behavior, bool value)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	EnableBehaviorFilter (eVision.EShapeBehavior behavior)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	DisableBehaviorFilter (eVision.EShapeBehavior behavior)
	Disables (i.e. removes) a condition from the list of conditions in the behavior filter.
void	Attach (eVision.Legacy.EShape mother)
	Attaches the gauge to a mother gauge or shape.
void	Detach ()
	Detaches the gauge from its mother gauge or shape.
void	DetachDaughters ()
	Detaches the daughter gauges or shapes.
virtual eVision.Legacy.EShape	GetDaughter (uint index)
	Returns a pointer to the specified daughter gauge or shape.
bool	IsWorld ()
void	InvalidateWorld ()
	Invalidates the world shape for this shape and all its ancestors.
eVision.EPoint	LocalToSensor (eVision.EPoint LPoint)
	Transforms a point from local coordinates to sensor coordinates.
eVision.EPoint	SensorToLocal (eVision.EPoint SPoint)
	Transforms a point from sensor coordinates to local coordinates.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	SetZoom (float zoomX, float zoomY)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom (float zoomX)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom ()
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetPan (float panX, float panY)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan (float panX)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan ()
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
bool	HitTest (bool bDaughters)
	Checks if there is a handle under the cursor.
bool	HitTest ()
	Checks if there is a handle under the cursor.
void	SetDraggingMode (eVision.EDraggingMode eDraggingMode, bool bDaughters)
	Sets the dragging mode which defines how the shape could be dragged.
void	SetDraggingMode (eVision.EDraggingMode eDraggingMode)
	Sets the dragging mode which defines how the shape could be dragged.
eVision.EDraggingMode	GetDraggingMode ()
	Gets the dragging mode which defines how the shape could be dragged.
void	SetCursor (int x, int y)
	Sets the cursor current coordinates.
void	Drag (int n32CursorX, int n32CursorY)
	Moves a handle to a new position and updates the position parameters of the shape.
void	Closest ()
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape.ClosestShape.
virtual void	Process (eVision.EROIBW8 pSrc, bool bDaughters)
virtual void	Process (eVision.EROIBW8 pSrc)
virtual void	Process (eVision.EROIBW8 pSrc, eVision.ERegion region, bool bDaughters)
virtual void	Process (eVision.EROIBW8 pSrc, eVision.ERegion region)
void	Save (string path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (string path)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Load (string path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (string path)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Loads a Shape.The given ESerializer must have been created for reading.
bool	HasProperty (string aProperty)
	Returns whether a EShape has a property named aProperty.
string	GetProperty (string aProperty)
	Gets the value of property aProperty. Throws an exception if no such property exists.
void	SetProperty (string aProperty, string aValue)
	Sets the value of property aProperty to aValue for this EShape.
void	SetPropertyRecursive (string aProperty, string aValue)
	Sets the value of property aProperty to aValue for this EShape and all of its daughters.
void	RemoveProperty (string aProperty)
	Removes the property name aProperty from the EShape.
bool	HasValidPolarityProperty ()
	Returns whether the EShape has a valid polarity property.
virtual void	EnableTypeFilter (uint un32Types)
	Enables the filter of the specified shape type.
virtual void	DisableTypeFilter ()
	Enables all shape types.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.

Properties
eVision.EShapeType	Type [get]
	Shape type.
string	Name [get, set]
	Name of the EShape object.
bool	Visible [get, set]
	Flag indicating whether the shape is visible or not.
bool	VisibleRecursive [set]
	Sets the flag indicating whether the shape and its daughter shapes are visible or not.
bool	Selected [get, set]
	Flag indicating whether the shape is selected or not.
bool	SelectedRecursive [set]
	Sets the flag indicating whether the shape and all its daughters are selected or not.
bool	Selectable [get, set]
	Flag indicating whether the shape can be selected or not.
bool	SelectableRecursive [set]
	Sets the flag indicating whether the shape and all its daughters can be selected or not.
bool	Dragable [get, set]
	Flag indicating whether the shape can be dragged or not.
bool	DragableRecursive [set]
	Sets the flag indicating whether the shape and all its daughters can be dragged or not.
bool	Resizable [get, set]
	Flag indicating whether the shape can be resized or not.
bool	ResizableRecursive [set]
	Sets the flag indicating whether the shape and all its daughters can be resized or not.
bool	Rotatable [get, set]
	Flag indicating whether the shape can be rotated or not.
bool	RotatableRecursive [set]
	Sets the flag indicating whether the shape and all its daughters can be rotated or not.
bool	Labeled [get, set]
	Flag indicating whether the shape label should be displayed or not.
bool	LabeledRecursive [set]
	Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.
virtual bool	Active [get, set]
	Flag indicating whether the shape is active or not.
virtual bool	ActiveRecursive [set]
	Sets the flag indicating whether the shape and all its daughters are active or not.
bool	ActualShape [get, set]
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
bool	ActualShapeRecursive [set]
	Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.
uint	NumDaughters [get]
	Number of daughters attached to the shape.
eVision.Legacy.EShape	Mother [get]
	Pointer to the mother shape.
eVision.Legacy.EWorldShape	WorldShape [get]
	World ancestor.
virtual float	ZoomX [get]
	Current horizontal zooming factor for drawing operations.
virtual float	ZoomY [get]
	Current vertical zooming factor for drawing operations.
virtual float	PanX [get]
	Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual float	PanY [get]
	Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.
eVision.EDragHandle	HitHandle [get]
	Handle currently under the cursor.
eVision.Legacy.EShape	HitShape [get]
	Pointer to the shape currently under the cursor.
eVision.Legacy.EShape	ClosestShape [get]
	Closest shape among the daughters.

Detailed Description

Abstract class to federate the classes that can be hierarchically attached together (from a geometrical point of view).

License(s): BasicTypes

Member Function Documentation

Attach()

void eVision.Legacy.EShape.Attach

(

eVision.Legacy.EShape

mother

)

Attaches the gauge to a mother gauge or shape.

Parameters

mother

Pointer to the mother gauge or shape.

When attached to a mother gauge, be aware that daughter gauges are not positioned according to the nominal mother gauge position, but to its corresponding fitted model.

Closest()

void eVision.Legacy.EShape.Closest ( )

abstract

Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape.ClosestShape.

Detach()

void eVision.Legacy.EShape.Detach

(

)

Detaches the gauge from its mother gauge or shape.

DetachDaughters()

void eVision.Legacy.EShape.DetachDaughters

(

)

Detaches the daughter gauges or shapes.

DisableBehaviorFilter()

void eVision.Legacy.EShape.DisableBehaviorFilter

(

eVision.EShapeBehavior

behavior

)

Disables (i.e. removes) a condition from the list of conditions in the behavior filter.

Parameters

behavior

The behavior of the shape to be removed from the behavior filter.

The condition to be disabled is identified by the behavior about which the condition is. Disabling a behavior leads to less restrictive conditions for the Draw and HitTest methods to be actually carried on.

DisableTypeFilter()

virtual void eVision.Legacy.EShape.DisableTypeFilter ( )

virtual

Enables all shape types.

Reimplemented in eVision.Legacy.EWorldShape.

Drag()

void eVision.Legacy.EShape.Drag ( int n32CursorX, int n32CursorY )

abstract

Moves a handle to a new position and updates the position parameters of the shape.

Parameters

n32CursorX	Current cursor coordinates.
n32CursorY	Current cursor coordinates.

Draw() [1/15]

void eVision.Legacy.EShape.Draw ( eVision.EDrawAdapter graphicContext )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext

Handle of the device context on which to draw.

Draw() [2/15]

void eVision.Legacy.EShape.Draw ( eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Draw() [3/15]

void eVision.Legacy.EShape.Draw ( eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Draw() [4/15]

void eVision.Legacy.EShape.Draw ( IntPtr graphicContext )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext

Handle of the device context on which to draw.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [5/15]

void eVision.Legacy.EShape.Draw ( IntPtr graphicContext, eVision.EDrawingMode drawingMode )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [6/15]

void eVision.Legacy.EShape.Draw ( IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [7/15]

void eVision.Legacy.EShape.Draw ( IntPtr graphicContext, eVision.ERGBColor color )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [8/15]

void eVision.Legacy.EShape.Draw ( IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [9/15]

void eVision.Legacy.EShape.Draw ( IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [10/15]

void eVision.Legacy.EShape.Draw ( System.Drawing.Graphics graphicContext )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext

Handle of the device context on which to draw.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [11/15]

void eVision.Legacy.EShape.Draw ( System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [12/15]

void eVision.Legacy.EShape.Draw ( System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [13/15]

void eVision.Legacy.EShape.Draw ( System.Drawing.Graphics graphicContext, eVision.ERGBColor color )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [14/15]

void eVision.Legacy.EShape.Draw ( System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

Draw() [15/15]

void eVision.Legacy.EShape.Draw ( System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color to draw with.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawWithCurrentPen() [1/3]

void eVision.Legacy.EShape.DrawWithCurrentPen ( IntPtr graphicContext )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext

Handle of the device context on which to draw.

Deprecated

Use the overload of EShape.Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawWithCurrentPen() [2/3]

void eVision.Legacy.EShape.DrawWithCurrentPen ( IntPtr graphicContext, eVision.EDrawingMode drawingMode )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated

Use the overload of EShape.Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

DrawWithCurrentPen() [3/3]

void eVision.Legacy.EShape.DrawWithCurrentPen ( IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters )

abstract

Draws a graphical representation of a shape, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated

Use the overload of EShape.Draw taking an EDrawAdapter by using an instance of EWindowsDrawAdapter.

Deprecated in version 23.12. Scheduled to be removed in version 27.6.

EnableBehaviorFilter() [1/2]

void eVision.Legacy.EShape.EnableBehaviorFilter

(

eVision.EShapeBehavior

behavior

)

Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.

Parameters

behavior

The behavior of the shape to be tested.

This method registers a new necessary condition for the Draw and HitTest families of methods to be actually carried on. Such a condition is about the behavior of the shape, as specified by the behavior argument. Initially, the behavior filter contains an empty list of conditions, which means that the Draw and HitTest methods will always be executed. Adding a new condition through EShape.EnableBehaviorFilter will introduce a new restriction on the effective execution of these methods. Use EShape.DisableBehaviorFilter to remove a condition from the behavior filter.

EnableBehaviorFilter() [2/2]

void eVision.Legacy.EShape.EnableBehaviorFilter	(	eVision.EShapeBehavior	behavior,
		bool	value )

Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.

Parameters

behavior	The behavior of the shape to be tested.
value	The value at which the behavior property should be set to pass the test. By default, equals True.

This method registers a new necessary condition for the Draw and HitTest families of methods to be actually carried on. Such a condition is about the behavior of the shape, as specified by the behavior argument. Initially, the behavior filter contains an empty list of conditions, which means that the Draw and HitTest methods will always be executed. Adding a new condition through EShape.EnableBehaviorFilter will introduce a new restriction on the effective execution of these methods. Use EShape.DisableBehaviorFilter to remove a condition from the behavior filter.

EnableTypeFilter()

virtual void eVision.Legacy.EShape.EnableTypeFilter ( uint un32Types )

virtual

Enables the filter of the specified shape type.

Parameters

un32Types

The type of the shape to filter.

Reimplemented in eVision.Legacy.EWorldShape.

GetAllocated()

bool eVision.Legacy.EShape.GetAllocated

(

)

Gets the allocated flag.

GetAutoArrange()

bool eVision.Legacy.EShape.GetAutoArrange

(

)

GetDaughter()

virtual eVision.Legacy.EShape eVision.Legacy.EShape.GetDaughter ( uint index )

virtual

Returns a pointer to the specified daughter gauge or shape.

Parameters

index

Daughter gauge or shape index.

GetDraggingMode()

eVision.EDraggingMode eVision.Legacy.EShape.GetDraggingMode

(

)

Gets the dragging mode which defines how the shape could be dragged.

GetFound()

bool eVision.Legacy.EShape.GetFound

(

)

Flag indicating whether a measured shape has been found.

After calling Process() or Measure() on a gauge object, use GetFound() to get the status of the measurement.

GetInspected()

bool eVision.Legacy.EShape.GetInspected

(

)

GetOptionalDraw()

bool eVision.Legacy.EShape.GetOptionalDraw

(

)

GetPassed()

bool eVision.Legacy.EShape.GetPassed

(

)

GetProperty()

string eVision.Legacy.EShape.GetProperty

(

string

aProperty

)

Gets the value of property aProperty. Throws an exception if no such property exists.

Parameters

aProperty

The name of the property.

GetQuickDraw()

bool eVision.Legacy.EShape.GetQuickDraw

(

)

GetShapeNamed()

eVision.Legacy.EShape eVision.Legacy.EShape.GetShapeNamed

(

string

name

)

Returns a pointer to a daughter gauge or shape specified by its name.

Parameters

name	Name of the daughter gauge or shape.

GetUserFlag()

bool eVision.Legacy.EShape.GetUserFlag

(

)

HasProperty()

bool eVision.Legacy.EShape.HasProperty

(

string

aProperty

)

Returns whether a EShape has a property named aProperty.

Parameters

aProperty

The name of the property.

HasValidPolarityProperty()

bool eVision.Legacy.EShape.HasValidPolarityProperty

(

)

Returns whether the EShape has a valid polarity property.

I.e. if it has a property named "polarity" whose value is either "inverted" or "direct".

The "polarity" property is mostly used to define the orientation of the gradient in a shape of a EVectorModel.

HitTest() [1/2]

bool eVision.Legacy.EShape.HitTest ( )

abstract

Checks if there is a handle under the cursor.

HitTest() [2/2]

bool eVision.Legacy.EShape.HitTest ( bool bDaughters )

abstract

Checks if there is a handle under the cursor.

Parameters

bDaughters

Indicates if the check must be done in the whole hierarchy or just this object.

InvalidateWorld()

void eVision.Legacy.EShape.InvalidateWorld

(

)

Invalidates the world shape for this shape and all its ancestors.

IsWorld()

bool eVision.Legacy.EShape.IsWorld

(

)

Load() [1/4]

void eVision.Legacy.EShape.Load

(

eVision.ESerializer

serializer

)

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

serializer

Pointer to the ESerializer created for reading.

Load() [2/4]

void eVision.Legacy.EShape.Load	(	eVision.ESerializer	serializer,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

serializer	Pointer to the ESerializer created for reading.
daughters	Indicates if the load must be done on the whole hierarchy or just this object.

Load() [3/4]

void eVision.Legacy.EShape.Load

(

string

path

)

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

path	The file path.

Load() [4/4]

void eVision.Legacy.EShape.Load	(	string	path,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for reading.

Parameters

path	The file path.
daughters	Indicates if the load must be done on the whole hierarchy or just this object.

LocalToSensor()

eVision.EPoint eVision.Legacy.EShape.LocalToSensor

(

eVision.EPoint

LPoint

)

Transforms a point from local coordinates to sensor coordinates.

Parameters

LPoint

The point in local coordinates.

Process() [1/4]

virtual void eVision.Legacy.EShape.Process ( eVision.EROIBW8 pSrc )

virtual

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, and eVision.Legacy.EWedgeGauge.

Process() [2/4]

virtual void eVision.Legacy.EShape.Process ( eVision.EROIBW8 pSrc, bool bDaughters )

virtual

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, and eVision.Legacy.EWedgeGauge.

Process() [3/4]

virtual void eVision.Legacy.EShape.Process ( eVision.EROIBW8 pSrc, eVision.ERegion region )

virtual

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, and eVision.Legacy.EWedgeGauge.

Process() [4/4]

virtual void eVision.Legacy.EShape.Process ( eVision.EROIBW8 pSrc, eVision.ERegion region, bool bDaughters )

virtual

Reimplemented in eVision.Legacy.ECircleGauge, eVision.Legacy.ELineGauge, eVision.Legacy.EPointGauge, eVision.Legacy.EPolygonGauge, eVision.Legacy.ERectangleGauge, and eVision.Legacy.EWedgeGauge.

RemoveProperty()

void eVision.Legacy.EShape.RemoveProperty

(

string

aProperty

)

Removes the property name aProperty from the EShape.

Parameters

aProperty

The name of the property.

Save() [1/4]

void eVision.Legacy.EShape.Save

(

eVision.ESerializer

serializer

)

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

serializer

Pointer to the ESerializer created for writing.

Save() [2/4]

void eVision.Legacy.EShape.Save	(	eVision.ESerializer	serializer,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

serializer	Pointer to the ESerializer created for writing.
daughters	Indicates if the save must be done on the whole hierarchy or just this object.

Save() [3/4]

void eVision.Legacy.EShape.Save

(

string

path

)

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

path	The file path.

Save() [4/4]

void eVision.Legacy.EShape.Save	(	string	path,
		bool	daughters )

Loads a Shape.The given ESerializer must have been created for writing.

Parameters

path	The file path.
daughters	Indicates if the save must be done on the whole hierarchy or just this object.

SensorToLocal()

eVision.EPoint eVision.Legacy.EShape.SensorToLocal

(

eVision.EPoint

SPoint

)

Transforms a point from sensor coordinates to local coordinates.

Parameters

SPoint

The point in sensor coordinates.

SetAutoArrange() [1/2]

void eVision.Legacy.EShape.SetAutoArrange

(

bool

bAutoArrange

)

SetAutoArrange() [2/2]

void eVision.Legacy.EShape.SetAutoArrange	(	bool	bAutoArrange,
		bool	bDaughters )

SetCursor()

void eVision.Legacy.EShape.SetCursor	(	int	x,
		int	y )

Sets the cursor current coordinates.

Parameters

x	Cursor current coordinates.
y	Cursor current coordinates.

SetDraggingMode() [1/2]

void eVision.Legacy.EShape.SetDraggingMode

(

eVision.EDraggingMode

eDraggingMode

)

Sets the dragging mode which defines how the shape could be dragged.

Parameters

eDraggingMode

The draggingMode.

SetDraggingMode() [2/2]

void eVision.Legacy.EShape.SetDraggingMode	(	eVision.EDraggingMode	eDraggingMode,
		bool	bDaughters )

Sets the dragging mode which defines how the shape could be dragged.

Parameters

eDraggingMode	The draggingMode.
bDaughters	Indicates if the set must be done in the whole hierarchy or just this object.

SetFound() [1/2]

virtual void eVision.Legacy.EShape.SetFound ( bool bFound )

virtual

SetFound() [2/2]

virtual void eVision.Legacy.EShape.SetFound ( bool bFound, bool bDaughters )

virtual

SetInspected() [1/2]

void eVision.Legacy.EShape.SetInspected

(

bool

bFound

)

SetInspected() [2/2]

void eVision.Legacy.EShape.SetInspected	(	bool	bFound,
		bool	bDaughters )

SetOptionalDraw() [1/2]

void eVision.Legacy.EShape.SetOptionalDraw

(

bool

bFound

)

SetOptionalDraw() [2/2]

void eVision.Legacy.EShape.SetOptionalDraw	(	bool	bFound,
		bool	bDaughters )

SetPan() [1/3]

virtual void eVision.Legacy.EShape.SetPan ( )

virtual

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

All objects attached to an EWorldShape object inherit of the same panning factor.

Reimplemented in eVision.Legacy.EWorldShape.

SetPan() [2/3]

virtual void eVision.Legacy.EShape.SetPan ( float panX )

virtual

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Parameters

panX	Horizontal panning value expressed in pixels. By default, no panning occurs.

All objects attached to an EWorldShape object inherit of the same panning factor.

Reimplemented in eVision.Legacy.EWorldShape.

SetPan() [3/3]

virtual void eVision.Legacy.EShape.SetPan ( float panX, float panY )

virtual

Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.

Parameters

panX	Horizontal panning value expressed in pixels. By default, no panning occurs.
panY	Vertical panning value expressed in pixels. By default, no panning occurs.

All objects attached to an EWorldShape object inherit of the same panning factor.

Reimplemented in eVision.Legacy.EWorldShape.

SetPassed() [1/2]

void eVision.Legacy.EShape.SetPassed

(

bool

bFound

)

SetPassed() [2/2]

void eVision.Legacy.EShape.SetPassed	(	bool	bFound,
		bool	bDaughters )

SetProperty()

void eVision.Legacy.EShape.SetProperty	(	string	aProperty,
		string	aValue )

Sets the value of property aProperty to aValue for this EShape.

Parameters

aProperty	The name of the property.
aValue	The value of the property.

You may use a shape property to define the orientation of the gradient in a shape of a EVectorModel. This is done by setting a property named "polarity" to "inverted" or "direct".

Additionally, you may set any property to any value for your own needs.

SetPropertyRecursive()

void eVision.Legacy.EShape.SetPropertyRecursive	(	string	aProperty,
		string	aValue )

Sets the value of property aProperty to aValue for this EShape and all of its daughters.

Parameters

aProperty	The name of the property.
aValue	The value of the property.

SetQuickDraw() [1/2]

void eVision.Legacy.EShape.SetQuickDraw

(

bool

bFound

)

SetQuickDraw() [2/2]

void eVision.Legacy.EShape.SetQuickDraw	(	bool	bFound,
		bool	bDaughters )

SetUserFlag() [1/2]

void eVision.Legacy.EShape.SetUserFlag

(

bool

bUserFlag

)

SetUserFlag() [2/2]

void eVision.Legacy.EShape.SetUserFlag	(	bool	bUserFlag,
		bool	bDaughters )

SetZoom() [1/3]

virtual void eVision.Legacy.EShape.SetZoom ( )

virtual

Sets the horizontal and vertical zooming factors for drawing operations.

All objects attached to an EWorldShape inherit of the same zooming factor.

Reimplemented in eVision.Legacy.EWorldShape.

SetZoom() [2/3]

virtual void eVision.Legacy.EShape.SetZoom ( float zoomX )

virtual

Sets the horizontal and vertical zooming factors for drawing operations.

Parameters

zoomX

Horizontal zooming factor. By default, true scale is used.

All objects attached to an EWorldShape inherit of the same zooming factor.

Reimplemented in eVision.Legacy.EWorldShape.

SetZoom() [3/3]

virtual void eVision.Legacy.EShape.SetZoom ( float zoomX, float zoomY )

virtual

Sets the horizontal and vertical zooming factors for drawing operations.

Parameters

zoomX	Horizontal zooming factor. By default, true scale is used.
zoomY	Vertical zooming factor. If set to 0, the default value, the horizontal zooming factor is used instead, so as to provide isotropic zooming.

All objects attached to an EWorldShape inherit of the same zooming factor.

Reimplemented in eVision.Legacy.EWorldShape.

Property Documentation

Active

virtual bool eVision.Legacy.EShape.Active

getset

Flag indicating whether the shape is active or not.

ActiveRecursive

virtual bool eVision.Legacy.EShape.ActiveRecursive

set

Sets the flag indicating whether the shape and all its daughters are active or not.

When complex gauging is required, several gauges can be grouped together. Applying Process() to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

ActualShape

bool eVision.Legacy.EShape.ActualShape

getset

Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).

ActualShapeRecursive

bool eVision.Legacy.EShape.ActualShapeRecursive

set

Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.

ClosestShape

eVision.Legacy.EShape eVision.Legacy.EShape.ClosestShape

get

Closest shape among the daughters.

Use EShape.Closest to recompute the closest shape.

Dragable

bool eVision.Legacy.EShape.Dragable

getset

Flag indicating whether the shape can be dragged or not.

DragableRecursive

bool eVision.Legacy.EShape.DragableRecursive

set

Sets the flag indicating whether the shape and all its daughters can be dragged or not.

HitHandle

eVision.EDragHandle eVision.Legacy.EShape.HitHandle

get

Handle currently under the cursor.

When the cursor is over a particular handle, its shape could be changed for feedback.

HitShape

eVision.Legacy.EShape eVision.Legacy.EShape.HitShape

get

Pointer to the shape currently under the cursor.

When the cursor is over a particular shape, its shape could be changed for feedback.

Labeled

bool eVision.Legacy.EShape.Labeled

getset

Flag indicating whether the shape label should be displayed or not.

LabeledRecursive

bool eVision.Legacy.EShape.LabeledRecursive

set

Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.

Mother

eVision.Legacy.EShape eVision.Legacy.EShape.Mother

get

Pointer to the mother shape.

Name

string eVision.Legacy.EShape.Name

getset

Name of the EShape object.

NumDaughters

uint eVision.Legacy.EShape.NumDaughters

get

Number of daughters attached to the shape.

PanX

virtual float eVision.Legacy.EShape.PanX

get

Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.

PanY

virtual float eVision.Legacy.EShape.PanY

get

Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.

Resizable

bool eVision.Legacy.EShape.Resizable

getset

Flag indicating whether the shape can be resized or not.

ResizableRecursive

bool eVision.Legacy.EShape.ResizableRecursive

set

Sets the flag indicating whether the shape and all its daughters can be resized or not.

Rotatable

bool eVision.Legacy.EShape.Rotatable

getset

Flag indicating whether the shape can be rotated or not.

RotatableRecursive

bool eVision.Legacy.EShape.RotatableRecursive

set

Sets the flag indicating whether the shape and all its daughters can be rotated or not.

Selectable

bool eVision.Legacy.EShape.Selectable

getset

Flag indicating whether the shape can be selected or not.

SelectableRecursive

bool eVision.Legacy.EShape.SelectableRecursive

set

Sets the flag indicating whether the shape and all its daughters can be selected or not.

Selected

bool eVision.Legacy.EShape.Selected

getset

Flag indicating whether the shape is selected or not.

SelectedRecursive

bool eVision.Legacy.EShape.SelectedRecursive

set

Sets the flag indicating whether the shape and all its daughters are selected or not.

Type

eVision.EShapeType eVision.Legacy.EShape.Type

getabstract

Shape type.

Visible

bool eVision.Legacy.EShape.Visible

getset

Flag indicating whether the shape is visible or not.

VisibleRecursive

bool eVision.Legacy.EShape.VisibleRecursive

set

Sets the flag indicating whether the shape and its daughter shapes are visible or not.

WorldShape

eVision.Legacy.EWorldShape eVision.Legacy.EShape.WorldShape

get

World ancestor.

ZoomX

virtual float eVision.Legacy.EShape.ZoomX

get

Current horizontal zooming factor for drawing operations.

ZoomY

virtual float eVision.Legacy.EShape.ZoomY

get

Current vertical zooming factor for drawing operations.
