Manages a rectangle fitting gauge. More...

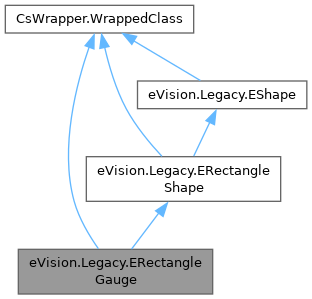

Inheritance diagram for eVision.Legacy.ERectangleGauge:

[legend]

Collaboration diagram for eVision.Legacy.ERectangleGauge:

[legend]

Public Member Functions
	ERectangleGauge ()
	Constructs a rectangle measurement context.
	ERectangleGauge (eVision.Legacy.ERectangleGauge other)
	Constructs a rectangle measurement context.
void	SetMinNumFitSamples (int side0, int side1, int side2, int side3)
	Sets the minimum number of samples required for fitting on each side of the shape.
void	SetMinNumFitSamples (int side0, int side1, int side2)
	Sets the minimum number of samples required for fitting on each side of the shape.
void	SetMinNumFitSamples (int side0, int side1)
	Sets the minimum number of samples required for fitting on each side of the shape.
void	SetMinNumFitSamples (int side0)
	Sets the minimum number of samples required for fitting on each side of the shape.
void	GetMinNumFitSamples (out int side0, out int side1, out int side2, out int side3)
	Returns the minimum number of samples required for fitting on each side of the shape.
uint	AddSkipRange (uint start, uint end)
	Adds an item to the set of skip ranges and returns the index of the newly added range.
uint	AddSkipRange (eVision.EIntegerRange range)
	Adds an item to the set of skip ranges and returns the index of the newly added range.
void	GetSkipRange (uint index, out uint start, out uint end)
	Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the ERectangleGauge.AddSkipRange method.
eVision.EIntegerRange	GetSkipRange (uint index)
	Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the ERectangleGauge.AddSkipRange method.
void	RemoveSkipRange (uint index)
	After a call to ERectangleGauge.AddSkipRange, removes the skip range with the given index.
void	RemoveAllSkipRanges ()
	Removes all the skip ranges previously created by a call to ERectangleGauge.AddSkipRange.
void	CopyTo (eVision.Legacy.ERectangleGauge other, bool recursive)
	Copies all the data of the current ERectangleGauge object into another ERectangleGauge object, and returns it.
void	CopyTo (eVision.Legacy.ERectangleGauge other)
	Copies all the data of the current ERectangleGauge object into another ERectangleGauge object, and returns it.
void	DisableInnerFiltering ()
	Disables inner sampled point filtering.
override void	Process (eVision.EROIBW8 sourceImage, bool daughters)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
override void	Process (eVision.EROIBW8 sourceImage)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
override void	Process (eVision.EROIBW8 sourceImage, eVision.ERegion region, bool daughters)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
override void	Process (eVision.EROIBW8 sourceImage, eVision.ERegion region)
	Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.
void	Measure (eVision.EROIBW8 sourceImage)
	Triggers the point location or the model fitting operation.
void	Measure (eVision.EROIBW8 sourceImage, eVision.ERegion region)
	Triggers the point location or the model fitting operation.
void	MeasureWithoutFitting (eVision.EROIBW8 sourceImage)
	Triggers the point location without rectangle fitting operation.
void	MeasureWithoutFitting (eVision.EROIBW8 sourceImage, eVision.ERegion region)
	Triggers the point location without rectangle fitting operation.
void	MeasureSample (eVision.EROIBW8 sourceImage, uint pathIndex)
	Computes the sample points along the sample path whose index in the list is given by the pathIndex parameter.
void	MeasureSample (eVision.EROIBW8 sourceImage, eVision.ERegion region, uint pathIndex)
	Computes the sample points along the sample path whose index in the list is given by the pathIndex parameter.
eVision.EPoint	GetMeasuredPoint (uint index)
	Returns the coordinates of a sample point, measured along one of the sample paths of the gauge.
eVision.EPoint	GetMeasuredPoint ()
	Returns the coordinates of a sample point, measured along one of the sample paths of the gauge.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
void	Plot (eVision.EDrawAdapter graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (eVision.EDrawAdapter graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (eVision.EDrawAdapter graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (IntPtr graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	PlotWithCurrentPen (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	PlotWithCurrentPen (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	PlotWithCurrentPen (IntPtr graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
override bool	HitTest (bool daughters)
	Checks whether the cursor is positioned over a handle (true) or not (false).
override bool	HitTest ()
	Checks whether the cursor is positioned over a handle (true) or not (false).
override void	Drag (int x, int y)
	Moves a handle to a new position and updates the position parameters of the gauge.
bool	GetSamplex (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the x edge.
void	GetSamplex (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the x edge.
bool	GetSamplex (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the x edge.
bool	GetSampley (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the y edge.
void	GetSampley (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the y edge.
bool	GetSampley (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the y edge.
bool	GetSampleX (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the X edge.
void	GetSampleX (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the X edge.
bool	GetSampleX (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the X edge.
bool	GetSampleY (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the Y edge.
void	GetSampleY (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the Y edge.
bool	GetSampleY (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the Y edge.
bool	GetSampleLeftEdge (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the leftmost edge.
void	GetSampleLeftEdge (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the leftmost edge.
bool	GetSampleLeftEdge (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the leftmost edge.
bool	GetSampleLowerEdge (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the lower edge.
void	GetSampleLowerEdge (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the lower edge.
bool	GetSampleLowerEdge (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the lower edge.
bool	GetSampleRightEdge (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the rightmost edge.
void	GetSampleRightEdge (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the rightmost edge.
bool	GetSampleRightEdge (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the rightmost edge.
bool	GetSampleUpperEdge (ref eVision.EPoint pt, uint index)
	Allows to retrieve information on the samples found along the upper edge.
void	GetSampleUpperEdge (eVision.Legacy.ESamplePoint sp, uint index)
	Allows to retrieve information on the samples found along the upper edge.
bool	GetSampleUpperEdge (ref eVision.EPeak pk, uint index)
	Allows to retrieve information on the samples found along the upper edge.
bool	GetSample (ref eVision.EPoint pt, uint index)
void	GetSample (eVision.Legacy.ESamplePoint sp, uint index)
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.
void	Plot (System.Drawing.Graphics graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX, float originY)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height, float originX)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
void	Plot (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EPlotItem drawItems, float width, float height)
	Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.
Public Member Functions inherited from eVision.Legacy.ERectangleShape
void	SetCenterXY (float centerX, float centerY)
	Sets the center coordinates of a ERectangleShape object.
void	SetFromTwoPoints (eVision.EPoint origin, eVision.EPoint end)
	Sets the geometric parameters of an ERectangleShape object using two opposed corners.
void	SetFromOppositeCorners (eVision.EPoint origin, eVision.EPoint end)
	Sets the geometric parameters of an ERectangleShape object using two opposed corners.
void	SetFromOriginMiddleEnd (eVision.EPoint origin, eVision.EPoint middle, eVision.EPoint end)
	Sets the geometric parameters of an ERectangleShape object using three corners.
void	SetFromThreeCorners (eVision.EPoint origin, eVision.EPoint middle, eVision.EPoint end)
	Sets the geometric parameters of an ERectangleShape object using three corners.
void	SetSize (float sizeX, float sizeY)
	Sets the size of a ERectangleShape object.
eVision.EPoint	GetPoint (float fractionX, float fractionY)
	Returns the coordinates of a particular point, specified by its location in the ERectangleShape area.
void	GetMidEdges (ref eVision.EPoint x, ref eVision.EPoint XX, ref eVision.EPoint y, ref eVision.EPoint YY)
	Retrieves the center coordinates of each edge of a ERectangleShape object.
void	GetCorners (ref eVision.EPoint xy, ref eVision.EPoint XXy, ref eVision.EPoint xYY, ref eVision.EPoint XXYY)
	Retrieves the coordinates of each corner of a ERectangleShape object.
void	GetEdges (eVision.Legacy.ELine x, eVision.Legacy.ELine XX, eVision.Legacy.ELine y, eVision.Legacy.ELine YY)
	Retrieves each edge of a ERectangleShape object.
void	CopyTo (eVision.Legacy.ERectangleShape dest, bool bRecursive)
	Copies all the data of the current ERectangleShape object into another ERectangleShape object and returns it.
void	CopyTo (eVision.Legacy.ERectangleShape dest)
	Copies all the data of the current ERectangleShape object into another ERectangleShape object and returns it.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Closest ()
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape.ClosestShape.
override bool	HitTest (bool bDaughters)
	Checks if there is a handle under the cursor.
override bool	HitTest ()
	Checks if there is a handle under the cursor.
override void	Drag (int n32CursorX, int n32CursorY)
	Moves a handle to a new position and updates the position parameters of the shape.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
override void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
Public Member Functions inherited from eVision.Legacy.EShape
eVision.Legacy.EShape	GetShapeNamed (string name)
	Returns a pointer to a daughter gauge or shape specified by its name.
bool	GetFound ()
	Flag indicating whether a measured shape has been found.
bool	GetAutoArrange ()
void	SetAutoArrange (bool bAutoArrange, bool bDaughters)
void	SetAutoArrange (bool bAutoArrange)
virtual void	SetFound (bool bFound, bool bDaughters)
virtual void	SetFound (bool bFound)
bool	GetInspected ()
void	SetInspected (bool bFound, bool bDaughters)
void	SetInspected (bool bFound)
bool	GetPassed ()
void	SetPassed (bool bFound, bool bDaughters)
void	SetPassed (bool bFound)
bool	GetQuickDraw ()
void	SetQuickDraw (bool bFound, bool bDaughters)
void	SetQuickDraw (bool bFound)
bool	GetOptionalDraw ()
void	SetOptionalDraw (bool bFound, bool bDaughters)
void	SetOptionalDraw (bool bFound)
bool	GetUserFlag ()
void	SetUserFlag (bool bUserFlag, bool bDaughters)
void	SetUserFlag (bool bUserFlag)
bool	GetAllocated ()
	Gets the allocated flag.
void	EnableBehaviorFilter (eVision.EShapeBehavior behavior, bool value)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	EnableBehaviorFilter (eVision.EShapeBehavior behavior)
	Modifies the so-called behavior filter that is a conjunction of conditions specifying when a shape or a gauge should be displayed or taken into consideration when monitoring the mouse interactions.
void	DisableBehaviorFilter (eVision.EShapeBehavior behavior)
	Disables (i.e. removes) a condition from the list of conditions in the behavior filter.
void	Attach (eVision.Legacy.EShape mother)
	Attaches the gauge to a mother gauge or shape.
void	Detach ()
	Detaches the gauge from its mother gauge or shape.
void	DetachDaughters ()
	Detaches the daughter gauges or shapes.
virtual eVision.Legacy.EShape	GetDaughter (uint index)
	Returns a pointer to the specified daughter gauge or shape.
bool	IsWorld ()
void	InvalidateWorld ()
	Invalidates the world shape for this shape and all its ancestors.
eVision.EPoint	LocalToSensor (eVision.EPoint LPoint)
	Transforms a point from local coordinates to sensor coordinates.
eVision.EPoint	SensorToLocal (eVision.EPoint SPoint)
	Transforms a point from sensor coordinates to local coordinates.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (eVision.EDrawAdapter graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (eVision.EDrawAdapter graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (IntPtr graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	DrawWithCurrentPen (IntPtr graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
virtual void	SetZoom (float zoomX, float zoomY)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom (float zoomX)
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetZoom ()
	Sets the horizontal and vertical zooming factors for drawing operations.
virtual void	SetPan (float panX, float panY)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan (float panX)
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
virtual void	SetPan ()
	Sets the horizontal and vertical panning values for drawing operations, expressed in pixels.
bool	HitTest (bool bDaughters)
	Checks if there is a handle under the cursor.
bool	HitTest ()
	Checks if there is a handle under the cursor.
void	SetDraggingMode (eVision.EDraggingMode eDraggingMode, bool bDaughters)
	Sets the dragging mode which defines how the shape could be dragged.
void	SetDraggingMode (eVision.EDraggingMode eDraggingMode)
	Sets the dragging mode which defines how the shape could be dragged.
eVision.EDraggingMode	GetDraggingMode ()
	Gets the dragging mode which defines how the shape could be dragged.
void	SetCursor (int x, int y)
	Sets the cursor current coordinates.
void	Drag (int n32CursorX, int n32CursorY)
	Moves a handle to a new position and updates the position parameters of the shape.
void	Closest ()
	Find the daughter shape that is the closest to this shape. To retrieve the closest shape, use EShape.ClosestShape.
void	Save (string path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (string path)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Save (eVision.ESerializer serializer)
	Loads a Shape.The given ESerializer must have been created for writing.
void	Load (string path, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (string path)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer, bool daughters)
	Loads a Shape.The given ESerializer must have been created for reading.
void	Load (eVision.ESerializer serializer)
	Loads a Shape.The given ESerializer must have been created for reading.
bool	HasProperty (string aProperty)
	Returns whether a EShape has a property named aProperty.
string	GetProperty (string aProperty)
	Gets the value of property aProperty. Throws an exception if no such property exists.
void	SetProperty (string aProperty, string aValue)
	Sets the value of property aProperty to aValue for this EShape.
void	SetPropertyRecursive (string aProperty, string aValue)
	Sets the value of property aProperty to aValue for this EShape and all of its daughters.
void	RemoveProperty (string aProperty)
	Removes the property name aProperty from the EShape.
bool	HasValidPolarityProperty ()
	Returns whether the EShape has a valid polarity property.
virtual void	EnableTypeFilter (uint un32Types)
	Enables the filter of the specified shape type.
virtual void	DisableTypeFilter ()
	Enables all shape types.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode, bool daughters)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color, eVision.EDrawingMode drawingMode)
	Draws a graphical representation of a shape, as defined by EDrawingMode.
void	Draw (System.Drawing.Graphics graphicContext, eVision.ERGBColor color)
	Draws a graphical representation of a shape, as defined by EDrawingMode.

Properties
float	FilteringThreshold `[get, set]`
	Relative filtering threshold, that is the fraction of the average distance between the sampled points and the fitted model above which a point is filtered out.
uint	NumFilteringPasses `[get, set]`
	Number of filtering passes for a model fitting operation.
uint	NumValidSamples `[get]`
	Number of valid sample points remaining after a model fitting operation.
float	AverageDistance `[get]`
	Average distance between the sampled points and the fitted model.
int[]	MinNumFitSamples `[get, set]`
	Sets/Gets the minimum number of samples required for fitting the shape.
uint	NumSkipRanges `[get]`
	Number of skip ranges in the gauge after a call to ERectangleGauge.AddSkipRange.
override eVision.EShapeType	Type `[get]`
	Shape type.
eVision.Legacy.ERectangle	Shape `[get]`
new bool	Active `[get, set]`
	Sets the flag indicating whether the gauge is active or not.
bool	RectangularSamplingArea `[get, set]`
	Flag indicating whether the sampling area remains a rectangle when rotated, instead of becoming a parallelogram.
float	InnerFilteringThreshold `[get, set]`
	Sampled point inner filtering threshold.
bool	InnerFilteringEnabled `[get]`
	Getter method for the GetInnerFilteringEnabled property. This property is the flag indicating if the inner sampled point filtering is enabled (true).
uint	ActiveEdges `[get, set]`
	Active edges as defined in EDragHandle.
float	Tolerance `[get, set]`
	Searching area half thickness of the rectangle fitting gauge.
bool	HVConstraint `[get, set]`
	Status of the restriction on the orientation of the point location gauge or model fitting sample paths.
eVision.ETransitionType	TransitionType `[get, set]`
	Transition type.
eVision.ETransitionChoice	TransitionChoice `[get, set]`
	Transition choice.
uint	TransitionIndex `[get, set]`
	Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice.ETransitionChoice_NthFromBegin or ETransitionChoice.ETransitionChoice_NthFromEnd.
uint	Threshold `[get, set]`
	Threshold level used to delimit significant peaks in the data profile.
uint	MinAmplitude `[get, set]`
	Offset added to the Threshold when a peak is to be detected.
uint	MinArea `[get, set]`
	Minimum area value.
uint	Thickness `[get, set]`
	Number of parallel segments used to extract the data profile.
uint	Smoothing `[get, set]`
	Number of pixels used for the low-pass filtering operation.
float	SamplingStep `[get, set]`
	Approximate distance between sampled points during a model fitting operation.
uint	NumSamples `[get]`
	Number of sampled points during the model fitting operation.
uint	NumSamplesx `[get]`
	Number of sampled points found on edge x during the measure operation.
uint	NumSamplesy `[get]`
	Number of sampled points found on edge y during the measure operation.
uint	NumSamplesX `[get]`
	Number of sampled points found on edge X during the measure operation.
uint	NumSamplesY `[get]`
	Number of sampled points found on edge Y during the measure operation.
uint	NumSamplesLeftEdge `[get]`
	Number of sampled points found on leftmost edge during the measure operation.
uint	NumSamplesRightEdge `[get]`
	Number of sampled points found on rightmost edge during the measure operation.
uint	NumSamplesLowerEdge `[get]`
	Number of sampled points found on lower edge during the measure operation.
uint	NumSamplesUpperEdge `[get]`
	Number of sampled points found on upper edge during the measure operation.
bool	KnownAngle `[get, set]`
	Flag indicating whether the rotation angle of the rectangle to be fitted is known or not.
eVision.Legacy.ERectangle	MeasuredRectangle `[get]`
	Information pertaining to the fitted rectangle.
bool	Valid `[get]`
	Flag indicating if at least one valid transition has been found.
Properties inherited from eVision.Legacy.ERectangleShape
eVision.EPoint	Center `[get, set]`
	Center point of the shape.
float	CenterX `[get]`
	Abscissa of the origin point of the shape.
float	CenterY `[get]`
	Ordinate of the origin point of the shape.
float	Angle `[get, set]`
	Orientation of the shape.
float	Scale `[get, set]`
	Horizontal sensor resolution, in pixels per unit.
virtual eVision.Legacy.ERectangle	Rectangle `[set]`
	Sets the parameters of the rectangle according to a known ERectangle object.
float	SizeX `[get]`
	X size of the ERectangleShape.
float	SizeY `[get]`
	Y size of the ERectangleShape.
override eVision.EShapeType	Type `[get]`
	Shape type.
Properties inherited from eVision.Legacy.EShape
eVision.EShapeType	Type `[get]`
	Shape type.
string	Name `[get, set]`
	Name of the EShape object.
bool	Visible `[get, set]`
	Flag indicating whether the shape is visible or not.
bool	VisibleRecursive `[set]`
	Sets the flag indicating whether the shape and its daughter shapes are visible or not.
bool	Selected `[get, set]`
	Flag indicating whether the shape is selected or not.
bool	SelectedRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters are selected or not.
bool	Selectable `[get, set]`
	Flag indicating whether the shape can be selected or not.
bool	SelectableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be selected or not.
bool	Dragable `[get, set]`
	Flag indicating whether the shape can be dragged or not.
bool	DragableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be dragged or not.
bool	Resizable `[get, set]`
	Flag indicating whether the shape can be resized or not.
bool	ResizableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be resized or not.
bool	Rotatable `[get, set]`
	Flag indicating whether the shape can be rotated or not.
bool	RotatableRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters can be rotated or not.
bool	Labeled `[get, set]`
	Flag indicating whether the shape label should be displayed or not.
bool	LabeledRecursive `[set]`
	Sets the flag indicating whether the shape label should be displayed or not. The flag is set in this shape and all its daughters.
virtual bool	Active `[get, set]`
	Flag indicating whether the shape is active or not.
virtual bool	ActiveRecursive `[set]`
	Sets the flag indicating whether the shape and all its daughters are active or not.
bool	ActualShape `[get, set]`
	Flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true).
bool	ActualShapeRecursive `[set]`
	Sets the flag indicating whether an inquiry returns a result pertaining to the nominal gauge (false, default) or the fitted model (true). The flag is set in this shape and all its daughters.
uint	NumDaughters `[get]`
	Number of daughters attached to the shape.
eVision.Legacy.EShape	Mother `[get]`
	Pointer to the mother shape.
eVision.Legacy.EWorldShape	WorldShape `[get]`
	World ancestor.
virtual float	ZoomX `[get]`
	Current horizontal zooming factor for drawing operations.
virtual float	ZoomY `[get]`
	Current vertical zooming factor for drawing operations.
virtual float	PanX `[get]`
	Current horizontal panning value for drawing operations, expressed in pixels. By default, no panning occurs.
virtual float	PanY `[get]`
	Current vertical panning value for drawing operations, expressed in pixels. By default, no panning occurs.
eVision.EDragHandle	HitHandle `[get]`
	Handle currently under the cursor.
eVision.Legacy.EShape	HitShape `[get]`
	Pointer to the shape currently under the cursor.
eVision.Legacy.EShape	ClosestShape `[get]`
	Closest shape among the daughters.

Detailed Description

Manages a rectangle fitting gauge.

License(s): EasyGauge

Constructor & Destructor Documentation

◆ ERectangleGauge() [1/2]

eVision.Legacy.ERectangleGauge.ERectangleGauge ( )

Constructs a rectangle measurement context.

With the default constructor, all the parameters are initialized to their respective default values.

With the copy constructor, the constructed rectangle measurement context is based on a pre-existing ERectangleGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the ERectangleGauge.CopyTo method.

◆ ERectangleGauge() [2/2]

eVision.Legacy.ERectangleGauge.ERectangleGauge ( eVision.Legacy.ERectangleGauge other )

Constructs a rectangle measurement context.

Parameters

other Another ERectangleGauge object to be copied in the new ERectangleGauge object.

With the default constructor, all the parameters are initialized to their respective default values.

With the copy constructor, the constructed rectangle measurement context is based on a pre-existing ERectangleGauge object. The gauge children are also copied. Hierarchy copying through a copy constructor is always recursive. To disable this recursion, use instead the ERectangleGauge.CopyTo method.

Member Function Documentation

◆ AddSkipRange() [1/2]

uint eVision.Legacy.ERectangleGauge.AddSkipRange ( eVision.EIntegerRange range )

Adds an item to the set of skip ranges and returns the index of the newly added range.

Parameters

range The skip range.

The samples indices between start and end (including the boundaries) will be discarded during the measurement process.

This method allows to define skip ranges in an ERectangleGauge. This means that, at measure time, samples belonging to these ranges will not be taken into account.

A sample may belong to more than one skip range; to be discarded, a sample has to pertain to at least one range. Moreover, the skip ranges are allowed to overlap one another.

The range is allowed to be reversed (i.e. end is not required to be greater than start).

Also, start and end are not required to reference valid indices at the time of the call (i.e. the range may lie outside of the current return value for ERectangleGauge.NumSamples).

◆ AddSkipRange() [2/2]

uint eVision.Legacy.ERectangleGauge.AddSkipRange	(	uint	start,
		uint	end )

Adds an item to the set of skip ranges and returns the index of the newly added range.

Parameters

start	Beginning of the skip range.
end	End of the skip range.

The samples indices between start and end (including the boundaries) will be discarded during the measurement process.

This method allows to define skip ranges in an ERectangleGauge. This means that, at measure time, samples belonging to these ranges will not be taken into account.

A sample may belong to more than one skip range; to be discarded, a sample has to pertain to at least one range. Moreover, the skip ranges are allowed to overlap one another.

The range is allowed to be reversed (i.e. end is not required to be greater than start).

Also, start and end are not required to reference valid indices at the time of the call (i.e. the range may lie outside of the current return value for ERectangleGauge.NumSamples).

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ CopyTo() [1/2]

void eVision.Legacy.ERectangleGauge.CopyTo ( eVision.Legacy.ERectangleGauge other )

Copies all the data of the current ERectangleGauge object into another ERectangleGauge object, and returns it.

Parameters

other Pointer to the ERectangleGauge object in which the current ERectangleGauge object data have to be copied.

In the overload taking a pointer, in case of a NULL pointer, a new ERectangleGauge object will be created and returned.

◆ CopyTo() [2/2]

void eVision.Legacy.ERectangleGauge.CopyTo	(	eVision.Legacy.ERectangleGauge	other,
		bool	recursive )

Copies all the data of the current ERectangleGauge object into another ERectangleGauge object, and returns it.

Parameters

other	Pointer to the ERectangleGauge object in which the current ERectangleGauge object data have to be copied.
recursive	true if the children gauges have to be copied as well, false otherwise.

In the overload taking a pointer, in case of a NULL pointer, a new ERectangleGauge object will be created and returned.

◆ DisableInnerFiltering()

void eVision.Legacy.ERectangleGauge.DisableInnerFiltering ( )

Disables inner sampled point filtering.

The inner sampled point filtering is activated as soon as the corresponding ERectangleGauge.InnerFilteringThreshold is set.

◆ Drag()

override void eVision.Legacy.ERectangleGauge.Drag	(	int	x,
		int	y )

Moves a handle to a new position and updates the position parameters of the gauge.

Parameters

x	Cursor current X coordinate.
y	Cursor current Y coordinate.

◆ Draw() [1/15]

override void eVision.Legacy.ERectangleGauge.Draw ( eVision.EDrawAdapter graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

◆ Draw() [2/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

◆ Draw() [3/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	eVision.EDrawAdapter	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

◆ Draw() [4/15]

override void eVision.Legacy.ERectangleGauge.Draw ( IntPtr graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [5/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [6/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [7/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	IntPtr	graphicContext,
		eVision.ERGBColor	color )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [8/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [9/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [10/15]

override void eVision.Legacy.ERectangleGauge.Draw ( System.Drawing.Graphics graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [11/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [12/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [13/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [14/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Draw() [15/15]

override void eVision.Legacy.ERectangleGauge.Draw	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawWithCurrentPen() [1/3]

override void eVision.Legacy.ERectangleGauge.DrawWithCurrentPen ( IntPtr graphicContext )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext Handle of the device context on which to draw.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawWithCurrentPen() [2/3]

override void eVision.Legacy.ERectangleGauge.DrawWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ DrawWithCurrentPen() [3/3]

override void eVision.Legacy.ERectangleGauge.DrawWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EDrawingMode	drawingMode,
		bool	daughters )

Draws a graphical representation of a point location or model fitting gauge, as defined by EDrawingMode.

Parameters

graphicContext	Handle of the device context on which to draw.
drawingMode	Indicates how the point location or model fitting gauge must be displayed, as defined by EDrawingMode.
daughters	true if the daughters gauges are to be displayed also.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ GetMeasuredPoint() [1/2]

eVision.EPoint eVision.Legacy.ERectangleGauge.GetMeasuredPoint ( )

Returns the coordinates of a sample point, measured along one of the sample paths of the gauge.

These coordinates pertain to the world space; they are expressed in the reference frame to which the current ERectangleGauge object belongs.

The gauging process uses a list of sample points to find the shape position and size that best fit a given image. These sample points are measured along the sample paths defined by the gauge geometry. ERectangleGauge.GetMeasuredPoint returns the coordinates of the sample point that meets the following two requirements:

It lies on the sample path inspected with the last call to ERectangleGauge.MeasureSample, and
Among all the sample points along the latter sample path, it is the one selected by the ERectangleGauge.TransitionChoice property.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

◆ GetMeasuredPoint() [2/2]

eVision.EPoint eVision.Legacy.ERectangleGauge.GetMeasuredPoint ( uint index )

Returns the coordinates of a sample point, measured along one of the sample paths of the gauge.

Parameters

index This argument must be left unchanged from its default value, i.e. ~0 (= 0xFFFFFFFF).

These coordinates pertain to the world space; they are expressed in the reference frame to which the current ERectangleGauge object belongs.

The gauging process uses a list of sample points to find the shape position and size that best fit a given image. These sample points are measured along the sample paths defined by the gauge geometry. ERectangleGauge.GetMeasuredPoint returns the coordinates of the sample point that meets the following two requirements:

It lies on the sample path inspected with the last call to ERectangleGauge.MeasureSample, and
Among all the sample points along the latter sample path, it is the one selected by the ERectangleGauge.TransitionChoice property.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

◆ GetMinNumFitSamples()

void eVision.Legacy.ERectangleGauge.GetMinNumFitSamples	(	out int	side0,
		out int	side1,
		out int	side2,
		out int	side3 )

Returns the minimum number of samples required for fitting on each side of the shape.

Parameters

side0	Minimum number of samples on the top side of the rectangle.
side1	Minimum number of samples on the left side of the rectangle.
side2	Minimum number of samples on the bottom side of the rectangle.
side3	Minimum number of samples on the right side of the rectangle.

Irrelevant in case of a point location operation.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ GetSample() [1/2]

void eVision.Legacy.ERectangleGauge.GetSample	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

◆ GetSample() [2/2]

bool eVision.Legacy.ERectangleGauge.GetSample	(	ref eVision.EPoint	pt,
		uint	index )

◆ GetSampleLeftEdge() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampleLeftEdge	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the leftmost edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleLeftEdge() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampleLeftEdge	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the leftmost edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleLeftEdge() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampleLeftEdge	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the leftmost edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleLowerEdge() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampleLowerEdge	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the lower edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleLowerEdge() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampleLowerEdge	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the lower edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleLowerEdge() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampleLowerEdge	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the lower edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleRightEdge() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampleRightEdge	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the rightmost edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleRightEdge() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampleRightEdge	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the rightmost edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleRightEdge() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampleRightEdge	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the rightmost edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleUpperEdge() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampleUpperEdge	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the upper edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleUpperEdge() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampleUpperEdge	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the upper edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleUpperEdge() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampleUpperEdge	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the upper edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

◆ GetSampleX() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampleX	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the X edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleRightEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampleX() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampleX	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the X edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleRightEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampleX() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampleX	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the X edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleRightEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSamplex() [1/3]

void eVision.Legacy.ERectangleGauge.GetSamplex	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the x edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleLeftEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSamplex() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSamplex	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the x edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleLeftEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSamplex() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSamplex	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the x edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleLeftEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampleY() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampleY	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the Y edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleUpperEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampleY() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampleY	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the Y edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleUpperEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampleY() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampleY	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the Y edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleUpperEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampley() [1/3]

void eVision.Legacy.ERectangleGauge.GetSampley	(	eVision.Legacy.ESamplePoint	sp,
		uint	index )

Allows to retrieve information on the samples found along the y edge.

Parameters

sp	ESamplePoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleLowerEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampley() [2/3]

bool eVision.Legacy.ERectangleGauge.GetSampley	(	ref eVision.EPeak	pk,
		uint	index )

Allows to retrieve information on the samples found along the y edge.

Parameters

pk	EPeak structure that will contain the sample peak properties.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleLowerEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSampley() [3/3]

bool eVision.Legacy.ERectangleGauge.GetSampley	(	ref eVision.EPoint	pt,
		uint	index )

Allows to retrieve information on the samples found along the y edge.

Parameters

pt	EPoint structure that will receive the sample position.
index	The sample index

The method provides the sample point corresponding to the supplied index.

The returned value is true when the sample is valid, and false otherwise.

Deprecated

Use ERectangleGauge.GetSampleLowerEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ GetSkipRange() [1/2]

eVision.EIntegerRange eVision.Legacy.ERectangleGauge.GetSkipRange ( uint index )

Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the ERectangleGauge.AddSkipRange method.

Parameters

index Index of the skip range.

Start is guaranteed to be smaller or equal to end.

◆ GetSkipRange() [2/2]

void eVision.Legacy.ERectangleGauge.GetSkipRange	(	uint	index,
		out uint	start,
		out uint	end )

Allows to retrieve the start and end values of the skip range corresponding to the given index, if it is valid (i.e. if it has previously been created by a call to the ERectangleGauge.AddSkipRange method.

Parameters

index	Index of the skip range.
start	Beginning of the skip range.
end	End of the skip range.

Start is guaranteed to be smaller or equal to end.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ HitTest() [1/2]

override bool eVision.Legacy.ERectangleGauge.HitTest ( )

Checks whether the cursor is positioned over a handle (true) or not (false).

◆ HitTest() [2/2]

override bool eVision.Legacy.ERectangleGauge.HitTest ( bool daughters )

Checks whether the cursor is positioned over a handle (true) or not (false).

Parameters

daughters true if the daughters gauges handles have to be considered as well.

◆ Measure() [1/2]

void eVision.Legacy.ERectangleGauge.Measure ( eVision.EROIBW8 sourceImage )

Triggers the point location or the model fitting operation.

Parameters

sourceImage Pointer to the source image.

When this method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ Measure() [2/2]

void eVision.Legacy.ERectangleGauge.Measure	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region )

Triggers the point location or the model fitting operation.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.

When this method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ MeasureSample() [1/2]

void eVision.Legacy.ERectangleGauge.MeasureSample	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region,
		uint	pathIndex )

Computes the sample points along the sample path whose index in the list is given by the pathIndex parameter.

Parameters

sourceImage	Pointer to the source image/ROI.
region	Region on which to measure.
pathIndex	Sample path index.

This method stores its results into a temporary variable inside the ERectangleGauge object.

◆ MeasureSample() [2/2]

void eVision.Legacy.ERectangleGauge.MeasureSample	(	eVision.EROIBW8	sourceImage,
		uint	pathIndex )

Computes the sample points along the sample path whose index in the list is given by the pathIndex parameter.

Parameters

sourceImage	Pointer to the source image/ROI.
pathIndex	Sample path index.

This method stores its results into a temporary variable inside the ERectangleGauge object.

◆ MeasureWithoutFitting() [1/2]

void eVision.Legacy.ERectangleGauge.MeasureWithoutFitting ( eVision.EROIBW8 sourceImage )

Triggers the point location without rectangle fitting operation.

Parameters

sourceImage Source image.

This method performs the actual measurement for each transition, but does not perform the rectangle fitting. This means that individual samples will be available for each edges through the ERectangleGauge.GetSamplex (Edge x), ERectangleGauge.GetSampley (Edge y), ERectangleGauge.GetSampleX (Edge X), ERectangleGauge.GetSampleY (Edge Y) methods, but the gauge position will not be changed.

Please note that the filtering will not be performed in this method, since it relies upon the fitting process. The filtering parameters will thus be unused.

◆ MeasureWithoutFitting() [2/2]

void eVision.Legacy.ERectangleGauge.MeasureWithoutFitting	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region )

Triggers the point location without rectangle fitting operation.

Parameters

sourceImage	Source image.
region	Region on which to measure.

This method performs the actual measurement for each transition, but does not perform the rectangle fitting. This means that individual samples will be available for each edges through the ERectangleGauge.GetSamplex (Edge x), ERectangleGauge.GetSampley (Edge y), ERectangleGauge.GetSampleX (Edge X), ERectangleGauge.GetSampleY (Edge Y) methods, but the gauge position will not be changed.

Please note that the filtering will not be performed in this method, since it relies upon the fitting process. The filtering parameters will thus be unused.

◆ Plot() [1/15]

void eVision.Legacy.ERectangleGauge.Plot	(	eVision.EDrawAdapter	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

◆ Plot() [2/15]

void eVision.Legacy.ERectangleGauge.Plot	(	eVision.EDrawAdapter	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

◆ Plot() [3/15]

void eVision.Legacy.ERectangleGauge.Plot	(	eVision.EDrawAdapter	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

◆ Plot() [4/15]

void eVision.Legacy.ERectangleGauge.Plot	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [5/15]

void eVision.Legacy.ERectangleGauge.Plot	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [6/15]

void eVision.Legacy.ERectangleGauge.Plot	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [7/15]

void eVision.Legacy.ERectangleGauge.Plot	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [8/15]

void eVision.Legacy.ERectangleGauge.Plot	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [9/15]

void eVision.Legacy.ERectangleGauge.Plot	(	IntPtr	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [10/15]

void eVision.Legacy.ERectangleGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [11/15]

void eVision.Legacy.ERectangleGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [12/15]

void eVision.Legacy.ERectangleGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [13/15]

void eVision.Legacy.ERectangleGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [14/15]

void eVision.Legacy.ERectangleGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Plot() [15/15]

void eVision.Legacy.ERectangleGauge.Plot	(	System.Drawing.Graphics	graphicContext,
		eVision.ERGBColor	color,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
color	The color in which to draw the overlay.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ PlotWithCurrentPen() [1/3]

void eVision.Legacy.ERectangleGauge.PlotWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ PlotWithCurrentPen() [2/3]

void eVision.Legacy.ERectangleGauge.PlotWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ PlotWithCurrentPen() [3/3]

void eVision.Legacy.ERectangleGauge.PlotWithCurrentPen	(	IntPtr	graphicContext,
		eVision.EPlotItem	drawItems,
		float	width,
		float	height,
		float	originX,
		float	originY )

Draws the profile that is crossed by one of the sample paths of the gauge, as defined by EPlotItem.

Parameters

graphicContext	Handle of the device context on which to draw.
drawItems	Boolean combination of EPlotItem members, that indicates which items must be displayed.
width	Width of the plot.
height	Height of the plot.
originX	Origin point coordinates of the plot along the X axis.
originY	Origin point coordinates of the plot along the Y axis.

The sample path that is taken into considered is the one inspected with the last call to ERectangleGauge.MeasureSample.

Note: For this method to succeed, it is necessary to previously call ERectangleGauge.MeasureSample.

Deprecated: Deprecated in version 23.12. Scheduled to be removed in version 27.6.

◆ Process() [1/4]

override void eVision.Legacy.ERectangleGauge.Process ( eVision.EROIBW8 sourceImage )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage Pointer to the source image.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ Process() [2/4]

override void eVision.Legacy.ERectangleGauge.Process	(	eVision.EROIBW8	sourceImage,
		bool	daughters )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
daughters	Flag indicating whether the daughters shapes inherit of the same behavior.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ Process() [3/4]

override void eVision.Legacy.ERectangleGauge.Process	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ Process() [4/4]

override void eVision.Legacy.ERectangleGauge.Process	(	eVision.EROIBW8	sourceImage,
		eVision.ERegion	region,
		bool	daughters )

virtual

Triggers the process pertaining to a shape or gauge and all the daughter gauges attach to it.

Parameters

sourceImage	Pointer to the source image.
region	Region to use with the source image.
daughters	Flag indicating whether the daughters shapes inherit of the same behavior.

When complex gauging is required, several gauges can be grouped together. Applying Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process.

Reimplemented from eVision.Legacy.EShape.

◆ RemoveAllSkipRanges()

void eVision.Legacy.ERectangleGauge.RemoveAllSkipRanges ( )

Removes all the skip ranges previously created by a call to ERectangleGauge.AddSkipRange.

◆ RemoveSkipRange()

void eVision.Legacy.ERectangleGauge.RemoveSkipRange ( uint index )

After a call to ERectangleGauge.AddSkipRange, removes the skip range with the given index.

Parameters

index Index of the skip range to remove, as returned by ERectangleGauge.AddSkipRange.

◆ SetMinNumFitSamples() [1/4]

void eVision.Legacy.ERectangleGauge.SetMinNumFitSamples ( int side0 )

Sets the minimum number of samples required for fitting on each side of the shape.

Parameters

side0 Minimum number of samples on the top side of the rectangle. The default value is 2.

When the ERectangleGauge.Measure method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ SetMinNumFitSamples() [2/4]

void eVision.Legacy.ERectangleGauge.SetMinNumFitSamples	(	int	side0,
		int	side1 )

Sets the minimum number of samples required for fitting on each side of the shape.

Parameters

side0	Minimum number of samples on the top side of the rectangle. The default value is 2.
side1	Minimum number of samples on the left side of the rectangle. If this value is not specified, it is equal to n32Side0. The default value is 2.

When the ERectangleGauge.Measure method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ SetMinNumFitSamples() [3/4]

void eVision.Legacy.ERectangleGauge.SetMinNumFitSamples	(	int	side0,
		int	side1,
		int	side2 )

Sets the minimum number of samples required for fitting on each side of the shape.

Parameters

side0	Minimum number of samples on the top side of the rectangle. The default value is 2.
side1	Minimum number of samples on the left side of the rectangle. If this value is not specified, it is equal to n32Side0. The default value is 2.
side2	Minimum number of samples on the bottom side of the rectangle. If this value is not specified, it is equal to n32Side0. The default value is 2.

When the ERectangleGauge.Measure method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

◆ SetMinNumFitSamples() [4/4]

void eVision.Legacy.ERectangleGauge.SetMinNumFitSamples	(	int	side0,
		int	side1,
		int	side2,
		int	side3 )

Sets the minimum number of samples required for fitting on each side of the shape.

Parameters

side0	Minimum number of samples on the top side of the rectangle. The default value is 2.
side1	Minimum number of samples on the left side of the rectangle. If this value is not specified, it is equal to n32Side0. The default value is 2.
side2	Minimum number of samples on the bottom side of the rectangle. If this value is not specified, it is equal to n32Side0. The default value is 2.
side3	Minimum number of samples on the right side of the rectangle. If this value is not specified, it is equal to n32Side1. The default value is 2.

When the ERectangleGauge.Measure method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

Deprecated: Deprecated in version 24.6. Scheduled to be removed in version 27.6.

Property Documentation

◆ Active

new bool eVision.Legacy.ERectangleGauge.Active

getset

Sets the flag indicating whether the gauge is active or not.

When complex gauging is required, several gauges can be grouped together. Applying ERectangleGauge.Process to the mother gauge or shape triggers the measurement of the whole. Only the active gauges will participate in the process. By default, the gauge is active (true).

◆ ActiveEdges

uint eVision.Legacy.ERectangleGauge.ActiveEdges

getset

Active edges as defined in EDragHandle.

In the case of a rectangle fitting gauge, each edge can have its own transition detection parameters. Updating the transition parameters only affect the current active edges. By default, all edges are active.

◆ AverageDistance

float eVision.Legacy.ERectangleGauge.AverageDistance

get

Average distance between the sampled points and the fitted model.

Irrelevant in case of a point location operation.

◆ FilteringThreshold

float eVision.Legacy.ERectangleGauge.FilteringThreshold

getset

Relative filtering threshold, that is the fraction of the average distance between the sampled points and the fitted model above which a point is filtered out.

Irrelevant in case of a point location operation.

During a model fitting operation, the "filtering" process can be invoked to remove outliers, i.e. points that were located significantly far away from the fitted model (so that their position is dubious).

◆ HVConstraint

bool eVision.Legacy.ERectangleGauge.HVConstraint

getset

Status of the restriction on the orientation of the point location gauge or model fitting sample paths.

Sample paths are the point location gauges placed along the model to be fitted.

◆ InnerFilteringEnabled

bool eVision.Legacy.ERectangleGauge.InnerFilteringEnabled

get

Getter method for the GetInnerFilteringEnabled property. This property is the flag indicating if the inner sampled point filtering is enabled (true).

The inner sampled point filtering is activated as soon as the corresponding threshold is set, getting the ERectangleGauge.InnerFilteringThreshold property. To disable inner filtering, use the ERectangleGauge.DisableInnerFiltering method.

◆ InnerFilteringThreshold

float eVision.Legacy.ERectangleGauge.InnerFilteringThreshold

getset

Sampled point inner filtering threshold.

If inner filtering is enabled, the sampled points that have been found inside the measured rectangle are filtered in regard of their distance to it. If this distance is greater than the threshold, the sampled point is set as invalid, and removed from the measure. This distance is in physical units.

The inner sampled point filtering is activated as soon as the corresponding threshold is set. To disable inner filtering, use the DisableInnerFiltering method.

◆ KnownAngle

bool eVision.Legacy.ERectangleGauge.KnownAngle

getset

Flag indicating whether the rotation angle of the rectangle to be fitted is known or not.

A rectangle model to be fitted may have a well-known orientation. It is possible to impose the value of this rotation angle, thus removing one degree of freedom.

The sign of the rotation angle depends whether the field of view is calibrated or not.

When the field of view is calibrated, the coordinate system is said to be direct, the abscissa extends rightwards and the ordinate extends upwards. In this case, an anticlockwise rotation leads to a positive angle value.
When the field of view is not calibrated, the coordinate system is said to be inverse, the abscissa extends rightwards and the ordinate extends downwards. In this case, a clockwise rotation leads to a positive angle value.

◆ MeasuredRectangle

eVision.Legacy.ERectangle eVision.Legacy.ERectangleGauge.MeasuredRectangle

get

Information pertaining to the fitted rectangle.

Use method EShape.GetFound to get the status of the measurement. ERectangleGauge.MeasuredRectangle returns a successful fitted rectangle if EShape.GetFound is true, otherwise it returns the orginal (nominal) rectangle.

◆ MinAmplitude

uint eVision.Legacy.ERectangleGauge.MinAmplitude

getset

Offset added to the Threshold when a peak is to be detected.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value.

To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected.

When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ MinArea

uint eVision.Legacy.ERectangleGauge.MinArea

getset

Minimum area value.

A transition is detected if its derivative peak reaches Threshold + MinAmplitude value, and then declared valid if the area between the peak curve and the horizontal at level Threshold reaches the MinArea value.

◆ MinNumFitSamples

int [] eVision.Legacy.ERectangleGauge.MinNumFitSamples

getset

Sets/Gets the minimum number of samples required for fitting the shape.

In case of a ERectangleGauge, 4 values are used, one for each side of the rectangle. When the ERectangleGauge.Measure method is called, and if not enough valid points are detected, then the method returns directly, and the measured gauge is set to the nominal parameters.

◆ NumFilteringPasses

uint eVision.Legacy.ERectangleGauge.NumFilteringPasses

getset

Number of filtering passes for a model fitting operation.

Irrelevant in case of a point location operation.

During a filtering pass, the points that are too distant from the model are discarded. During a model fitting operation, the "filtering" process can be invoked to remove outliers, i.e. points that were located significantly far away from the fitted model (so that their position is dubious).

By default (the number of filtering passes is 0), the outliers rejection process is disabled.

◆ NumSamples

uint eVision.Legacy.ERectangleGauge.NumSamples

get

Number of sampled points during the model fitting operation.

Irrelevant in case of a point location operation.

After a model fitting operation, a number of points have been fitted along the model. Among them, some are not reliable because of their Area value. Among the remaining ones, some are filtered out (NumFilteringPasses, FilteringThreshold).

◆ NumSamplesLeftEdge

uint eVision.Legacy.ERectangleGauge.NumSamplesLeftEdge

get

Number of sampled points found on leftmost edge during the measure operation.

◆ NumSamplesLowerEdge

uint eVision.Legacy.ERectangleGauge.NumSamplesLowerEdge

get

Number of sampled points found on lower edge during the measure operation.

◆ NumSamplesRightEdge

uint eVision.Legacy.ERectangleGauge.NumSamplesRightEdge

get

Number of sampled points found on rightmost edge during the measure operation.

◆ NumSamplesUpperEdge

uint eVision.Legacy.ERectangleGauge.NumSamplesUpperEdge

get

Number of sampled points found on upper edge during the measure operation.

◆ NumSamplesX

uint eVision.Legacy.ERectangleGauge.NumSamplesX

get

Number of sampled points found on edge X during the measure operation.

Deprecated

Use ERectangleGauge.NumSamplesRightEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ NumSamplesx

uint eVision.Legacy.ERectangleGauge.NumSamplesx

get

Number of sampled points found on edge x during the measure operation.

Deprecated

Use ERectangleGauge.NumSamplesLeftEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ NumSamplesY

uint eVision.Legacy.ERectangleGauge.NumSamplesY

get

Number of sampled points found on edge Y during the measure operation.

Deprecated

Use ERectangleGauge.NumSamplesUpperEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ NumSamplesy

uint eVision.Legacy.ERectangleGauge.NumSamplesy

get

Number of sampled points found on edge y during the measure operation.

Deprecated

Use ERectangleGauge.NumSamplesLowerEdge instead.

Deprecated in version 24.2. Scheduled to be removed in version 27.6.

◆ NumSkipRanges

uint eVision.Legacy.ERectangleGauge.NumSkipRanges

get

Number of skip ranges in the gauge after a call to ERectangleGauge.AddSkipRange.

◆ NumValidSamples

uint eVision.Legacy.ERectangleGauge.NumValidSamples

get

Number of valid sample points remaining after a model fitting operation.

Irrelevant in case of a point location operation.

After a model fitting operation, a number of points have been fitted along the model. Among them, some are not reliable because of their Area value. Among the remaining ones, some are filtered out (NumFilteringPasses, FilteringThreshold).

◆ RectangularSamplingArea

bool eVision.Legacy.ERectangleGauge.RectangularSamplingArea

getset

Flag indicating whether the sampling area remains a rectangle when rotated, instead of becoming a parallelogram.

By default, this flag is set to true: the sampling area always remains a rectangle.

Setting this property is only useful when the thickness transition parameter is greater than 1. In fact, when thickness transition parameter is equal to 1, rectangle and parallelogram reduce to the same segment.

◆ SamplingStep

float eVision.Legacy.ERectangleGauge.SamplingStep

getset

Approximate distance between sampled points during a model fitting operation.

Irrelevant in case of a point location operation.

To fit a model, a series of point location operations are performed along the model. The point location gauges spacing is given by the sampling step.

By default, the sampling step is set to 5, which means 5 pixels when the field of view is not calibrated, and 5 physical units in case of a calibrated field of view.

Be aware that if the sampling step is too large, the number of sampled points along the model will not be sufficient enough to accurately locate it.

◆ Shape

eVision.Legacy.ERectangle eVision.Legacy.ERectangleGauge.Shape

get

◆ Smoothing

uint eVision.Legacy.ERectangleGauge.Smoothing

getset

Number of pixels used for the low-pass filtering operation.

To reduce the effect of noise, the profile data can be low-pass filtered along the point location gauge direction.

◆ Thickness

uint eVision.Legacy.ERectangleGauge.Thickness

getset

Number of parallel segments used to extract the data profile.

To reduce the effect of noise and/or strengthen a transition, several parallel profiles can be accumulated.

◆ Threshold

uint eVision.Legacy.ERectangleGauge.Threshold

getset

Threshold level used to delimit significant peaks in the data profile.

When analyzing a derivative profile, a peak is made up of consecutive pixel values above Threshold. To detect weak [strong] transitions, lower [raise] the Threshold value.

To avoid interference of noise, an additional parameter is provided. The MinAmplitude parameter is an offset added to Threshold when a peak is to be detected.

When the pixel values of the derivative profile do not reach Threshold + MinAmplitude, the peak is not taken into account. Anyway, when a peak is taken into account, all the pixels with values above Threshold are considered (for more accuracy). Setting the MinAmplitude value to 0 merely cancels its effect.

◆ Tolerance

float eVision.Legacy.ERectangleGauge.Tolerance

getset

Searching area half thickness of the rectangle fitting gauge.

A rectangle fitting gauge is fully defined knowing its nominal position (its center coordinates), its nominal size, its rotation angle, and its outline tolerance.

By default, the searching area thickness of the rectangle fitting gauge is 20 (2x10), which means 20 pixels when the field of view is not calibrated, and 20 physical units in case of a calibrated field of view.

◆ TransitionChoice

eVision.ETransitionChoice eVision.Legacy.ERectangleGauge.TransitionChoice

getset

Transition choice.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition.

In case of ETransitionChoice.ETransitionChoice_NthFromBegin or ETransitionChoice.ETransitionChoice_NthFromEnd transition choice, set ERectangleGauge.TransitionIndex to specify the desired transition.

By default, the selected transition corresponds to the one with the largest amplitude (ETransitionChoice.ETransitionChoice_LargestAmplitude).

◆ TransitionIndex

uint eVision.Legacy.ERectangleGauge.TransitionIndex

getset

Index (from 0 on) of the transition to be retained when the transition choice parameter is set to ETransitionChoice.ETransitionChoice_NthFromBegin or ETransitionChoice.ETransitionChoice_NthFromEnd.

Several peaks may be detected along a point location gauge. This parameter helps to select the desired transition.

By default, the first transition is retained (the index value is 0).

◆ TransitionType

eVision.ETransitionType eVision.Legacy.ERectangleGauge.TransitionType

getset

Transition type.

The type of a transition tells whether it crosses increasing or decreasing gray-level values. This helps discriminate between nearby edges of an object.

By default, the searched transition type is indifferently a black to white or a white to black transition (ETransitionType.ETransitionType_BwOrWb).

◆ Type

override eVision.EShapeType eVision.Legacy.ERectangleGauge.Type

get

Shape type.

◆ Valid

bool eVision.Legacy.ERectangleGauge.Valid

get

Flag indicating if at least one valid transition has been found.

A false value means that no measurement has been performed.

A true value means that a transition was found along the sample path inspected with the last call to ERectangleGauge.MeasureSample, and thus a point has been measured.

Public Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ ERectangleGauge() [1/2]

◆ ERectangleGauge() [2/2]

Member Function Documentation

◆ AddSkipRange() [1/2]

◆ AddSkipRange() [2/2]

◆ CopyTo() [1/2]

◆ CopyTo() [2/2]

◆ DisableInnerFiltering()

◆ Drag()

◆ Draw() [1/15]

◆ Draw() [2/15]

◆ Draw() [3/15]

◆ Draw() [4/15]

◆ Draw() [5/15]

◆ Draw() [6/15]

◆ Draw() [7/15]

◆ Draw() [8/15]

◆ Draw() [9/15]

◆ Draw() [10/15]

◆ Draw() [11/15]

◆ Draw() [12/15]

◆ Draw() [13/15]

◆ Draw() [14/15]

◆ Draw() [15/15]

◆ DrawWithCurrentPen() [1/3]

◆ DrawWithCurrentPen() [2/3]

◆ DrawWithCurrentPen() [3/3]

◆ GetMeasuredPoint() [1/2]

◆ GetMeasuredPoint() [2/2]

◆ GetMinNumFitSamples()

◆ GetSample() [1/2]

◆ GetSample() [2/2]

◆ GetSampleLeftEdge() [1/3]

◆ GetSampleLeftEdge() [2/3]

◆ GetSampleLeftEdge() [3/3]

◆ GetSampleLowerEdge() [1/3]

◆ GetSampleLowerEdge() [2/3]

◆ GetSampleLowerEdge() [3/3]

◆ GetSampleRightEdge() [1/3]

◆ GetSampleRightEdge() [2/3]

◆ GetSampleRightEdge() [3/3]

◆ GetSampleUpperEdge() [1/3]

◆ GetSampleUpperEdge() [2/3]

◆ GetSampleUpperEdge() [3/3]

◆ GetSampleX() [1/3]

◆ GetSampleX() [2/3]

◆ GetSampleX() [3/3]

◆ GetSamplex() [1/3]

◆ GetSamplex() [2/3]

◆ GetSamplex() [3/3]

◆ GetSampleY() [1/3]

◆ GetSampleY() [2/3]

◆ GetSampleY() [3/3]

◆ GetSampley() [1/3]

◆ GetSampley() [2/3]

◆ GetSampley() [3/3]

◆ GetSkipRange() [1/2]

◆ GetSkipRange() [2/2]

◆ HitTest() [1/2]

◆ HitTest() [2/2]

◆ Measure() [1/2]

◆ Measure() [2/2]

◆ MeasureSample() [1/2]

◆ MeasureSample() [2/2]

◆ MeasureWithoutFitting() [1/2]

◆ MeasureWithoutFitting() [2/2]

◆ Plot() [1/15]

◆ Plot() [2/15]

◆ Plot() [3/15]

◆ Plot() [4/15]

◆ Plot() [5/15]

◆ Plot() [6/15]

◆ Plot() [7/15]

◆ Plot() [8/15]

◆ Plot() [9/15]

◆ Plot() [10/15]
