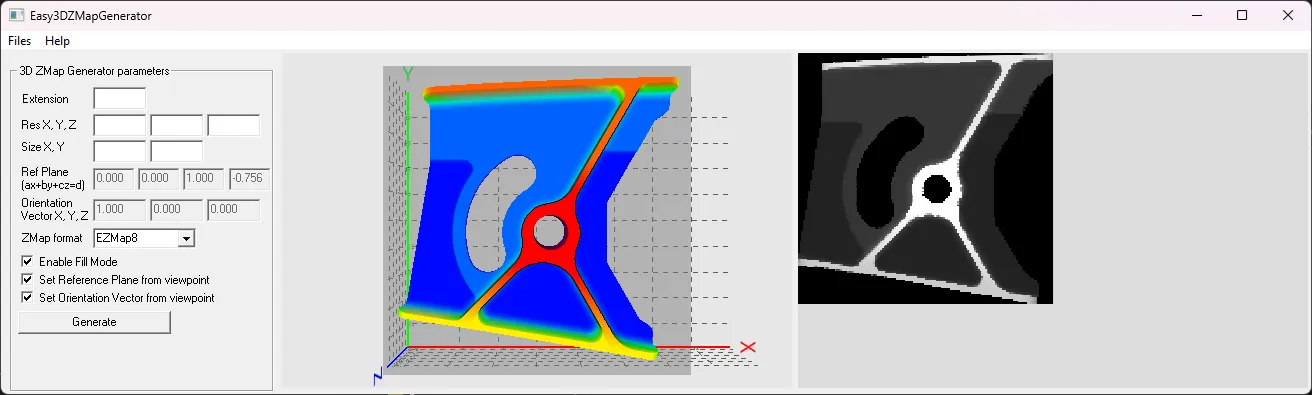

Easy3DZMapGenerator

Support
Required licenses	Easy3D
Recommended images	Any point cloud or mesh file in the folder Sample Images/3D
Location	3D Processing/Easy3DZMapGenerator

Purpose

This sample program demonstrates how to:

• Generate a ZMap from a mesh or a point cloud.

Code highlights

For example, use the image Sample Images/3D/Easy3DMatch/Align/object 1/object1_cad.stl.

1. Set the reference plane on which the ZMap is based.

   converter.ReferencePlane = refPlane;


2. Use the specified options to convert the mesh to a ZMap.

   converter.Convert(referenceMesh_, generatedZMap_);
