Unwarping an Image

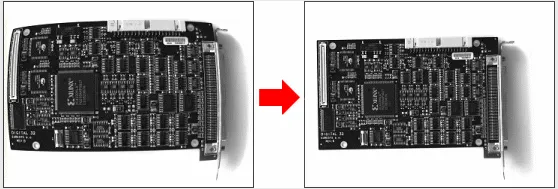

Unwarping an image is the application of the calibration model to create a rectified, distortion free image.

• To unwarp an image, use the method ECameraCalibration::Unwarp ^{.NET Python}.

• If the calibration model is fixed, you can speed up the unwarping process by first computing a lookup table with ECameraCalibration::SetupUnwarp ^{.NET Python}.

• Use ECameraCalibration::GetUnwarpedCalibration ^{.NET Python} to get the calibration of the unwarped image.

  • The calibration of an unwarped image is an affine transformation.

  • It has the modes ECalibrationMode_Scaled ^{.NET Python}, ECalibrationMode_Anisotropic ^{.NET Python}, ECalibrationMode_Inverse ^{.NET Python} and ECalibrationMode_Skewed ^{.NET Python}.
